Turbine & Rotating Machinery Vibration Monitoring Solution — Bently Nevada 31000-16-10-00-159-00-02 | 3300 Series
Where This Product Is Used

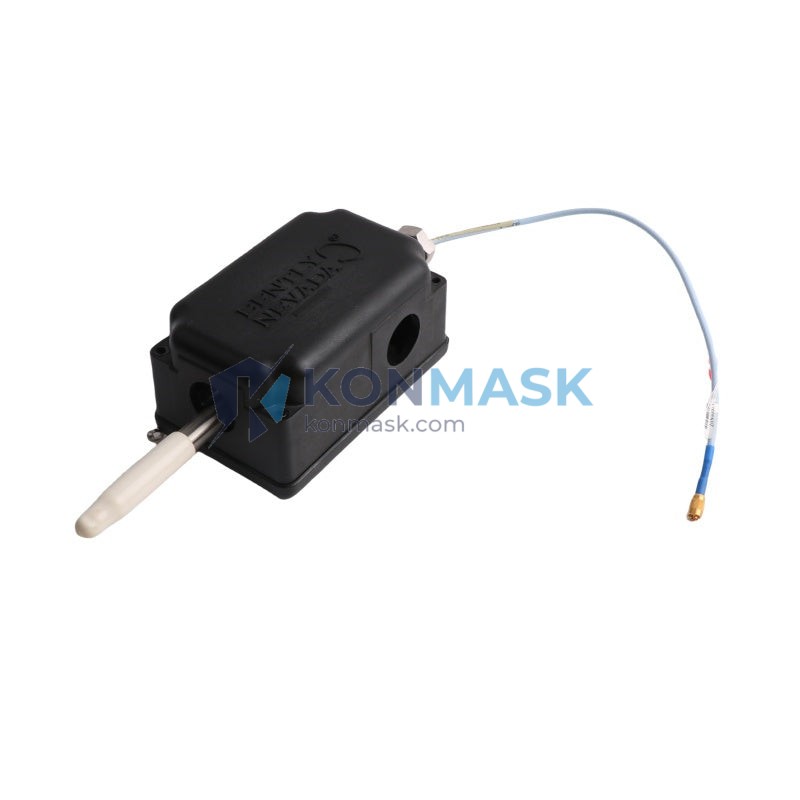

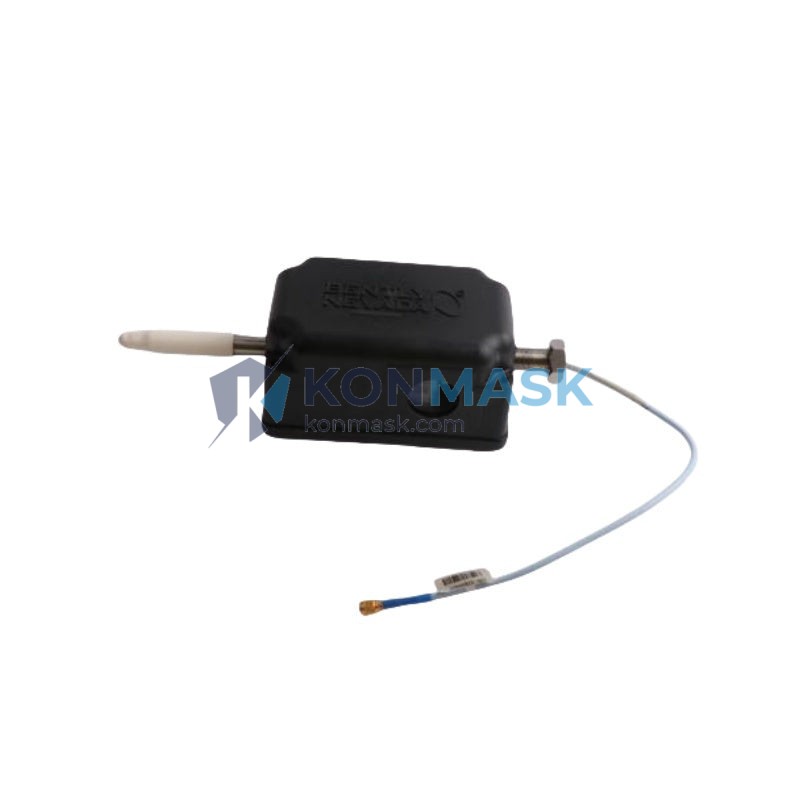

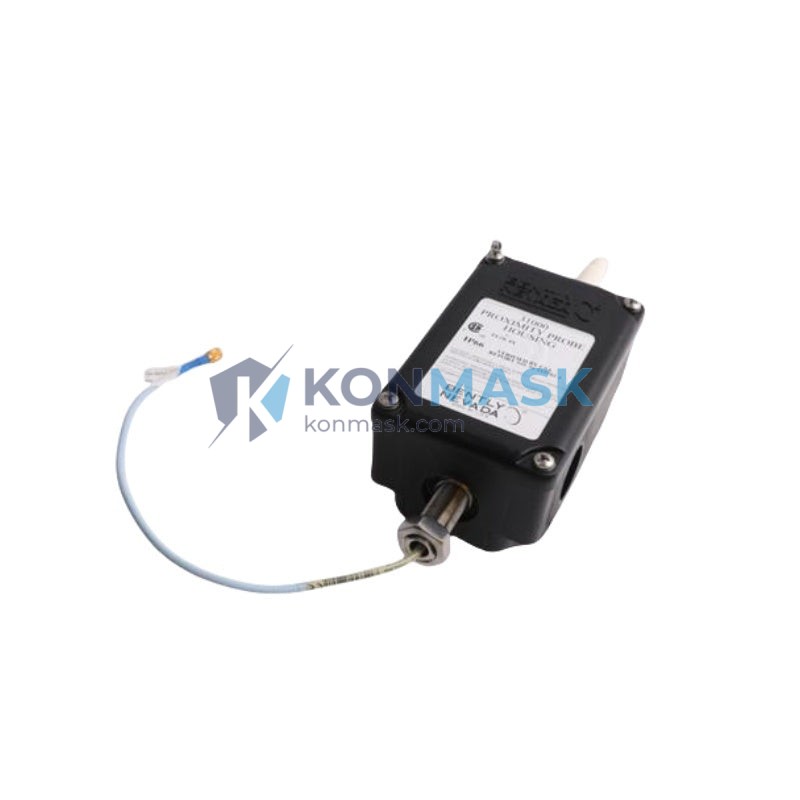

The Bently Nevada 31000-16-10-00-159-00-02 Proximity Probe Housing Assembly is engineered for continuous, non-contact shaft vibration and position measurement in high-speed rotating machinery. Typical deployment environments include:
- Steam & Gas Turbines — radial vibration monitoring on HP/LP rotor shafts
- Centrifugal Compressors — axial position and differential expansion measurement
- Pumps & Fans — bearing journal orbit analysis in petrochemical plants
- Gearboxes — gear mesh frequency and shaft eccentricity detection
- Marine Propulsion Systems — shaft alignment verification under load
- Power Generation — generator rotor runout and eccentricity monitoring per API 670
This housing assembly secures the eddy-current probe tip at a precise, repeatable standoff distance from the target shaft, ensuring measurement accuracy across the full operating temperature and vibration range of the machine.
Technical Specifications
| Part Number | 31000-16-10-00-159-00-02 |
| Series | Bently Nevada 3300 Series |
| Component Type | Proximity Probe Housing Assembly |
| Sensing Technology | Eddy Current (Non-contact) |
| Probe Tip Diameter | 16 mm (encoded in part number) |
| Cable Length | As specified by suffix (-02 = 2 m extension) |
| Target Material Compatibility | Steel, Stainless Steel, Inconel, Chrome-plated shafts |
| Operating Temperature | –40 °C to +177 °C (probe body) |
| Connector Type | Integral coaxial, compatible with 3300 XL drivers |
| Housing Material | Stainless steel body with threaded mounting |
| Weight | 60 g (approx.) |
| Compliance | API 670, CE, RoHS |
Why Engineers Specify This Model
- Exact OEM Replacement — drop-in fit for existing 3300 Series installations without recalibration of the monitoring system
- High Linearity — consistent output across the full measurement gap range, minimizing false alarms in critical machinery protection systems
- Robust Housing Design — stainless steel body resists oil, steam, and process gas environments common in refinery and power plant applications
- Plug-and-Play with 3300 XL Drivers — no additional signal conditioning required; direct connection to Bently Nevada 3300 XL proximitor/seismometer
- Long Service Life — non-contact measurement eliminates mechanical wear, reducing maintenance intervals and unplanned downtime
- API 670 Compliant — meets the machinery protection standard required by most EPC contractors and end-user specifications
Complete System Bill of Materials
For a fully functional radial vibration monitoring channel using this probe housing, the following components are typically required:
- Proximity Probe Housing Assembly — 31000-16-10-00-159-00-02 (this item)
- Extension Cable — Bently Nevada 330130 Series (length matched to installation)
- Proximitor / Driver — Bently Nevada 3300 XL 8mm or 11mm Proximitor (e.g., 330180-X1-05)
- Rack Monitor — Bently Nevada 3500/42M Proximitor/Seismic Monitor Module
- Rack Chassis — Bently Nevada 3500 Rack (19-inch, 3U)
- Power Supply — Bently Nevada 3500/15 Power Supply Module
- Communication Gateway — Bently Nevada 3500/92 Communication Gateway (optional, for DCS integration)
Contact Konmask.com for complete system quotations and compatibility verification.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- IEC 61511 — Functional Safety for Process Industry (SIL-rated installations)
- ISO 10816 / ISO 20816 — Mechanical Vibration — Evaluation of Machine Vibration
- CE Marking — European Conformity for EMC and Low Voltage Directive
- RoHS Compliant — Restriction of Hazardous Substances
- ATEX / IECEx — Consult factory for hazardous area certified variants
Quality Assurance & Sourcing
Konmask.com sources the Bently Nevada 31000-16-10-00-159-00-02 through verified industrial distribution channels. Every unit undergoes the following before shipment:
- Visual and dimensional inspection against OEM datasheet
- Packaging integrity check (original or equivalent protective packaging)
- Traceability documentation — lot number, date code, and country of origin recorded
- Functional verification available on request (gap vs. output linearity test)
We maintain stock of critical 3300 Series components to support emergency maintenance and planned turnaround (TAR) schedules.
How to Source This Part
- Online Order — Add to cart and check out directly on Konmask.com. We ship globally via DHL Express, FedEx International Priority, and sea freight for bulk orders.
- RFQ for Volume — Email support@konmask.com with your required quantity and delivery schedule for a competitive quotation.
- Emergency / AOG — Call +0086 19859288691 for same-day quotation and expedited shipping on critical spares.
- System Integration Support — Our engineers can advise on complete 3300/3500 system configurations, cable routing, and driver calibration.
Application-Specific FAQ
Q: Is the 31000-16-10-00-159-00-02 compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. This probe housing is designed for use with the 3300 XL Proximitor driver, which interfaces directly with the 3500/42M monitor module in the 3500 rack system.
Q: What is the recommended gap voltage for this probe on a steel shaft?
A: Typically –10 VDC at the nominal 1.0 mm (40 mil) gap, per the 3300 XL calibration curve. Verify against the specific proximitor driver datasheet for your installation.
Q: Can this housing be used in a hazardous (classified) area?
A: Standard units are not ATEX/IECEx certified. Contact us to confirm availability of intrinsically safe or explosion-proof variants for Zone 1/2 or Division 1/2 installations.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For out-of-stock situations, typical lead time is 2–4 weeks. Contact us for current availability.
Q: Do you provide a warranty?
A: Yes. Konmask.com offers a 12-month warranty against manufacturing defects on all genuine Bently Nevada components sourced through our supply chain.
