Vibration Monitoring Solution – Bently Nevada 31000-30-05-15-049-03-02 | 3300 Series Proximity Probe Housing Assembly
Where This Product Is Used

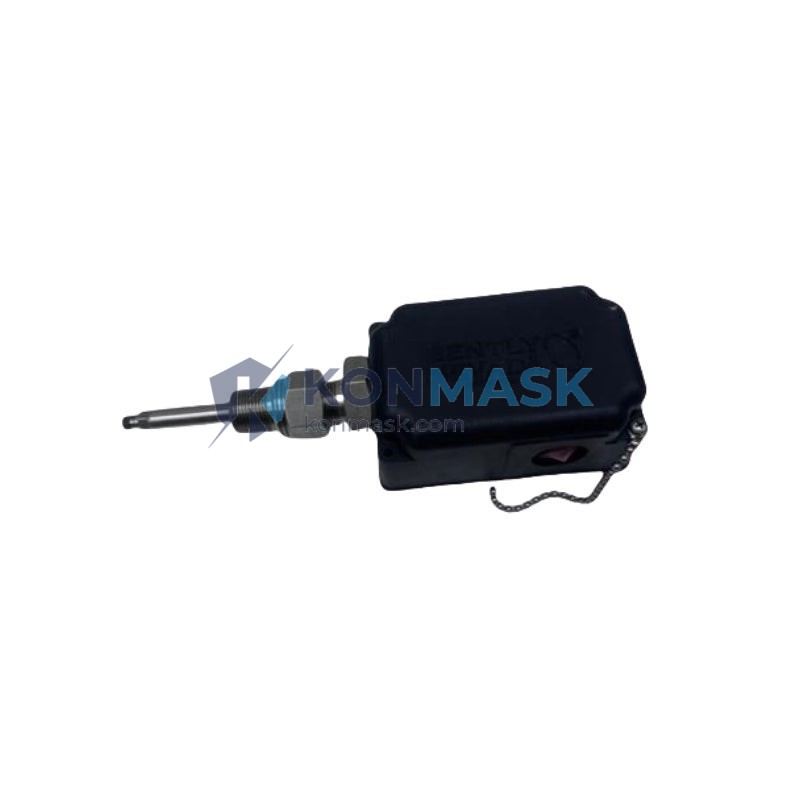

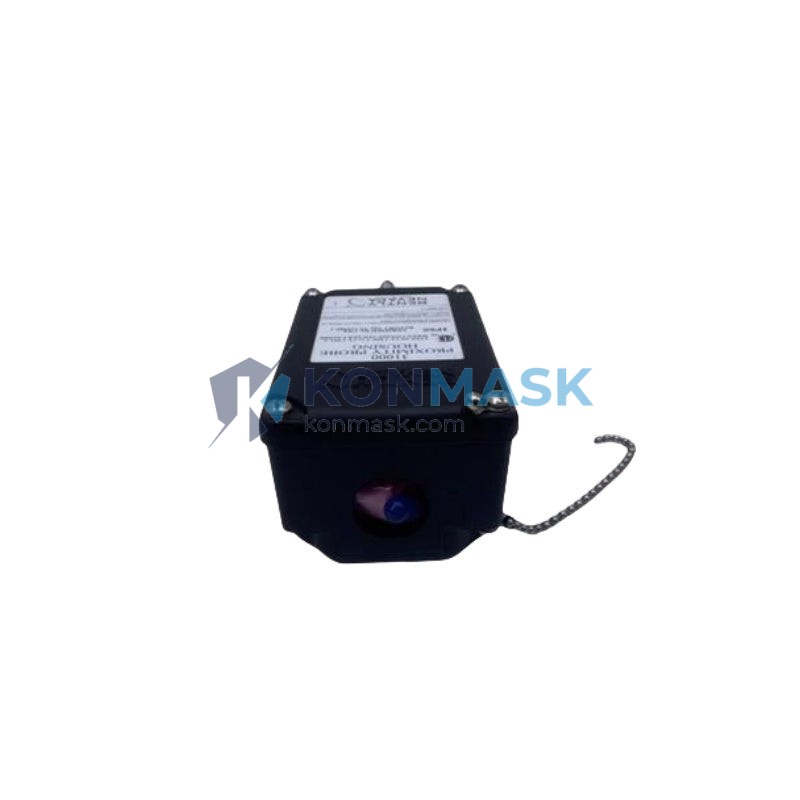

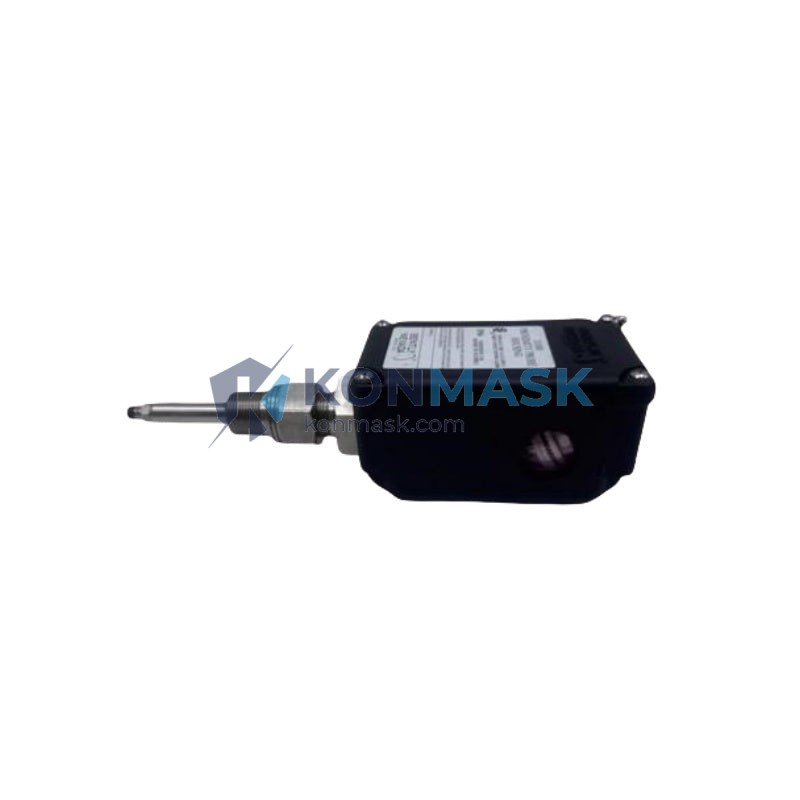

The Bently Nevada 31000-30-05-15-049-03-02 Proximity Probe Housing Assembly is a precision eddy-current sensing component engineered for continuous, non-contact shaft vibration and position measurement in rotating machinery. It is deployed in the most demanding industrial environments where uptime is non-negotiable:
- Steam & Gas Turbines – Radial vibration and axial position monitoring on HP/LP turbine shafts in power generation plants.
- Centrifugal Compressors – Real-time shaft orbit tracking in petrochemical and LNG compression trains.
- Pumps & Fans – Continuous displacement monitoring in critical process pumps and induced-draft fans.
- Gearboxes – Gear mesh frequency analysis and shaft eccentricity detection.
- Marine Propulsion Systems – Shaft alignment verification and vibration surveillance on vessel drive trains.
- Nuclear & Fossil Power Plants – Safety-critical machinery protection per API 670 requirements.
Technical Specifications
| Part Number | 31000-30-05-15-049-03-02 |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 / 31000 & 32000 Proximity Probe Housing Assemblies |
| Sensing Technology | Eddy-Current (Non-Contact) |
| Probe Tip Diameter | 8 mm (standard) |
| Linear Range | Approx. 0–2 mm (application-dependent) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) nominal |
| Operating Temperature | –35 °C to +177 °C (probe body) |
| Cable Length | Per part-number suffix (see ordering guide) |
| Connector Type | Integral coaxial, compatible with 3300 XL driver/extension |
| Housing Material | Stainless steel, corrosion-resistant |
| Weight | 1,700 g (assembly with cable) |
| Approvals | CE, ATEX, IECEx (consult datasheet for specific suffix) |
Why Engineers Specify This Model
- Drop-in Compatibility – Direct replacement for existing 3300 XL and 3500 series monitoring systems without recalibration of the rack.
- High-Temperature Stability – Maintains calibration accuracy up to 177 °C, critical for hot-section turbine bearing pedestals.
- Robust Housing Design – Stainless steel body with integral cable strain relief resists vibration fatigue and process fluid ingress.
- Traceable Calibration – Each assembly is factory-calibrated and ships with a certificate of conformance traceable to NIST standards.
- Long Cable Options – Available in multiple extension cable lengths to suit varying machine train geometries without signal degradation.
- Proven Field Record – Tens of thousands of units deployed globally in API 670-compliant machinery protection systems.
Complete System Bill of Materials
For a fully functional proximity measurement loop, the following Bently Nevada components are typically required:
- Probe (this item) – 31000-30-05-15-049-03-02 Housing Assembly
- Extension Cable – 330130-xxx-xx-CN (length per application)
- Proximitor / Driver – 3300 XL 8 mm Proximitor Sensor (e.g., 330180-91-00)
- Monitor Module – 3500/40M Proximitor / Seismic Monitor or equivalent 3500 series card
- Rack – 3500 Monitoring System mainframe with power supply
- Mounting Hardware – Probe holder, lock nut, and bracket (machine-specific)
Contact support@konmask.com for complete BOM assistance and cross-reference support.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation of machines
- IEC 60079 – Equipment for explosive atmospheres (ATEX/IECEx variants)
- CE Marking – Electromagnetic Compatibility Directive
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
Konmask.com sources the Bently Nevada 31000-30-05-15-049-03-02 through verified industrial distribution channels. Every unit undergoes the following before shipment:
- Visual and dimensional inspection against OEM drawings
- Functional continuity and impedance verification
- Packaging integrity check with anti-static and moisture-barrier protection
- Documentation review: CoC, datasheet, and traceability records
We maintain strict no-counterfeit policies and work exclusively with traceable supply chains.
How to Source This Part
Ready to order or need a formal quotation?
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: Typically 3–10 business days depending on stock availability
- Shipping: Worldwide DHL / FedEx / UPS express available
- Payment: T/T, PayPal, credit card accepted
Provide your full part number, required quantity, and delivery destination for the fastest response.
Application-Specific FAQ
Q: Is the 31000-30-05-15-049-03-02 compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. When paired with the correct 3300 XL Proximitor driver and extension cable, this probe integrates directly with the 3500 series rack without additional signal conditioning.
Q: Can this probe be used in hazardous (Zone 1 / Zone 2) areas?
A: ATEX/IECEx-certified variants are available. Confirm the suffix code on your part number or contact us to verify the appropriate certification for your installation.
Q: What is the recommended gap voltage for initial setup?
A: Bently Nevada recommends a nominal gap voltage of –10 VDC (±0.5 V) for the 8 mm probe in a standard 3300 XL system. Refer to the system TDI for machine-specific settings.
Q: Do you supply calibration certificates?
A: Yes. A factory certificate of conformance is included with each unit. Third-party calibration reports can be arranged upon request.
Q: Can I order a single unit or do you require minimum quantities?
A: Single-unit orders are accepted. Volume pricing is available for orders of 5 units or more.
