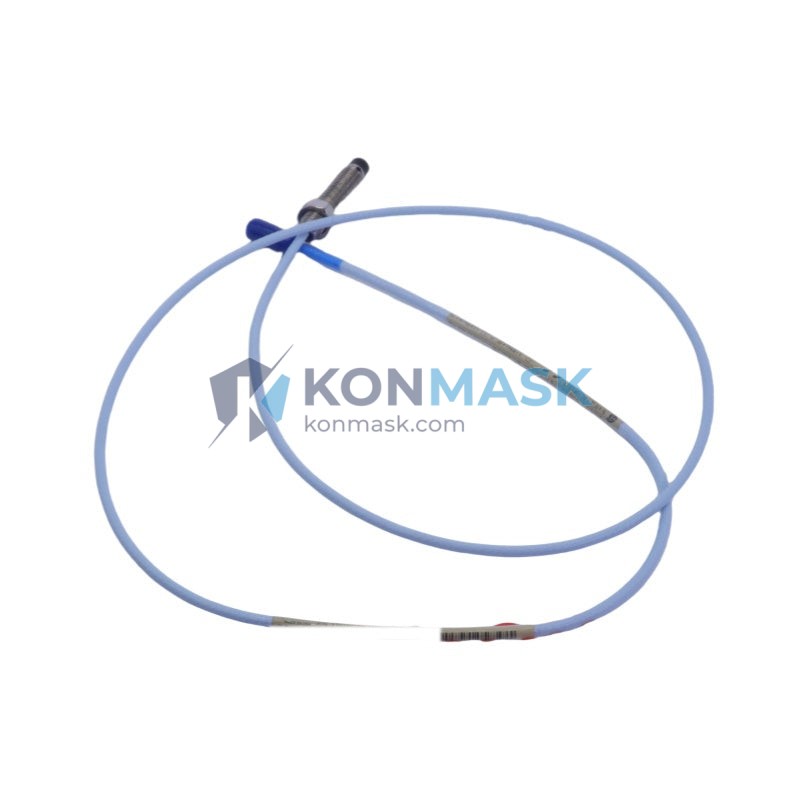

Genuine Bently Nevada 330101-00-10-05-02-05 Proximity Transducer | 3300 Series – Verified Source
The Bently Nevada 330101-00-10-05-02-05 is a high-precision eddy current proximity transducer from the industry-leading 3300 Series condition monitoring system. Designed for continuous, non-contact measurement of shaft vibration, position, and eccentricity in rotating machinery, this transducer delivers the reliability and accuracy that critical industrial applications demand. Konmask.com is a verified global supplier of genuine Bently Nevada components — sourced through authorized channels with full traceability.
Technical Specifications
| Part Number | 330101-00-10-05-02-05 |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 Series Proximity Transducer System |
| Sensor Type | Eddy Current (Non-contact) |
| Measurement | Shaft vibration, axial position, eccentricity |
| Cable Length | 1.0 m (standard configuration) |
| Thread Size | 5 mm |
| Tip Diameter | 5 mm |
| Operating Temperature | -35°C to +120°C |
| Output | -18 VDC nominal (with matched driver) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm to 2.54 mm (10 to 100 mil) |
| Weight | 120 g (approx.) |
| Compliance | API 670, CE |
Our 4-Step Quality Verification Process
Every Bently Nevada component shipped from Konmask.com passes through our rigorous 4-step verification protocol before dispatch:
- Step 1 — Source Authentication: All units are procured from authorized distributors or directly from Baker Hughes / Bently Nevada certified channels. We maintain full purchase documentation for every batch.
- Step 2 — Physical Inspection: Each unit undergoes visual and dimensional inspection — checking labels, serial numbers, housing integrity, connector condition, and cable sheathing for any signs of counterfeit or damage.
- Step 3 — Functional Bench Test: Where applicable, units are bench-tested against Bently Nevada published specifications using calibrated test equipment to verify output sensitivity and linearity.
- Step 4 — Packaging & Documentation Review: Original OEM packaging, datasheets, and calibration certificates (where available) are verified and included with shipment.
Key Features & Benefits
- Non-contact eddy current sensing — zero mechanical wear, maintenance-free operation
- High sensitivity (7.87 V/mm) for precise shaft displacement measurement
- Wide operating temperature range suitable for harsh industrial environments
- Fully compatible with Bently Nevada 3300 Series drivers and monitors
- API 670 compliant — meets international machinery protection standards
- Compact 5 mm tip design for tight installation clearances
- Plug-and-play replacement for existing 3300 Series installations
Typical Applications
- Steam and gas turbines — shaft radial vibration monitoring
- Centrifugal compressors — rotor position and eccentricity measurement
- Pumps and motors — bearing journal displacement tracking
- Gearboxes — gear mesh frequency analysis
- Expanders and fans in petrochemical and power generation plants
- Any rotating machinery requiring API 670-compliant vibration monitoring
Compatible System Components
The 330101-00-10-05-02-05 is designed to operate as part of the complete Bently Nevada 3300 Series Proximity Transducer System. Compatible components include:
- Extension Cables: 330130-045-00-00, 330130-080-00-00 (various lengths)
- Drivers / Oscillator-Demodulators: 330180-X1-05, 330180-X1-CN
- Monitors: 3300/16 Dual Vibration Monitor, 3300/20 Thrust Position Monitor
- Rack Systems: 3500 Series Machinery Protection System (with appropriate I/O modules)
Contact us to confirm compatibility with your specific system configuration.
Global Sourcing & Shipping Capabilities
- Stock Availability: In-stock and ex-stock units available — contact us for real-time inventory status
- Lead Time: Typically 3–7 business days for in-stock items; 2–4 weeks for sourced orders
- Shipping Destinations: Worldwide — including USA, EU, Middle East, Southeast Asia, and Australia
- Export Compliance: All international shipments handled in accordance with applicable export control regulations
- Packaging: Anti-static, shock-protected packaging with full customs documentation
Certifications & Compliance Statement
- API 670 — Machinery Protection Systems standard compliance
- CE Marking — European conformity for electrical equipment
- RoHS compliant materials
- All units supplied with available OEM documentation; calibration certificates provided upon request
- Konmask.com maintains ISO-aligned sourcing and quality management practices
How to Order
- Click Add to Cart or use the Request a Quote form for bulk or custom orders
- Provide your required quantity, delivery destination, and any system configuration details
- Our technical team will confirm availability, lead time, and pricing within 24 hours
- Payment accepted via T/T (bank transfer), PayPal, and major credit cards
- Shipment with full tracking, commercial invoice, and packing list provided
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Authenticity & Trust FAQ
Q: Are these genuine Bently Nevada parts?
A: Yes. All units are sourced from verified supply channels. We provide full sourcing documentation upon request.
Q: Can you provide a certificate of conformance?
A: Yes, certificates of conformance and available calibration records are provided with qualifying orders.
Q: Do you offer a warranty?
A: We offer a 90-day warranty against defects in materials and workmanship on all supplied units. Extended warranty options are available — contact us for details.
Q: What if the part doesn’t match my system?
A: Our technical team will assist with compatibility verification before shipment. We accept returns for incorrectly supplied items within 30 days.
Q: How do I verify the part number matches my requirement?
A: The full part number 330101-00-10-05-02-05 encodes cable length, tip size, and configuration. Share your existing part label or system drawing and we will confirm the match.
