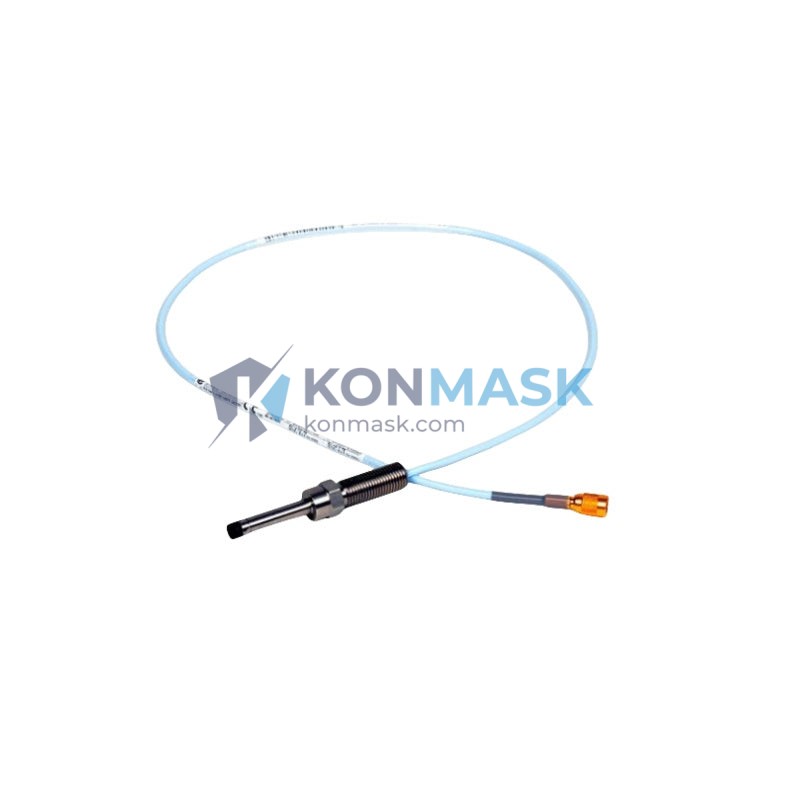

Genuine Bently Nevada 330101-00-20-10-10-02-05 Proximity Probe & Extension Cable | 3300 Series – Verified Source
The Bently Nevada 330101-00-20-10-10-02-05 is a precision eddy-current proximity probe paired with a matched extension cable, engineered for continuous shaft vibration and position monitoring in rotating machinery. As an authorized distributor and verified reseller, Konmask.com supplies this part with full traceability documentation and pre-shipment inspection.
Technical Specifications
- Part Number: 330101-00-20-10-10-02-05
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL 8 mm Proximity Transducer System
- Probe Type: Eddy-Current (Non-contact)
- Probe Length: 200 mm (20 cm active tip)
- Cable Length: 1.0 m extension cable
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Operating Gap Range: 0.25 – 2.54 mm (10 – 100 mil)
- Frequency Response: DC to 10,000 Hz
- Temperature Range: −35 °C to +177 °C (probe); −35 °C to +85 °C (cable)
- Supply Voltage: −24 VDC (nominal)
- Output: −2 to −18 VDC linear range
- Connector: MIL-C-5015 style
- Weight: Approx. 440 g (assembled)
- HS Code: 9031.80 (precision measurement instruments)
- Country of Origin: USA
Our 4-Step Quality Verification Process
Every Bently Nevada unit shipped from Konmask.com passes through a documented 4-step inspection before dispatch:
- Step 1 – Visual Inspection: Housing, connector pins, cable jacket, and probe tip examined for physical damage, corrosion, or counterfeit markings.
- Step 2 – Label & Serial Verification: Part number, date code, and serial number cross-referenced against Bently Nevada / Baker Hughes manufacturer records.
- Step 3 – Functional Bench Test: Probe gap-voltage linearity verified using calibrated driver/monitor test bench (3300 XL compatible).
- Step 4 – Documentation Package: Certificate of Conformance (CoC), inspection report, and packing list issued with every shipment.
Key Features & Benefits
- Non-contact measurement — zero mechanical wear on shaft surface
- High-frequency response captures sub-synchronous and super-synchronous vibration events
- Matched probe + cable + driver system ensures calibrated sensitivity without field trimming
- Armored cable jacket rated for high-temperature, oil-mist, and chemical-splash environments
- Direct drop-in replacement for existing 3300 XL installations — no re-wiring required
- Compatible with Bently Nevada 3500 Series rack monitors and System 1 software
Typical Applications
- Steam & Gas Turbines: Radial shaft vibration and axial position monitoring per API 670
- Centrifugal Compressors: Continuous rotor orbit and eccentricity measurement
- Pumps & Fans: Bearing journal displacement monitoring in critical process loops
- Gearboxes: Gear mesh frequency analysis and shaft runout detection
- Electric Motors: Rotor dynamic balance verification and bearing clearance trending
- Hydro Turbines: Guide vane and runner shaft position feedback
Compatible System Components
- Driver/Monitor: Bently Nevada 3300 XL Driver (330180 series)
- Rack Monitor: Bently Nevada 3500/42M Proximitor / Seismic Monitor
- Condition Monitoring: System 1 Evolution Software (GE / Baker Hughes)
- Junction Box: Bently Nevada 3300 XL Field Wiring Enclosure
- Replacement Probe Only: 330101-00-20-10-10-01-00 (without extension cable)
Global Sourcing & Shipping Capabilities
- Stock Location: Shenzhen, China — bonded warehouse with export clearance
- Lead Time: In-stock units ship within 1–3 business days; ETA varies by destination
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight for bulk orders
- Export Documentation: Commercial invoice, packing list, CoC, and HS code declaration provided
- Regions Served: Americas, Europe, Middle East, Southeast Asia, Australia
- Minimum Order: 1 unit; volume pricing available for 5+ units
Certifications & Compliance Statement
- Manufactured to API 670 (Machinery Protection Systems) standard
- CE Marked — EMC Directive 2014/30/EU compliant
- RoHS Compliant — Directive 2011/65/EU
- ATEX / IECEx — Intrinsically safe variants available upon request
- Konmask.com operates under ISO 9001:2015 quality management principles for sourcing and inspection
How to Order
- Click Add to Cart or Contact Us for a formal quotation
- Provide your delivery address and required quantity for accurate freight quote
- Our team confirms stock availability and issues a Pro Forma Invoice within 24 hours
- Payment via T/T bank transfer, PayPal, or credit card (Stripe)
- Unit ships with full documentation; tracking number provided same day
Authenticity & Trust FAQ
Q: Are these genuine Bently Nevada parts?
A: Yes. All units are sourced from authorized distribution channels or verified surplus stock. Each unit is inspected and documented before shipment.
Q: Can you provide a Certificate of Conformance?
A: Yes. A CoC is issued with every order at no additional charge.
Q: Do you accept returns if the part is defective?
A: Yes. We offer a 30-day return policy for defective or mis-shipped items. Contact support@konmask.com within 30 days of receipt.
Q: Can you source other Bently Nevada 3300 / 3500 Series parts?
A: Yes. We maintain an extensive inventory of Bently Nevada proximity probes, drivers, monitors, and cables. Contact us with your full BOM.
Q: What if I need expedited shipping?
A: DHL Express next-flight-out service is available for urgent requirements. Contact us before placing your order to arrange priority dispatch.
