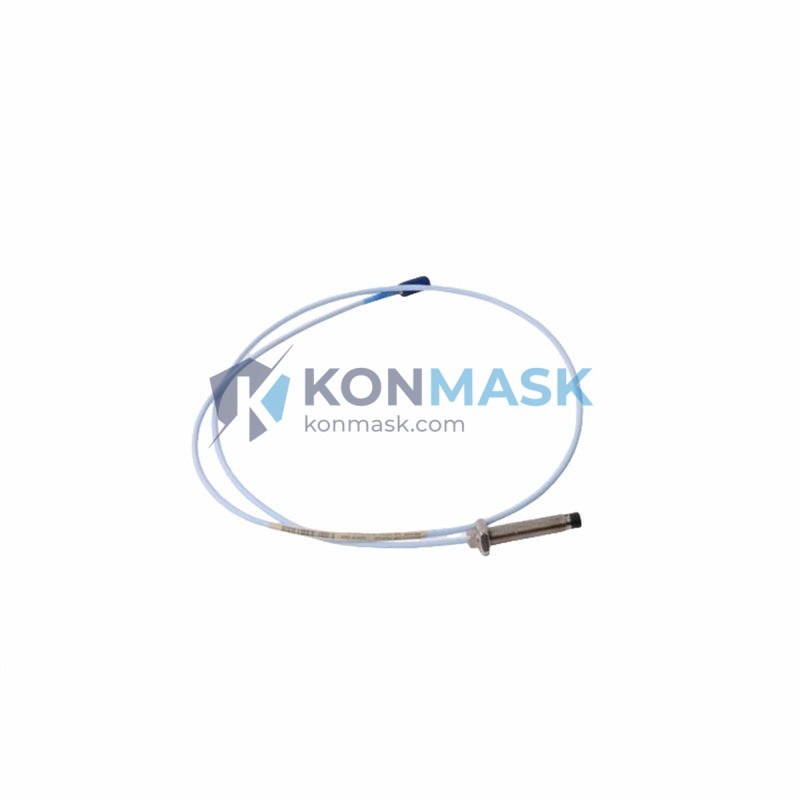

Bently Nevada 330101-00-34-10-02-05 – Eddy Current Proximity Probe | 3300 Series Platform
Engineering Background
The Bently Nevada 3300 Series represents the industry benchmark for continuous machinery protection and condition monitoring. Deployed across power generation, oil & gas, petrochemical, and heavy industrial sectors worldwide, the 3300 platform delivers the measurement accuracy and reliability that rotating machinery protection demands. The 330101-00-34-10-02-05 proximity probe is a core sensing element within this ecosystem, engineered to provide non-contact, high-resolution measurement of shaft radial vibration, axial position, and differential expansion.
Product Positioning
This probe is purpose-built for procurement engineers and reliability teams sourcing certified replacement or expansion components for existing Bently Nevada 3300 Series installations. It integrates directly with 3300 Series extension cables and proximitor/oscillator signal conditioners, ensuring zero-compromise compatibility with installed monitoring infrastructure. Konmask.com supplies this component with full traceability documentation, supporting both MRO and capital project procurement workflows.
Complete Technical Specifications
| Part Number / SKU | 330101-00-34-10-02-05 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series / Platform | 3300 Series |
| Sensor Type | Eddy Current Proximity Probe |
| Measurement Function | Radial Vibration, Axial Position, Differential Expansion |
| Probe Tip Diameter | 8 mm (standard) |
| Cable Length | 1.0 m (integral cable) |
| Thread Size | M10 × 1.0 |
| Linear Range | 0.25 mm – 2.54 mm (10 – 100 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC – 10,000 Hz |
| Operating Temperature | -35°C to +177°C (-31°F to +351°F) |
| Target Material | AISI 4140 Steel (standard); consult factory for other alloys |
| Connector Type | Integral coaxial cable with BNC-compatible termination |
| Housing Material | 316 Stainless Steel |
| Ingress Protection | IP67 |
| Weight | Approx. 230 g |
| Compliance | API 670, CE |
| Compatible Proximitor | 3300 XL 8mm Proximitor (330180 series) |
| Compatible Extension Cable | 330130 series (specify length) |
Proven Application Environments
- Steam & Gas Turbines – Continuous shaft radial vibration monitoring per API 670 requirements
- Centrifugal Compressors – High-speed rotor position and vibration measurement in hydrocarbon service
- Pumps & Fans – Bearing housing and shaft proximity sensing for predictive maintenance programs
- Gearboxes – Gear mesh frequency monitoring and axial thrust position measurement
- Expanders & Turbines (Cryogenic) – Validated for low-temperature service within rated range
- Power Generation (Nuclear & Conventional) – Qualified for safety-related and balance-of-plant monitoring
Engineering Advantages
- Non-Contact Measurement – Zero mechanical wear; suitable for continuous 24/7 operation without maintenance intervals
- High Frequency Response – DC to 10 kHz bandwidth captures sub-synchronous, synchronous, and super-synchronous vibration components
- API 670 Compliant – Meets the mandatory protection standard for turbomachinery in oil & gas and power generation
- Integral Cable Design – Eliminates connector junction losses and reduces installation error risk
- 316 SS Housing – Corrosion-resistant construction for aggressive process environments including H₂S and chloride exposure
- Direct 3300 System Compatibility – Plug-and-play replacement for existing 3300 Series installations; no recalibration of proximitor required when replacing like-for-like
System Architecture & Signal Flow
The 330101-00-34-10-02-05 probe operates as the primary sensing element in a three-component eddy current measurement chain:
- Proximity Probe (330101-00-34-10-02-05) → Generates high-frequency electromagnetic field; detects target surface displacement via impedance change
- Extension Cable (330130 series) → Transmits the RF signal from probe tip to proximitor; length must be matched to system calibration
- Proximitor / Oscillator-Demodulator (330180 series) → Converts RF impedance signal to DC voltage output (−24 VDC bias, 200 mV/mil scale factor); interfaces with 3500 or 3300 rack monitors
Note: Total system cable length (probe integral cable + extension cable) must match the proximitor calibration. Consult Bently Nevada system documentation or contact Konmask technical support for length verification.
Sourcing & Quality Verification
- All units supplied by Konmask.com are sourced through verified industrial distribution channels with full supply chain traceability
- Each unit ships with manufacturer documentation and, where available, original factory test certification
- Konmask performs incoming inspection including visual, dimensional, and connector integrity checks prior to dispatch
- Counterfeit-risk mitigation: Konmask does not source from unverified secondary markets; documentation available upon request for audit purposes
- Lead time and stock status confirmed at time of order; contact us for urgent MRO requirements
Procurement Process
- Confirm Part Number – Verify 330101-00-34-10-02-05 against your installed system BOM or Bently Nevada system drawing
- Verify Cable Length Compatibility – Confirm total system cable length matches proximitor calibration (standard: 5 m, 9 m, or custom)
- Request Quote – Contact support@konmask.com with quantity, required delivery date, and any certification requirements (CoC, ATEX, SIL)
- Place Order – Purchase directly via konmask.com or via PO for approved B2B accounts
- Receive & Inspect – All shipments include packing list and documentation package; inspect upon receipt per your site QA procedure
Technical FAQ
- Q: Is the 330101-00-34-10-02-05 compatible with the Bently Nevada 3500 monitoring rack?
- A: Yes. The 3300 Series probe system (probe + extension cable + 330180 proximitor) outputs a standard −24 VDC / 200 mV/mil signal fully compatible with 3500 Series monitor input cards.
- Q: Can this probe be used on non-ferrous target materials (e.g., titanium, Inconel)?
- A: The standard calibration is for AISI 4140 steel. Non-standard target materials require a custom calibration curve. Contact Konmask technical support for application-specific guidance.
- Q: What is the difference between the -02-05 and -02-00 suffix variants?
- A: The suffix encodes connector and cable jacket options. The -02-05 designates a specific termination and jacket configuration. Always order using the complete part number to ensure exact replacement.
- Q: Is ATEX / IECEx certification available for this probe?
- A: Bently Nevada offers ATEX-certified variants within the 3300 Series. Please confirm your hazardous area classification and contact us to verify the appropriate certified part number for your zone.
- Q: What is the typical lead time?
- A: In-stock units ship within 3–5 business days. For urgent MRO requirements, contact support@konmask.com for expedited options.
