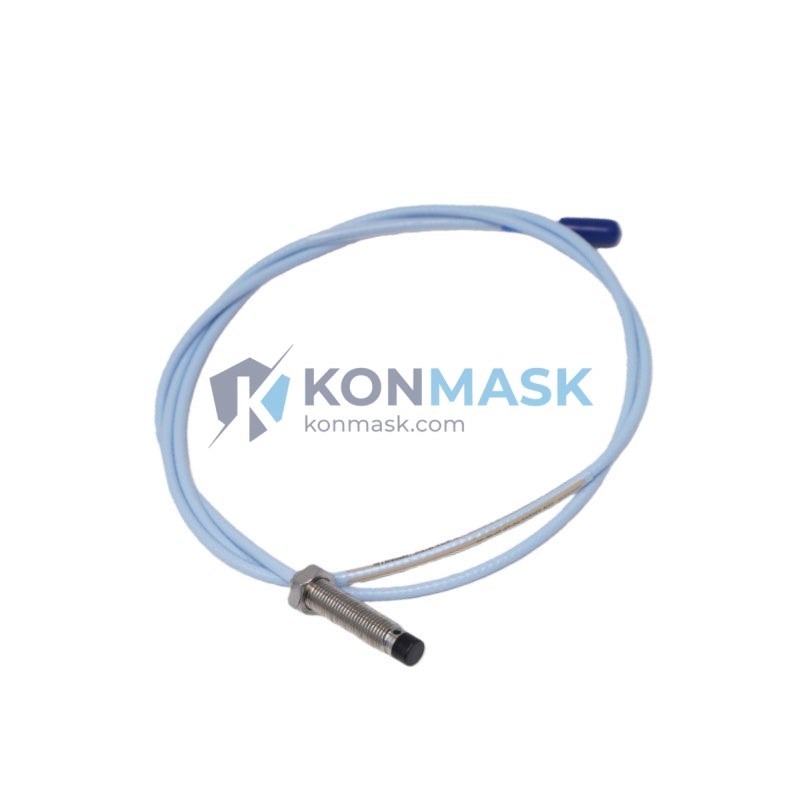

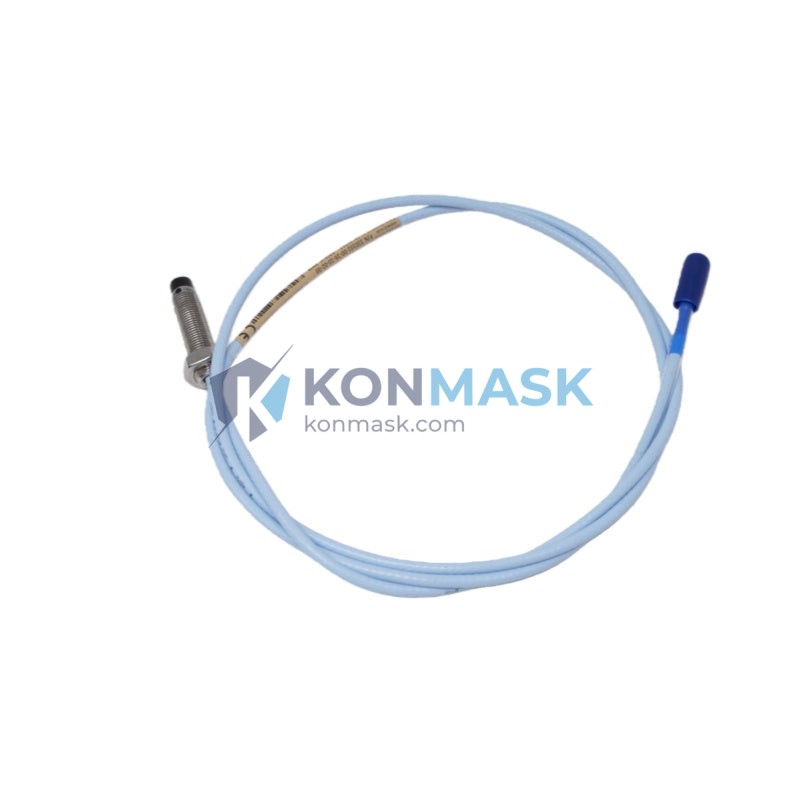

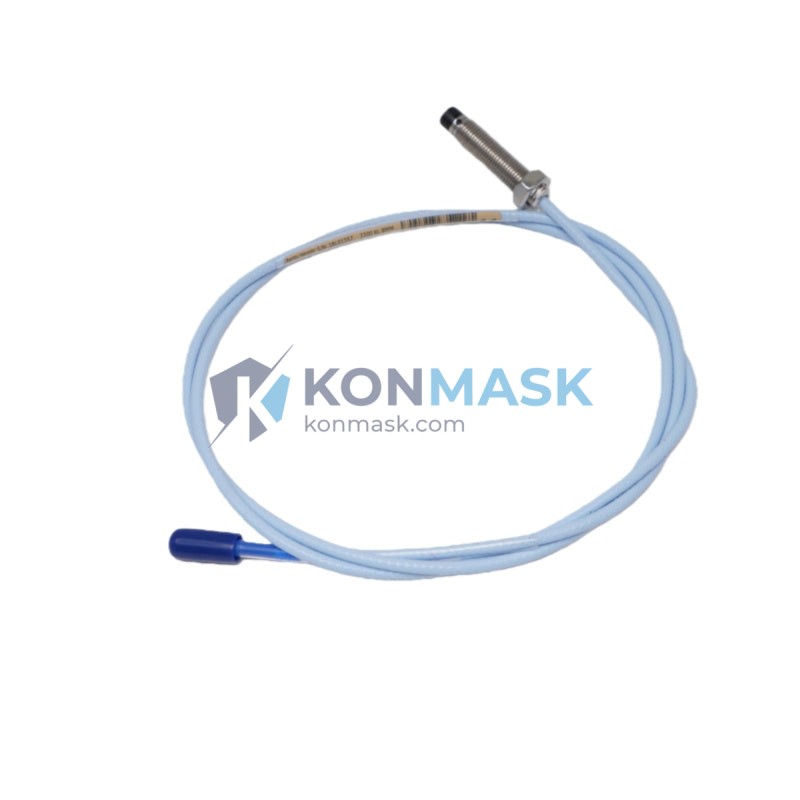

Bently Nevada 330101-00-36-05-02-00 Shaft Vibration Monitoring Probe – 3300 XL 8mm Proximity Transducer System
When a critical rotating machine loses its vibration monitoring capability mid-operation, the consequences can be catastrophic: undetected shaft imbalance, bearing failure, and unplanned shutdowns that cost tens of thousands of dollars per hour. Without a reliable proximity probe in the loop, your machinery protection system is effectively blind — unable to trigger alarms or initiate protective shutdowns before irreversible mechanical damage occurs. The Bently Nevada 330101-00-36-05-02-00 is the precision sensing element that keeps your protection system fully operational, providing continuous, non-contact measurement of shaft radial vibration and position.
The 330101-00-36-05-02-00 is an 8mm eddy current proximity probe within Bently Nevada’s industry-defining 3300 XL Series — the global standard for turbomachinery protection. Designed to work as part of the complete 3300 XL transducer system (probe + extension cable + proximitor), this specific configuration features a 36-inch (approximately 914mm) armored cable, a 5-meter extension cable interface, and a standard 02-00 connector/termination. It is widely deployed in gas turbines, steam turbines, centrifugal compressors, and large rotating equipment across oil & gas, power generation, and petrochemical industries worldwide.
Technical Specifications
- Part Number / SKU: 330101-00-36-05-02-00
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL 8mm Proximity Transducer System
- Probe Tip Diameter: 8mm
- Probe Cable Length: 36 inches (~914mm) armored integral cable
- Extension Cable Length: 5 meters (compatible with 330130 series extension cables)
- Connector Type: Standard (02-00 termination)
- Sensing Technology: Eddy Current (non-contact)
- Measurement: Radial shaft vibration, axial position, differential expansion
- Linear Range: Typically 0.25mm – 2.25mm (per 3300 XL system spec)
- Scale Factor: 7.87 V/mm (200 mV/mil) nominal
- Operating Temperature: -35°C to +177°C (probe body)
- Target Material: AISI 4140 steel or equivalent (per calibration)
- Agency Approvals: CE, ATEX, FM (system-level, verify with full system documentation)
- Weight: Approx. 200g
Key Features & Benefits
- Non-Contact Measurement: Zero mechanical wear on the probe — continuous operation without physical contact with the rotating shaft.
- High Frequency Response: Accurately captures high-speed vibration signatures critical for early fault detection in turbomachinery.
- Armored Cable Construction: The 36-inch integral armored cable provides robust protection against harsh industrial environments including oil mist, high temperatures, and mechanical abrasion.
- System-Matched Performance: Factory-calibrated as part of the 3300 XL system — ensures accurate scale factor and linear range when paired with approved extension cables and proximitors.
- Drop-In Replacement: Direct OEM-equivalent replacement for existing 3300 XL installations — no recalibration of the overall system required when replacing like-for-like.
- Long Service Life: Solid-state design with no moving parts ensures exceptional MTBF in continuous 24/7 monitoring applications.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbine-driven compressor trains, pipeline booster stations
- Power Generation: Steam turbines, gas turbines, hydro generators, combined-cycle power plants
- Petrochemical & Refining: Reactor charge pumps, cracked gas compressors, process gas turbines
- Marine & Offshore: Propulsion turbines, offshore platform rotating equipment
- General Industry: Large centrifugal fans, high-speed gearboxes, industrial blowers
System Integration & Compatible Parts
The 330101-00-36-05-02-00 probe is designed to operate within the complete Bently Nevada 3300 XL transducer system. Typical compatible components include:
- Extension Cables: Bently Nevada 330130-XX-XX (5-meter, matching this probe configuration)
- Proximitor Sensors: Bently Nevada 3300 XL 8mm Proximitor (e.g., 330180-X1-05)
- Monitoring Systems: Bently Nevada 3500 Series Machinery Protection System, System 1 Software
- Mounting Hardware: Standard 3300 XL probe holders and brackets
Note: Always verify full system compatibility using Bently Nevada’s transducer system documentation (GEH-6721) before installation.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada proximity probe is sourced through verified supply channels and undergoes a multi-point inspection process before shipment:
- Visual inspection of probe tip, cable armor, and connector integrity
- Part number and label verification against order specifications
- Packaging inspection to ensure no transit damage
- Documentation check — original manufacturer packaging and certificates where available
We specialize in industrial automation and machinery protection components, and we understand that counterfeit or substandard proximity probes represent a serious safety and operational risk. Our sourcing standards reflect that responsibility.
How to Order
- Submit your inquiry via our website contact form or email [email protected]
- Provide your required quantity, delivery timeline, and any system documentation if available
- Receive a formal quotation within 1 business day
- Confirm order and arrange payment via agreed terms
- Shipment with full tracking and commercial invoice provided
For urgent requirements or large-volume orders, please call us directly at +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control and machinery protection components — not a general electronics distributor.
- Global Sourcing Network: Access to hard-to-find and obsolete Bently Nevada parts that are no longer available through standard distribution channels.
- Fast Response: Dedicated B2B inquiry handling with quotations typically within 24 hours.
- Export Experience: Experienced in international shipping, export documentation, and customs compliance for industrial components.
- Technical Support: Our team can assist with part number cross-referencing and system compatibility questions.
Frequently Asked Questions
Q: Is the 330101-00-36-05-02-00 a direct replacement for my existing 3300 XL probe?
A: Yes, provided your existing installation uses the same 8mm probe with 36-inch cable and 5-meter extension cable configuration. Always verify the full part number matches your system documentation before ordering.
Q: Can this probe be used without the Bently Nevada proximitor?
A: No. The 330101-00-36-05-02-00 is a passive eddy current probe that requires a compatible Bently Nevada 3300 XL Proximitor to condition the signal. It cannot output a usable signal independently.
Q: What target material is this probe calibrated for?
A: Standard calibration is for AISI 4140 steel. If your shaft material differs, a system recalibration may be required. Contact us for guidance.
Q: Do you provide a warranty or certificate of conformance?
A: We provide documentation as available from our supply chain. Please specify your documentation requirements at the time of inquiry.
Q: What is the lead time for this part?
A: Lead time varies by stock availability. Please submit an inquiry for a current availability and delivery estimate.
