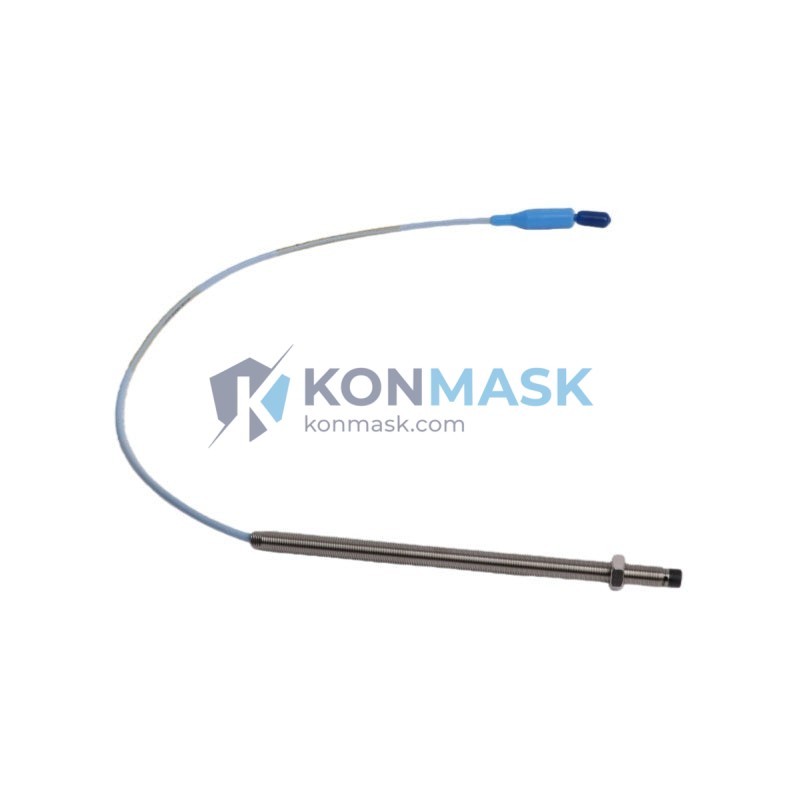

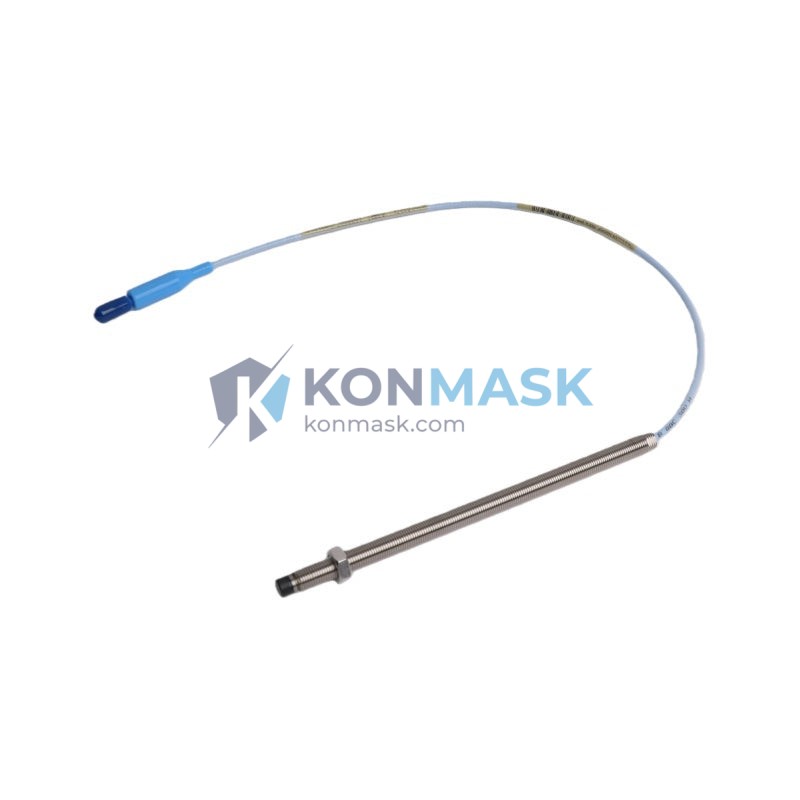

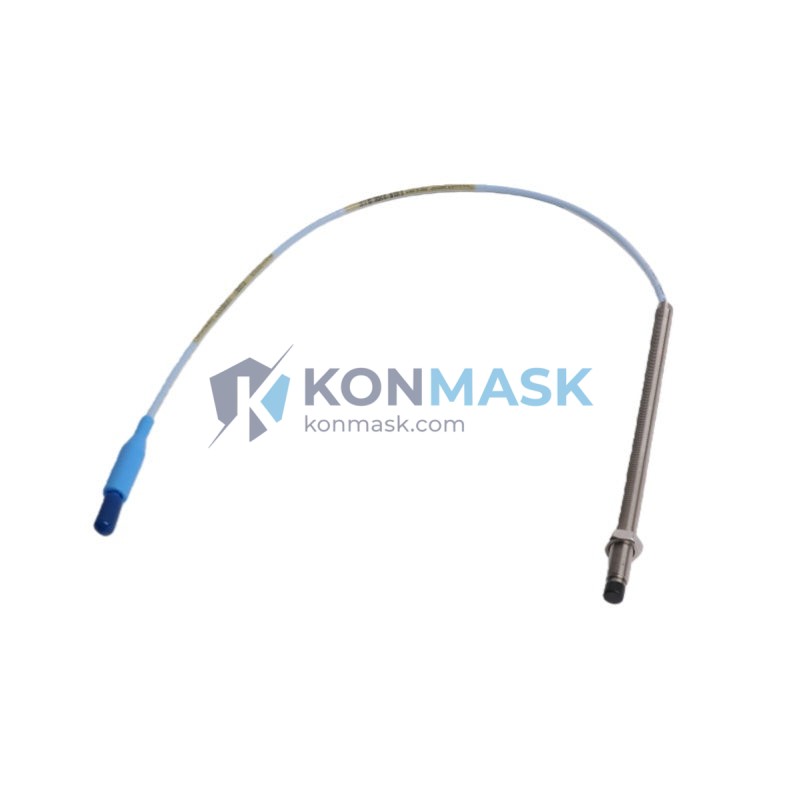

Bently Nevada 330101-00-71-10-02-05 Eddy Current Proximity Probe – 3300 XL 8mm Proximity Transducer System
When a critical rotating machine loses its shaft vibration monitoring capability, the consequences are immediate and severe: undetected rotor imbalance, bearing wear, or shaft misalignment can escalate within minutes into catastrophic machinery failure, unplanned downtime, and six-figure repair costs. In high-stakes environments such as gas turbines, steam turbines, compressors, and pumps, the proximity probe is not a peripheral sensor — it is the first line of defense for your entire condition monitoring strategy. Without a functioning probe, your protection system is blind.
The Bently Nevada 330101-00-71-10-02-05 is a precision eddy current proximity probe engineered as part of the industry-benchmark 3300 XL 8mm Proximity Transducer System. Within the 3300 XL product family — Bently Nevada’s most widely deployed transducer platform globally — this specific configuration (71 cm armored extension cable, 10-32 UNF connector, 02-05 housing variant) is optimized for installations requiring a mid-length cable run with robust mechanical protection. The 3300 XL system is trusted in over 100,000 industrial installations worldwide and is fully compliant with API 670 machinery protection standards.
Technical Specifications
- Part Number / SKU: 330101-00-71-10-02-05
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL 8mm Proximity Transducer System
- Probe Type: Eddy Current (Non-contact) Proximity Probe
- Probe Tip Diameter: 8 mm
- Cable Length: 71 cm (armored integral cable)
- Connector Type: 10-32 UNF
- Operating Temperature: –50°C to +177°C (probe tip)
- Linear Range: 0.25 mm to 2.26 mm (nominal)
- Scale Factor: 7.87 V/mm (200 mV/mil) nominal
- Supply Voltage: –24 VDC (via Proximitor® sensor)
- Target Material: AISI 4140 steel (standard); other alloys with calibration
- Approvals: API 670 compliant; CE marked; FM/CSA intrinsically safe options available
- Weight: Approx. 100 g
Key Features & Benefits
- Non-contact measurement: Zero mechanical wear on the probe tip — ideal for continuous 24/7 operation in harsh industrial environments.
- High-frequency response: Accurately captures shaft dynamic motion up to several kHz, enabling detection of sub-synchronous and super-synchronous vibration events.
- Armored integral cable: The 71 cm armored cable provides superior protection against abrasion, chemical exposure, and mechanical damage in tight machinery housings.
- API 670 compliance: Meets the most stringent international standard for machinery protection systems, ensuring compatibility with safety-critical installations.
- Drop-in replacement: 100% compatible with existing Bently Nevada 3300 XL Proximitor® sensor installations — no recalibration of the monitoring system required when replacing like-for-like.
- Wide temperature range: Reliable performance from cryogenic to high-temperature process environments.
- Long service life: Solid-state construction with no moving parts ensures MTBF exceeding 100,000 hours under normal operating conditions.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, steam turbines, expanders, and pipeline pumps on offshore platforms and onshore processing facilities.
- Power Generation: Steam turbine shaft eccentricity and vibration monitoring in coal, gas, and nuclear power plants.
- Petrochemical & Refining: Reactor feed pumps, cracked gas compressors, and critical rotating equipment in ATEX/IECEx hazardous areas.
- Marine & Offshore: Propulsion shaft monitoring and auxiliary machinery protection on LNG carriers and FPSOs.
- Pulp & Paper / Steel: High-speed rolls, fans, and blowers requiring continuous vibration surveillance.
- General Industrial: Any rotating machinery where API 670-compliant shaft radial vibration, axial position, or differential expansion measurement is required.
System Integration & Compatible Parts
The 330101-00-71-10-02-05 probe is designed to operate as part of a complete Bently Nevada 3300 XL transducer system. Typical compatible components include:
- Proximitor® Sensor: 330180 series (3300 XL 8mm standard Proximitor)
- Extension Cable: 330130 series (if field-replaceable cable configuration is used)
- Monitoring System: Bently Nevada 3500 Series Machinery Protection System; System 1® condition monitoring software
- Mounting Hardware: Standard 3300 XL probe holders and armored conduit fittings
If you require a complete transducer loop (probe + extension cable + Proximitor) or need to verify compatibility with your existing 3500 rack configuration, our technical team can assist — contact us before ordering.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada proximity probe undergoes a rigorous intake and verification process before dispatch:
- Visual inspection for physical damage, connector integrity, and cable armor condition.
- Part number and date code verification against manufacturer documentation.
- Functional continuity check on probe coil and cable assembly.
- Secure anti-static packaging with moisture-barrier protection for international shipment.
- Full traceability documentation provided upon request.
We source exclusively from authorized distribution channels and verified surplus inventories. Counterfeit or non-OEM parts are never knowingly stocked or sold.
How to Order
- Submit an inquiry: Use the contact form or email [email protected] with your required quantity and delivery timeline.
- Receive a quotation: Our team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Confirm & pay: We accept T/T bank transfer, PayPal, and other B2B payment methods. Pro-forma invoice issued upon order confirmation.
- Shipment & tracking: Orders are dispatched via DHL, FedEx, or UPS Express with full tracking. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
Why Choose Konmask.com?
- Industrial automation specialists: We focus exclusively on PLC, DCS, and condition monitoring components — not a generalist marketplace.
- Global B2B supply: Serving engineering teams, MRO procurement departments, and EPC contractors in 40+ countries.
- Hard-to-find parts: We stock obsolete and long-lead-time Bently Nevada components that OEM channels can no longer supply.
- Technical support: Our team includes engineers with hands-on experience in machinery protection systems — we speak your language.
- Fast response: Inquiry-to-quotation within 24 hours. Emergency same-day dispatch available for in-stock items.
Frequently Asked Questions
- Q: Is the 330101-00-71-10-02-05 a new or refurbished part?
- A: We clearly indicate the condition of each unit in our quotation. Both new-in-box (NIB) and tested-surplus units may be available depending on current stock. Please specify your requirement when inquiring.
- Q: Can this probe be used with a non-Bently Nevada monitoring system?
- A: The 3300 XL probe is designed for use with Bently Nevada Proximitor® sensors. While the eddy current principle is universal, the scale factor and output characteristics are calibrated for the 3300 XL Proximitor. Use with third-party drivers may require recalibration — consult your system integrator.
- Q: What is the difference between the 330101 and 330103 probe series?
- A: The 330101 series uses an armored integral cable, while the 330103 series uses a flexible integral cable. The armored version (330101) is preferred in environments with mechanical abrasion risk or where cable routing requires rigid protection.
- Q: Do you provide a certificate of conformance (CoC)?
- A: Yes. A CoC and available traceability documentation can be provided upon request at the time of order.
- Q: What is the lead time for this part?
- A: Lead time depends on current stock levels. In-stock items ship within 1–3 business days. For out-of-stock items, typical sourcing lead time is 2–4 weeks. Contact us for real-time availability.
