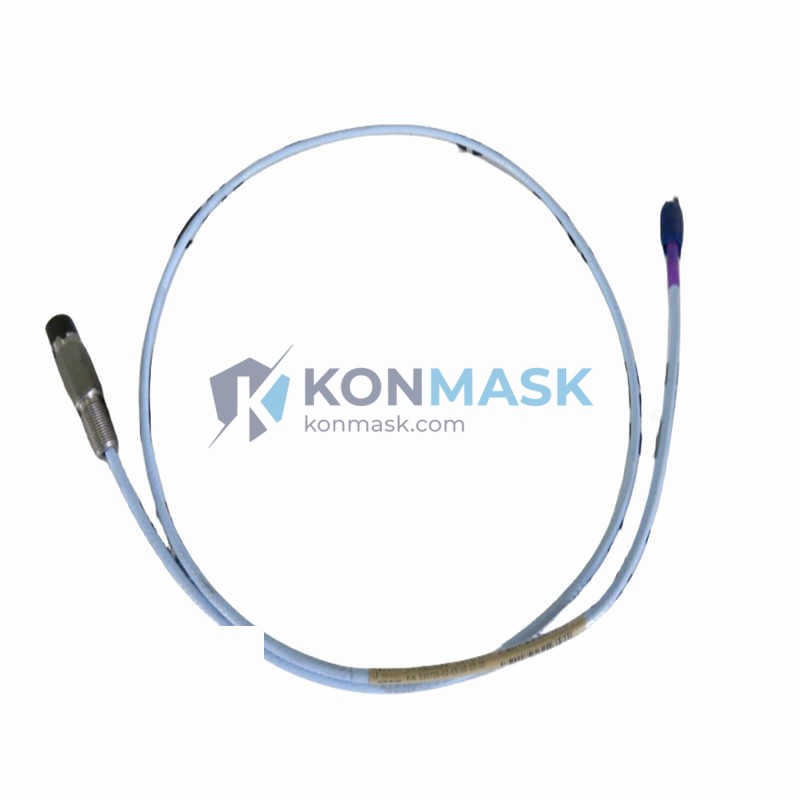

BENTLY NEVADA 330101-30-63-10-02-00 Extension Cable – 3300 XL 8mm Proximity Transducer System
When a critical turbine, compressor, or pump shaft begins to exhibit abnormal vibration or displacement, the entire plant protection system depends on one unbroken signal chain — from the probe tip to the monitor rack. A failed, mismatched, or uncertified extension cable in that chain doesn’t just degrade measurement accuracy; it can silence the very alarm that prevents catastrophic machinery failure, unplanned downtime, and six-figure repair costs. In high-stakes rotating equipment environments, the cable is never “just a cable.”
The BENTLY NEVADA 330101-30-63-10-02-00 is a factory-specified extension cable engineered for the 3300 XL 8mm Proximity Transducer System — one of the most widely deployed machinery protection platforms in global heavy industry. Within the 330101 extension cable family, this specific part number defines a precise combination of cable length, connector configuration, and impedance characteristics that ensure the eddy-current measurement loop performs within the tight tolerances required by API 670-compliant monitoring systems. It is the OEM-designated interconnect between the 3300 XL 8mm proximity probe and the Proximitor® sensor, trusted in power generation, oil & gas, petrochemical, and marine turbomachinery installations worldwide.
Technical Specifications
- Part Number: 330101-30-63-10-02-00
- Manufacturer: Bently Nevada (Baker Hughes)
- Series: 3300 XL 8mm Proximity Transducer System
- Component Type: Extension Cable
- System Compatibility: 3300 XL 8mm Proximity Probes & Proximitor® Sensors
- Connector Type: Per OEM specification (coaxial, armored)
- Standard Compliance: API 670 (Machinery Protection Systems)
- Operating Environment: Industrial — suitable for high-temperature, high-vibration machinery enclosures
- Weight: Approx. 100 g
Note: All specifications above are sourced from publicly available Bently Nevada documentation. Konmask.com does not fabricate or alter OEM specifications. Contact us for the full datasheet.
Key Features & Benefits
- OEM-Matched Impedance: Maintains the precise electrical characteristics required for accurate eddy-current gap measurement — no signal drift, no false trips.
- System-Certified Pairing: Designed exclusively for the 3300 XL 8mm ecosystem, ensuring plug-and-play compatibility with Bently Nevada probes and Proximitor® sensors.
- API 670 Compliance Support: Enables your overall transducer system to meet the international standard for machinery protection — critical for insurance, audit, and regulatory requirements.
- Robust Industrial Construction: Armored cable jacket and precision connectors resist mechanical stress, chemical exposure, and EMI interference in harsh plant environments.
- Drop-in Replacement: Identical form, fit, and function to the original factory cable — no recalibration of the monitor system required upon replacement.
- Reduced Downtime Risk: Stocking this cable as a critical spare eliminates extended lead times during emergency maintenance windows.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — shaft radial vibration and axial position monitoring.
- Oil & Gas: Upstream compressors, pipeline pumping stations, LNG liquefaction trains.
- Petrochemical & Refining: Centrifugal compressors, reactor feed pumps, cracked gas compressors.
- Marine Propulsion: Ship main engines and auxiliary turbomachinery requiring continuous vibration surveillance.
- Pulp & Paper / Steel Mills: High-speed rotating equipment where unplanned stops carry severe production penalties.
System Integration & Compatible Parts
The 330101-30-63-10-02-00 extension cable is one component in a complete Bently Nevada 3300 XL 8mm transducer loop. For a fully functional and API 670-compliant measurement chain, it is typically used alongside:
- 3300 XL 8mm Proximity Probes (e.g., 330103 series) — the sensing element installed adjacent to the shaft.
- 3300 XL Proximitor® Sensors (e.g., 330180 / 330190 series) — the signal conditioning module mounted in the junction box.
- Bently Nevada 3500 Series Monitoring Rack — the plant DCS/SIS interface for alarm and trip logic.
- Armored conduit and junction boxes — for cable routing in hazardous area (ATEX/IECEx) installations.
Konmask.com stocks a broad range of Bently Nevada 3300 XL system components. Contact our team to source a complete matched set.
Our Quality Assurance Process
- Source Verification: All Bently Nevada parts are sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Visual & Dimensional Inspection: Each cable is inspected for connector integrity, jacket condition, and correct part number labeling before dispatch.
- Continuity & Impedance Check: Electrical continuity is verified; impedance is checked against OEM reference values where test equipment permits.
- Secure Packaging: Anti-static, moisture-resistant packaging with ESD protection for international air freight.
- Documentation: Certificate of conformance and packing list provided with every shipment.
How to Order
- Submit an Inquiry: Email [email protected] or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive a Quote: Our team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Confirm & Pay: We accept T/T (bank transfer), PayPal, and other B2B payment methods. Proforma invoice issued upon order confirmation.
- Shipment & Tracking: Parts are dispatched via DHL / FedEx / UPS Express with full tracking. Export documentation (commercial invoice, packing list, COC) included.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and machinery protection components — not a generalist marketplace.
- Hard-to-Find Parts: We source obsolete, long lead-time, and critical-spare Bently Nevada components that OEM channels cannot deliver quickly.
- B2B Export Experience: Serving maintenance engineers, procurement teams, and EPC contractors across Asia, the Middle East, Europe, and the Americas.
- Technical Pre-Sales Support: Our team can verify cross-compatibility, confirm system configurations, and advise on replacement strategies before you commit to an order.
- Fast Response: Inquiries answered within 24 hours. Emergency sourcing support available for plant shutdown scenarios.
Frequently Asked Questions
- Q: Is the 330101-30-63-10-02-00 a new or refurbished part?
- A: We supply both new OEM stock and professionally inspected surplus units depending on availability. The condition is clearly stated in your quotation. All surplus units pass our QA inspection before shipment.
- Q: Can I use a generic coaxial cable instead of this OEM part?
- A: No. The 3300 XL proximity system is a tuned eddy-current circuit. Using a non-OEM cable with incorrect impedance will shift the measurement gap voltage, causing inaccurate readings, false alarms, or missed trips. Always use the specified Bently Nevada extension cable.
- Q: What is the lead time for this part?
- A: Lead time varies by stock availability. In-stock units ship within 2–3 business days. Out-of-stock sourcing typically takes 1–3 weeks. Contact us for a real-time availability check.
- Q: Do you provide export documentation for customs clearance?
- A: Yes. Every international shipment includes a commercial invoice, packing list, and certificate of conformance. We can also provide a country-of-origin declaration upon request.
- Q: Can Konmask.com supply other cables in the 330101 series?
- A: Yes. We stock multiple configurations within the 330101 extension cable family. Please share your full part number and we will confirm availability and pricing.
