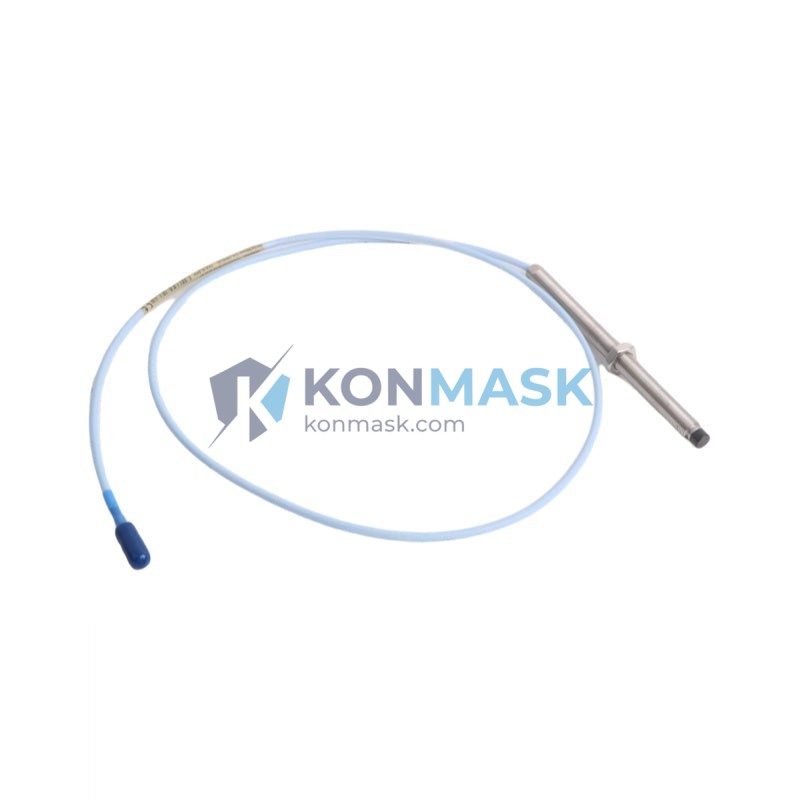

Bently Nevada 330103-00-13-10-12-00 Proximity Transducer System | Replacement, Equivalent & Selection Guide
The Bently Nevada 330103-00-13-10-12-00 is a high-precision proximity transducer system from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery. As an authorized sourcing partner, Konmask.com supplies both original and compatible equivalent units with full traceability for industrial automation environments.
Technical Specifications
- Part Number: 330103-00-13-10-12-00
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL Proximity Transducer System
- Sensor Type: Eddy-current proximity transducer
- Cable Length (Probe): 13 ft (~4 m)
- Extension Cable: 10 ft (~3 m)
- Tip Diameter: 8 mm
- Measurement Range: 0–90 mil (0–2.29 mm) linear range
- Output Bias Voltage: -18 VDC nominal
- Sensitivity: 200 mV/mil (7.87 V/mm)
- Frequency Response: DC to 10,000 Hz
- Operating Temperature (Probe): -35°C to +121°C
- Operating Temperature (Proximitor): -35°C to +66°C
- Agency Approvals: CE, CSA, FM, ATEX
- Connector: Integral coaxial connector
Compatible Replacement & Equivalent Models
The following models are functionally compatible or direct replacements for the 330103-00-13-10-12-00. Always verify electrical and mechanical specifications before substitution.
- 330103-00-08-10-02-00 — Same series, 8 ft probe cable variant
- 330103-00-13-10-02-00 — Same probe/extension length, different connector option
- 330104-00-13-10-12-00 — 3300 XL 11mm probe system, wider gap range
- 330130-040-00-00 — 3300 XL 8mm Proximitor Module (driver unit only)
- 330180-X1-05 — 3300 NSv Proximity Transducer System (next-gen equivalent)
- Emerson / Epro PR6423 Series — Third-party eddy-current equivalent (verify sensitivity)
- Metrix ST5484E — Compatible proximity transducer for retrofit applications
Note: Cross-brand substitutions require validation of output voltage, sensitivity (mV/mil), and connector pinout compatibility with your Proximitor or monitoring system.
Why Choose the Original Model
- Factory-calibrated: Each system is calibrated as a matched set (probe + cable + proximitor) for guaranteed accuracy.
- API 670 compliant: Meets the industry standard for machinery protection systems.
- Long-term availability: Bently Nevada maintains backward compatibility across 3300 XL platform generations.
- Proven reliability: Widely deployed in turbines, compressors, pumps, and motors globally.
- OEM warranty: Original units sourced through authorized channels carry full manufacturer warranty.
Typical Applications
- Radial vibration monitoring on steam and gas turbines
- Shaft displacement measurement on centrifugal compressors
- Axial position monitoring on large rotating machinery
- Differential expansion measurement in power generation
- Eccentricity and phase reference measurement
- Oil & gas upstream/downstream rotating equipment
- Petrochemical plant machinery protection systems
System Compatibility
- Bently Nevada 3500 Series Machinery Protection System
- Bently Nevada 3300 Series Monitoring Racks
- System 1 Condition Monitoring Software (Bently Nevada)
- Emerson DeltaV and Ovation DCS platforms (via 4–20 mA or digital interface)
- Rockwell Automation / Allen-Bradley PLC systems with analog input modules
- Siemens SIMATIC S7 series via signal conditioning modules
- Honeywell Experion PKS — compatible with appropriate I/O cards
Selection Guide
Use the part number structure to select the correct variant for your application:
- 330103 — 3300 XL 8mm Proximity Transducer System base model
- -00 — Standard configuration
- -13 — Probe cable length: 13 ft
- -10 — Extension cable length: 10 ft
- -12 — Connector type: 12-pin
- -00 — No special options
If your application requires a different cable length, tip diameter (8 mm vs. 11 mm), or connector type, contact support@konmask.com with your existing part number and we will identify the correct replacement.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels.
- Each item undergoes visual inspection and functional verification prior to shipment.
- Traceability documentation available upon request (COC, test reports).
- Anti-counterfeit screening applied to all Bently Nevada products.
- Original OEM packaging preserved where available.
How to Order
- Confirm your part number: 330103-00-13-10-12-00
- Specify quantity and required delivery timeline.
- Contact us via email or phone for stock availability and lead time.
- Receive a formal quotation with pricing, lead time, and warranty terms.
- Place order — we support T/T bank transfer, PayPal, and trade assurance.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace 330103-00-13-10-12-00 with a 330104 series probe?
A: The 330104 uses an 11 mm tip vs. 8 mm. Gap range and sensitivity differ — not a direct drop-in without re-gapping and recalibration.
Q: Is this compatible with the Bently Nevada 3500/42M module?
A: Yes, when used with the appropriate 3300 XL Proximitor, the output is compatible with the 3500/42M Proximitor I/O Module.
Q: Can I use a third-party equivalent with my existing Bently Nevada 3500 rack?
A: Third-party probes may work electrically, but API 670 compliance and system certification may be voided. Consult your machinery protection engineer before substitution.
Q: What is the lead time?
A: Stock availability varies. We typically ship within 3–7 business days for in-stock items. Contact us for current availability.
Q: Do you provide a warranty?
A: Yes. Original OEM units carry a 12-month warranty. Refurbished or equivalent units carry a 6-month warranty.
