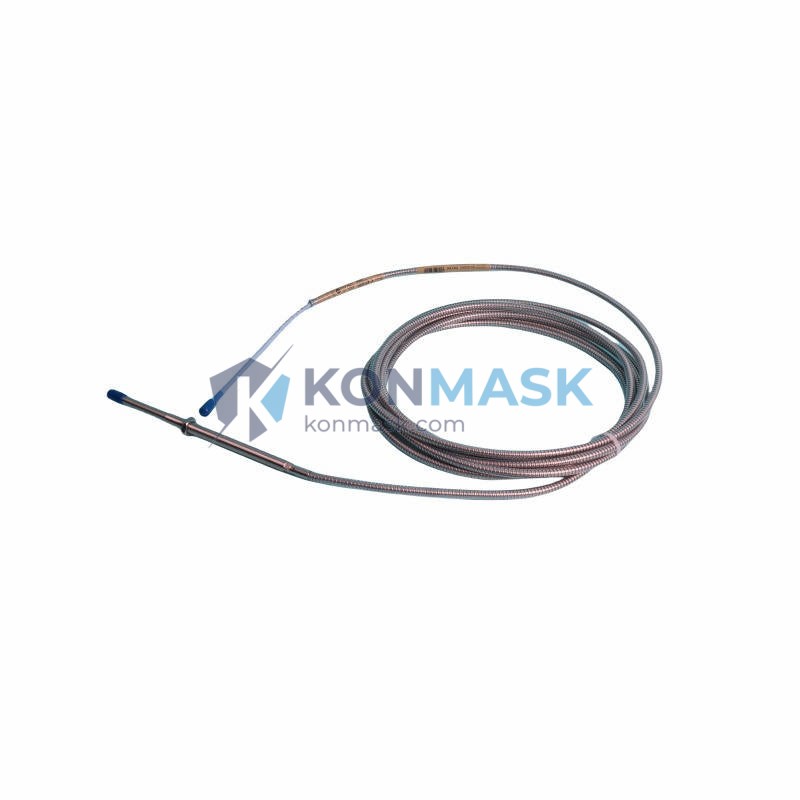

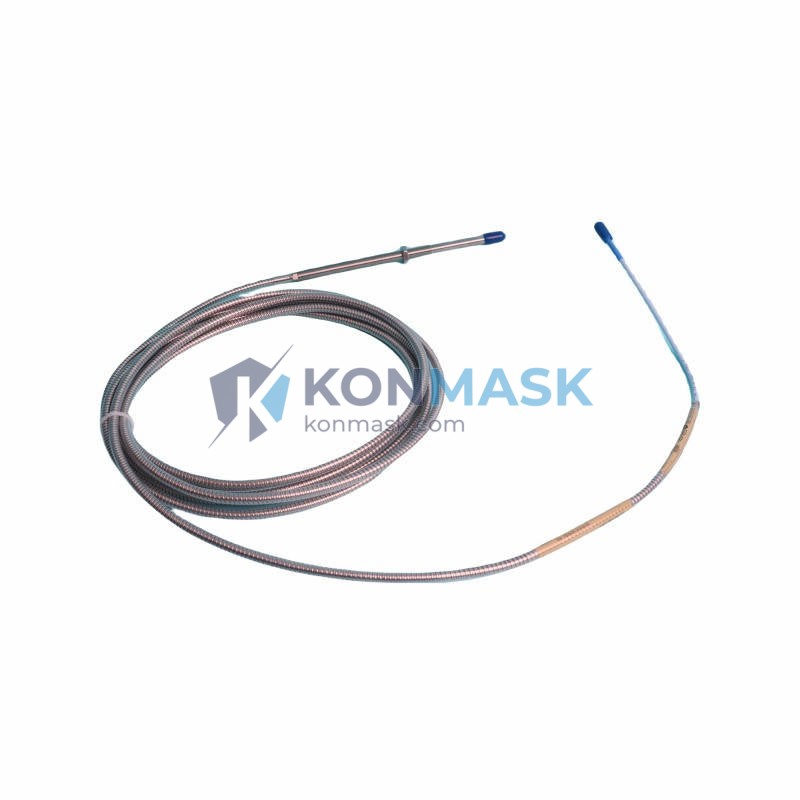

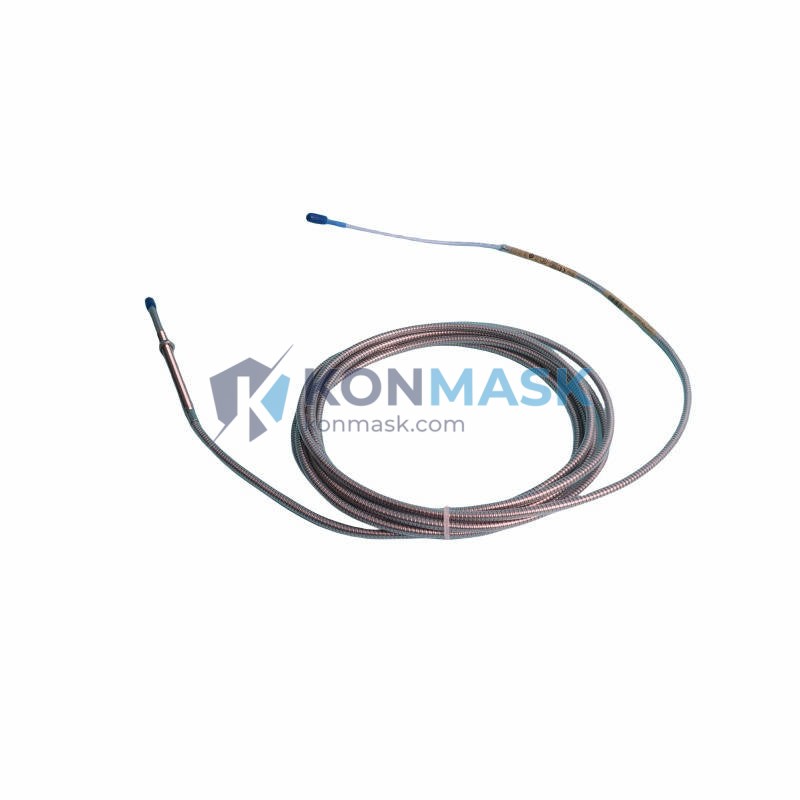

Bently Nevada 330103-00-22-50-02-CN Proximity Transducer System – 3300 XL Series
Imagine a critical turbine or compressor running at full load — and the vibration monitoring system fails to detect a developing shaft fault. Within hours, an undetected imbalance or misalignment can escalate into catastrophic bearing failure, unplanned shutdown, and millions in lost production. The Bently Nevada 330103-00-22-50-02-CN Proximity Transducer System is the precision sensing front-end that prevents exactly this scenario, delivering continuous, real-time shaft displacement data to your condition monitoring system without interruption.
Within the Bently Nevada 3300 XL Proximity Transducer System family — one of the most widely deployed eddy-current sensing platforms in global rotating machinery protection — the 330103-00-22-50-02-CN variant is configured for a 22 mm probe, 5.0 m (50 dm) extension cable, and CN (Chinese market / metric) specification. This configuration is engineered for installations where cable routing demands a longer reach between the probe tip and the proximitor/driver, making it a preferred choice for large-frame turbines, centrifugal compressors, and generator sets across petrochemical, power generation, and heavy industrial facilities worldwide.
Technical Specifications
- Part Number: 330103-00-22-50-02-CN
- Series: Bently Nevada 3300 XL Proximity Transducer System
- Probe Type: Eddy-Current Non-Contact Proximity Probe
- Probe Diameter: 22 mm
- Extension Cable Length: 5.0 m (50 dm)
- Specification: CN (Metric / Chinese Market)
- Sensing Principle: Eddy-Current (electromagnetic induction)
- Target Material Compatibility: Ferrous and non-ferrous metals (application-dependent)
- System Components: Probe + Extension Cable + Proximitor/Driver (sold as system)
- Output Signal: Voltage proportional to gap distance (DC voltage)
- Approvals: Designed to meet applicable industrial safety and EMC standards
- Weight: Approx. 80 g (probe assembly)
Note: All specifications are based on published Bently Nevada documentation. Contact us to confirm exact parameters for your application.
Key Features & Benefits
- Non-Contact Measurement: Zero mechanical wear on the sensing element — ideal for continuous 24/7 operation on high-speed rotating shafts.
- High Sensitivity & Resolution: Detects micron-level shaft displacement changes, enabling early fault detection before damage occurs.
- 5.0 m Extension Cable: Provides installation flexibility for large machinery housings where the proximitor must be mounted away from the probe tip.
- 22 mm Probe Body: Optimized for standard bearing housing bore installations on mid-to-large frame rotating equipment.
- CN Metric Configuration: Dimensioned and calibrated to metric standards, simplifying integration with Chinese-market and international metric installations.
- Direct System 1 / 3500 Rack Compatibility: Designed to interface with Bently Nevada monitoring racks for seamless signal chain integrity.
- Robust Construction: Stainless steel probe body and industrial-grade cable jacket rated for harsh plant environments including oil mist, vibration, and temperature extremes.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, pipeline pumping stations
- Power Generation: Steam turbines, gas turbines, hydro generators, turbo-generators
- Petrochemical & Refining: Reactor feed pumps, cracked gas compressors, expanders
- Pulp & Paper / Steel: Large induced draft fans, rolling mill drives
- Marine & Offshore: Propulsion turbines, auxiliary machinery monitoring
- General Heavy Industry: Any rotating machinery requiring API 670-compliant vibration monitoring
System Integration & Compatible Parts
The 330103-00-22-50-02-CN is designed to operate as part of the complete Bently Nevada 3300 XL system. Typical compatible components include:
- Proximitor/Driver: Bently Nevada 3300 XL 8 mm / 11 mm / 14 mm / 22 mm Proximitor (matched to probe diameter)
- Monitoring Rack: Bently Nevada 3500 Series Machinery Protection System
- Condition Monitoring Software: Bently Nevada System 1 Evolution
- Related Probes: 330103 series (various cable lengths and specifications)
- Interconnect Cables: Bently Nevada 330130 / 330180 series extension cables
Contact our technical team to verify system compatibility with your existing rack configuration before ordering.
Our Quality Assurance Process
- Authentic Sourcing: All Bently Nevada parts are sourced through verified industrial supply channels. We do not deal in counterfeit or refurbished-as-new components.
- Pre-Shipment Inspection: Each unit undergoes visual inspection and packaging integrity check before dispatch.
- Documentation: Original manufacturer documentation and certificates of conformance provided where available.
- Traceability: Batch and serial number records maintained for full supply chain traceability.
- Secure Packaging: Anti-static and shock-resistant packaging to protect sensitive electronic components during international transit.
How to Order
- Submit an Inquiry: Use the contact form or email support@konmask.com with your part number, required quantity, and delivery destination.
- Receive a Quotation: Our team will respond within 1 business day with pricing, lead time, and shipping options.
- Confirm & Pay: Confirm the order and complete payment via your preferred method (T/T, L/C, or other agreed terms).
- Shipment & Tracking: We arrange export documentation and provide shipment tracking upon dispatch.
- After-Sales Support: Our technical team remains available for installation guidance and troubleshooting.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation & Control Components — PLC modules, DCS parts, vibration monitoring systems, and more.
- ✅ Global B2B Supply — Serving engineering firms, EPC contractors, and plant maintenance teams across Asia, the Middle East, Europe, and beyond.
- ✅ Fast Inquiry Response — Dedicated team responds within 24 hours on business days.
- ✅ Competitive Pricing — Direct sourcing relationships enable cost-effective pricing without compromising authenticity.
- ✅ Technical Expertise — Our team understands the application context, not just the part number.
- ✅ Reliable Logistics — Experience with international export compliance, customs documentation, and secure packaging for sensitive instrumentation.
Frequently Asked Questions
- Q: What is the difference between the 330103-00-22-50-02-CN and other 330103 variants?
- A: The suffix encodes the configuration: 22 mm probe diameter, 5.0 m (50 dm) extension cable, 02 = standard connector type, CN = metric/Chinese market specification. Other variants differ in probe size, cable length, or regional specification.
- Q: Is this part compatible with the Bently Nevada 3500 monitoring rack?
- A: Yes, the 3300 XL Proximity Transducer System is designed to interface with the Bently Nevada 3500 Series Machinery Protection System. Please confirm your specific rack card model with our team to ensure full compatibility.
- Q: Do you supply the complete system (probe + cable + proximitor) or individual components?
- A: We can supply the complete transducer system or individual components depending on your requirement. Please specify in your inquiry.
- Q: What is the typical lead time?
- A: Lead time varies by stock availability. In-stock items typically ship within 3–5 business days. For items requiring sourcing, lead time is quoted individually. Contact us for current availability.
- Q: Can you provide export documentation for international shipments?
- A: Yes. We provide commercial invoices, packing lists, and certificates of origin as standard. Additional documentation (e.g., Form E for ASEAN, EUR.1) can be arranged upon request.
