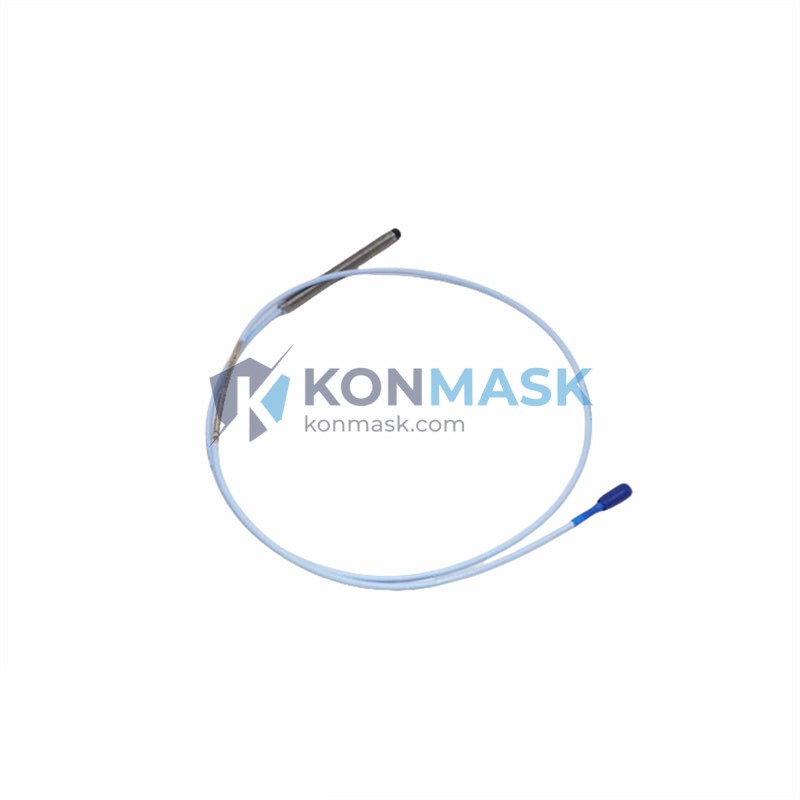

Bently Nevada 330103-01-06-05-02-05 Proximity Probe | Replacement, Equivalent & Selection Guide
The Bently Nevada 330103-01-06-05-02-05 is a high-precision eddy-current proximity probe from the industry-leading 3300 XL Series. Designed for continuous shaft vibration, position, and eccentricity monitoring on rotating machinery, this probe is widely deployed in turbines, compressors, pumps, and motors across oil & gas, power generation, and heavy industry. Konmask.com stocks genuine and compatible replacement units with fast global shipping.
Technical Specifications
- Part Number: 330103-01-06-05-02-05
- Series: Bently Nevada 3300 XL
- Probe Type: Eddy-Current Proximity Probe
- Tip Diameter: 5 mm (standard)
- Cable Length: 5 m (integral cable)
- Thread: M10 × 1.0
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 – 2.25 mm (10 – 90 mil)
- Operating Temperature: −35 °C to +177 °C
- Supply Voltage: −24 VDC (via driver/proximitor)
- Target Material: AISI 4140 steel (standard)
- Connector: Integral coaxial cable with BNC/TNC termination
- Approvals: CE, ATEX, FM (refer to datasheet for specific suffix)
- Weight: Approx. 200 g
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or direct replacements for the 330103-01-06-05-02-05. Always verify cable length, tip size, and connector type before substituting.
- 330103-00-06-05-02-00 – Standard version, no armored cable
- 330103-01-06-10-02-05 – Same probe, 10 m cable variant
- 330103-01-08-05-02-05 – 8 mm tip diameter variant
- 330104-01-06-05-02-05 – 3300 XL 8 mm probe, compatible driver pairing
- 330105-02-12-05-02-00 – Extended-range 3300 XL probe
- Emerson / GE 330103 Series – Post-acquisition equivalent (same part, rebranded)
- Third-party equivalents: Metrix ST5484E, Wilcoxon Research P/N compatible units (confirm specifications with Konmask technical team)
Why Choose the Original Model
- Factory-calibrated sensitivity ensures ±1% linearity accuracy out of the box
- Full 3300 XL system compatibility — plug-and-play with Bently Nevada drivers, proximitors, and monitoring racks
- Proven MTBF exceeding 100,000 hours in continuous industrial service
- Hazardous area certifications (ATEX/FM) for safe use in explosive atmospheres
- Integral cable design eliminates connector failure points common in extension-cable assemblies
Typical Applications
- Radial shaft vibration monitoring on steam and gas turbines
- Axial position measurement on centrifugal compressors
- Eccentricity monitoring during turbine startup/shutdown
- Differential expansion measurement on large rotating equipment
- Pump and motor bearing health monitoring
- API 670 compliant machinery protection systems
System Compatibility
- Drivers / Proximitors: 3300 XL 8 mm Proximitor (330180), 3300 XL 5 mm Proximitor (330130)
- Monitoring Racks: Bently Nevada 3500 Series, 3300 Series, System 1 software
- DCS Integration: Compatible with Emerson DeltaV, Honeywell Experion, ABB 800xA via 4–20 mA or digital outputs from the monitoring rack
- Target Materials: AISI 4140, 4340 steel; consult Bently Nevada calibration curves for other alloys
Selection Guide
Use the part number structure to select the correct variant for your application:
- 330103 – 3300 XL 5 mm proximity probe base model
- -01 – Armored integral cable
- -06 – 6 m cable (note: product label may reflect nominal; verify datasheet)
- -05 – 5 mm tip diameter
- -02 – M10 × 1.0 thread, standard body
- -05 – BNC connector termination
Need a different cable length, tip size, or connector? Contact our technical team for a custom configuration quote.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each probe inspected and tested for sensitivity, linearity, and cable integrity before shipment
- Traceability documentation available upon request (COC, test reports)
- Genuine Bently Nevada / Emerson parts supplied with original packaging where available
- Compatible third-party alternatives clearly labeled and differentiated from OEM units
How to Order
- Online: Add to cart directly on this page — in-stock units ship within 1–3 business days
- Email: support@konmask.com — include your PO number and required delivery date
- Phone / WhatsApp: +0086 19859288691
- Bulk / OEM orders: Request a volume quote via email for orders of 5+ units
- Lead time for non-stock items: Typically 3–10 business days depending on origin
Replacement & Compatibility FAQ
Q: Can I use the 330103-01-06-05-02-05 with my existing 3300 XL proximitor?
A: Yes — provided your proximitor is the 3300 XL 5 mm model (330130 series). Mixing 5 mm probes with 8 mm proximitors will result in calibration errors.
Q: Is this probe interchangeable with the older 3300 (non-XL) series?
A: The 3300 XL probes are not directly interchangeable with legacy 3300 probes due to different sensitivity curves. A full system recalibration is required if mixing generations.
Q: What is the difference between the -02-05 and -02-00 suffix?
A: The -05 suffix denotes a BNC connector termination on the cable end; -00 indicates a bare/flying lead. Ensure your junction box or monitor input matches.
Q: Do you supply calibration certificates?
A: Yes. Factory calibration certificates are available for new OEM units. For surplus stock, we provide in-house test reports. Contact us to request documentation before purchase.
Q: Can this probe be used in hazardous (Ex) areas?
A: The 330103 series carries ATEX and FM approvals for use in Zone 1/Division 1 hazardous areas when installed with the appropriate certified barrier or Zener barrier. Verify the specific approval suffix on your unit.
