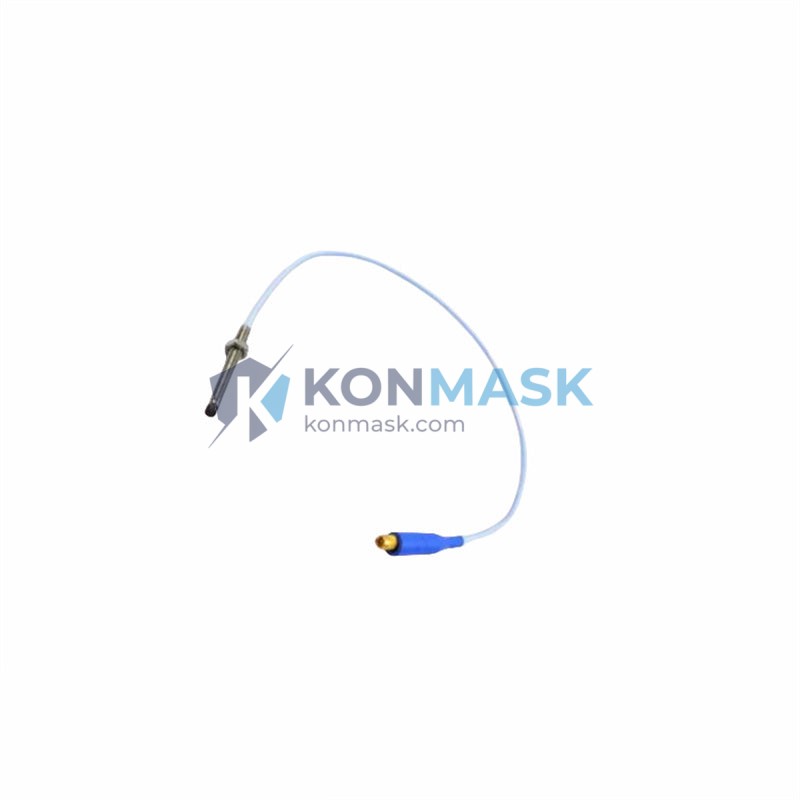

Bently Nevada 330103-02-10-05-02-05 – Proximity Transducer System | 3300 XL Series
Engineering Background
The Bently Nevada 3300 XL Proximity Transducer System is the industry benchmark for non-contact shaft vibration and position measurement in rotating machinery. Engineered for continuous operation in harsh industrial environments, this eddy-current-based system delivers the precision and reliability demanded by API 670-compliant machinery protection programs worldwide.
Product Positioning
The 330103-02-10-05-02-05 is a complete proximity transducer system comprising a probe, extension cable, and Proximitor® sensor. It is purpose-built for OEM integration and field replacement in turbines, compressors, pumps, and gearboxes where shaft radial vibration, axial position, and differential expansion monitoring are mission-critical. Konmask.com supplies this unit as a verified OEM-equivalent component with full traceability documentation.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330103-02-10-05-02-05 |
| Series / Platform | Bently Nevada 3300 XL |
| Transducer Type | Eddy Current Proximity Transducer System |
| Probe Tip Diameter | 8 mm (5 mm sensing range) |
| Measurement Range | 0 – 2.0 mm (0 – 80 mil) |
| Sensitivity | 200 mV/mil (7.87 V/mm) nominal |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Supply Voltage | –24 VDC (–18 to –26 VDC) |
| Output Signal | –2 to –18 VDC (linear range) |
| Operating Temperature | –35°C to +121°C (probe); –35°C to +85°C (Proximitor) |
| Probe Cable Length | 0.5 m integral armored cable |
| Extension Cable Length | 5.0 m (total system: 5.5 m) |
| Connector Type | Coaxial, reverse-polarity SMA |
| Target Material | AISI 4140 steel (or equivalent ferromagnetic alloy) |
| Ingress Protection | IP67 (probe assembly) |
| Compliance | API 670, CE, RoHS |
| Weight | Approx. 230 g (complete system) |
| Country of Origin | USA |
Proven Application Environments
- Steam & Gas Turbines – Shaft radial vibration and axial position monitoring per API 670
- Centrifugal Compressors – Rotor dynamic analysis and surge detection
- Boiler Feed Pumps – Continuous bearing clearance monitoring
- Gearboxes & Expanders – High-speed shaft orbit and differential expansion
- Petrochemical & Refinery Trains – SIL-rated machinery protection loops
- Power Generation – Integration with GE Bently Nevada 3500 rack systems
Engineering Advantages
- Non-Contact Measurement – Zero mechanical wear; suitable for continuous 24/7 operation
- Wide Frequency Bandwidth – DC to 10 kHz captures sub-synchronous, synchronous, and high-frequency events
- Temperature Stability – Thermally compensated Proximitor® electronics maintain ±1% accuracy across full operating range
- Plug-and-Play Compatibility – Direct replacement for existing 3300 XL installations; no recalibration required when replacing like-for-like
- Armored Cable Construction – Stainless steel braid protects against mechanical damage, EMI, and chemical exposure
- API 670 Compliant – Meets the 5th Edition standard for machinery protection systems
System Architecture & Signal Flow
The 330103-02-10-05-02-05 operates as a three-component eddy-current system:
- Probe (330103) – Generates a high-frequency electromagnetic field (1.0 MHz nominal) directed at the rotating shaft target.
- Extension Cable (330130-05-00) – Transmits the RF signal between probe and Proximitor® with controlled impedance (matched to system calibration).
- Proximitor® Sensor (330180-X1-05) – Demodulates the RF signal and outputs a DC-proportional voltage (–2 to –18 VDC) linearly representing gap distance. This output feeds directly into Bently Nevada 3500 or 3300 monitoring racks, DCS analog input cards, or standalone vibration monitors.
The complete system is factory-calibrated as a matched set on AISI 4140 steel targets. Field substitution of individual components will affect calibration and is not recommended without recalibration.
Sourcing & Quality Verification
- OEM Traceability – Each unit supplied with original manufacturer documentation and serialization where available
- Incoming Inspection – 100% electrical continuity, insulation resistance, and sensitivity verification prior to dispatch
- Packaging – Anti-static, moisture-barrier packaging with desiccant; original OEM packaging preserved where possible
- Warranty – 12-month operational warranty against manufacturing defects
- Counterfeit Mitigation – Sourced exclusively from authorized distributors and verified surplus channels; documentation available on request
Procurement Process
- Confirm Part Number – Verify 330103-02-10-05-02-05 against your existing installation drawings or Bently Nevada system documentation.
- Request Quote – Contact support@konmask.com for volume pricing, lead time, and export compliance (ECCN / HTS classification).
- Submit PO – Standard payment terms: T/T, L/C, or PayPal for qualified accounts.
- Shipping – DHL / FedEx express worldwide; EXW Xiamen or CIF destination available. Typical lead time: 3–7 business days.
- Documentation Package – Certificate of Conformance, packing list, commercial invoice, and MSDS available upon request.
Technical FAQ
Q: Is this a complete system or individual components?
A: The 330103-02-10-05-02-05 is a complete, factory-matched proximity transducer system including probe, extension cable, and Proximitor® sensor. All three components are calibrated together and must be used as a set.
Q: Which Bently Nevada monitoring racks is this compatible with?
A: Compatible with Bently Nevada 3500 Series (3500/25, 3500/40M, 3500/42M, 3500/45, 3500/46), 3300 Series monitors, and any system accepting –24 VDC powered eddy-current transducers with standard coaxial output.
Q: What target material is required?
A: The system is calibrated for AISI 4140 steel. Other ferromagnetic alloys (e.g., 4340, 17-4 PH stainless) will require a target material correction factor per Bently Nevada TIL-021.
Q: Can I replace only the probe without replacing the full system?
A: Technically possible, but the system sensitivity will shift unless the replacement probe is from the same calibrated set. Full system replacement is recommended for API 670 compliance.
Q: Do you provide calibration certificates?
A: Factory calibration data is available for new OEM units. For surplus units, Konmask can arrange third-party calibration verification upon request.
