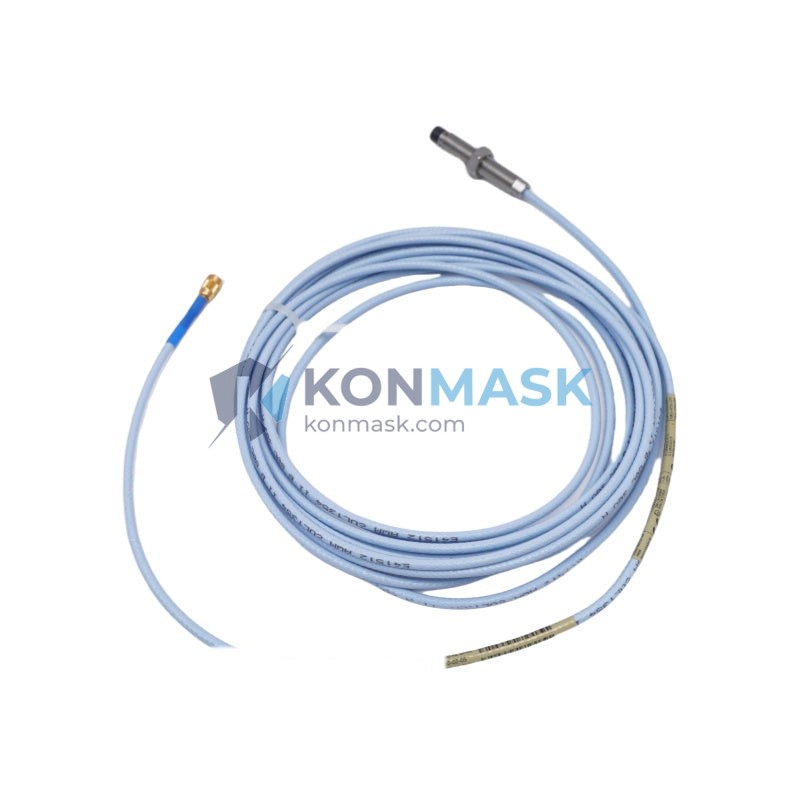

Bently Nevada 330101-00-20-0-5-02-05 – Proximity Vibration Sensor | 3300 XL Series Platform
Engineering Background
The Bently Nevada 330101-00-20-0-5-02-05 is a non-contact eddy-current proximity transducer engineered for continuous shaft vibration and position monitoring in rotating machinery. As part of the industry-standard 3300 XL Series, this sensor is designed to meet the rigorous demands of API 670-compliant machinery protection systems deployed in power generation, oil & gas, petrochemical, and heavy industrial environments.
Product Positioning
This transducer is the preferred choice for procurement engineers specifying reliable, OEM-grade vibration monitoring hardware. It integrates seamlessly with Bently Nevada 3300 XL proximitor/seismic monitors and is fully backward-compatible with legacy 3300 Series installations, protecting capital investment while delivering modern measurement accuracy.
Complete Technical Specifications
| Part Number / SKU | 330101-00-20-0-5-02-05 |
| Brand / Manufacturer | Bently Nevada (Baker Hughes) |
| Series / Platform | 3300 XL Proximity Transducer System |
| Sensor Type | Eddy-Current Non-Contact Proximity Transducer |
| Probe Tip Diameter | 8 mm (standard) |
| Cable Length | 2.0 m (integral cable) |
| Linear Range | 5 mm (0–5 mm nominal gap) |
| Scale Factor (Sensitivity) | 200 mV/mil (7.87 V/mm) |
| Frequency Response | DC to 10,000 Hz (–3 dB) |
| Operating Temperature | –35°C to +177°C (–31°F to +351°F) |
| Supply Voltage | –24 VDC (nominal, via proximitor) |
| Output Voltage Range | –2 VDC to –18 VDC |
| Target Material | AISI 4140 steel (standard); consult factory for other alloys |
| Connector Type | 5-pin MIL-C-5015 (02-05 configuration) |
| Approvals / Certifications | API 670, CE, ATEX (consult datasheet for zone ratings) |
| Weight | Approx. 60 g |
| Country of Origin | United States |
Proven Application Environments
- Power Generation: Steam and gas turbine shaft vibration monitoring (radial and axial)
- Oil & Gas: Compressor and pump train protection per API 670 requirements
- Petrochemical: Critical rotating equipment in hazardous area classifications
- Marine & Offshore: Propulsion shaft and auxiliary machinery monitoring
- Heavy Industry: Paper mills, steel plants, and large HVAC centrifugal equipment
- Aerospace Ground Support: Test cell instrumentation for turbine engine development
Engineering Advantages
- Non-contact measurement eliminates mechanical wear and enables continuous 24/7 operation without maintenance intervals
- High-frequency response (DC–10 kHz) captures both low-speed runout and high-frequency sub-synchronous instabilities
- 200 mV/mil scale factor provides excellent signal resolution for early fault detection and trend analysis
- Wide temperature range (–35°C to +177°C) ensures reliable operation in both cryogenic and high-temperature process environments
- Integral cable design eliminates field-assembly connector errors and reduces installation time
- Full API 670 compliance satisfies machinery protection specifications for critical and essential machinery classifications
- Backward compatibility with 3300 Series proximitors protects existing infrastructure investment
System Architecture & Signal Flow
The 330101-00-20-0-5-02-05 operates as the sensing element within a three-component Bently Nevada proximity transducer system:
- Probe (330101-00-20-0-5-02-05): Generates a high-frequency electromagnetic field (1.0 MHz nominal). Eddy currents induced in the conductive target shaft attenuate the field proportionally to gap distance.
- Extension Cable (330130 Series): Transmits the demodulated signal from probe to proximitor with defined system impedance. Total cable length (probe + extension) must match proximitor calibration.
- Proximitor/Monitor (3300 XL Series): Demodulates the oscillator signal, applies scale factor calibration, and outputs a DC voltage proportional to gap. Interfaces with DCS, PLC, or dedicated machinery protection monitors (e.g., 3500 Series rack).
Note: System calibration is performed as a matched set. Always verify total system cable length against proximitor calibration curve before installation.
Sourcing & Quality Verification
All Bently Nevada components supplied by Konmask.com are sourced through verified industrial supply channels. Each unit undergoes the following pre-shipment verification protocol:
- Visual inspection for physical damage, connector integrity, and cable jacket condition
- Part number and date code verification against manufacturer documentation
- Packaging integrity check (OEM or equivalent protective packaging)
- Certificate of conformance (CoC) available upon request for critical applications
We do not supply counterfeit, refurbished-as-new, or unverified gray-market components. Procurement engineers requiring traceability documentation should contact us prior to order placement.
Procurement Process
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders confirmed at time of inquiry
- Minimum Order Quantity: 1 unit (volume pricing available for qty 5+)
- Payment Terms: T/T, PayPal, credit card; net terms available for qualified accounts
- Export Compliance: ECCN classification and export documentation provided for international shipments
- Returns: 30-day return policy for unused, uninstalled units in original packaging
- Technical Support: Pre-sales engineering consultation available — contact support@konmask.com
Technical FAQ
Q: Is the 330101-00-20-0-5-02-05 compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. When paired with a compatible 3300 XL proximitor and appropriate extension cable, the output signal is fully compatible with 3500 Series monitor inputs.
Q: Can this probe be used with non-steel target materials?
A: The standard calibration is optimized for AISI 4140 steel. For other target materials (stainless steel, titanium, aluminum), a material correction factor must be applied. Contact Bently Nevada or Konmask engineering for target-specific calibration data.
Q: What is the maximum shaft speed this sensor can monitor?
A: The DC–10 kHz frequency response supports shaft speeds up to approximately 600,000 RPM for 1× vibration detection, making it suitable for virtually all industrial rotating machinery applications.
Q: How do I verify the total system cable length for my installation?
A: Total system length = probe integral cable (2.0 m) + extension cable length. This total must match the proximitor’s calibrated cable length (typically 5 m, 9 m, or 15 m systems). Mismatched lengths will introduce scale factor error.
Q: Is a Certificate of Conformance (CoC) available?
A: Yes, CoC documentation is available upon request. Please specify your requirement at the time of order or contact support@konmask.com.
