Bently Nevada 330104-00-03-10-01-05 Proximity Probe | Replacement, Equivalent & Selection Guide

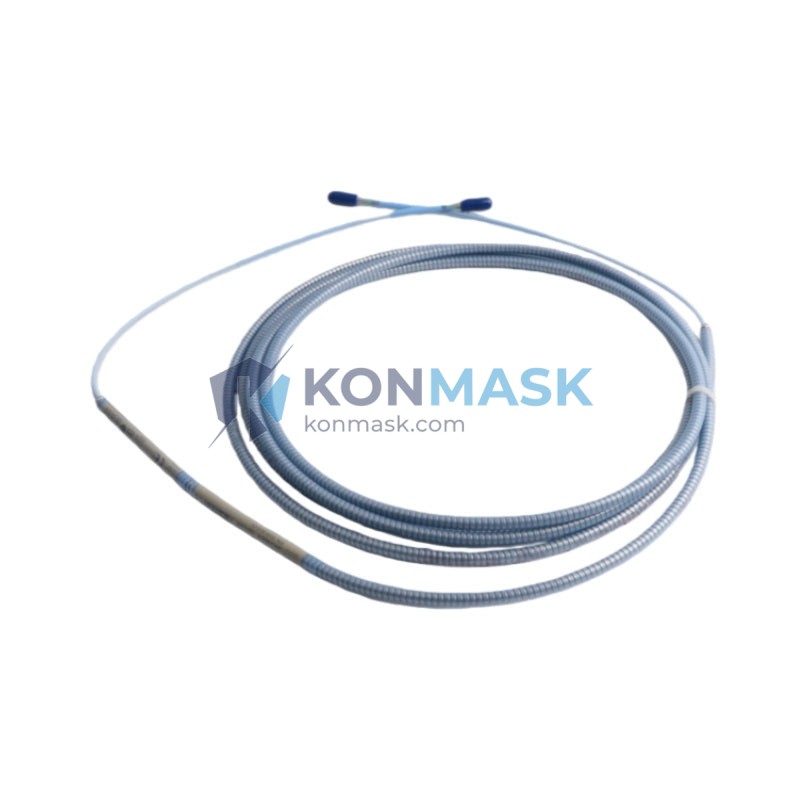

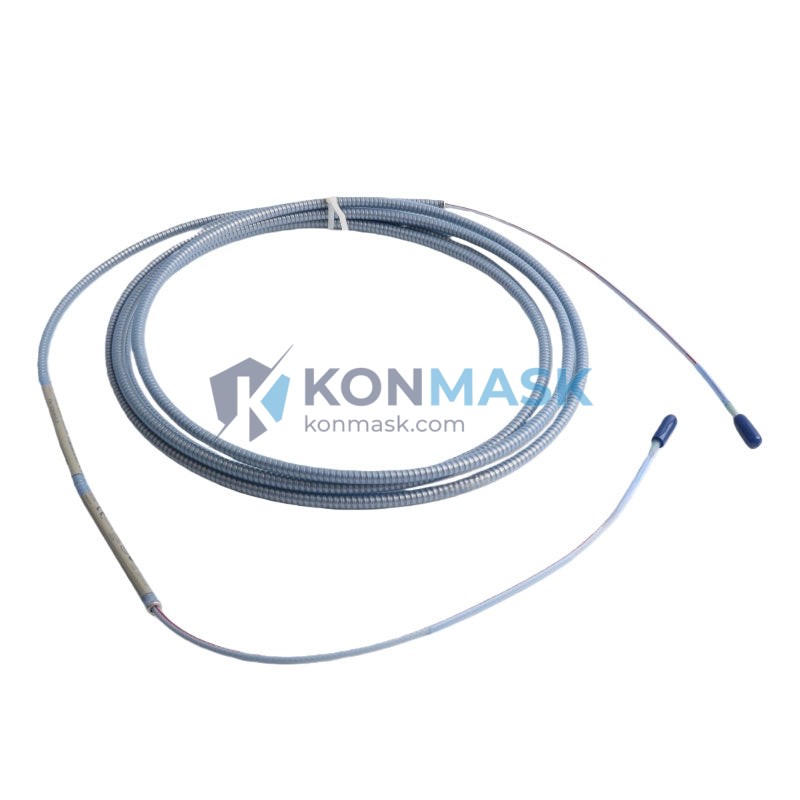

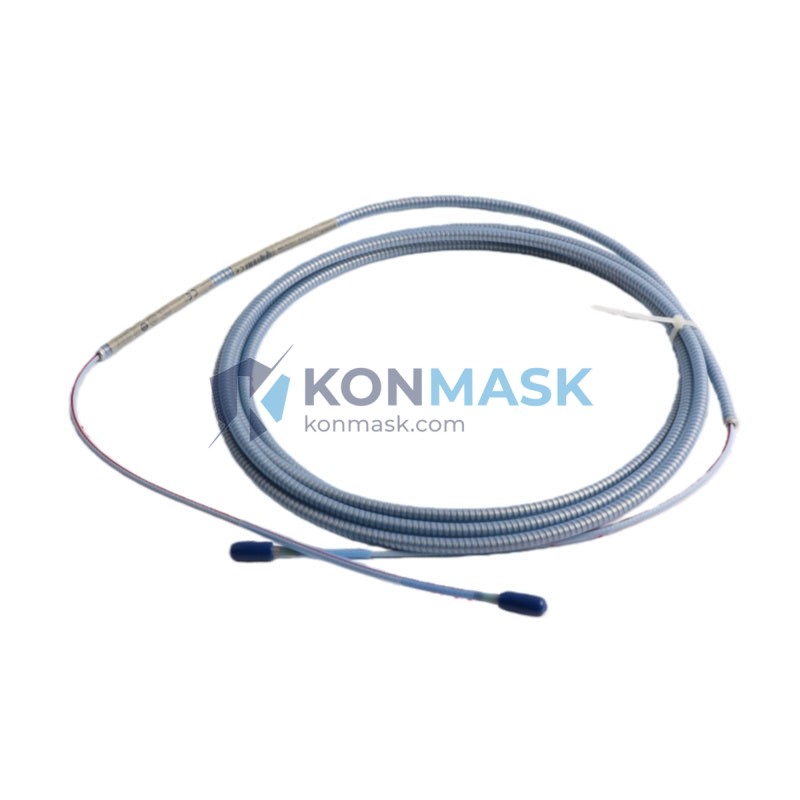

The Bently Nevada 330104-00-03-10-01-05 is a high-performance eddy-current proximity probe from the 3300 XL Series, designed for continuous non-contact vibration, position, and speed measurement in rotating machinery. As an authorized sourcing partner, Konmask.com supplies both original and compatible replacement units with full traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330104-00-03-10-01-05 |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 XL Proximity Transducer System |
| Probe Tip Diameter | 5 mm (3/16 in) |
| Cable Length | 5 m (16.4 ft) — integral armored cable |
| Thread Size | M10 × 1 |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 – 2.26 mm (10 – 89 mil) |
| Operating Temperature | −35 °C to +177 °C (−31 °F to +351 °F) |
| Supply Voltage | −24 VDC (nominal) |
| Output | −1 to −17 VDC |
| Connector | Integral coaxial, 3-pin |
| Approvals | CE, ATEX, IECEx (consult datasheet) |
| Weight | ~200 g |
Compatible Replacement & Equivalent Models
The table below lists direct replacements and functional equivalents for the 330104-00-03-10-01-05. Always verify cable length, tip diameter, and driver compatibility before substitution.
| Model | Brand | Tip Dia. | Cable | Notes |
|---|---|---|---|---|
| 330104-00-03-10-01-05 | Bently Nevada | 5 mm | 5 m | Original — this product |
| 330104-00-03-05-02-05 | Bently Nevada | 5 mm | 2.5 m | Shorter cable variant |
| 330104-00-03-10-02-05 | Bently Nevada | 5 mm | 5 m | Reverse-mount variant |
| 330180-91-00 | Bently Nevada | 8 mm | — | Larger tip, same system |
| PR6423/010-100 | Epro (Baker Hughes) | 8 mm | 1 m | Cross-compatible with 3300 driver |
| CS-1 / CS-3 | Metrix / Wilcoxon | 5 mm | Varies | Functional equivalent; verify driver |
⚠ Disclaimer: Third-party equivalents require engineering validation. Konmask.com recommends using OEM parts for safety-critical applications.
Why Choose the Original Model
- Factory-calibrated sensitivity (200 mV/mil ±1%) for certified measurement accuracy.
- Full system traceability — pairs natively with 3300 XL drivers (3300/16, 3300/20, 3300/55) without recalibration.
- Hazardous-area approvals (ATEX/IECEx) maintained only with OEM probe-driver-cable matched sets.
- Extended temperature range suitable for turbine bearing housings and compressor trains.
- Bently Nevada warranty and global technical support coverage.
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position (thrust) measurement
- Pump and motor bearing proximity sensing
- Gearbox speed and phase reference (Keyphasor®)
- API 670-compliant machinery protection systems
System Compatibility
The 330104-00-03-10-01-05 probe is designed to operate as part of a matched transducer system. Confirm the following components when ordering:
- Driver / Proximitor: 3300 XL series (e.g., 3300/16-02-01-01, 3300/20-11-01-01)
- Extension Cable: 330130-080-00-00 (8 m) or equivalent to achieve total system cable length of 5 m + extension
- Mounting Hardware: M10 × 1 probe holder; verify bracket clearance for 5 mm tip
- Monitor: 3500 Series rack (3500/42M, 3500/45) or 1900/65A standalone
Selection Guide
Use the part-number structure to select the correct variant for your application:
| Position | Code | Meaning |
|---|---|---|
| Base model | 330104 | 3300 XL 5 mm proximity probe |
| Tip option | 00 | Standard tip |
| Tip diameter | 03 | 5 mm (3/16 in) |
| Cable length | 10 | 5 m integral cable |
| Mount style | 01 | Standard (non-reverse) |
| Connector | 05 | 3-pin integral coaxial |
Need a different cable length or mount style? Contact support@konmask.com with your application details.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or directly from Baker Hughes / Bently Nevada.
- Each probe ships with original packaging, datasheet, and calibration certificate where available.
- Konmask.com performs incoming inspection: visual check, connector integrity, and cable continuity.
- Traceability documentation (COC, country of origin) available on request.
- Export compliance: ECCN EAR99 (verify for your destination country).
How to Order
- Confirm your driver model and total cable length requirement.
- Add 330104-00-03-10-01-05 to cart, or contact us for volume pricing.
- Provide your PO number, ship-to address, and any required documentation (COC, ATEX cert).
- Lead time: in-stock units ship within 1–3 business days; special orders 2–4 weeks.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use a 330104-00-03-10-01-05 probe with an older 3300 (non-XL) driver?
A: The 3300 XL probe is backward-compatible with most 3300 series drivers, but sensitivity and linear range must be re-verified. Consult Bently Nevada TIL-073.
Q: What is the difference between 330104 and 330180 probes?
A: The 330104 uses a 5 mm tip (better for small shaft diameters), while the 330180 uses an 8 mm tip (wider linear range, preferred for large shafts >75 mm).
Q: Can I extend the integral cable?
A: Yes, using a Bently Nevada 330130 extension cable. Total probe + extension cable length must match the driver’s calibrated range (typically 5 m or 9 m system).
Q: Do you supply ATEX-certified units?
A: Yes. Please specify your hazardous-area classification (Zone 1/2, gas group, temperature class) when ordering.
Q: What is the lead time for out-of-stock units?
A: Typically 2–4 weeks for factory-fresh units. Refurbished/exchange units may be available sooner — contact us.
