Bently Nevada 330103-00-60-05-02-05 – Non-Contact Eddy Current Proximity Probe | 3300 XL 8mm Transducer System
Engineering Background
The Bently Nevada 3300 XL 8mm Proximity Transducer System is the global benchmark for non-contact shaft vibration and position measurement in rotating machinery protection. Developed under Baker Hughes’ Bently Nevada product line, the 330103 series proximity probe is engineered to deliver sub-micron resolution in the harshest industrial environments — from gas turbines and steam turbines to compressors, pumps, and gearboxes.
Product Positioning

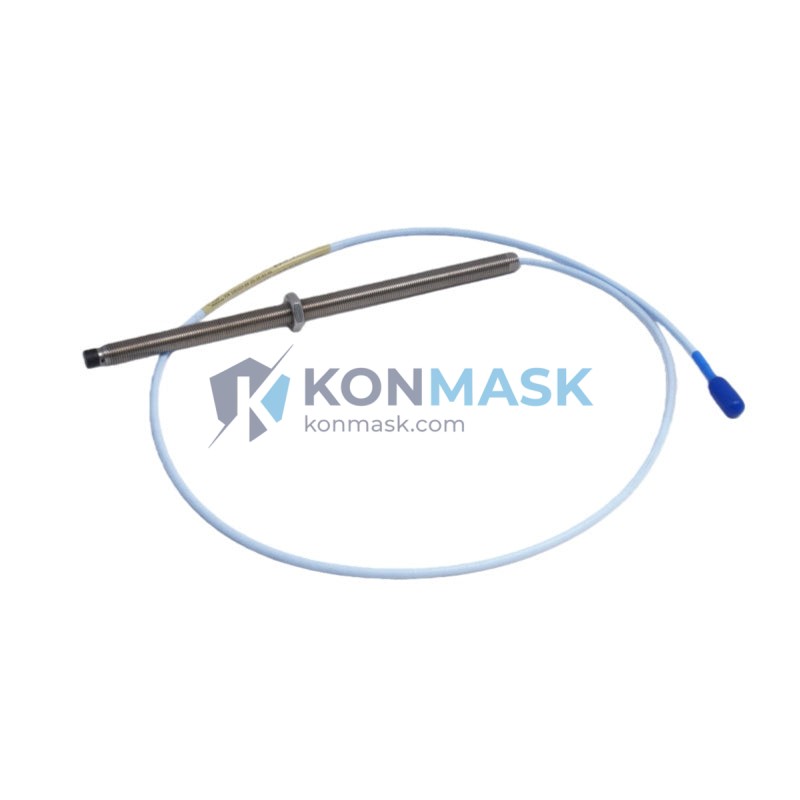

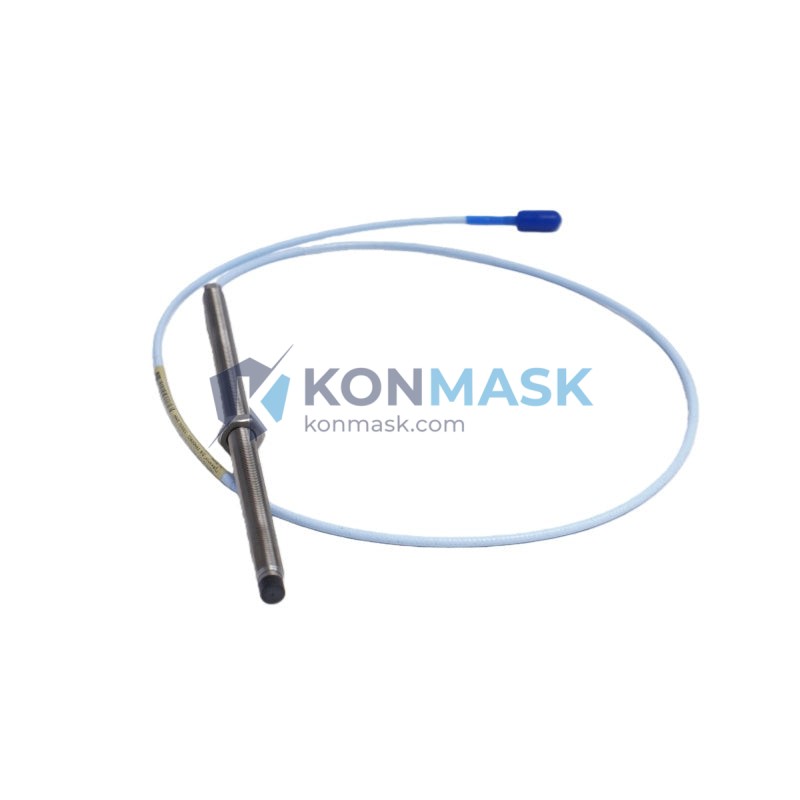

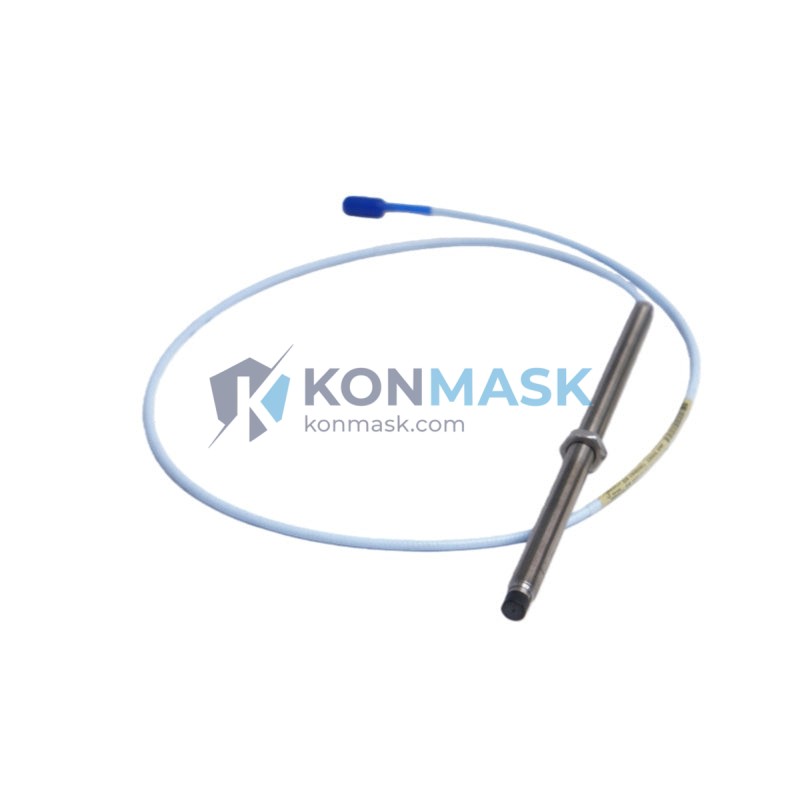

The 330103-00-60-05-02-05 is a factory-configured 8mm eddy current proximity probe with a 5-metre (16.4 ft) integral armored cable, designed for direct integration into Bently Nevada 3300 XL signal conditioning systems. It is the preferred choice for OEM machinery builders and reliability engineers who require API 670-compliant vibration monitoring with zero mechanical contact and zero wear.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330103-00-60-05-02-05 |
| Brand | Bently Nevada (Baker Hughes) |
| Series / Platform | 3300 XL 8mm Proximity Transducer System |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Cable Length | 5.0 m (16.4 ft) integral armored cable |
| Linear Range | 0.25 mm – 2.26 mm (10 – 89 mil) |
| Scale Factor (Sensitivity) | 7.87 V/mm (200 mV/mil) nominal |
| Bias Voltage (Output) | -10.0 VDC @ 1.27 mm (50 mil) gap |
| Supply Voltage | -24 VDC (via Proximitor / driver) |
| Frequency Response | DC to 10,000 Hz (–3 dB) |
| Operating Temperature | -35°C to +177°C (probe tip) |
| Target Material | AISI 4140 / 4340 Alloy Steel |
| Connector Type | Integral coaxial, armored, 5 m |
| Ingress Protection | IP67 (probe body) |
| Compliance | API 670, CE, RoHS |
| Compatible Driver | Bently Nevada 330180 / 330130 Proximitor Sensor |
| Weight | Approx. 60 g |
| Country of Origin | China (OEM-authorized stock) |
| HS Code | 9026.80 |
Proven Application Environments
- Gas Turbines & Steam Turbines – Radial shaft vibration and axial position monitoring per API 670
- Centrifugal Compressors – High-speed rotor orbit and differential expansion measurement
- Pumps & Fans – Continuous bearing health monitoring in critical process loops
- Gearboxes – Gear mesh frequency analysis and shaft eccentricity detection
- Electric Motors – Rotor runout and air-gap uniformity verification
- Petrochemical & Refinery Plants – SIL-rated machinery protection systems
- Power Generation – Turbine-generator train protection and condition monitoring
Engineering Advantages
- Non-Contact Measurement – Zero mechanical wear; continuous operation without maintenance intervals
- Sub-Micron Resolution – Detects shaft displacement changes as small as 0.001 mm
- Wide Frequency Bandwidth – DC to 10 kHz captures both slow-roll runout and high-frequency blade-pass events
- Armored Integral Cable – Factory-terminated 5 m cable eliminates field-splice signal degradation
- API 670 Compliant – Drop-in replacement for existing 3300 XL installations without recalibration
- High-Temperature Probe Tip – Rated to +177°C for direct bearing housing mounting
- Plug-and-Play with 3300 XL Ecosystem – Matched scale factor ensures system accuracy without field adjustment
System Architecture & Signal Flow
The 330103-00-60-05-02-05 operates as the sensing element in a three-component eddy current transducer system:
- Proximity Probe (330103) → Generates high-frequency electromagnetic field at tip; detects conductive target displacement
- Extension Cable (330130) → Transmits RF signal from probe to Proximitor with matched impedance (if required for distances >5 m)
- Proximitor Sensor (330180) → Demodulates RF signal; outputs calibrated DC voltage proportional to gap distance
Output signal: –24 VDC supply in → –10 VDC bias output at nominal 1.27 mm gap → linear voltage swing across 0.25–2.26 mm measurement range. Signal feeds directly to Bently Nevada 3500 Series rack monitors or any API 670-compliant vibration monitor.
Sourcing & Quality Verification
- OEM-Traceable Stock – All units sourced through authorized Bently Nevada / Baker Hughes distribution channels
- Functional Test – Each probe verified for scale factor (7.87 V/mm ±0.5%) and bias voltage prior to shipment
- Original Packaging – Ships in factory-sealed Bently Nevada packaging with original documentation
- Calibration Certificate – Available upon request for SIL / IEC 61511 compliance documentation
- Counterfeit Prevention – Serial number and date code verified against Baker Hughes manufacturing records
Procurement Process
- Confirm Compatibility – Verify your existing Proximitor model (330180 or 330130) and cable routing distance
- Request Quote – Contact [email protected] with quantity and delivery timeline
- Lead Time – In-stock units ship within 2 business days; EXW Xiamen, China
- Export Documentation – Commercial invoice, packing list, and HS code 9026.80 provided for customs clearance
- Payment Terms – T/T, PayPal, and trade assurance accepted; volume pricing available for 5+ units
Technical FAQ
Q: Is the 330103-00-60-05-02-05 compatible with the Bently Nevada 3500 rack?
A: Yes. When paired with a 330180 Proximitor Sensor, the output signal is fully compatible with all 3500 Series monitor cards (3500/40M, 3500/42M, 3500/45, etc.).
Q: What does the part number suffix -00-60-05-02-05 indicate?
A: The suffix encodes: probe body style (00), cable length in decimeters (60 = 6.0 m integral), connector type (05), target material code (02), and temperature rating code (05). Always verify with the Bently Nevada 330103 datasheet for your specific revision.
Q: Can this probe measure non-ferrous targets?
A: The 330103 is calibrated for AISI 4140 steel. Non-ferrous targets (aluminum, titanium, Inconel) will produce a different scale factor and require recalibration via the Proximitor trim potentiometer.
Q: What is the difference between 330103 and 330104?
A: The 330103 uses an integral (non-separable) cable, while the 330104 uses a field-replaceable connector. The 330103 is preferred for permanent installations; the 330104 for applications requiring periodic probe replacement without cable re-routing.
Q: Do you provide ATEX/IECEx certified versions?
A: Yes. Bently Nevada offers ATEX-certified variants of the 3300 XL system. Please specify your hazardous area classification (Zone 1/Zone 2) when requesting a quote.
