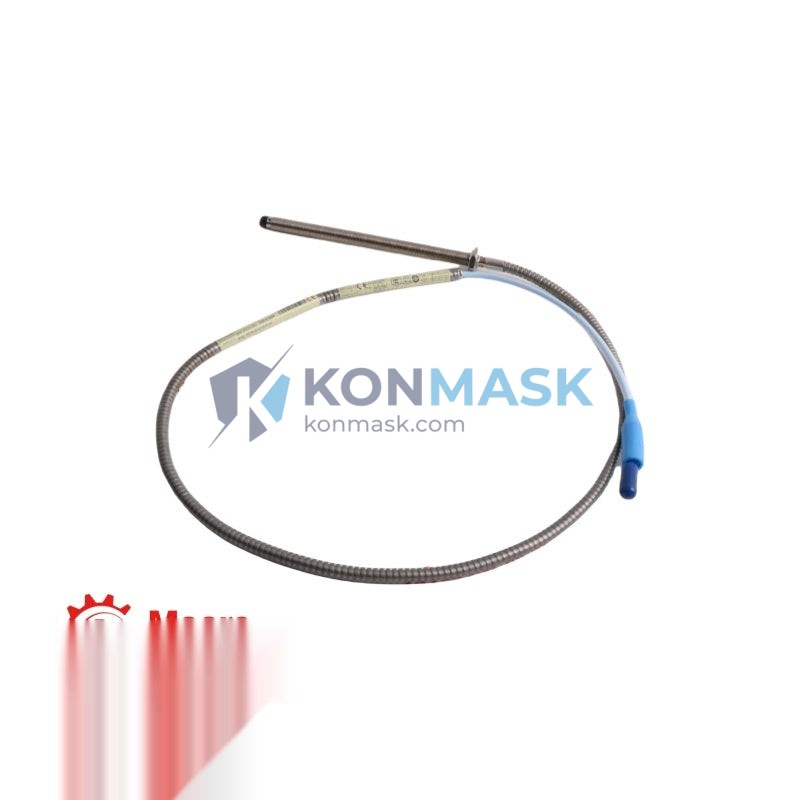

Bently Nevada 330104-00-15-10-01-05 – 8mm Eddy Current Proximity Probe | 3300 XL Series Platform
Engineering Background
The Bently Nevada 3300 XL Series represents the industry benchmark for continuous shaft vibration and position monitoring in rotating machinery. Developed by Baker Hughes (Bently Nevada), this eddy current-based measurement system has been deployed across power generation, oil & gas, and petrochemical industries for decades, providing the real-time data that machinery protection systems depend on.
Product Positioning
The 330104-00-15-10-01-05 is an 8mm diameter proximity probe engineered for the 3300 XL system architecture. It delivers non-contact, continuous measurement of shaft radial vibration, axial position, and differential expansion — critical parameters for API 670-compliant machinery protection. This probe is the primary sensing element in a three-component measurement chain: probe → extension cable → proximitor/driver.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330104-00-15-10-01-05 |
| Series / Platform | Bently Nevada 3300 XL |
| Sensing Technology | Eddy Current (Non-contact) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 5 m (integral cable) |
| Linear Range | 0.25 mm – 2.25 mm (10 mil – 90 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC – 10,000 Hz |
| Operating Temperature | -35°C to +177°C (-31°F to +350°F) |
| Target Material | AISI 4140 Steel (standard); other alloys with calibration |
| Connector Type | 3-pin MIL-C-5015 (integral) |
| Housing Material | 316 Stainless Steel |
| Ingress Protection | IP67 |
| Compliance | API 670, CE |
| Compatible Proximitor | 3300 XL NSv Proximitor (e.g., 330180) |
| Weight | Approx. 200 g |
Proven Application Environments
- Steam & Gas Turbines – Radial shaft vibration monitoring per API 670
- Centrifugal Compressors – Differential expansion and thrust position measurement
- Pumps & Fans – Continuous bearing journal orbit analysis
- Gearboxes – High-speed shaft eccentricity detection
- Hydro Turbines – Axial and radial displacement in wet environments
- Reciprocating Compressors – Rider band wear and crosshead monitoring
Engineering Advantages
- Non-contact measurement – Zero mechanical wear; suitable for continuous 24/7 operation
- Wide frequency bandwidth – DC to 10 kHz captures sub-synchronous, synchronous, and high-frequency events
- High temperature tolerance – Rated to +177°C for hot-section turbine bearing housings
- IP67 sealing – Resistant to oil mist, steam, and washdown environments
- 316 SS housing – Corrosion-resistant for offshore and chemical plant installations
- Direct 3300 XL compatibility – Plug-and-play with existing 3300 XL Proximitor drivers; no recalibration required for standard steel targets
System Architecture & Signal Flow
The 330104-00-15-10-01-05 operates as the sensing element in the Bently Nevada 3300 XL measurement chain:
- Probe (330104-00-15-10-01-05) – Generates eddy current field; outputs raw oscillator signal via integral 5m cable
- Extension Cable – Connects probe to proximitor (total system cable length must match proximitor calibration)
- 3300 XL Proximitor / Driver (e.g., 330180) – Conditions signal; outputs –24 VDC bias and calibrated voltage proportional to gap distance
- Monitoring System (e.g., 3500 Rack) – Receives 4–20 mA or voltage signal for alarm, trip, and trending
Note: Total cable length (probe integral + extension) must be specified at time of order to ensure factory calibration match with the designated proximitor.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified OEM surplus channels
- Each probe inspected for housing integrity, connector condition, and cable continuity prior to shipment
- Original Baker Hughes / Bently Nevada documentation and calibration certificates available upon request
- Traceability records maintained for serial number, manufacture date, and supply chain origin
- Konmask.com is an independent distributor — not an authorized Baker Hughes reseller; OEM warranty terms apply only to new factory-direct purchases
Procurement Process
- Confirm compatibility – Verify your proximitor model and total cable length requirement before ordering
- Request a quote – Contact support@konmask.com for volume pricing, lead time, and availability confirmation
- Place order – Purchase directly via this listing or via PO/wire transfer for B2B accounts
- Inspection & dispatch – Units inspected, photographed, and shipped within 2–5 business days via DHL / FedEx with tracking
- After-sales support – Technical assistance available for installation, commissioning, and system integration queries
Technical FAQ
Q: Is this probe compatible with the older 3300 (non-XL) system?
A: The 3300 XL probes use the same physical connector and cable standard as the legacy 3300 series, but scale factors and calibration may differ. Verify your proximitor model before mixing series components.
Q: What target material is this probe calibrated for?
A: Factory calibration is for AISI 4140 steel. For other alloys (e.g., Inconel, titanium), a material correction factor or field recalibration is required — consult Bently Nevada Application Note AN028.
Q: Can I use a longer extension cable?
A: Yes, but total system cable length (probe integral + extension) must match the proximitor’s calibrated length. Mismatched lengths introduce scale factor error. Contact us to confirm the correct extension cable part number.
Q: Do you provide a warranty?
A: Konmask offers a 90-day functional warranty on all units. New OEM units carry the full Baker Hughes factory warranty.
Q: What is the lead time?
A: In-stock units ship within 2–5 business days. For out-of-stock items, typical lead time is 2–4 weeks. Contact us for real-time availability.
