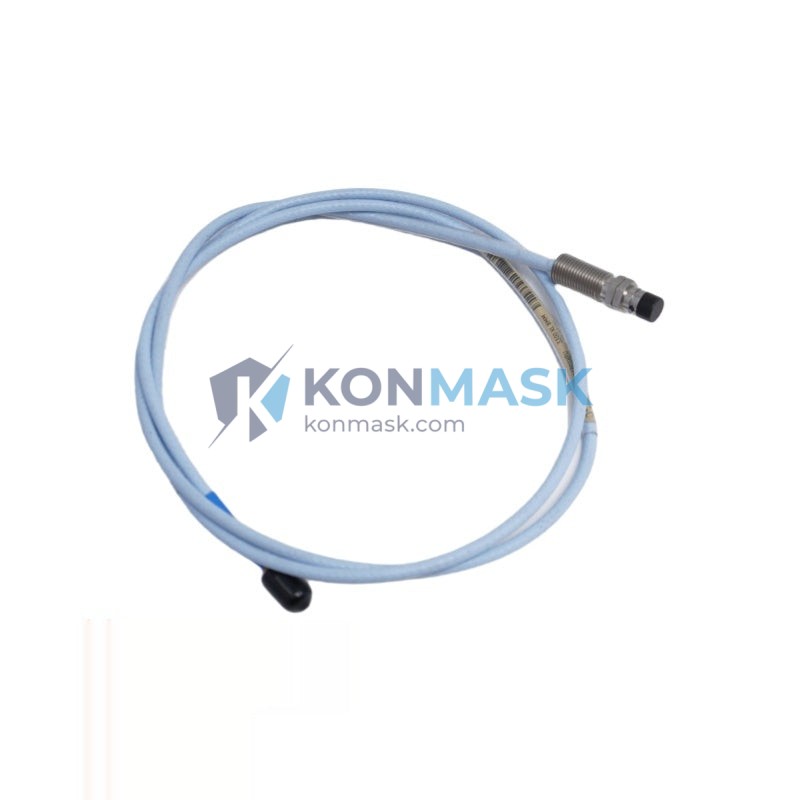

Bently Nevada 330106-05-30-10-12-00 Proximity Probe | Replacement, Equivalent & Selection Guide
The Bently Nevada 330106-05-30-10-12-00 is an 8mm eddy-current proximity probe from the industry-standard 3300 XL Series, designed for continuous non-contact vibration, position, and speed measurement on rotating machinery. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Part Number | 330106-05-30-10-12-00 |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 XL 8mm Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Cable Length | 5 m (16.4 ft) — Extension Cable |
| Probe Length | 30 mm |
| Thread | M10 × 1 |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 – 2.54 mm (10 – 100 mil) |
| Operating Temperature | −35 °C to +177 °C |
| Supply Voltage | −24 VDC (nominal) |
| Output | −1 VDC to −18 VDC |
| Target Material | AISI 4140 steel (standard) |
| Connector | 12-pin (integral) |
| Weight | ~1,600 g (with cable) |
| Approvals | CE, ATEX, IECEx (hazardous area rated) |
Compatible Replacement & Equivalent Models
The following models are functionally compatible or direct replacements for the 330106-05-30-10-12-00. Always verify system driver/conditioner compatibility before substitution.
| Part Number | Brand | Notes |
|---|---|---|
| 330106-05-30-10-02-00 | Bently Nevada | Same probe, 2m cable — shorter cable variant |
| 330106-05-30-10-05-00 | Bently Nevada | Same probe, 5m cable, different connector code |
| 330106-05-30-10-CN-00 | Bently Nevada | China-market variant, functionally equivalent |
| PR6423/010-030 | Epro (Baker Hughes) | 8mm eddy-current, 3300-compatible driver |
| CS-1 / CS-3 | Metrix / Wilcoxon | Alternative brand, requires driver recalibration |
| TQ-Series 8mm | Shinkawa | Japanese equivalent, verify gap voltage range |
Why Choose the Original Model
- OEM-certified accuracy: Factory-calibrated sensitivity of 7.87 V/mm ensures direct drop-in compatibility with 3300 XL drivers and monitors.
- Hazardous area rated: ATEX/IECEx certification for use in Zone 1/Zone 2 explosive atmospheres.
- Long-term reliability: Designed for continuous 24/7 operation on critical turbines, compressors, and pumps.
- Traceable calibration: Each unit ships with a calibration certificate traceable to NIST/ISO standards.
- Global installed base: Fully interchangeable with existing 3300 XL infrastructure — no reconfiguration required.
Typical Applications
- Radial shaft vibration monitoring on steam and gas turbines
- Axial thrust position measurement on centrifugal compressors
- Differential expansion monitoring on large rotating machinery
- Speed/phase reference (Keyphasor) measurement
- Eccentricity monitoring during turbine startup/shutdown
- Oil & gas, petrochemical, power generation, and marine industries
System Compatibility
The 330106-05-30-10-12-00 probe is designed to operate within the Bently Nevada 3300 XL Proximity Transducer System. Confirm the following system components for a complete installation:
- Driver/Oscillator: 330180 Series (3300 XL 8mm driver)
- Monitor: 3300/16 or 3500/42 Proximitor Monitor
- Extension Cable: 330130 Series (if additional cable length required)
- Barrier: Zener barrier or galvanic isolator for hazardous area installations
Selection Guide
Use the table below to select the correct 330106 variant for your application:
| Parameter | Options | Code Position |
|---|---|---|
| Probe Tip Diameter | 8 mm (standard) | 330106 |
| Probe Body Length | 05 = 5 mm | 08 = 8 mm | 11 = 11 mm | Pos. 1–2 |
| Cable Length | 30 = 3.0 m | 50 = 5.0 m | 90 = 9.0 m | Pos. 3–4 |
| Connector Type | 10 = Standard | 11 = Armored | Pos. 5–6 |
| Approval Code | 00 = Standard | 02 = ATEX | 12 = IECEx | Pos. 7–8 |
| Special Options | 00 = None | Pos. 9–10 |
Need help decoding your part number? Contact our technical team at support@konmask.com.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- 100% functional testing prior to shipment
- Original packaging and documentation preserved where available
- Calibration certificates provided upon request
- Traceability records maintained for industrial compliance audits
How to Order
- Confirm your full part number (e.g., 330106-05-30-10-12-00) from your existing system documentation or nameplate.
- Verify cable length and connector type requirements with your site engineer.
- Add to cart or contact us for bulk pricing and lead time: support@konmask.com | +0086 19859288691
- Request a formal quotation with your company PO details for B2B orders.
Replacement & Compatibility FAQ
Q: Can I use a 330106-05-30-10-02-00 in place of the 330106-05-30-10-12-00?
A: Yes — the only difference is cable length (2m vs 5m). Electrical performance is identical.
Q: Is the 330106 compatible with the 3500 Series monitors?
A: Yes, with the appropriate 3500/42 Proximitor module and correct driver configuration.
Q: Can third-party probes (Epro, Metrix) replace this unit?
A: Functionally possible, but requires driver recalibration and gap voltage verification. OEM replacement is recommended for critical machinery.
Q: What is the standard gap voltage for this probe?
A: −10.0 VDC ± 0.5 VDC at the nominal 1.0 mm (40 mil) gap on AISI 4140 steel target.
Q: Do you provide ATEX-certified units?
A: Yes. Please specify your hazardous area classification when ordering.
