Vibration Monitoring Solution – Bently Nevada 330104-06-06-90-02-05 | 3300 XL Series

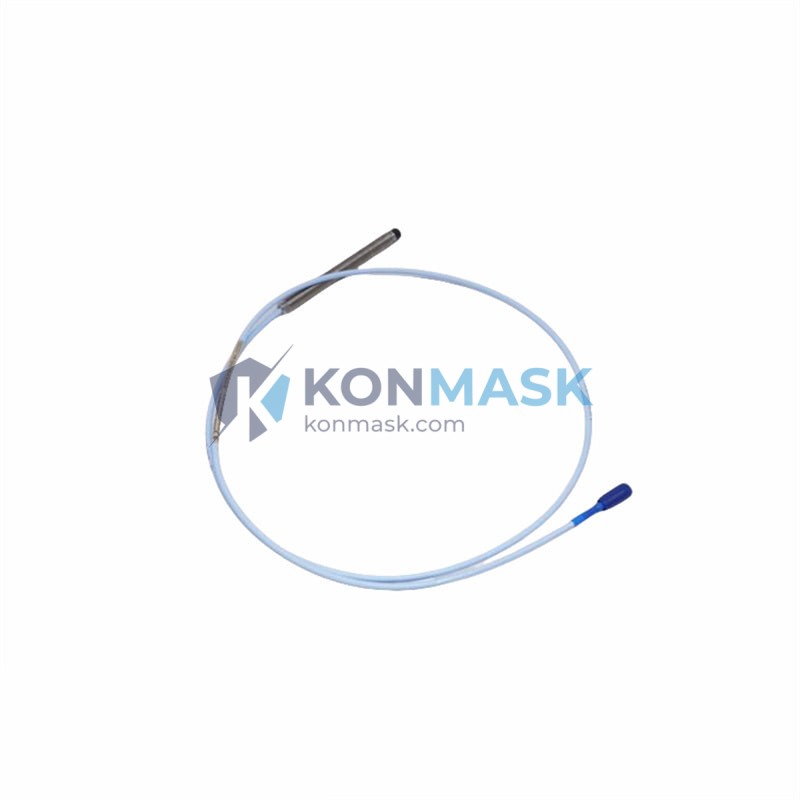

The Bently Nevada 330104-06-06-90-02-05 is a complete proximity transducer system engineered for continuous, high-accuracy shaft vibration and position measurement in critical rotating machinery. Part of the industry-proven 3300 XL Series, this system delivers reliable eddy-current sensing performance in the most demanding industrial environments.
Where This Product Is Used
Engineers and reliability teams specify the 330104-06-06-90-02-05 across a wide range of rotating machinery applications:
- Steam & Gas Turbines — Continuous radial shaft vibration monitoring to detect imbalance, misalignment, and bearing wear before failure.
- Centrifugal Compressors — Thrust position and differential expansion measurement in API 670-compliant protection systems.
- Pumps & Fans — Early-warning vibration trending for predictive maintenance programs.
- Gearboxes — Gear mesh frequency analysis and shaft orbit monitoring.
- Hydro & Wind Turbines — Non-contact displacement sensing in high-humidity, outdoor environments.
- Marine Propulsion Systems — Shaft monitoring in confined machinery spaces where contact sensors are impractical.
Technical Specifications
- Part Number: 330104-06-06-90-02-05
- Series: Bently Nevada 3300 XL Proximity Transducer System
- Probe Cable Length: 6 ft (1.83 m) integral cable
- Extension Cable Length: 6 ft (1.83 m)
- Thread Size: 3/8-24 UNF
- Tip Diameter: 8 mm
- Sensing Range: 0 – 90 mil (0 – 2.286 mm) linear range
- Scale Factor: 200 mV/mil (7.87 V/mm)
- Frequency Response: DC to 10,000 Hz
- Temperature Range: -35°C to +177°C (probe); -35°C to +85°C (driver)
- Supply Voltage: -24 VDC (nominal)
- Output: -1 to -17 VDC (linear range)
- Target Material: AISI 4140 steel (standard); other materials require calibration
- Connector: 2-pin MIL-C-5015 (driver output)
- Weight: 200 g (approx.)
- Compliance: API 670, CE, RoHS
Why Engineers Specify This Model
- Non-Contact Measurement — Eddy-current technology eliminates mechanical wear, ensuring decades of maintenance-free operation.
- High Linearity — ±1% linearity across the full sensing range ensures accurate vibration amplitude readings.
- Wide Bandwidth — DC to 10 kHz response captures both slow-roll runout and high-frequency subsynchronous events.
- API 670 Ready — Drop-in compatible with Bently Nevada 3500 Series monitoring racks and third-party API 670 systems.
- Harsh Environment Rated — Stainless steel probe body and hermetically sealed driver withstand steam, oil mist, and high-temperature environments.
- System Matched — Probe, cable, and driver are factory-calibrated as a matched set, eliminating field calibration errors.
Complete System Bill of Materials
The 330104-06-06-90-02-05 is a complete 3-component system. Typical complementary components for a full monitoring loop include:
- Bently Nevada 3500/42M Proximitor I/O Module (vibration monitor rack card)
- Bently Nevada 3500/22M Transient Data Interface
- Bently Nevada 3500/15 Power Supply Module
- Bently Nevada 990 Vibration Transmitter (4–20 mA output for DCS integration)
- Shielded twisted-pair signal cable (customer-supplied, per API 670 Annex D)
Contact us to source any of the above components as a complete monitoring system package.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- ISO 10816 / ISO 20816 — Mechanical vibration evaluation standards
- IEC 61508 — Functional safety (SIL-capable installations)
- CE Marking — EMC Directive 2014/30/EU
- RoHS Compliant — Restriction of Hazardous Substances
Quality Assurance & Sourcing
Every 330104-06-06-90-02-05 unit offered by Konmask.com is:
- Sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Inspected for physical integrity, connector condition, and cable continuity prior to shipment.
- Shipped with original manufacturer packaging where available, or equivalent ESD-safe protective packaging.
- Backed by our 90-day quality guarantee — if the part does not perform to specification, we will replace or refund it.
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- Online: Add to cart directly from this page for immediate checkout.
- Email RFQ: Send your PO or RFQ to support@konmask.com — we respond within 4 business hours.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 08:00–18:00 CST)
- Bulk / Project Orders: Volume pricing available for quantities of 3 or more units. Contact us for a project BOM review.
Application-Specific FAQ
Q: Is the 330104-06-06-90-02-05 compatible with the Bently Nevada 3500 rack?
A: Yes. This 3300 XL system is fully compatible with the 3500/42M Proximitor I/O module and all standard 3500 Series rack configurations.
Q: Can this transducer be used on non-steel targets?
A: The standard calibration is for AISI 4140 steel. For aluminum, titanium, or other alloys, a target-material correction factor or custom calibration is required. Contact our engineering team for guidance.
Q: What is the maximum shaft speed this system can monitor?
A: The 10 kHz frequency response supports shaft speeds up to approximately 600,000 RPM for 1× vibration, making it suitable for virtually all industrial rotating machinery.
Q: Do you supply calibration certificates?
A: Factory calibration data is available upon request. Third-party NIST-traceable calibration certificates can be arranged — please inquire at time of order.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical lead time is 2–4 weeks. Contact us for real-time availability.
