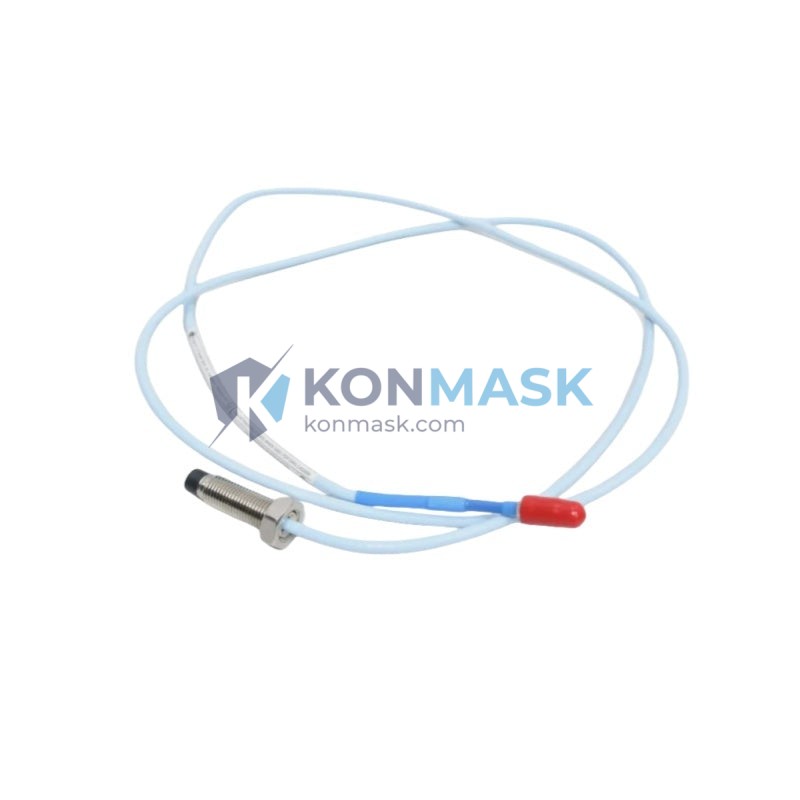

Bently Nevada 330105-02-12-10-05-05 Proximity Transducer – 3300 XL 8mm Proximity Transducer System
When a critical rotating machine — a turbine, compressor, or pump — loses its vibration monitoring capability, the consequences are immediate and severe. Without a functioning proximity transducer, operators are blind to shaft displacement, radial vibration, and axial position changes that precede catastrophic bearing failures. Unplanned downtime in heavy industry can cost tens of thousands of dollars per hour, and more critically, it puts personnel safety at risk. The Bently Nevada 330105-02-12-10-05-05 is the precision sensing element that keeps your machinery protection system fully operational.
The 330105-02-12-10-05-05 is a core component of the Bently Nevada 3300 XL 8mm Proximity Transducer System — one of the most widely deployed eddy-current sensing platforms in global industrial automation. Engineered for continuous, non-contact measurement of shaft vibration and position, this transducer is trusted in power generation, oil & gas, petrochemical, and rotating equipment applications worldwide. Its 8mm probe diameter and standardized cable configuration make it a direct-fit replacement across thousands of installed 3300 XL system architectures.
Technical Specifications
- Part Number / SKU: 330105-02-12-10-05-05
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL 8mm Proximity Transducer System
- Probe Diameter: 8 mm
- Measurement Type: Non-contact eddy-current proximity / vibration / position
- Output: Compatible with 3300 XL Proximitor® Sensor signal conditioning
- Cable Length: Per part number suffix configuration (02-12-10-05-05)
- Connector Type: Per suffix specification
- Target Material: Conductive metals (steel, stainless steel, Inconel)
- Operating Temperature: Per Bently Nevada 3300 XL datasheet
- Approvals: Designed for use in API 670-compliant machinery protection systems
Note: All specifications are based on Bently Nevada published documentation. Do not rely on this page alone for engineering design — always verify with the official datasheet.
Key Features & Benefits
- Non-Contact Sensing: Eddy-current technology eliminates mechanical wear, ensuring long service life in continuous-duty applications.
- High Sensitivity & Linearity: Delivers accurate, repeatable shaft displacement measurements critical for API 670 machinery protection.
- Direct Replacement Compatibility: Designed as a drop-in replacement for existing 3300 XL installations — no re-wiring or re-calibration of the Proximitor® required when replacing like-for-like.
- Robust Construction: Stainless steel probe body withstands harsh industrial environments including high temperatures, vibration, and chemical exposure.
- Standardized Suffix Coding: The -02-12-10-05-05 suffix precisely defines cable length, armored extension cable, and connector configuration for exact system matching.
- API 670 Compliance Support: Integral to building and maintaining API 670-compliant radial vibration, axial position, and speed monitoring channels.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — shaft radial vibration and axial thrust monitoring.
- Oil & Gas: Centrifugal compressors, expanders, pipeline pumps — continuous condition monitoring in upstream and downstream facilities.
- Petrochemical & Refining: Critical rotating equipment protection in refineries and chemical plants.
- Marine & Offshore: Propulsion systems and auxiliary rotating machinery requiring continuous vibration surveillance.
- General Industrial: High-speed fans, blowers, gearboxes, and any rotating machinery requiring non-contact displacement measurement.
System Integration & Compatible Parts
The 330105-02-12-10-05-05 transducer is designed to operate within the complete Bently Nevada 3300 XL system architecture. Compatible and commonly paired components include:
- Proximitor® Sensor: 3300 XL series signal conditioners (e.g., 330180, 330130 series)
- Extension Cable: 330130 series armored extension cables
- Monitoring System: Bently Nevada 3500 Series Machinery Protection System
- Rack Monitors: 3500/40M, 3500/42M Proximitor®/Seismic Monitor modules
- Power Supply: 3500/15 Power Supply module
If you need assistance identifying compatible components for your specific installation, contact our technical team at support@konmask.com.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada component we supply undergoes a rigorous sourcing and verification process:
- Authorized Supply Chain: We source exclusively from verified distributors and authorized channels to ensure genuine, non-counterfeit parts.
- Visual & Label Inspection: Each unit is inspected for physical integrity, correct part number labeling, and packaging authenticity before dispatch.
- Documentation: Certificates of conformance and traceability documentation available upon request.
- Warranty: All products carry our standard warranty against defects. Contact us for terms specific to this part number.
How to Order
- Confirm your required part number: 330105-02-12-10-05-05
- Submit an inquiry via our website contact form or email support@konmask.com
- Receive a formal quotation with lead time and shipping options within 24 business hours
- Confirm purchase order — we accept T/T, L/C, and other standard B2B payment terms
- Shipment with full documentation (packing list, commercial invoice, CoC)
For urgent requirements or large-volume orders, call us directly: +0086 19859288691
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control and automation components — PLC modules, DCS parts, drives, and condition monitoring equipment.
- Global B2B Supply: Serving engineering teams, MRO procurement departments, and EPC contractors worldwide.
- Fast Response: Dedicated technical sales team responds to all inquiries within one business day.
- Competitive Pricing: Direct sourcing relationships enable us to offer competitive pricing on hard-to-find and obsolete parts.
- Reliable Logistics: DHL, FedEx, and freight forwarding options with full export documentation support.
Frequently Asked Questions
- Q: Is the 330105-02-12-10-05-05 a genuine Bently Nevada part?
- A: Yes. Konmask.com sources all Bently Nevada components through verified supply channels. We do not sell counterfeit or remanufactured parts.
- Q: What does the suffix -02-12-10-05-05 mean?
- A: The suffix defines the probe configuration including cable length, extension cable type, and connector specification. The 330105 base part number designates the 8mm probe body within the 3300 XL system.
- Q: Can this transducer be used as a direct replacement without recalibrating the Proximitor®?
- A: When replacing with an identical part number (330105-02-12-10-05-05), the system sensitivity and scale factor remain consistent with the original calibration. Always verify with your site instrumentation engineer before installation.
- Q: What is the typical lead time?
- A: Lead time varies by stock availability. Contact us for a real-time availability check. We maintain stock of common Bently Nevada 3300 XL series components.
- Q: Do you provide export documentation for international shipments?
- A: Yes. We provide commercial invoices, packing lists, certificates of conformance, and can assist with export licensing requirements for controlled items.
