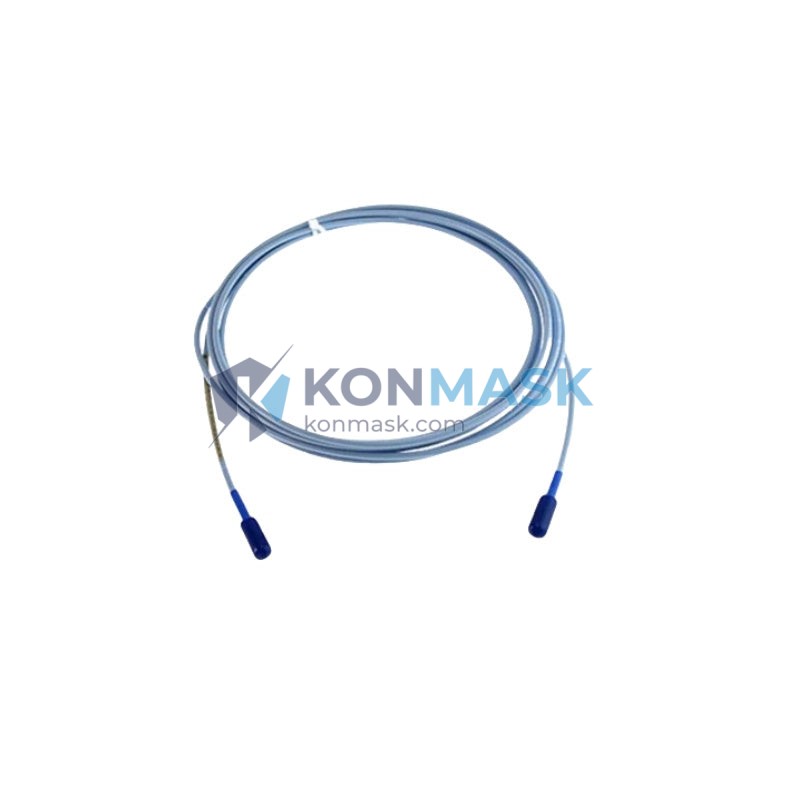

Bently Nevada 330130-040-02-05 – 4-Meter Extension Cable for Proximity Probes | 3300 XL Series
Engineering Background: The Bently Nevada 3300 XL Series represents the industry benchmark for non-contacting proximity measurement in rotating machinery protection. Designed for continuous operation in harsh industrial environments, the 3300 XL system relies on a precisely matched three-component chain: probe, extension cable, and proximitor. The 330130-040-02-05 is the OEM-specified 4-meter (13.1 ft) extension cable engineered to complete this chain with zero signal compromise.
Product Positioning: This extension cable is the critical signal conduit between the eddy-current probe tip and the proximitor module. It maintains the calibrated electrical characteristics required for accurate gap voltage output, making it indispensable for turbines, compressors, pumps, and gearboxes operating under API 670 machinery protection standards. Procurement engineers sourcing replacement or spare cables for 3300 XL installations will find this part fully interchangeable with OEM-installed units.
Complete Technical Specifications
- Part Number: 330130-040-02-05
- Series / Platform: Bently Nevada 3300 XL Proximity System
- Cable Length: 4.0 m (13.1 ft) — nominal extension length code -040
- Cable Type: Coaxial, low-loss, shielded — matched to 3300 XL system impedance
- Connector Style: Code -02 (standard BNC-compatible termination per 3300 XL spec)
- Jacket / Armor: Code -05 (armored jacket for mechanical protection in industrial installations)
- Compatible Probes: 330100, 330101, 330103, 330104, 330105 series (3300 XL 8mm probes)
- Compatible Proximitors: 3300 XL 8mm Proximitor Sensor (330180, 330181 series)
- Operating Temperature: –40 °C to +121 °C (–40 °F to +250 °F)
- Electrical Length Compensation: Factory-calibrated to maintain system sensitivity of –7.87 V/mm (–200 mV/mil)
- Weight: Approx. 1,900 g (including connectors)
- Approvals: CE marked; compatible with API 670 4th Edition machinery protection requirements
- Country of Origin: USA (Bently Nevada / Baker Hughes)
Proven Application Environments
- Steam and gas turbine shaft radial vibration and axial position monitoring
- Centrifugal and reciprocating compressor bearing protection systems
- Boiler feed pump and large motor shaft displacement measurement
- Gearbox and expander rotor dynamic monitoring per API 670
- Offshore platform and LNG plant rotating equipment protection
- Petrochemical, power generation, and pulp & paper critical machinery trains
Engineering Advantages
- OEM-Calibrated Matching: Factory-paired electrical characteristics ensure the full 3300 XL system sensitivity specification is maintained without field recalibration.
- Armored Jacket (-05): Stainless steel armor provides superior resistance to mechanical damage, rodent ingress, and vibration fatigue in congested machinery spaces.
- Low-Loss Coaxial Construction: Minimizes signal attenuation and phase shift across the 4-meter run, preserving measurement accuracy at high shaft speeds.
- Wide Temperature Range: Rated to +121 °C continuous, suitable for hot-section installations near turbine casings and exhaust ducts.
- Drop-In Replacement: Identical form, fit, and function to OEM-installed cables — no system re-ranging or reconfiguration required.
System Architecture & Signal Flow
The 3300 XL proximity measurement chain operates as follows:
Probe Tip (330100 series) → Extension Cable 330130-040-02-05 (this item) → Proximitor Module (330180 series) → Monitor / Rack (3500 or 3300 series)
The extension cable carries the RF oscillator signal from the proximitor to the probe and returns the modulated gap-dependent signal back. Any impedance mismatch or cable degradation directly corrupts the gap voltage output. Using the correct OEM part number is therefore a system integrity requirement, not merely a preference.
Sourcing & Quality Verification
- All units sourced through authorized industrial automation distributors or verified surplus channels with full traceability documentation.
- Each cable is inspected for connector integrity, jacket condition, and continuity prior to shipment.
- Certificates of conformance and original manufacturer documentation available upon request for critical plant applications.
- Konmask.com maintains inventory of common 3300 XL cable lengths and connector configurations to support urgent MRO requirements.
Procurement Process
- Step 1: Confirm your installed probe series and proximitor model to verify cable compatibility.
- Step 2: Verify required cable length (this listing: 4.0 m / -040 code). Other lengths available — contact us.
- Step 3: Place order online or contact support@konmask.com for volume pricing, expedited shipping, or documentation packages.
- Step 4: Receive with inspection report; install as direct OEM replacement with no system adjustments required.
Technical FAQ
Q: Can I use a generic coaxial cable instead of the OEM 330130 series?
A: No. The 3300 XL system is calibrated as a matched set. Non-OEM cables alter the system’s electrical length and impedance, causing sensitivity errors that invalidate machinery protection setpoints. Always use the specified Bently Nevada part number.
Q: What is the difference between connector codes -01, -02, and -03?
A: The connector code specifies the termination style at each end of the cable. Code -02 is the standard configuration for most 3300 XL field installations. Contact us if you require a different connector configuration.
Q: Is this cable compatible with the older 3300/5 or 3300/16 systems?
A: The 330130 series is designed for the 3300 XL platform. Compatibility with legacy 3300/5 or 3300/16 systems depends on the specific proximitor model. Consult the Bently Nevada system compatibility matrix or contact our technical team before ordering.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For large quantity orders or documentation-intensive plant requirements, contact us for a formal quotation.
