Bently Nevada 330130-085-00-05 Cable Extension 3300 XL 8mm | Replacement, Equivalent & Selection Guide

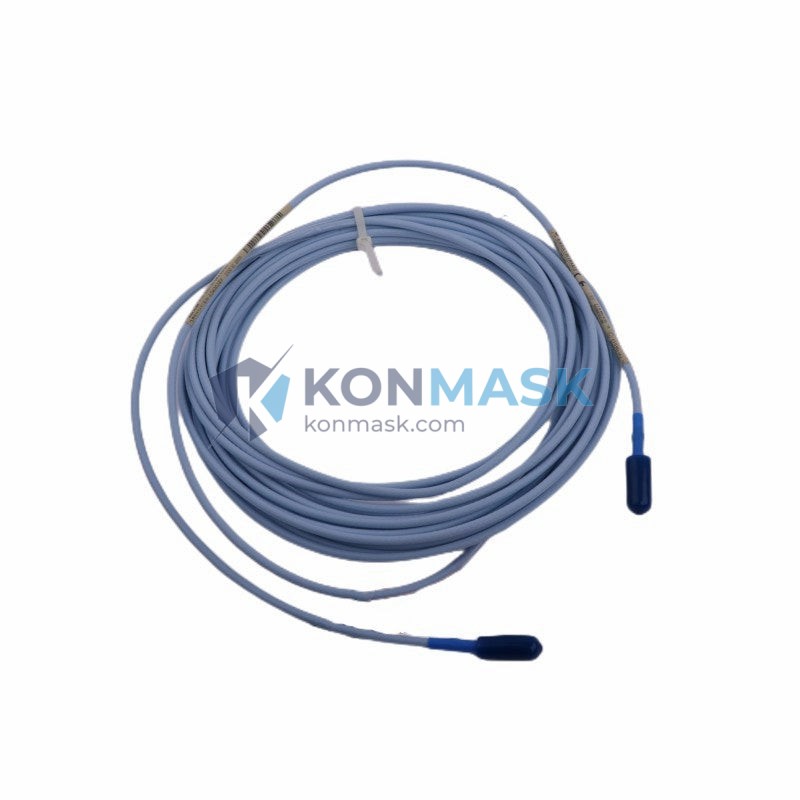

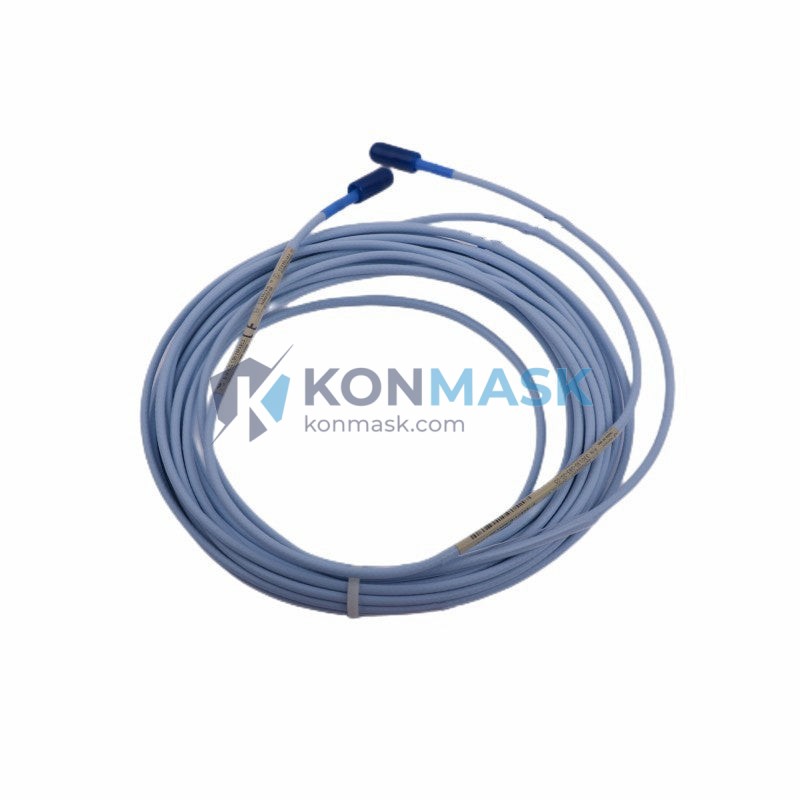

The Bently Nevada 330130-085-00-05 is an 8 mm armored cable extension designed for the 3300 XL Series proximity transducer system. It serves as the critical signal-transmission link between the proximitor/driver and the eddy-current probe, maintaining measurement accuracy in high-vibration, high-temperature industrial environments. This page provides full technical specifications, verified replacement options, application guidance, and ordering information to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: 330130-085-00-05
- Series: Bently Nevada 3300 XL
- Probe Tip Diameter: 8 mm
- Cable Length: 8.5 m (28 ft) — suffix “-085” denotes 8.5 m
- Cable Type: Armored extension cable
- Connector Type: BNC / coaxial, compatible with 3300 XL proximitor inputs
- Temperature Range: –50 °C to +150 °C (probe end); –40 °C to +85 °C (electronics end)
- System Compatibility: 3300 XL 8 mm Proximity Transducer System
- Sensitivity: 200 mV/mil (7.87 V/mm) — matched to 3300 XL system calibration
- Weight: Approx. 350 g
- Approvals: CE, CSA, FM (verify current certifications with datasheet)
Compatible Replacement & Equivalent Models
The table below lists verified compatible and functionally equivalent cable extensions. Always confirm system calibration and connector compatibility before substitution.
| Part Number | Brand | Length | Probe Dia. | Notes |
|---|---|---|---|---|
| 330130-085-00-05 | Bently Nevada (Original) | 8.5 m | 8 mm | OEM — recommended baseline |
| 330130-080-00-05 | Bently Nevada | 8.0 m | 8 mm | Shorter variant; verify gap voltage |
| 330130-090-00-05 | Bently Nevada | 9.0 m | 8 mm | Longer variant; same system |
| 3300 XL 8mm Extension (3rd-party) | Compatible OEM | 8.5 m | 8 mm | Must match BN calibration curve |
Note: Third-party replacements must be validated against Bently Nevada 3300 XL system calibration data. Mismatched sensitivity will cause measurement errors.
Why Choose the Original Model
- Factory-calibrated: Pre-matched to 3300 XL proximitor for plug-and-play accuracy — no field recalibration required.
- Certified materials: Armored jacket rated for high-vibration, high-temperature environments per API 670 guidelines.
- Traceability: Full OEM documentation, certificates of conformance, and serialized traceability for regulated industries.
- Long-term support: Bently Nevada (Baker Hughes) provides ongoing firmware and system compatibility assurance.
- Reduced risk: Using the original part eliminates calibration uncertainty and protects machinery protection system integrity.
Typical Applications
- Rotating machinery vibration monitoring (turbines, compressors, pumps, motors)
- Shaft radial and axial displacement measurement
- API 670 machinery protection systems
- Oil & gas upstream/downstream processing equipment
- Power generation — steam and gas turbines
- Petrochemical plant critical machinery trains
- Marine propulsion shaft monitoring
System Compatibility
The 330130-085-00-05 is designed exclusively for the Bently Nevada 3300 XL 8 mm Proximity Transducer System. It must be used with:
- Probe: 3300 XL 8 mm probe (e.g., 330103-00-08-10-02-00)
- Proximitor/Driver: 3300 XL 8 mm proximitor (e.g., 330180-X1-05)
- Monitor: Bently Nevada 3500 Series or 3300 Series rack monitors
Do not mix with 5 mm or 14 mm system components — sensitivity curves are incompatible and will produce erroneous readings.
Selection Guide
Use the following criteria to select the correct cable extension:
- Probe diameter: Must match — this part is for 8 mm probes only.
- Cable length: Measure the physical distance from probe to proximitor. The “-085” suffix = 8.5 m. Available lengths typically range from 0.5 m to 9.0 m in 0.5 m increments.
- Environment: Confirm temperature rating covers your installation zone (probe-end and electronics-end separately).
- Connector: Verify BNC connector compatibility with your proximitor input.
- Certification: For hazardous areas (ATEX/IECEx), confirm the specific approval suffix on the part number.
- System series: 3300 XL parts are not interchangeable with older 3300 (non-XL) series without recalibration.
Quality Assurance & Sourcing
- All units sourced by Konmask.com are inspected for physical integrity, connector condition, and labeling authenticity prior to dispatch.
- We supply new, surplus-new, and reconditioned units — condition is clearly stated on each listing.
- Certificate of Conformance (CoC) and original packaging available on request.
- Traceability documentation provided for regulated industries upon request.
- Lead time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days.
How to Order
- Online: Add to cart directly from this page.
- Email: support@konmask.com — include part number, quantity, and required condition.
- Phone/WhatsApp: +0086 19859288691
- RFQ: For bulk orders or urgent requirements, contact us for a dedicated quote within 24 hours.
- Please specify: part number, quantity, required condition (new/surplus/reconditioned), and any certification requirements.
Replacement & Compatibility FAQ
Q: Can I use a 3300 (non-XL) cable extension as a replacement?
A: Not recommended without recalibration. The 3300 XL system uses a different sensitivity curve. Mixing parts will cause measurement errors and may void system certification.
Q: What happens if I use a different cable length?
A: The total system cable length (probe + extension) must fall within the proximitor’s specified range (typically 5 m or 9 m total). Using an incorrect length shifts the gap voltage operating point and degrades linearity.
Q: Is this part compatible with the Bently Nevada 3500 monitor rack?
A: Yes — the 3300 XL transducer system (probe + extension + proximitor) connects to the 3500 Series monitor via the proximitor output signal. The cable extension itself is between probe and proximitor.
Q: Can Konmask.com supply a certificate of conformance?
A: Yes. CoC is available on request for all new and surplus-new units. Please specify your requirement at the time of order.
Q: Do you offer expedited shipping?
A: Yes. Express courier options (DHL, FedEx, UPS) are available at checkout or by contacting us directly.
