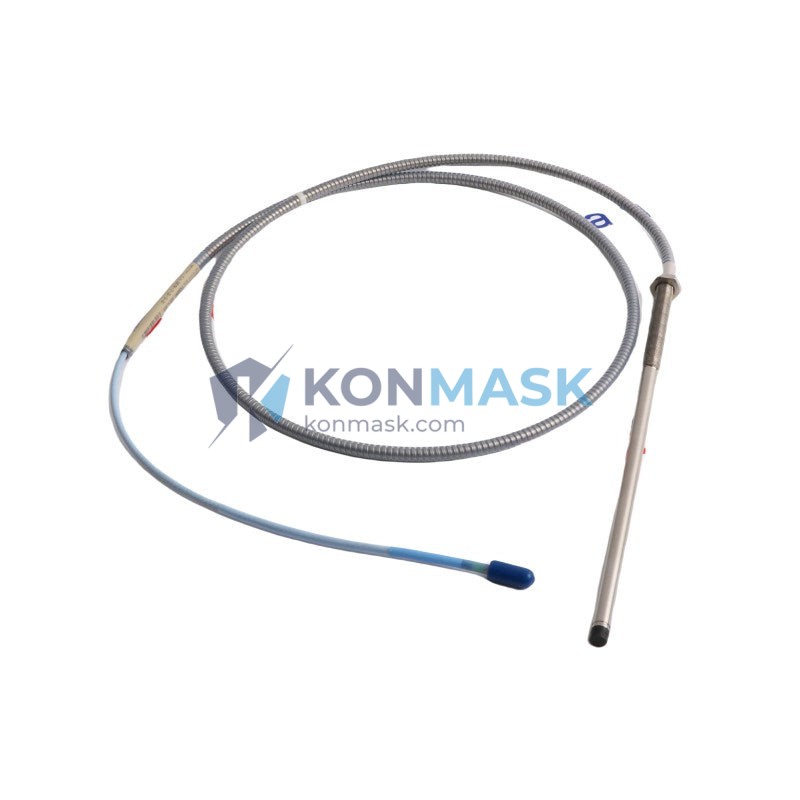

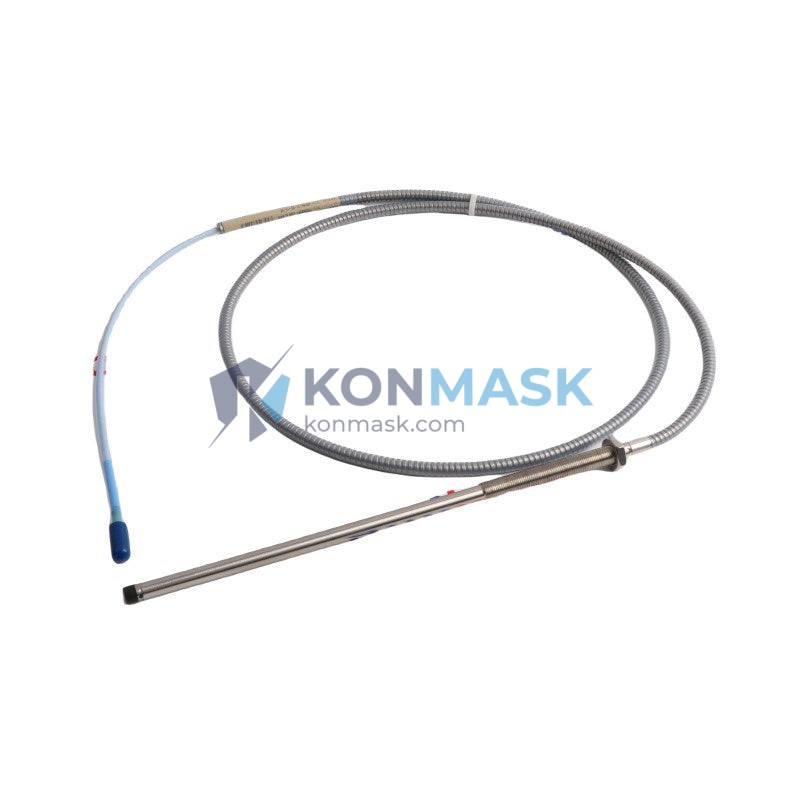

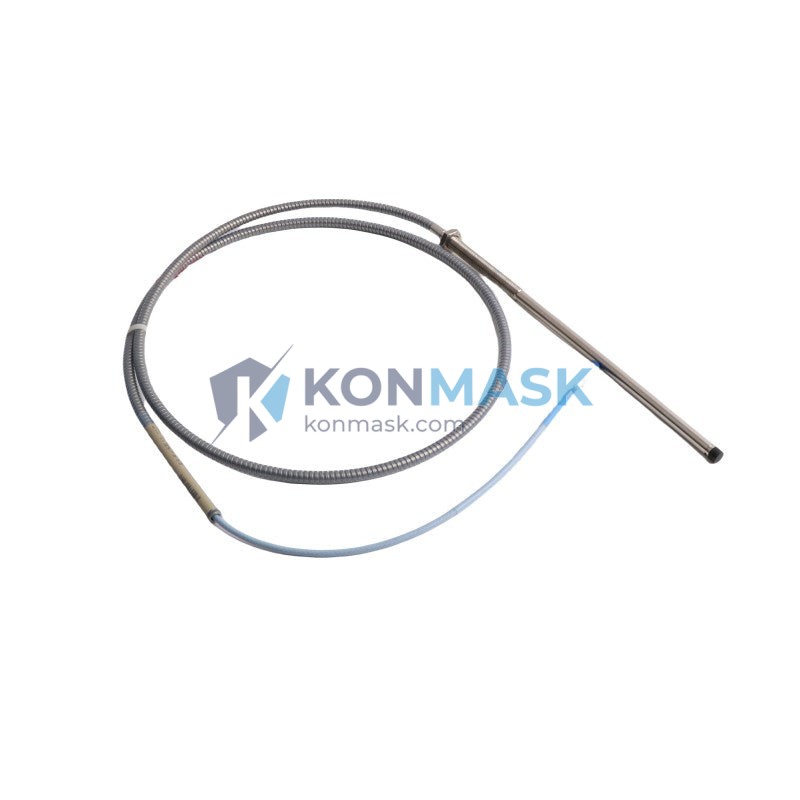

Bently Nevada 330194-13-20-10-00 Extended Temperature Range (ETR) Proximity Probe – 3300 XL Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, unplanned downtime, and in the worst cases, irreversible damage to turbines, compressors, or pumps worth millions of dollars. In high-temperature environments — petrochemical plants, power generation turbines, steel mills — standard proximity probes simply fail to perform. The Bently Nevada 330194-13-20-10-00 Extended Temperature Range (ETR) Proximity Probe is engineered precisely for these demanding conditions, delivering reliable, continuous eddy-current sensing where conventional sensors cannot survive.
The 330194-13-20-10-00 is a purpose-built variant within Bently Nevada’s industry-leading 3300 XL Series proximity probe system — the global standard for machinery protection and condition monitoring. With its Extended Temperature Range design, this probe maintains measurement accuracy and signal integrity in ambient and process temperatures that would degrade or destroy standard probes. It is widely deployed in critical machinery protection systems across oil & gas, power generation, and heavy industrial sectors worldwide, trusted by reliability engineers and OEM integrators on every continent.
Technical Specifications
- Part Number: 330194-13-20-10-00
- Series: Bently Nevada 3300 XL Extended Temperature Range (ETR)
- Sensor Type: Eddy-Current Proximity Probe
- Temperature Rating: Extended Temperature Range (ETR) — suitable for high-temperature industrial environments
- Cable Length: 5 m (as indicated by the -20 designation in the part number)
- Tip Diameter: 8 mm (standard 3300 XL probe tip)
- Connector: 10-32 coaxial connector
- Target Material: Compatible with AISI 4140 steel and other ferromagnetic/non-ferromagnetic targets per calibration
- System Compatibility: Designed for use with Bently Nevada 3300 XL Proximitor® Sensor systems
- Weight: Approx. 400 g (including cable)
- Compliance: Meets API 670 machinery protection standard requirements
Note: All specifications are based on Bently Nevada published data for the 3300 XL ETR series. Contact us to confirm exact parameters for your application.
Key Features & Benefits
- Extended Temperature Range: Maintains calibration and signal linearity in extreme ambient and process temperatures, preventing false trips and missed alarms in hot environments.
- API 670 Compliant: Meets the most stringent international standard for machinery protection instrumentation, ensuring compatibility with plant safety systems.
- 3300 XL System Integration: Plug-and-play compatibility with Bently Nevada 3300 XL Proximitor® Sensors, monitors, and System 1® software — no recalibration of the full loop required when replacing like-for-like.
- Eddy-Current Non-Contact Sensing: Zero mechanical wear, immune to process fluid contamination, and capable of measuring through oil films — ideal for journal bearing and thrust position monitoring.
- Robust Construction: Stainless steel housing and high-temperature cable jacket resist corrosion, vibration fatigue, and chemical exposure in harsh plant environments.
- Long Cable Run: 5 m integral cable length accommodates standard installation distances from rotating machinery to junction boxes.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, steam turbines, expanders, and pipeline pumps in upstream, midstream, and downstream facilities.
- Power Generation: Steam and gas turbine-generators, boiler feed pumps, and induced/forced draft fans in thermal and combined-cycle power plants.
- Petrochemical & Refining: Reactor charge pumps, cracked gas compressors, and other API 670-governed rotating equipment in high-temperature process units.
- Steel & Metals: Rolling mill drives, blast furnace blowers, and continuous caster equipment operating in elevated ambient temperatures.
- Marine & Offshore: Propulsion turbines and generator sets where compact, high-reliability vibration monitoring is mandatory.
System Integration & Compatible Parts
The 330194-13-20-10-00 probe is designed to operate as part of a complete Bently Nevada 3300 XL measurement chain. Typical compatible components include:
- Proximitor® Sensor: 3300 XL 8 mm Proximitor® (e.g., 330180 series) — converts probe signal to industry-standard -24 VDC output
- Extension Cable: 330130 series armored extension cables for longer runs from probe to Proximitor
- Monitors: Bently Nevada 3500 Series Machinery Protection System rack modules (e.g., 3500/40M, 3500/42M)
- Software: System 1® Evolution condition monitoring and diagnostics platform
- Mounting Hardware: Standard 3300 XL probe holders and lock nuts for API 670-compliant installations
Contact our technical team to verify full loop compatibility for your specific monitor rack and software version.
Our Quality Assurance Process
- Authentic Sourcing: All Bently Nevada parts at Konmask.com are sourced from authorized distribution channels and verified OEM supply chains — no grey-market or counterfeit risk.
- Pre-Shipment Inspection: Each unit undergoes visual inspection, packaging integrity check, and label/serial number verification before dispatch.
- Documentation: Factory test reports, certificates of conformance, and material traceability documents available upon request.
- Secure Packaging: Anti-static, shock-resistant packaging with desiccant to protect sensitive probe electronics during international transit.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page with your required quantity and delivery timeline.
- Our technical sales team will confirm availability, lead time, and provide a formal quotation within 1 business day.
- Upon order confirmation, we arrange secure export packaging and provide full shipping documentation (commercial invoice, packing list, COO).
- Track your shipment with our dedicated logistics support until delivery is confirmed.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists — focused exclusively on PLC, DCS, and machinery protection components from leading global brands.
- ✅ Global Export Experience — serving clients in 30+ countries with compliant export documentation and reliable international logistics.
- ✅ Technical Pre-Sales Support — our engineers help you verify compatibility before you order, reducing costly mistakes.
- ✅ Fast Response — RFQ responses within 24 hours, with expedited sourcing for urgent plant maintenance needs.
- ✅ Competitive Pricing — direct sourcing relationships enable us to offer market-competitive pricing on genuine OEM parts.
Frequently Asked Questions
- Q: What does the “ETR” designation mean for the 330194-13-20-10-00?
- A: ETR stands for Extended Temperature Range. This variant of the 3300 XL proximity probe is designed to maintain accurate measurement performance in ambient temperatures beyond the standard probe’s rated range, making it suitable for hot environments such as gas turbine enclosures and high-temperature process areas.
- Q: Is the 330194-13-20-10-00 a direct replacement for standard 330194 series probes?
- A: The ETR probe uses the same mechanical interface and connector as the standard 3300 XL 8 mm probe family, but requires a compatible ETR-rated Proximitor® Sensor for correct calibration. Always verify your Proximitor model before substituting an ETR probe for a standard probe.
- Q: Can you supply the complete measurement loop (probe + extension cable + Proximitor)?
- A: Yes. Konmask.com can source and supply complete 3300 XL measurement loops. Please include your Proximitor model and monitor rack type in your RFQ for a matched system quotation.
- Q: What is the typical lead time for the 330194-13-20-10-00?
- A: Lead time varies by current stock levels. In-stock units ship within 3–5 business days internationally. For out-of-stock items, typical sourcing lead time is 2–4 weeks. Contact us for real-time availability.
- Q: Do you provide a warranty on Bently Nevada parts?
- A: Yes. All genuine OEM parts supplied by Konmask.com carry the manufacturer’s standard warranty. We also offer a 90-day quality guarantee covering any defects attributable to storage or handling on our end.
