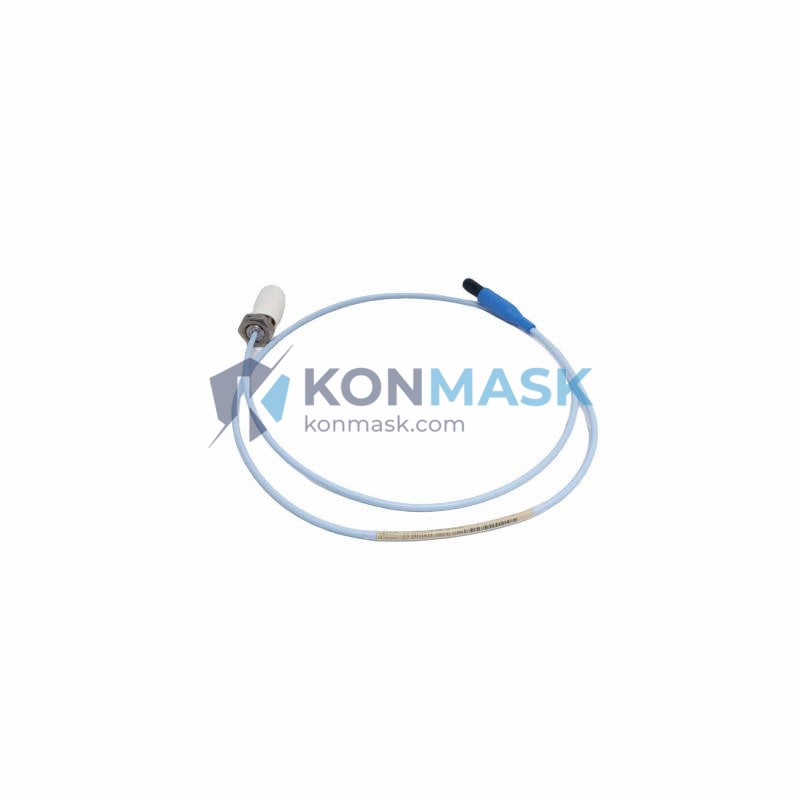

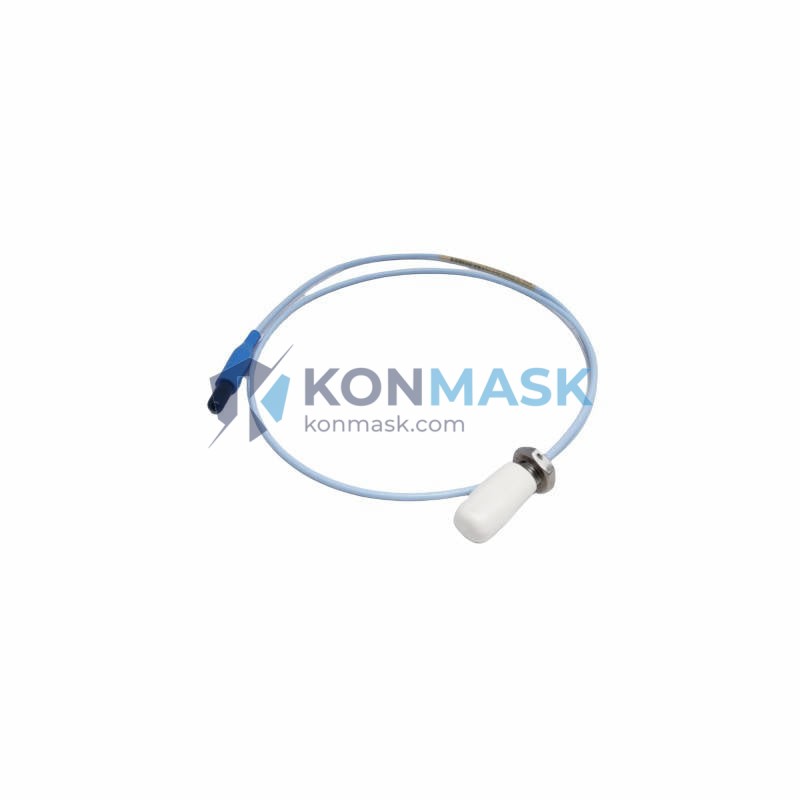

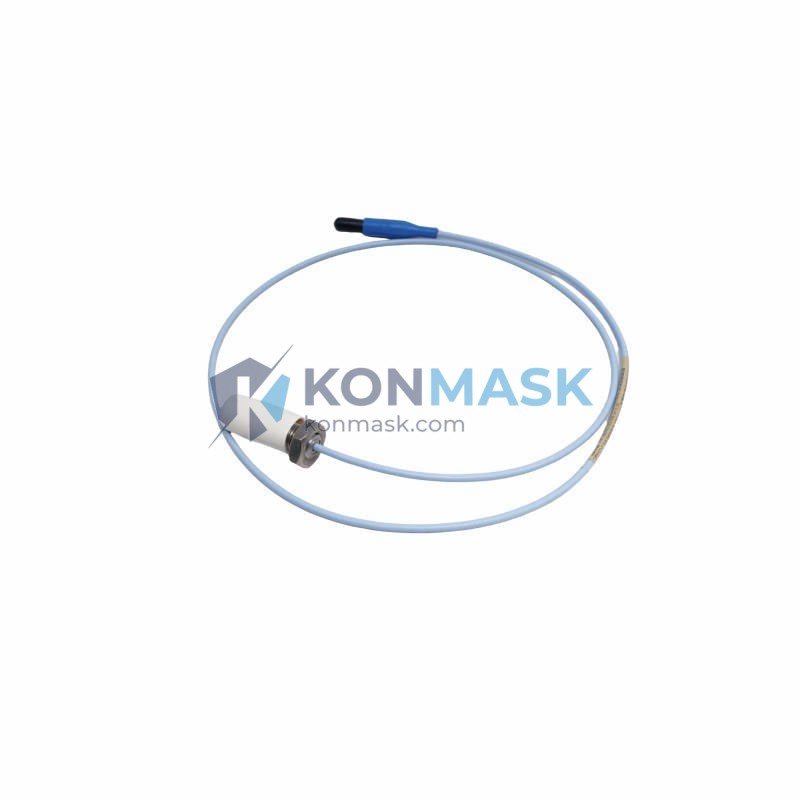

Bently Nevada 330703-00-100-10-11-CN – Eddy Current Proximity Transducer | 3300 XL NSv Platform
The Bently Nevada 330703-00-100-10-11-CN is a high-precision eddy current proximity transducer engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in critical rotating machinery. As a core component of the 3300 XL NSv (Non-Standard voltage) Proximity Transducer System, this unit delivers OEM-grade signal fidelity in the most demanding turbomachinery environments — from steam turbines and gas compressors to large centrifugal pumps and gearboxes.
Engineering Background: The 3300 XL NSv series was developed by Bently Nevada (a Baker Hughes company) to extend the proven 3300 XL eddy current platform into installations requiring non-standard supply voltages and extended cable configurations. The -CN suffix designates the Chinese market compliance variant, ensuring compatibility with GB/T standards and domestic certification requirements.
Product Positioning: Designed for procurement engineers and reliability teams sourcing OEM-equivalent replacement parts for existing Bently Nevada 3300 XL monitoring systems. This transducer integrates directly with 3300 XL proximitor/seismic monitors without recalibration when installed per OEM specifications.
Complete Technical Specifications
- Part Number: 330703-00-100-10-11-CN
- Series / Platform: 3300 XL NSv (Non-Standard Voltage) Proximity Transducer System
- Manufacturer: Bently Nevada (Baker Hughes)
- Measurement Principle: Eddy current (non-contact)
- Measurement Parameters: Radial shaft vibration, axial position, differential expansion
- Probe Tip Diameter: 8 mm (standard 3300 XL geometry)
- Cable Length: 1.0 m integral cable (extension cable ordered separately)
- Total System Range: 0–100 mil pp (0–2.54 mm pp) linear measurement range
- Scale Factor: 200 mV/mil (7.87 V/mm) nominal
- Frequency Response: DC to 10,000 Hz (–3 dB)
- Supply Voltage: Non-standard voltage per NSv designation (consult system documentation)
- Operating Temperature: –35 °C to +177 °C (probe); –35 °C to +85 °C (proximitor)
- Target Material: AISI 4140 steel (standard); other ferromagnetic/non-ferromagnetic targets require recalibration
- Electrical Connection: Coaxial, 3/8-24 UNF connector
- Housing Material: Stainless steel, hermetically sealed
- Ingress Protection: IP67 (probe assembly)
- Approvals / Compliance: CE, ATEX (consult datasheet for zone classification), CN variant per GB/T
- Compatible Monitors: Bently Nevada 3300 XL series proximitor/seismic monitors
- Weight: Approx. 100 g (probe + integral cable)
Proven Application Environments
- Steam turbines and gas turbines (power generation and industrial drive)
- Centrifugal and axial compressors (petrochemical, LNG, refinery)
- Large centrifugal pumps and boiler feed pumps
- Gearboxes and expanders in process industries
- Hydro turbines and motor-driven rotating equipment
- Any installation with an existing Bently Nevada 3300 XL monitoring architecture
Engineering Advantages
- Drop-in OEM Replacement: Direct form-fit-function replacement for existing 3300 XL NSv installations — no monitor reconfiguration required.
- Non-Contact Measurement: Zero mechanical wear; continuous operation without scheduled sensor replacement intervals.
- Wide Thermal Range: Probe rated to +177 °C, suitable for high-temperature bearing housings without auxiliary cooling.
- High Frequency Response: DC–10 kHz bandwidth captures sub-synchronous, synchronous, and high-frequency vibration components critical for early fault detection.
- CN Compliance: Certified for Chinese domestic installations; simplifies customs clearance and local inspection documentation.
- Hermetic Sealing: IP67 probe assembly withstands oil mist, steam, and washdown environments common in turbomachinery enclosures.
System Architecture & Signal Flow
The 330703-00-100-10-11-CN operates as part of a three-component eddy current system:
- Probe (330703-00-100-10-11-CN): Generates an oscillating electromagnetic field; detects changes in target distance via eddy current loading.
- Extension Cable: Transmits the high-frequency coaxial signal from probe to proximitor (length must be matched to system calibration).
- Proximitor / Monitor: Demodulates the coaxial signal into a DC voltage output proportional to gap distance; feeds the 3300 XL monitor card for alarm and trip processing.
Note: Total cable length (integral + extension) must match the calibrated system length. Mixing cable lengths from different calibration sets will introduce scale factor error.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels with full traceability documentation.
- Each unit inspected for physical integrity, connector condition, and part number label accuracy prior to shipment.
- Certificate of conformance (CoC) and original manufacturer documentation available upon request.
- Konmask.com specializes in OEM-equivalent industrial automation components for critical infrastructure applications — we do not supply uncertified aftermarket substitutes.
Procurement Process
- Confirm Part Number: Verify 330703-00-100-10-11-CN matches your existing system BOM and cable calibration set.
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and CoC availability.
- Place Order: Purchase directly via this listing or via PO for B2B accounts.
- Receive & Inspect: Inspect upon delivery; report any discrepancies within 48 hours.
- Install & Commission: Follow Bently Nevada installation procedure; verify gap voltage per OEM specification before returning machine to service.
Technical FAQ
Q: Is this a genuine Bently Nevada part or an aftermarket equivalent?
A: Konmask.com sources OEM-grade components through verified industrial supply channels. Contact us for specific traceability documentation for your procurement requirements.
Q: Can this probe be used with a 3300 XL standard (non-NSv) proximitor?
A: The NSv designation relates to supply voltage. Consult your system documentation and Bently Nevada application engineering to confirm compatibility before installation.
Q: What extension cable is required?
A: Extension cable must be selected to achieve the total calibrated system length. Common options include Bently Nevada 330130 series. Contact us for matched cable sets.
Q: Is calibration required after installation?
A: If replacing a like-for-like unit with identical cable length, recalibration is typically not required. Any change in cable length or target material requires full system recalibration per OEM procedure.
Q: What is the lead time?
A: Standard lead time is 3–7 business days for in-stock units. Contact us for current availability.
