Bently Nevada 330703-000-040-10-01-05 Proximity Transducer System | Replacement, Equivalent & Selection Guide

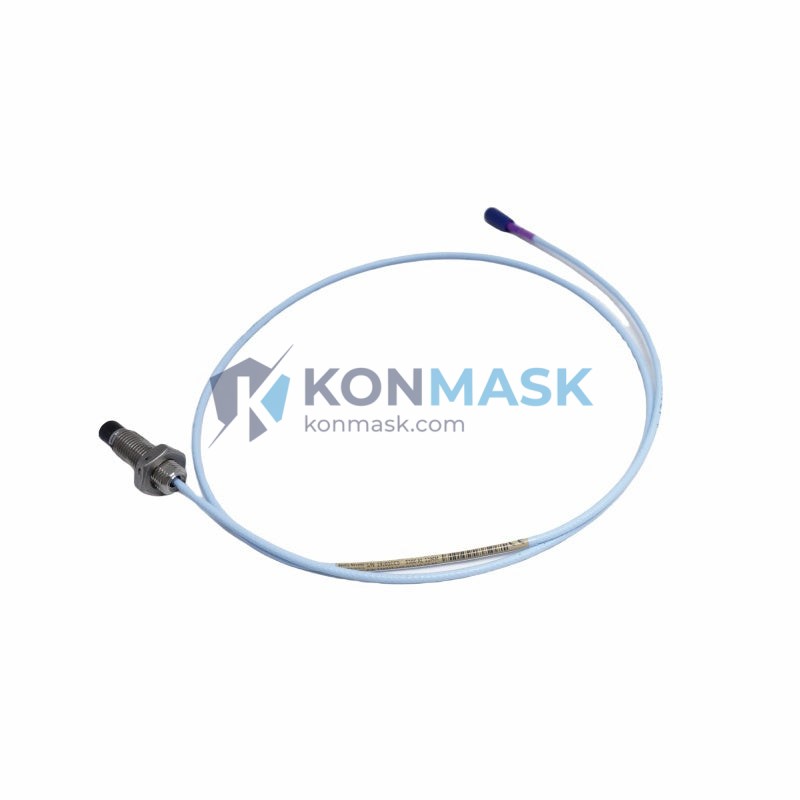

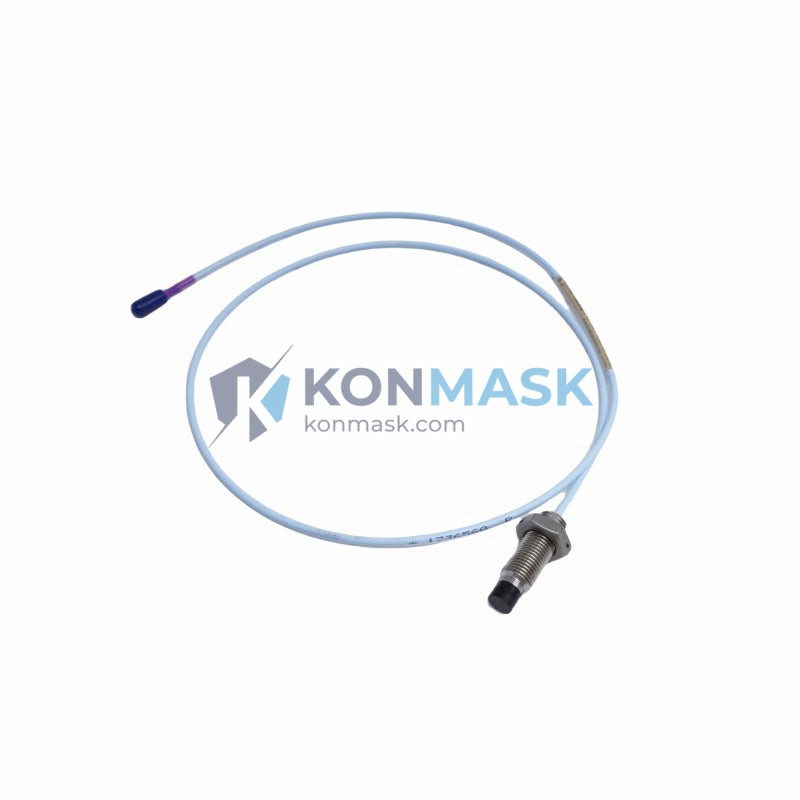

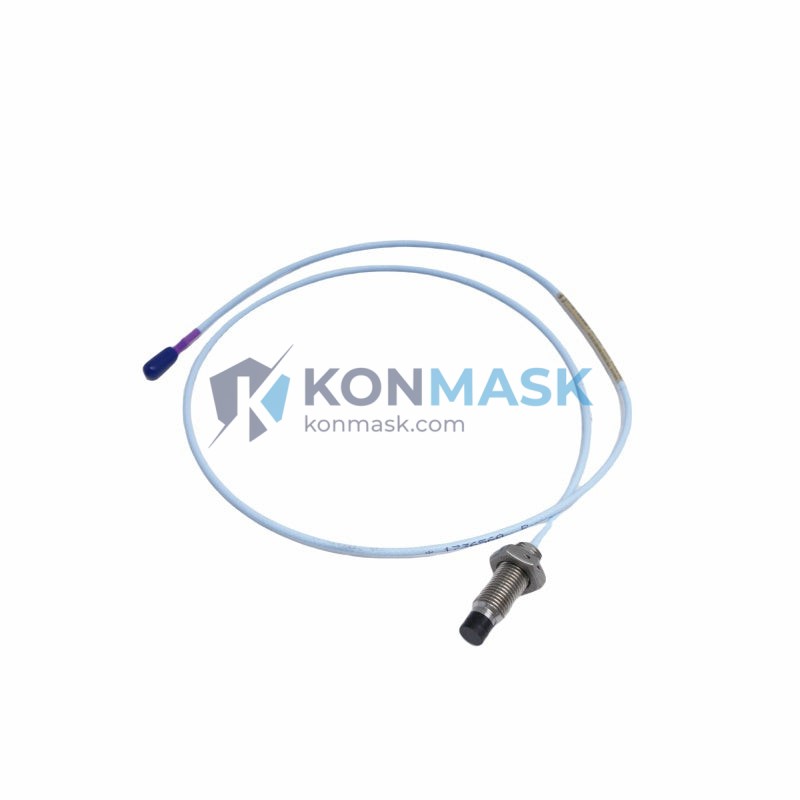

The Bently Nevada 330703-000-040-10-01-05 is a high-precision proximity transducer from the 3300 XL NSv Series, engineered for continuous vibration and position monitoring in rotating machinery. This page provides full technical specifications, compatible replacements, and a structured selection guide to help industrial buyers make confident procurement decisions.
Technical Specifications
- Part Number: 330703-000-040-10-01-05
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL NSv Proximity Transducer System
- Transducer Type: Eddy-current proximity transducer
- Cable Length: 40 cm (integral cable)
- Thread Size: 10-32 UNF
- Tip Diameter: 5 mm (standard)
- Measurement Range: 0–2 mm (linear range)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Operating Temperature: -35°C to +120°C
- Supply Voltage: -24 VDC (nominal)
- Output: -1 VDC to -11 VDC
- Connector: 10-32 coaxial
- Approvals: CE, ATEX (optional), FM (optional)
- Weight: ~80 g
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or direct replacements for the 330703-000-040-10-01-05. Always verify cable length, thread size, and system driver compatibility before substitution.
- 330703-000-040-10-02-05 — Same body, alternate connector option
- 330703-000-040-10-00-05 — Standard version without special approvals
- 330730-040-00-00 — 3300 XL 8mm standard proximity transducer (compatible driver)
- 330780-50-00 — 3300 XL 5mm proximity transducer, alternative cable length
- Emerson 330703 Series — OEM-equivalent under Baker Hughes / Emerson branding
- EPRO PR6423 Series — Third-party equivalent (eddy-current, 5 mm tip, -24 VDC)
- Metrix ST5484E — Cross-brand equivalent for vibration monitoring applications
Note: Konmask.com supplies genuine Bently Nevada parts. Cross-brand equivalents are listed for reference only.
Why Choose the Original Model
- Factory-calibrated sensitivity — 7.87 V/mm matched to 3300 XL drivers for zero recalibration
- Proven reliability — Qualified for API 670 machinery protection systems
- Full system traceability — Serialized components with Bently Nevada certification
- Long service life — Robust stainless-steel housing rated for harsh industrial environments
- OEM warranty compliance — Maintains turbine/compressor OEM warranty when using genuine parts
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial position measurement
- Pump and motor bearing displacement monitoring
- Gearbox and fan shaft eccentricity detection
- API 670-compliant machinery protection systems
- Petrochemical, power generation, and LNG plant installations
System Compatibility
The 330703-000-040-10-01-05 transducer is designed to operate within the Bently Nevada 3300 XL NSv System and is compatible with the following drivers and monitors:
- Driver: 330180-X1-05 / 330180-X1-00 (3300 XL NSv driver)
- Monitor: 3300/16 Dual Voting, 3500/42M, 3500/40M
- Extension Cable: 330130-040-00-00 (1 m), 330130-080-00-00 (2 m)
- System Voltage: -24 VDC from Bently Nevada power supply
- Not compatible with: 7200 Series or 3300/05 drivers without adapter
Selection Guide
Use the table below to select the correct 330703 variant for your application:
- Cable Length: -040- = 40 cm | -080- = 80 cm | -500- = 500 cm
- Approval Code: -00- = Standard | -01- = ATEX | -02- = FM
- Connector: -05 = 10-32 coaxial (standard) | -00 = bare leads
- Tip Size: 5 mm standard for 330703 series
If your application requires a different cable length or hazardous-area approval, contact support@konmask.com with your system drawing or tag number for a confirmed recommendation.
Quality Assurance & Sourcing
- All units sourced from authorized Bently Nevada / Baker Hughes distribution channels
- Each unit inspected and tested prior to shipment
- Supplied with original packaging and documentation where available
- Traceable lot numbers available on request for critical installations
- Export compliance verified — ECCN classification available upon request
How to Order
- Confirm part number: 330703-000-040-10-01-05
- Verify quantity and lead time requirements
- Add to cart or contact us for bulk pricing and availability
- Provide end-use declaration for export-controlled shipments if required
- Receive order confirmation with estimated ship date within 1 business day
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use the 330703-000-040-10-01-05 with a 3500 series monitor?
A: Yes, when paired with the correct 3300 XL NSv driver. The monitor accepts the driver output signal directly.
Q: Is the EPRO PR6423 a drop-in replacement?
A: Electrically similar, but sensitivity calibration and connector type must be verified. We recommend genuine Bently Nevada parts for API 670 systems.
Q: What is the difference between -01-05 and -00-05 suffix?
A: The -01- indicates ATEX hazardous-area approval. The -00- is the standard non-ATEX version.
Q: Do you supply the full NSv transducer system (transducer + driver + cable)?
A: Yes. Contact us with your system requirements and we will quote the complete assembly.
Q: What is the lead time for this part?
A: Typically 1–5 business days for in-stock units. Contact us for current availability.
