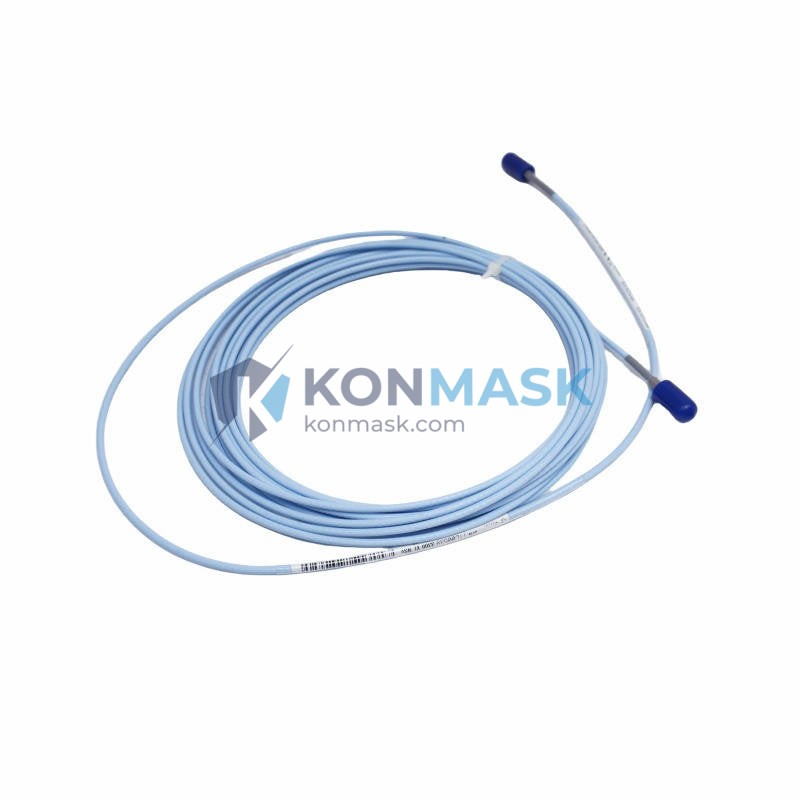

Genuine Bently Nevada 330130-045-02-CN - Industrial Automation Part

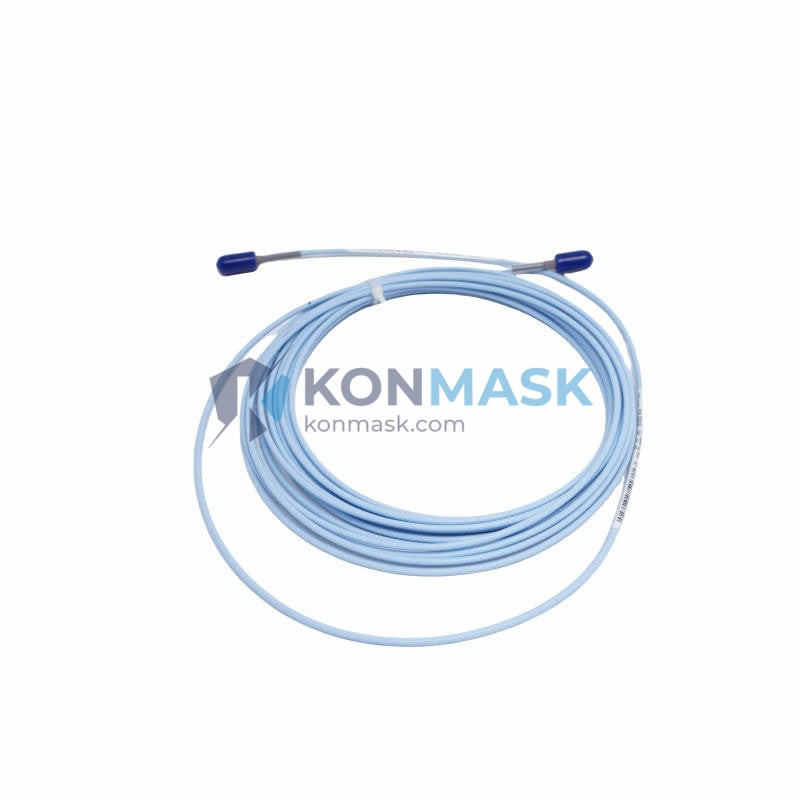

Bently Nevada 330130-045-02-CN - Front Panel and Connectivity View

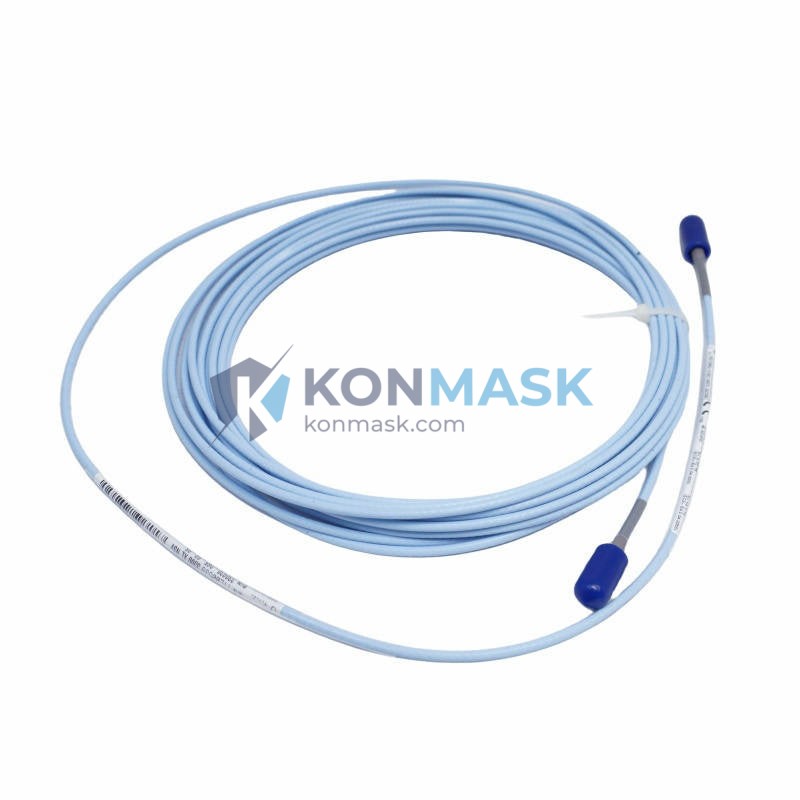

Bently Nevada 330130-045-02-CN - Technical Label and Specifications

Bently Nevada 330130-045-02-CN Proximity Transducer System | 3300 XL NSv Series

SKU: 330130-045-02-CN Category: Bently Nevada Tags: 3300 XL NSv, 330130-045-02-CN, bently-nevada, Proximity Transducer, vibration-monitoring

Description

Bently Nevada 330130-045-02-CN Proximity Transducer – 3300 XL NSv Series

When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, unplanned downtime, and in worst cases, irreversible damage to turbines, compressors, or pumps worth millions of dollars. The Bently Nevada 330130-045-02-CN proximity transducer is the precision sensing element that prevents this scenario — delivering continuous, real-time shaft position and vibration data to your condition monitoring system without interruption.

Within the renowned 3300 XL NSv (Non-contacting Vibration) Series, the 330130-045-02-CN occupies a critical mid-range position: a 5-meter (45 cm extension cable) configuration with a standard 8 mm probe tip, designed for installations where cable routing demands flexibility without sacrificing signal integrity. Trusted by rotating machinery engineers across petrochemical, power generation, and heavy industrial sectors worldwide, this transducer system is fully compatible with Bently Nevada 3300 series monitors and represents the global benchmark for eddy-current proximity sensing.

Technical Specifications

Part Number: 330130-045-02-CN
Series: 3300 XL NSv Proximity Transducer System
Probe Tip Diameter: 8 mm
Extension Cable Length: 5.0 m (45 cm integral cable + extension)
Driver/Oscillator: Compatible with 3300 XL series drivers
Sensing Technology: Eddy-current (non-contacting)
Output Signal: -18 VDC nominal (standard Bently Nevada output)
Scale Factor: 7.87 V/mm (200 mV/mil)
Linear Range: Approximately 0.25 mm to 2.25 mm (10 to 90 mil)
Target Material: AISI 4140 steel or equivalent
Operating Temperature: -35°C to +177°C (probe); -35°C to +85°C (driver)
Connector: CN-type (China regional standard connector)
Weight: Approx. 550 g (complete system)
Compliance: Compatible with API 670 machinery protection standard

Key Features & Benefits

Non-contacting measurement — zero mechanical wear, infinite service life under normal conditions
High-frequency response — accurately captures shaft vibration up to 10,000 Hz for early fault detection
CN connector configuration — optimized for installations in China and Asia-Pacific industrial environments
5-meter extension cable — provides routing flexibility in complex machinery enclosures
API 670 compatible — meets international machinery protection standards for critical rotating equipment
Drop-in replacement — direct compatibility with existing 3300 XL monitor systems, no recalibration required
Robust construction — stainless steel probe body withstands harsh industrial environments including oil mist, high humidity, and vibration

Industry & Equipment Applications

Oil & Gas: Centrifugal compressors, gas turbines, pipeline pumps
Power Generation: Steam turbines, hydro generators, gas turbine generators
Petrochemical: Reactor agitators, boiler feed pumps, process compressors
Pulp & Paper: High-speed rolls, refiners, large fan drives
Marine & Offshore: Propulsion turbines, auxiliary machinery monitoring
General Heavy Industry: Any rotating machinery requiring API 670-compliant vibration monitoring

System Integration & Compatible Parts

The 330130-045-02-CN is designed to operate as part of a complete Bently Nevada 3300 XL NSv transducer system. Compatible and commonly paired components include:

Drivers/Oscillators: 330180 series, 330185 series (3300 XL drivers)
Monitors: 3300/16 Monitor, 3500/42 Proximitor/Seismic Monitor
Extension Cables: 330130 series with various length configurations (02, 05, 08, 11 m)
Mounting Hardware: Bently Nevada standard probe holders and armored conduit fittings
Related SKUs: 330130-045-02-00, 330130-080-02-CN, 330130-045-05-CN

Our Quality Assurance Process

At Konmask.com, every Bently Nevada proximity transducer system undergoes a rigorous multi-stage verification process before shipment:

Authenticity Verification: Cross-referenced against manufacturer documentation and serial number databases
Visual Inspection: Probe tip, cable jacket, connector pins, and labeling examined for integrity
Functional Testing: Output signal and scale factor verified against Bently Nevada specifications
Packaging Inspection: Original or equivalent ESD-safe packaging confirmed prior to dispatch
Documentation: Certificate of conformance and test report available upon request

How to Order

Submit your inquiry via the Contact Us form or email support@konmask.com
Provide your required quantity, delivery timeline, and destination country
Receive a formal quotation within 24 business hours
Confirm order and arrange payment via T/T, L/C, or other agreed terms
Shipment dispatched with full tracking and export documentation

For urgent requirements or large-volume orders, please call us directly at +0086 19859288691.

Why Choose Konmask.com?

✅ Specialized in industrial automation components — deep technical knowledge, not a generic marketplace
✅ Global sourcing network — access to genuine OEM stock and certified surplus inventory
✅ Fast response — quotations within 24 hours, expedited shipping available
✅ Export expertise — experienced in international trade documentation, customs clearance support
✅ Long-term partnership focus — dedicated account support for repeat B2B buyers

Frequently Asked Questions

Q: Is the 330130-045-02-CN a genuine Bently Nevada product?
A: We source from verified supply chains and provide documentation upon request. Please contact us for authenticity certificates specific to your order.

Q: What does the “CN” suffix mean in the part number?
A: The “CN” designation indicates a China-region connector configuration, optimized for compatibility with locally standardized junction boxes and conduit fittings common in Chinese industrial installations.

Q: Can this transducer replace my existing 330130-045-02-00?
A: The CN variant differs only in connector type. Electrically and mechanically, it is equivalent. Verify your existing connector type before ordering to ensure compatibility.

Q: What is the lead time for this part?
A: Lead time varies by stock availability. In-stock items typically ship within 3–5 business days. Contact us for real-time availability.

Q: Do you provide a warranty?
A: Yes. We offer a standard 90-day warranty against defects in materials and workmanship. Extended warranty options are available for volume orders.

{
