Bently Nevada 330901-00-09-05-02-00 3300 XL NSv Proximity Transducer System | Replacement, Equivalent & Selection Guide

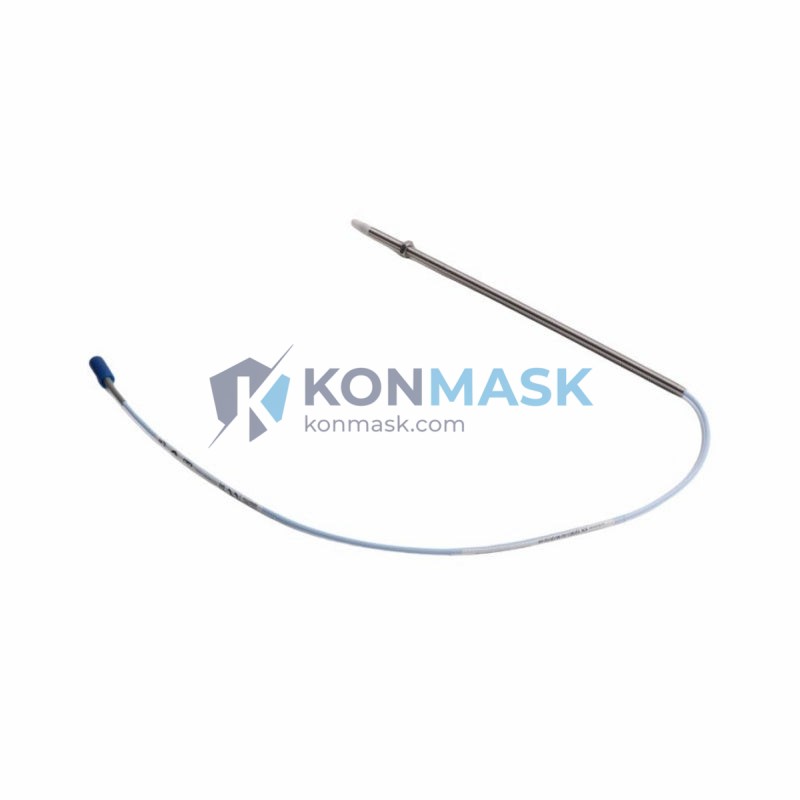

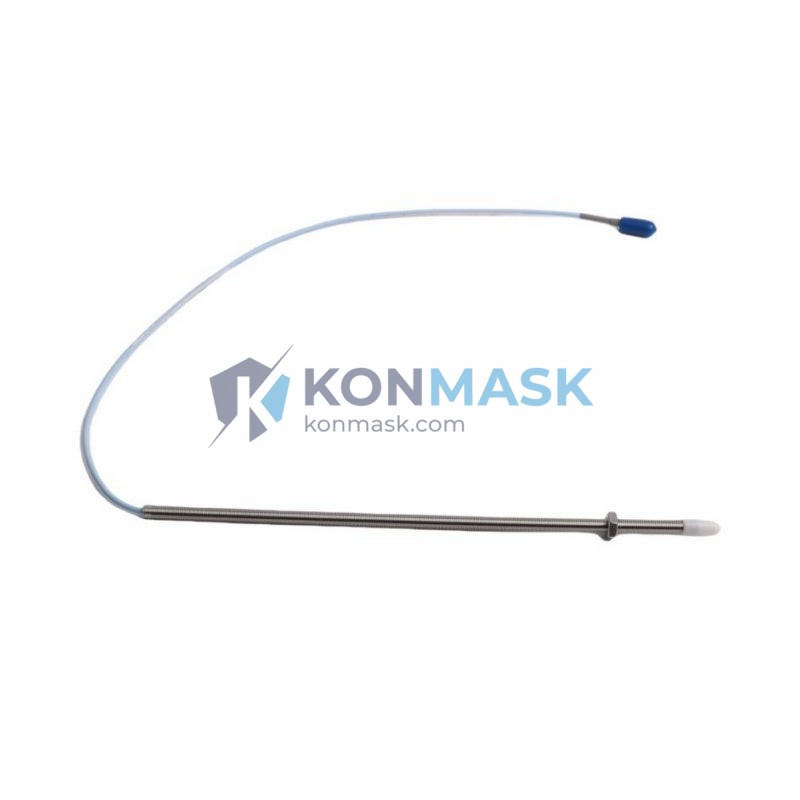

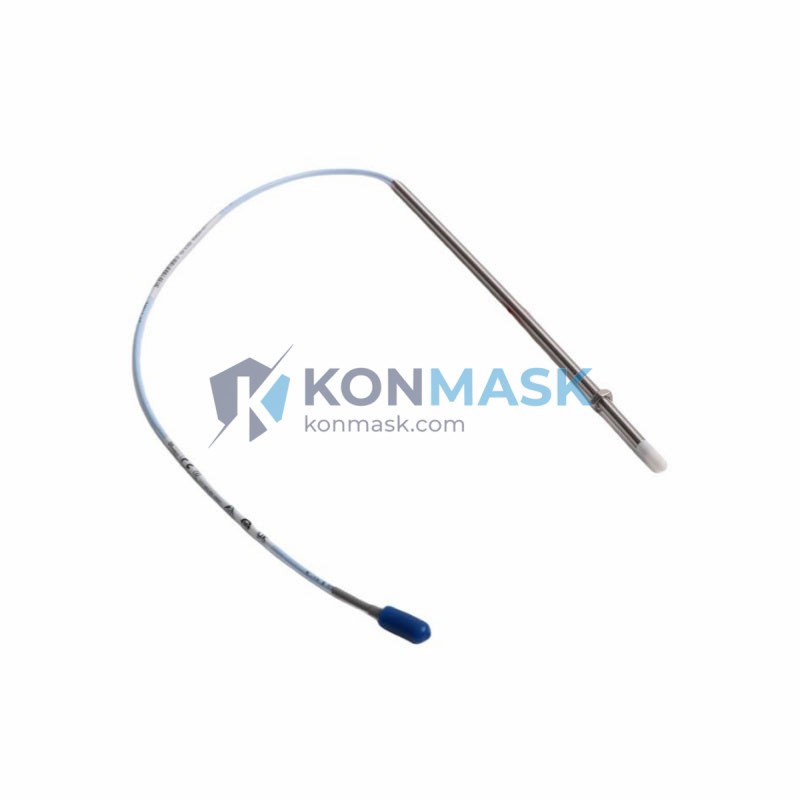

The Bently Nevada 330901-00-09-05-02-00 is a high-precision proximity transducer system from the 3300 XL NSv series, engineered for continuous vibration and position monitoring of rotating machinery in critical industrial environments. Konmask.com supplies genuine and compatible units with full traceability for MRO, OEM, and system-integration projects.
Technical Specifications
- Part Number: 330901-00-09-05-02-00
- Series: Bently Nevada 3300 XL NSv
- Type: Eddy-Current Proximity Transducer System
- Probe Cable Length: 9 m (standard; see ordering options)
- Extension Cable Length: 5 m
- Driver/Oscillator: 3300 XL NSv Driver
- Output: -18 VDC nominal (standard Bently Nevada output)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Range: DC – 10,000 Hz
- Temperature Range: -35 °C to +177 °C (probe)
- Connector: Standard Bently Nevada coaxial
- Approvals: CE, ATEX (consult datasheet for zone ratings)
- Country of Origin: USA
Compatible Replacement & Equivalent Models
The table below lists direct replacements and functional equivalents for the 330901-00-09-05-02-00. Always verify cable length, gap range, and driver compatibility before substitution.
| Part Number | Brand | Notes |
|---|---|---|
| 330901-00-09-05-02-00 | Bently Nevada | Original / This listing |
| 330901-00-09-10-02-00 | Bently Nevada | 10 m extension variant |
| 330901-00-09-05-CN-00 | Bently Nevada | China-market connector variant |
| 3300 XL 8 mm Proximity System | Bently Nevada | Predecessor series; check driver compatibility |
| PR6423/010-100 | Epro (Baker Hughes) | Functional equivalent; verify gap & sensitivity |
| CWY-DO-810 | Zhonghang (CNPEC) | Chinese domestic equivalent; confirm output spec |
Need a specific variant not listed? Contact support@konmask.com with your system drawing or tag number.
Why Choose the Original Model
- Certified Interchangeability: Drop-in replacement for existing 3300 XL NSv installations — no recalibration of the monitoring system required.
- API 670 Compliance: Meets the standard for machinery protection systems used in turbines, compressors, and pumps.
- Long-Term Availability: Bently Nevada (Baker Hughes) maintains backward compatibility across the 3300 XL platform.
- Proven Field Reliability: Widely deployed in petrochemical, power generation, and LNG facilities worldwide.
Typical Applications
- Radial vibration monitoring of steam and gas turbines
- Axial position measurement on centrifugal compressors
- Shaft eccentricity and differential expansion monitoring
- Keyphasor® reference signal acquisition
- Pump and motor bearing vibration surveillance
System Compatibility
- Monitors: Bently Nevada 3500 Series, 3300 Series, System 1 Evolution
- Drivers: 3300 XL NSv Driver (330180-91-00 and variants)
- DCS Integration: 4–20 mA output via signal conditioner; PROFIBUS / Modbus via gateway
- Target Material: AISI 4140 steel (standard); consult Bently Nevada for non-standard alloys
Selection Guide
Use the part-number decoder below to select the correct variant for your application:
| Position | Code | Meaning |
|---|---|---|
| Base Model | 330901 | 3300 XL NSv Proximity System |
| Probe Length | -00-09 | Standard probe, 9 m cable |
| Extension Length | -05 | 5 m extension cable |
| Driver Option | -02 | Standard NSv driver |
| Connector | -00 | Standard coaxial connector |
For non-standard cable lengths, hazardous-area certifications, or high-temperature probes, please provide your P&ID or instrument datasheet when enquiring.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus with full documentation.
- Pre-shipment inspection: visual, dimensional, and functional checks performed.
- Traceability documentation (CoC, test reports) available on request.
- Packaging: anti-static bag + foam-lined export carton; ESD-safe handling throughout.
How to Order
- Add to cart directly, or
- Email support@konmask.com with your PO / RFQ, or
- Call / WhatsApp: +0086 19859288691
Lead time: In-stock units ship within 1–3 business days. Special orders: 2–4 weeks. DDP, DAP, EXW Incoterms available.
Replacement & Compatibility FAQ
Q: Can I use 330901-00-09-05-02-00 to replace an older 3300 XL 8 mm probe system?
A: The NSv series uses a different driver. A driver change is required; the probe cable and connector are physically compatible.
Q: Is the Epro PR6423 a direct drop-in replacement?
A: Functionally equivalent in sensitivity and output, but the connector and driver are different. An adapter kit is needed for direct substitution.
Q: Do you supply calibration certificates?
A: Yes, factory calibration reports are available for new units. For surplus stock, third-party calibration can be arranged.
Q: What is the minimum order quantity?
A: MOQ is 1 piece. Volume pricing available for orders of 5+ units.
