Vibration Monitoring Solution – Bently Nevada 330901-00-90-05-02-00 | 3300 XL NSv
The Bently Nevada 330901-00-90-05-02-00 is a complete 3300 XL NSv Proximity Transducer System engineered for continuous, high-accuracy shaft vibration and position measurement in rotating machinery. Designed for mission-critical industrial environments, this system delivers the signal fidelity and reliability that plant engineers and OEM integrators demand.
Where This Product Is Used
This proximity transducer system is deployed across a wide range of rotating machinery and process-critical assets:
- Steam & Gas Turbines — Radial shaft vibration monitoring per API 670 requirements
- Centrifugal & Axial Compressors — Continuous rotor dynamic surveillance in petrochemical and LNG plants
- Pumps & Fans — Bearing journal orbit and eccentricity measurement
- Gearboxes — Gear mesh frequency and shaft position tracking
- Hydro Turbines & Motor-Generator Sets — Low-speed shaft displacement monitoring
- Marine Propulsion Systems — Shaft alignment and vibration surveillance
Technical Specifications
| Part Number | 330901-00-90-05-02-00 |
| Series | 3300 XL NSv (Non-Standard voltage) |
| Transducer Type | Eddy-Current Proximity Transducer |
| Probe Tip Diameter | 8 mm |
| Linear Range | Approx. 0.25 – 2.25 mm (10 – 90 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Operating Temperature | –35°C to +121°C (Probe); –35°C to +66°C (Driver) |
| Cable Length | 5 m (Extension Cable) |
| Driver Supply Voltage | –24 VDC (nominal) |
| Output Voltage Range | –2 VDC to –18 VDC |
| Ingress Protection | IP67 (Probe Assembly) |
| Approvals | CE, ATEX, IECEx (consult datasheet for zone ratings) |
| Target Material | AISI 4140 Steel (standard); consult factory for other alloys |
Why Engineers Specify This Model
- NSv (Non-Standard voltage) output — Compatible with legacy 3300 Series monitors and modern 3500 rack systems via signal conditioning
- 5 m extension cable — Optimal for installations where the driver must be located away from high-temperature zones
- 8 mm probe body — Industry-standard form factor; direct drop-in replacement for most OEM proximity probe installations
- Wide temperature range — Suitable for hot-section turbine pedestals and cryogenic compressor applications
- API 670 compliant system — Meets machinery protection standard requirements for radial vibration, axial position, and speed measurement
- Plug-and-play with Bently Nevada 3300 & 3500 monitors — No re-calibration required when replacing like-for-like
Complete System Bill of Materials
The 330901-00-90-05-02-00 ships as a matched, factory-calibrated system comprising:

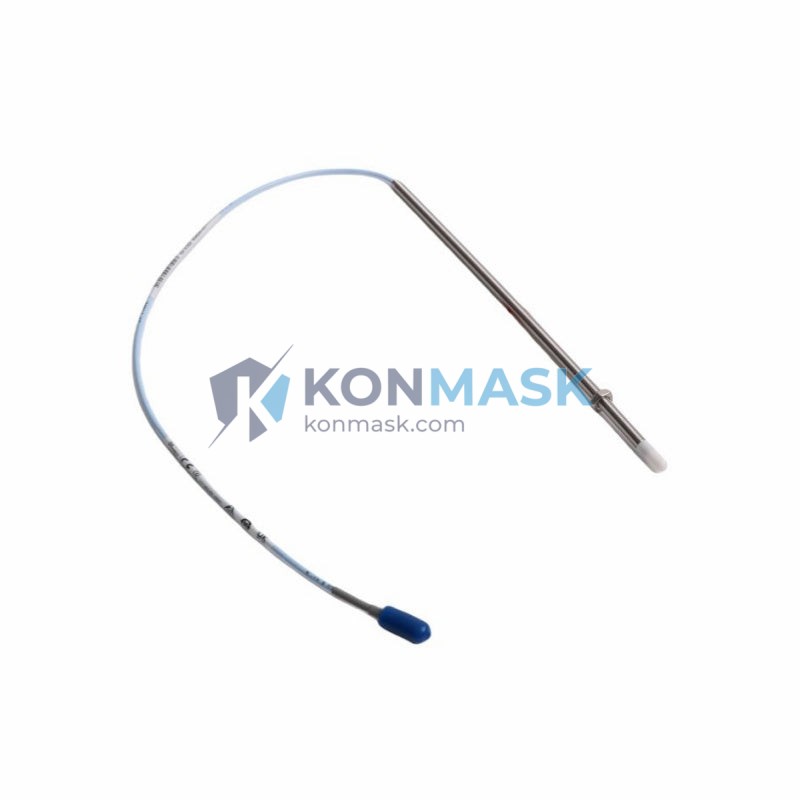

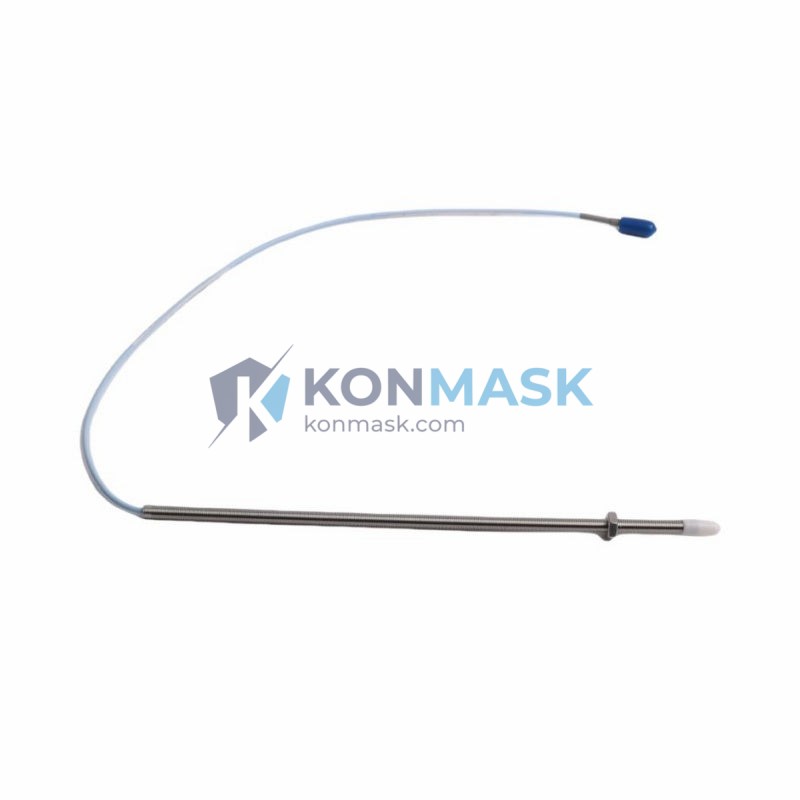

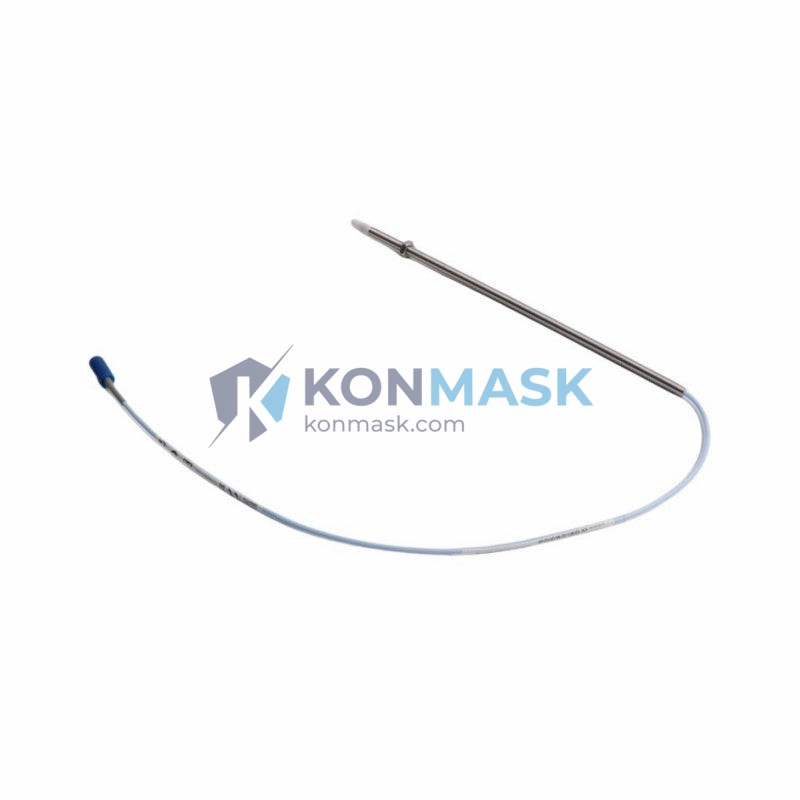

- 1× 3300 XL 8 mm Proximity Probe (NSv)
- 1× 5 m Armored Extension Cable
- 1× 3300 XL NSv Proximitor® Driver/Oscillator
- Calibration certificate & installation datasheet
All three components are matched at the factory. Do not mix components from different part-number configurations.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- IEC 61508 — Functional Safety (SIL-capable installations)
- ATEX Directive 2014/34/EU — Equipment for explosive atmospheres
- IECEx — International explosion protection certification
- CE Marking — EU conformity
- RoHS Compliant — Restriction of hazardous substances
Quality Assurance & Sourcing
At Konmask.com, every Bently Nevada unit is:
- Sourced from authorized distributors or verified surplus channels with full traceability
- Inspected for physical integrity, connector condition, and label authenticity prior to listing
- Stored in ESD-safe, climate-controlled warehousing
- Shipped with original packaging where available, or equivalent protective packaging
- Backed by our 30-day return policy and pre-shipment functional verification
How to Source This Part
- Add to Cart — Click the purchase button above to place your order directly.
- Request a Quote — For bulk orders (>3 units) or project-specific lead times, email support@konmask.com.
- Expedited Sourcing — Need it urgently? Call or WhatsApp +0086 19859288691 for same-day response.
- Export & Cross-Border — We ship globally with full commercial invoice, packing list, and HS code documentation for customs clearance.
Application-Specific FAQ
Q: Is the 330901-00-90-05-02-00 compatible with the Bently Nevada 3500 monitoring rack?
A: Yes, with appropriate signal conditioning. The NSv output is compatible with 3500/40M and 3500/42M modules when used with the correct input configuration. Consult your 3500 rack documentation or contact us for confirmation.
Q: Can this probe be used on non-ferrous targets such as aluminum or titanium?
A: The standard calibration is for AISI 4140 steel. Non-ferrous or exotic alloy targets require a target-specific calibration. Contact Bently Nevada or our technical team for a recalibration service.
Q: What is the maximum shaft speed this system can monitor?
A: The 3300 XL NSv system supports frequency response up to 10,000 Hz (–3 dB), making it suitable for machinery operating up to approximately 600,000 RPM for once-per-revolution events, or high-frequency blade-pass monitoring at lower speeds.
Q: Is this a new or refurbished unit?
A: Konmask.com lists both new-surplus and refurbished units. The condition is clearly stated on the product listing. All units undergo pre-shipment inspection regardless of condition grade.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes. A CoC is available upon request for all orders. Please note this in your order comments or contact us directly.
