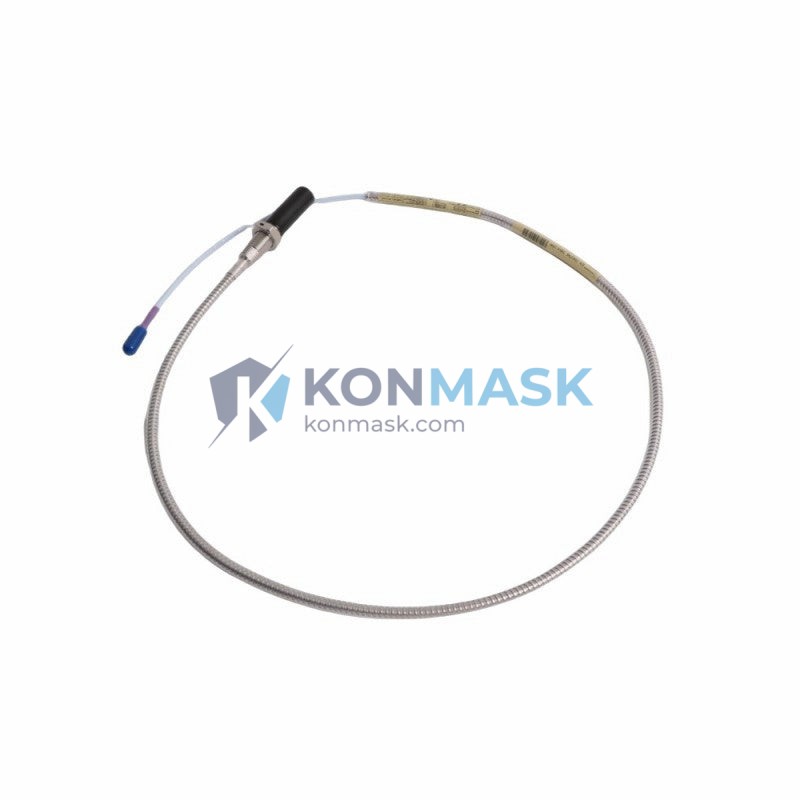

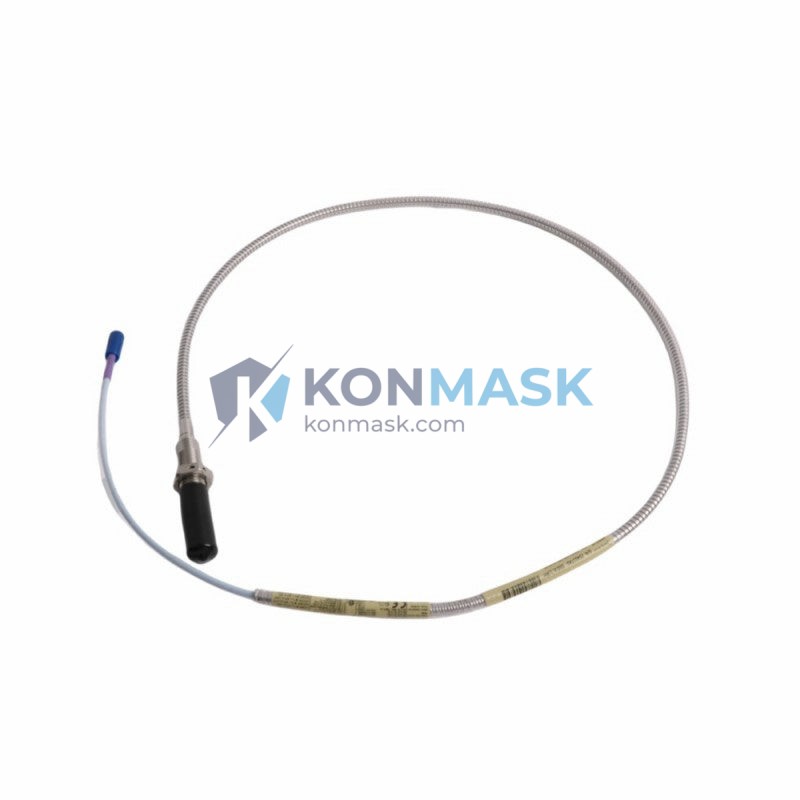

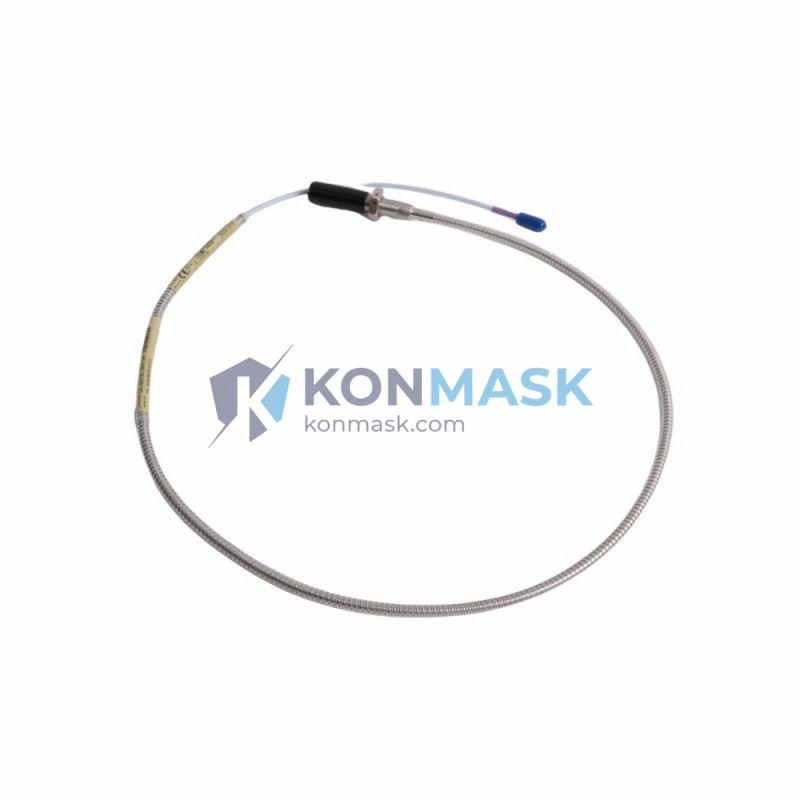

Bently Nevada 330901-16-24-10-02-05 3300 XL NSv Proximity Transducer | Replacement, Equivalent & Selection Guide
The Bently Nevada 330901-16-24-10-02-05 is a high-precision proximity transducer from the 3300 XL NSv (Non-Standard Voltage) Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number / SKU: 330901-16-24-10-02-05
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL NSv Proximity Transducer System
- Probe Cable Length: 16 in (approx. 406 mm)
- Extension Cable Length: 24 ft (approx. 7.3 m)
- Output Voltage: Non-Standard Voltage (NSv) configuration
- Sensitivity: 200 mV/mil (7.87 V/mm) — standard 3300 XL scale factor
- Frequency Range: DC to 10,000 Hz
- Operating Temperature: −35°C to +177°C (probe); −35°C to +85°C (driver)
- Gap Range: 0.25 mm to 2.54 mm (10 mil to 100 mil)
- Target Material: AISI 4140 steel or equivalent ferromagnetic alloy
- Connector Type: 10-32 coaxial
- Approvals: CE, ATEX, FM (refer to datasheet for specific suffix codes)
- Weight: Approx. 60 g
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 330901-16-24-10-02-05. Always verify electrical and mechanical compatibility before substitution.
- Bently Nevada 330901-16-24-10-01-05 — Standard voltage variant; same probe/cable length, different output configuration
- Bently Nevada 330103-00-08-10-02-00 — 3300 XL 8 mm probe system; suitable for tighter installation spaces
- Bently Nevada 330180-91-00 — 3300 XL Proximitor® driver module; direct driver replacement
- Epro PR6423/010-040 — Third-party equivalent; compatible with 3300 XL drivers in many installations
- Metrix ST5484E — Alternative eddy-current transducer; requires gap and sensitivity recalibration
Note: Konmask.com recommends using OEM parts wherever possible. Contact our technical team for cross-reference validation before ordering a replacement.
Why Choose the Original Model
- Factory-calibrated: Each unit is calibrated to Bently Nevada’s tight tolerance standards, ensuring measurement accuracy from day one.
- System-matched: Designed to work seamlessly with 3300 XL Proximitor® drivers and Bently Nevada System 1 / 3500 monitoring racks.
- Long-term reliability: Proven in critical turbomachinery, compressors, and pumps across oil & gas, power generation, and petrochemical industries.
- Warranty & traceability: OEM parts carry full manufacturer warranty and traceable documentation for compliance audits.
Typical Applications
- Radial shaft vibration monitoring on steam and gas turbines
- Axial position (thrust) measurement on centrifugal compressors
- Differential expansion monitoring on large rotating equipment
- Speed and phase reference measurement (Keyphasor® setups)
- Pump and motor shaft orbit analysis
System Compatibility
- Proximitor® Drivers: 3300 XL NSv Proximitor® (e.g., 330180-X1-05)
- Monitoring Racks: Bently Nevada 3500 Series, 3300 Series
- Software: System 1 Condition Monitoring Software
- DCS Integration: Compatible with 4–20 mA output modules and FOUNDATION Fieldbus adapters
- PLC Integration: Signal output compatible with standard analog input cards (Siemens, Rockwell, Honeywell, ABB)
Selection Guide
Use the following parameters to confirm the correct 330901 variant for your application:
- Probe Cable Length: Suffix positions 1–2 (e.g., -16- = 16 inches)
- Extension Cable Length: Suffix positions 3–4 (e.g., -24- = 24 feet)
- Voltage Output: Suffix position 5 (01 = Standard; 02 = NSv Non-Standard)
- Connector / Termination: Suffix position 6 (05 = standard coaxial)
- Target Material: Confirm ferromagnetic steel; non-magnetic targets require special probe variants
- Installation Gap: Verify mechanical gap range matches 0.25–2.54 mm specification
If your suffix codes differ, contact Konmask.com for a cross-reference quote on the exact variant you need.
Quality Assurance & Sourcing
- All units sourced through authorized distribution channels or verified surplus with full traceability
- Pre-shipment inspection: visual, dimensional, and functional checks
- Packaging: anti-static, moisture-proof, original or equivalent OEM packaging
- Documentation available: Certificate of Conformance (CoC), test reports upon request
- Lead time: In-stock items ship within 1–3 business days; special orders 5–15 business days
How to Order
- Online: Add to cart directly on this page
- Email RFQ: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Bulk / OEM orders: Request a formal quotation with quantity, delivery address, and required documentation
- Payment: T/T, PayPal, credit card, and trade assurance accepted
Replacement & Compatibility FAQ
Q: Can I use a standard voltage (01) probe with an NSv (02) Proximitor® driver?
A: No. NSv drivers are calibrated for a different output scale. Mixing standard and NSv components will result in incorrect vibration readings and may trigger false alarms.
Q: What is the difference between 330901 and 330103 series probes?
A: The 330901 uses an 11 mm probe tip diameter; the 330103 uses an 8 mm tip. The 8 mm probe is preferred in installations with limited radial clearance.
Q: Can this transducer be used with a Siemens or ABB PLC directly?
A: The transducer outputs a voltage signal (not 4–20 mA). A Proximitor® driver or signal conditioner is required to convert the output for PLC analog input cards.
Q: Is a calibration certificate included?
A: A Certificate of Conformance is included. Full factory calibration reports are available upon request for an additional fee.
Q: Do you offer exchange / repair services?
A: Yes. Contact us with your faulty unit details for a repair or exchange quotation.
