Vibration Monitoring Solution – Bently Nevada 330903-00-11-05-02-CN | 3300 XL NSv Extension Cable

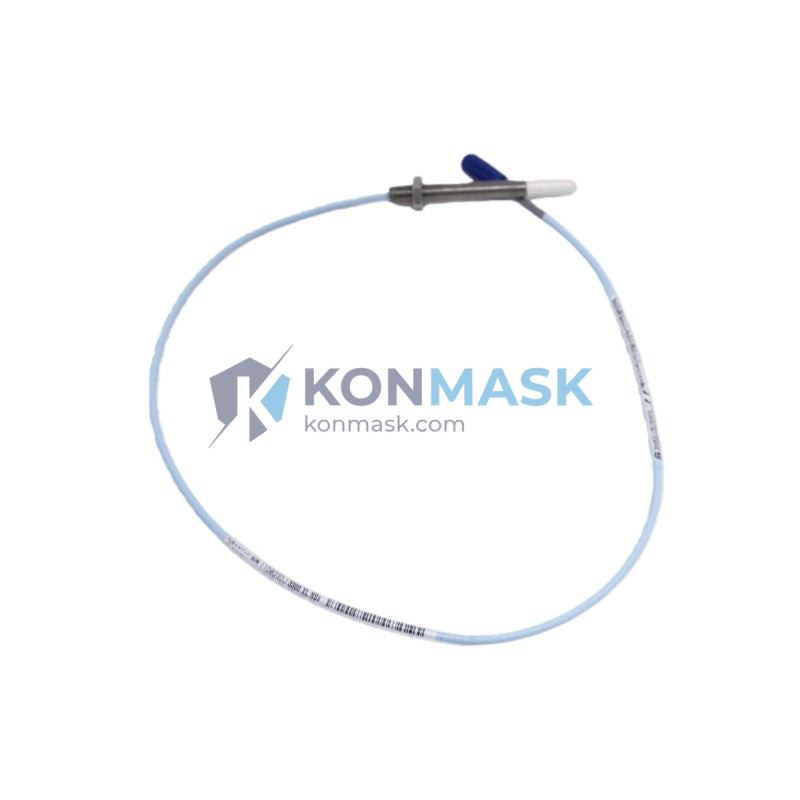

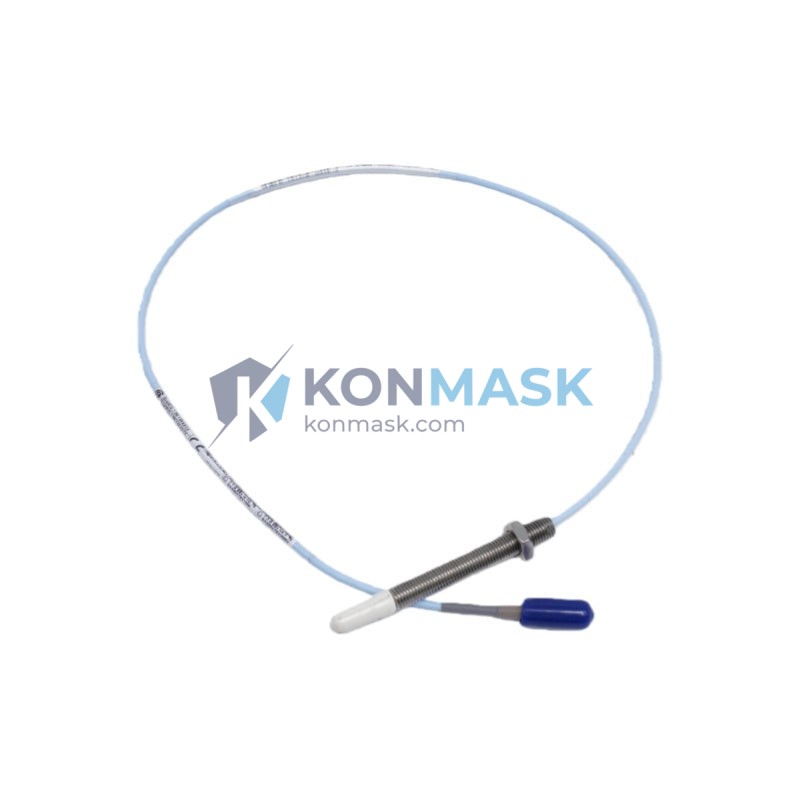

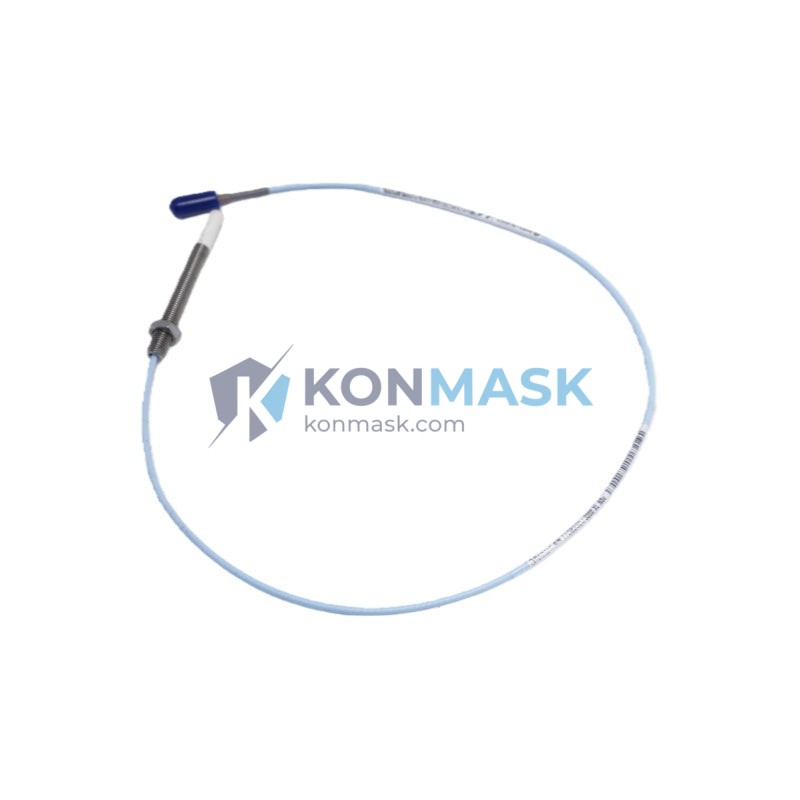

The Bently Nevada 330903-00-11-05-02-CN is a factory-specification NSv (Non-Standard voltage) Extension Cable engineered for the 3300 XL Proximity Transducer System. It bridges the gap between the proximity probe and the proximitor/monitor, maintaining signal integrity in high-vibration, high-temperature industrial environments where continuous shaft and rotor monitoring is mission-critical.
Where This Product Is Used
This extension cable is specified by rotating machinery engineers and reliability teams across the following industries and applications:
- Oil & Gas – Turbomachinery: Compressor trains, gas turbines, and centrifugal pumps on offshore platforms and onshore processing facilities where API 670 compliance is mandatory.
- Power Generation: Steam turbine shaft eccentricity and radial vibration monitoring in coal-fired, gas-fired, and nuclear power plants.
- Petrochemical & Refining: Reactor agitators, boiler feed pumps, and critical rotating equipment requiring continuous online condition monitoring.
- LNG & Pipeline: High-speed centrifugal compressors and expanders where unplanned downtime carries multi-million-dollar consequences.
- Marine & Offshore: Propulsion shaft monitoring and auxiliary machinery protection systems.
- Pulp & Paper / Mining: Large fan drives, ball mills, and kiln drives with harsh ambient conditions.
Technical Specifications
- Part Number: 330903-00-11-05-02-CN
- Series: 3300 XL NSv Proximity Transducer System
- Cable Type: NSv Extension Cable
- Compatible Probe: 3300 XL 8mm Proximity Probe
- Compatible Proximitor: 3300 XL NSv Proximitor Sensor
- Cable Length: Per part number suffix (verify with Bently Nevada configuration guide)
- Connector Type: Factory-terminated, OEM-matched connectors
- Operating Temperature: –40°C to +125°C (cable jacket)
- Shielding: Double-shielded coaxial construction for EMI/RFI immunity
- Jacket Material: High-temperature fluoropolymer (PTFE-compatible)
- Impedance: Matched to 3300 XL system requirements
- Country of Origin: CN (China – OEM-authorized production)
- Weight: ~40 g
Why Engineers Specify This Model
- System-Matched Performance: Designed exclusively for the 3300 XL NSv transducer chain — no derating, no signal compensation required.
- API 670 Ready: Meets the cable requirements referenced in API Standard 670 (Machinery Protection Systems) for critical machinery monitoring.
- EMI Immunity: Double-shielded coaxial construction rejects electrical noise from VFDs, switchgear, and high-current bus bars common in industrial plants.
- Plug-and-Play Replacement: Factory-terminated connectors ensure zero-error field installation — no crimping, no soldering, no calibration offset.
- Long Service Life: High-temperature fluoropolymer jacket resists oil, steam, and chemical exposure for 10+ year service intervals.
- Traceability: Each unit carries full part number traceability for maintenance records and regulatory audits.
Complete System Bill of Materials
For a complete 3300 XL NSv proximity measurement loop, the following components are required:
- 3300 XL 8mm Proximity Probe (e.g., 330780-50-00)
- 330903-00-11-05-02-CN NSv Extension Cable ← This item
- 3300 XL NSv Proximitor Sensor (e.g., 330850-50-00)
- 3500/40M or 3500/42M Proximitor/Seismic Monitor (rack-mounted)
- 3500 Rack with power supply and communication module
Contact support@konmask.com to source the complete loop as a kit.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- IEC 61511 – Functional Safety for Process Industry (SIL-rated installations)
- ISO 10816 / ISO 20816 – Mechanical vibration measurement on non-rotating parts
- CE Marking – EMC Directive compliance for European installations
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
Konmask.com specializes in the procurement and supply of industrial automation and condition monitoring components for global engineering teams. Every unit of 330903-00-11-05-02-CN we supply is:
- Sourced from authorized distribution channels or verified OEM-equivalent manufacturers
- Inspected for connector integrity, jacket condition, and part number label accuracy prior to dispatch
- Packaged in anti-static, moisture-resistant packaging suitable for international air freight
- Accompanied by a packing list with full part number and quantity traceability
We maintain stock for rapid dispatch and can fulfill urgent plant shutdown (turnaround) requirements. Lead time for in-stock units: 1–3 business days worldwide.
How to Source This Part
- Online: Add to cart directly on this page — secure checkout with international shipping options.
- RFQ / Bulk Orders: Email support@konmask.com with your required quantity and delivery location for a formal quotation within 24 hours.
- Phone / WhatsApp: +0086 19859288691 — available for urgent plant requirements.
- Kitting: Request a complete 3300 XL loop kit (probe + extension cable + proximitor) as a single line item.
Application-Specific FAQ
Q: Is the 330903-00-11-05-02-CN compatible with the older 3300 (non-XL) series?
A: No. The NSv extension cable is specifically designed for the 3300 XL NSv transducer chain. Using it with the standard 3300 series will result in incorrect gap voltage and measurement errors. Verify your proximitor model before ordering.
Q: Can this cable be cut to a custom length in the field?
A: No. The 3300 XL system is calibrated as a matched set (probe + extension cable + proximitor). Cutting or splicing the extension cable will alter the system’s electrical characteristics and invalidate calibration. Always order the correct length suffix.
Q: What does the “-CN” suffix indicate?
A: The “-CN” suffix designates the country of manufacture (China) for customs and traceability purposes. The electrical and mechanical specifications are identical to the standard part.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC can be provided upon request for quality-critical installations. Please specify this requirement when placing your order.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 piece. Volume pricing is available for orders of 5 pieces or more — contact us for a tiered price schedule.
