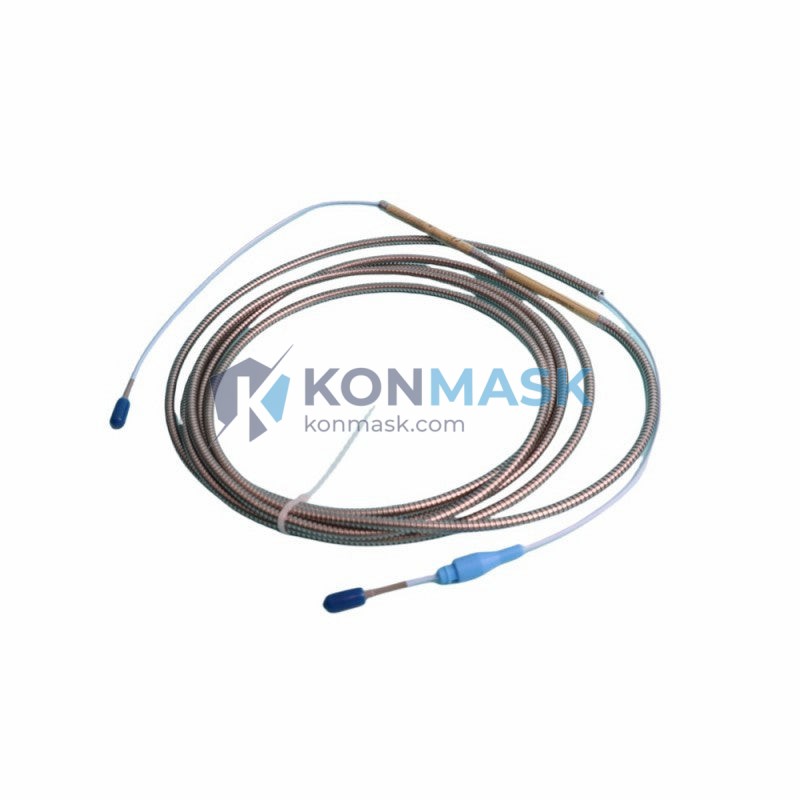

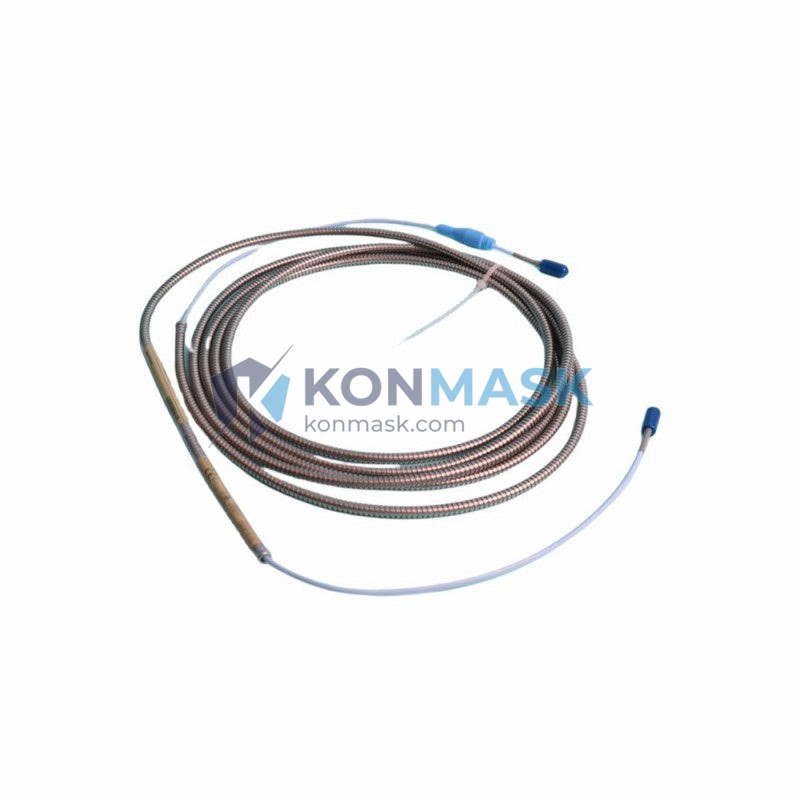

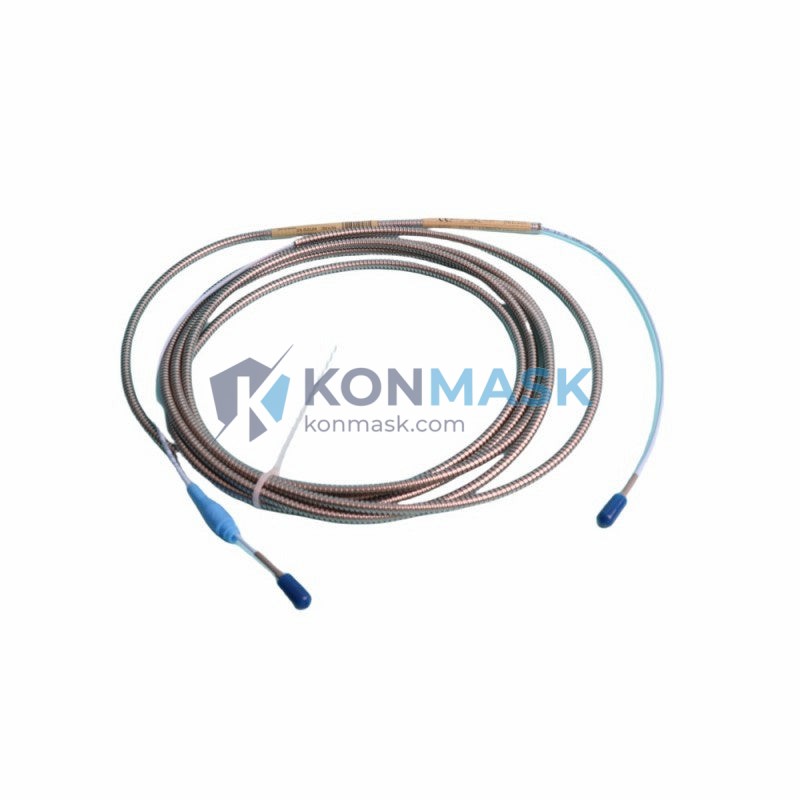

Bently Nevada 330930-65-03-05 3300 XL NSv Proximity Transducer System | Replacement, Equivalent & Selection Guide
The Bently Nevada 330930-65-03-05 is a high-precision proximity transducer system from the 3300 XL NSv series, engineered for continuous vibration and position monitoring of rotating machinery in critical industrial environments. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: 330930-65-03-05
- Series: Bently Nevada 3300 XL NSv
- Type: Eddy-Current Proximity Transducer System
- Probe Length: 65 mm (active element)
- Cable Length: 3 m (extension cable)
- Driver/Oscillator: Included (05 = 5 m driver)
- Output: -18 VDC nominal (standard Bently Nevada output)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Range: DC to 10,000 Hz
- Operating Temperature: -35°C to +121°C
- Target Material: AISI 4140 steel or equivalent
- Connector: Standard BNC / integral cable
- Approvals: CE, CSA, FM (refer to datasheet for region-specific certifications)
- Weight: ~60 g
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 330930-65-03-05. Always verify electrical and mechanical compatibility before substitution:
- Bently Nevada 330930-65-00-05 — Same probe/driver length, no extension cable; suitable when cable routing differs
- Bently Nevada 330930-65-05-05 — 5 m extension cable variant; drop-in replacement where longer cable is acceptable
- Bently Nevada 330905-02-12-05-02 — 3300 XL 8 mm standard probe system; compatible with same 3300 monitors
- Epro PR6423/010-040 — Third-party eddy-current transducer; requires sensitivity and gap verification
- Metrix ST5484E — Alternative proximity system; confirm monitor input compatibility
Note: Konmask.com recommends using original Bently Nevada components for safety-critical applications. Contact our team for cross-reference validation.
Why Choose the Original Model
- Certified Accuracy: Factory-calibrated to ±1% linearity — critical for API 670-compliant machinery protection systems
- System Integrity: Designed and tested as a matched probe/extension/driver system; mixing components from different manufacturers can introduce measurement errors
- Long-Term Support: Bently Nevada 3300 XL NSv systems are widely deployed; spare parts and technical support remain available
- Traceability: Original parts carry full manufacturer traceability, essential for regulated industries (oil & gas, power generation, petrochemical)
Typical Applications
- Radial vibration monitoring on steam turbines, gas turbines, and compressors
- Axial position (thrust) measurement on rotating shafts
- Differential expansion monitoring in power plant turbines
- Speed and phase reference measurement (Keyphasor® applications)
- Machinery protection systems per API 670 standard
System Compatibility
The 330930-65-03-05 is designed to operate within the Bently Nevada 3300 XL monitoring system and is compatible with the following monitors and racks:
- Bently Nevada 3300/16 Dual Vibration Monitor
- Bently Nevada 3300/20 Radial Vibration Monitor
- Bently Nevada 3500/42 Proximitor®/Seismic Monitor
- Bently Nevada 3500/40M Proximitor®/Seismic Monitor
- System 1® Evolution software (for data acquisition and trending)
Confirm rack slot configuration and I/O module compatibility before installation.
Selection Guide
Use the following parameters to confirm the correct part number for your application:
- Probe Active Length: 65 mm (standard for most 3300 XL NSv applications)
- Extension Cable Length: 03 = 3 m — measure the distance from probe tip to driver/oscillator
- Driver Length Code: 05 = 5 m total system — verify total system cable length matches monitor input requirements
- Gap Voltage: Nominal -10 VDC at recommended gap; confirm with your monitor’s input specification
- Target Material: Must be AISI 4140 or equivalent ferromagnetic steel; non-standard targets require recalibration
- Environment: For hazardous area installations, verify ATEX/IECEx certification requirements separately
Quality Assurance & Sourcing
- All units sourced by Konmask.com are inspected for physical integrity and labeling authenticity prior to dispatch
- Certificates of conformance (CoC) and test reports available upon request
- We supply both new original and surplus/refurbished stock — condition clearly stated at time of quotation
- Minimum 90-day warranty on all shipped units; extended warranty available for new stock
- Global shipping with DHL, FedEx, and UPS; export documentation provided for international orders
How to Order
- Confirm part number: 330930-65-03-05
- Specify required quantity and delivery timeline
- Contact us via the form below or email support@konmask.com
- Receive quotation with lead time, condition, and pricing within 24 hours
- Approve proforma invoice and arrange payment — we accept T/T, PayPal, and credit card
- Shipment dispatched with tracking number and commercial invoice
Replacement & Compatibility FAQ
Q: Can I use a 330930-65-05-05 instead of the 330930-65-03-05?
A: Yes, if the additional cable length (5 m vs 3 m) is acceptable in your installation. The electrical performance is identical.
Q: Is the 330930-65-03-05 compatible with the Bently Nevada 3500 rack?
A: Yes, with the appropriate 3500/42 or 3500/40M monitor module. Verify the I/O module accepts the NSv transducer input.
Q: Can I replace just the probe without replacing the extension cable and driver?
A: Bently Nevada recommends replacing the full matched system (probe + extension + driver) to maintain calibration accuracy. Mixing components from different system sets is not recommended.
Q: Do you supply ATEX-certified versions?
A: Yes. Please specify your hazardous area classification when requesting a quotation and we will confirm the correct certified part number.
Q: What is the lead time for the 330930-65-03-05?
A: Typically 1–5 business days for in-stock units; 2–4 weeks for factory-new orders. Contact us for current availability.
