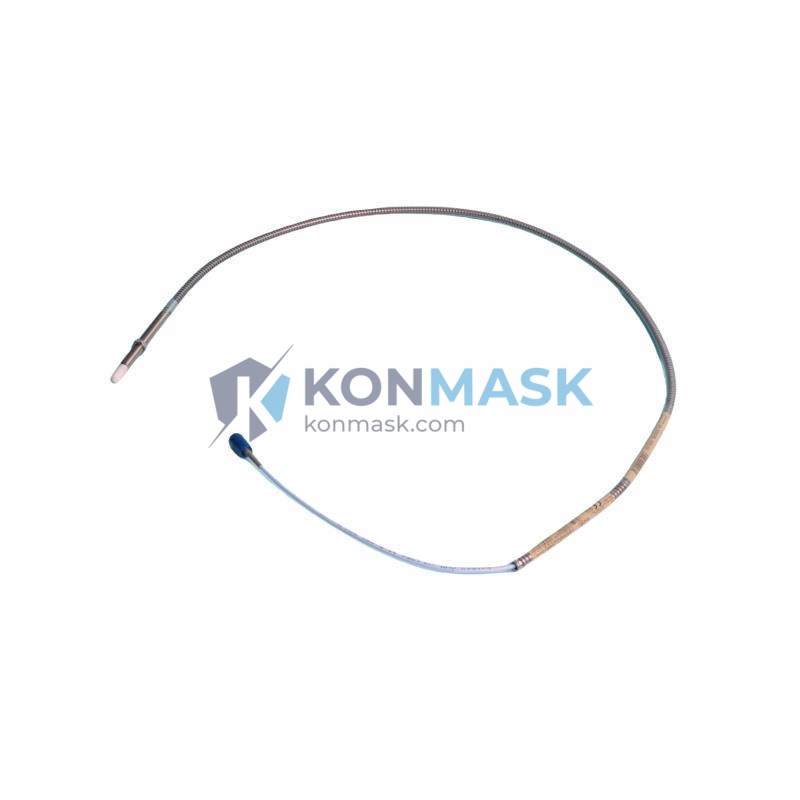

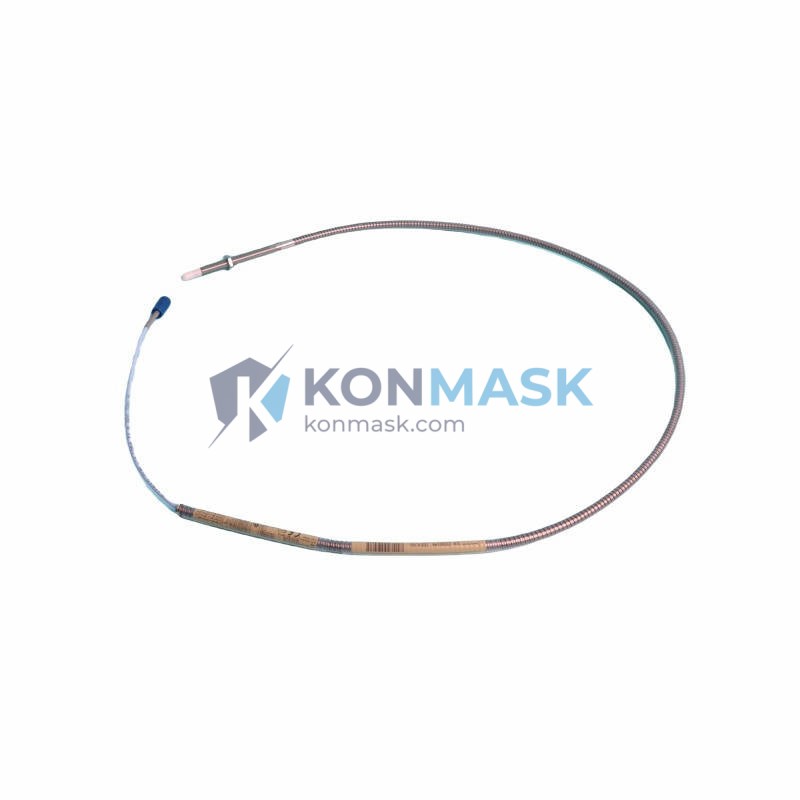

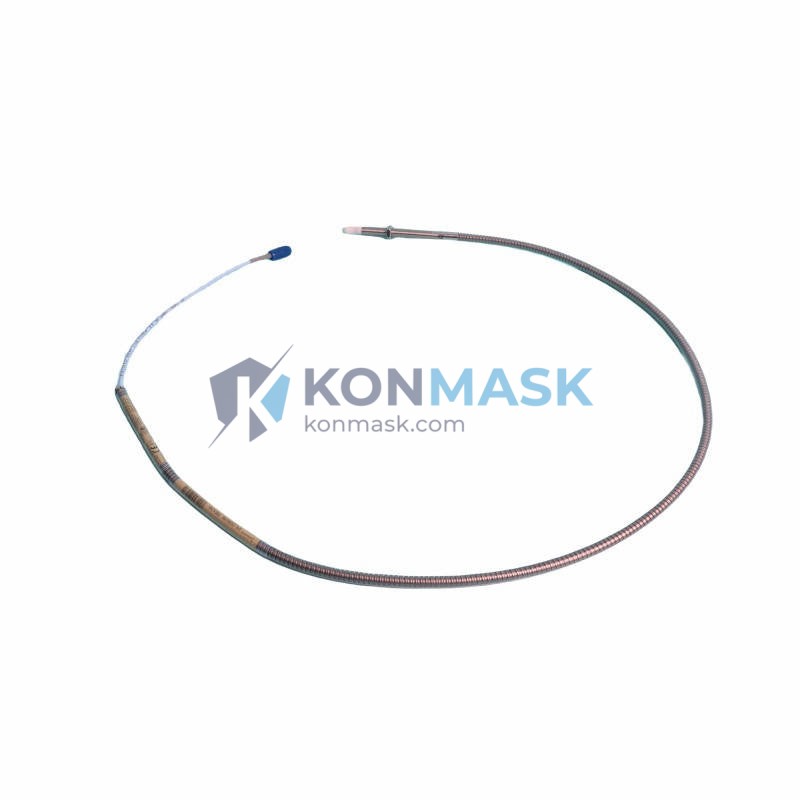

Bently Nevada 330903-00-13-05-02-CN Proximity Transducer System – 3300 XL Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, and unplanned shutdowns that cost industrial facilities tens of thousands of dollars per hour. Without a reliable proximity transducer system in place, maintenance teams are flying blind — unable to detect the early warning signs that separate a controlled shutdown from a catastrophic failure.
The Bently Nevada 330903-00-13-05-02-CN is a precision-engineered proximity transducer system within the globally recognized 3300 XL Series — one of the most trusted platforms in continuous machinery protection. Designed for demanding industrial environments, this system delivers accurate, real-time eddy-current-based displacement measurement for rotating and reciprocating machinery. It is widely deployed across oil & gas, power generation, petrochemical, and heavy manufacturing sectors worldwide, and remains a benchmark product in the Bently Nevada portfolio for its reliability and compatibility with the System 1 and 3500 monitoring racks.
Technical Specifications
- Part Number / SKU: 330903-00-13-05-02-CN
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL Proximity Transducer System
- Sensing Technology: Eddy-current (non-contact)
- Probe Cable Length: 5 m (as indicated by -05 in part number)
- Extension Cable Length: 2 m (as indicated by -02 in part number)
- Connector Type: CN (standard connector configuration)
- Probe Tip Diameter: 8 mm (standard 3300 XL probe)
- Measurement Range: 0.25 mm – 2.25 mm (linear range)
- Output Signal: -18 VDC nominal (standard Bently Nevada output)
- Operating Temperature: -35°C to +121°C (probe); -40°C to +85°C (extension cable)
- Weight: 300 g (approx.)
- Compliance: CE, RoHS compatible; suitable for hazardous area installations
Note: All specifications are based on published Bently Nevada 3300 XL Series documentation. Do not rely solely on this page for safety-critical installations — always verify against the official datasheet.
Key Features & Benefits
- Non-Contact Measurement: Eddy-current technology eliminates mechanical wear, ensuring long-term measurement accuracy without physical contact with the rotating shaft.
- High Signal Integrity: The 3300 XL system is engineered for low noise and high linearity, providing consistent output even in electromagnetically noisy industrial environments.
- Plug-and-Play Compatibility: Designed for direct integration with Bently Nevada 3500 Series monitoring racks and System 1 software — no additional signal conditioning required.
- Robust Construction: Stainless steel probe body and armored cable construction withstand high-vibration, high-temperature, and chemically aggressive environments.
- CN Connector Configuration: The -CN suffix ensures compatibility with standard Bently Nevada field wiring practices, simplifying installation and replacement.
- Proven Global Reliability: Deployed in thousands of installations across refineries, compressor stations, turbine halls, and power plants worldwide.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, pipeline pumping stations, LNG processing trains
- Power Generation: Steam turbines, hydro generators, gas turbine-generators, boiler feed pumps
- Petrochemical & Refining: Reactor agitators, cracked gas compressors, process pumps
- Heavy Manufacturing: Large induction motors, gearboxes, rolling mill drives
- Marine & Offshore: Propulsion systems, auxiliary machinery monitoring
System Integration & Compatible Parts
The 330903-00-13-05-02-CN is designed to operate as part of the complete Bently Nevada 3300 XL ecosystem. Compatible and commonly paired components include:
- Bently Nevada 3500/42M Proximitor I/O Module
- Bently Nevada 3500/22M Transient Data Interface
- Bently Nevada 330180 Extension Cable (various lengths)
- Bently Nevada 330100 Series Proximity Probes
- System 1 Machinery Management Software
Contact our technical team at support@konmask.com to confirm compatibility with your existing rack configuration before ordering.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada component undergoes a structured verification process before shipment:
- Source Verification: All units are sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Visual & Physical Inspection: Probe tip, cable jacket, connector pins, and labeling are inspected against OEM specifications.
- Functional Testing: Where applicable, units are bench-tested for output signal integrity prior to dispatch.
- Secure Packaging: Anti-static, shock-resistant packaging with moisture barrier for international freight.
- Documentation: Certificate of conformance and inspection report available upon request.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Our team will respond within 1 business day with availability, lead time, and a formal quotation.
- Upon PO confirmation, we arrange quality inspection, packaging, and international shipping (DHL / FedEx / UPS / sea freight).
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists: Focused exclusively on PLC, DCS, and condition monitoring components — not a generalist marketplace.
- ✅ Global B2B Export Experience: Serving engineering firms, EPCs, and MRO teams across 40+ countries.
- ✅ Technical Pre-Sales Support: Our engineers can assist with cross-referencing, compatibility checks, and system integration questions.
- ✅ Competitive Lead Times: Extensive supplier network enables fast sourcing for both standard and obsolete Bently Nevada parts.
- ✅ Secure Transactions: T/T, L/C, and other B2B payment terms available for qualified buyers.
Frequently Asked Questions
Q: What does the part number 330903-00-13-05-02-CN mean?
A: The 330903 is the base model number for the 3300 XL 8mm proximity transducer system. The suffixes indicate configuration options: probe cable length (5 m), extension cable length (2 m), and CN connector type. Always use the full part number when ordering to ensure exact configuration match.
Q: Is the 330903-00-13-05-02-CN compatible with the Bently Nevada 3500 rack?
A: Yes. The 3300 XL proximity transducer system is the standard sensor input for Bently Nevada 3500 Series monitors. Verify your specific I/O module (e.g., 3500/42M) accepts 8mm probe inputs before installation.
Q: Can you supply a Certificate of Conformance (CoC)?
A: Yes. A CoC and inspection report are available upon request for all units. Please specify this requirement when submitting your RFQ.
Q: What is the lead time for this part?
A: Lead time varies by stock availability. In-stock units typically ship within 3–5 business days. For sourced units, lead time is 2–4 weeks. Contact us for current availability.
Q: Do you accept returns or offer a warranty?
A: We offer a 90-day warranty against defects in materials and workmanship for all verified units. Please review our full warranty and returns policy on the website.
