Bently Nevada 330903-00-22-10-02-05 Eddy-Current Proximity Probe | Replacement, Equivalent & Selection Guide

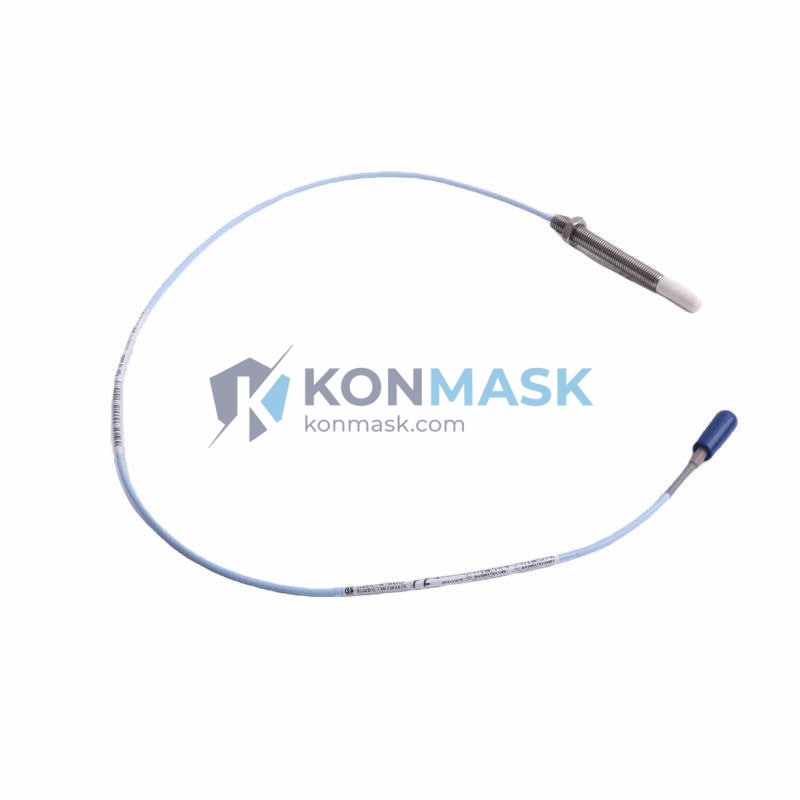

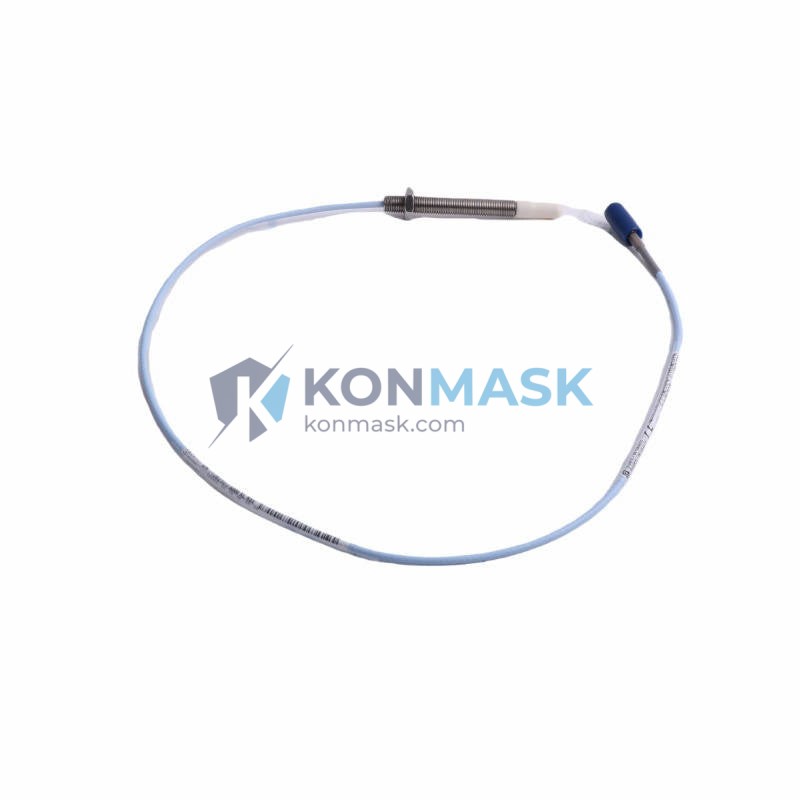

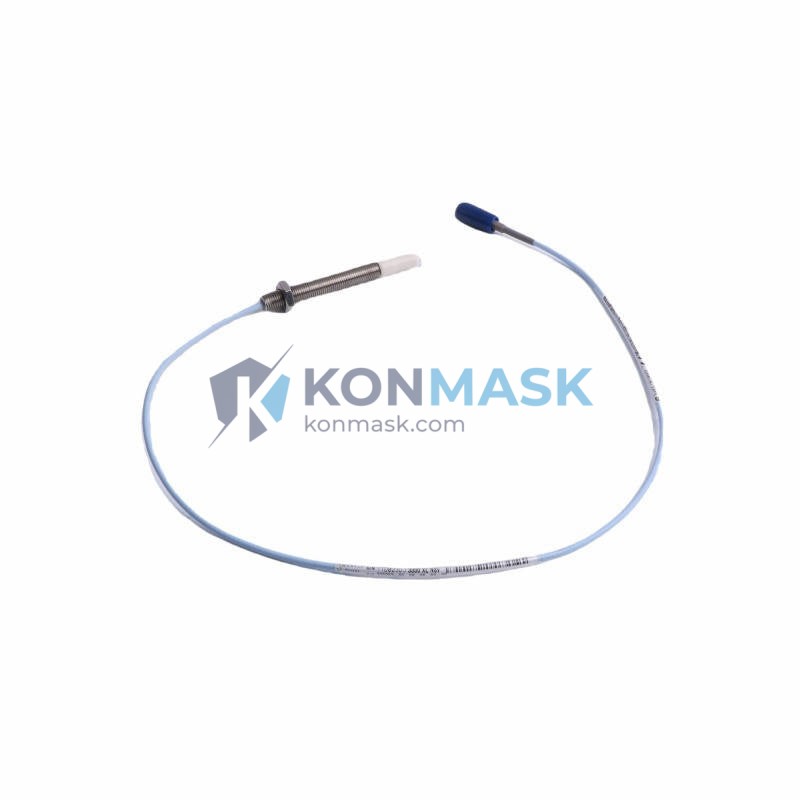

The Bently Nevada 330903-00-22-10-02-05 is a high-precision eddy-current proximity probe from the 3300 XL Series, designed for continuous non-contact vibration and position measurement on rotating machinery. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: 330903-00-22-10-02-05
- Series: Bently Nevada 3300 XL
- Probe Type: Eddy-Current Proximity Probe
- Tip Diameter: 5 mm (8 mm body)
- Cable Length: 5 m (integral)
- Connector: Standard BNC-compatible termination
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 mm – 2.25 mm (10 mil – 90 mil)
- Operating Temperature: −35°C to +177°C
- Supply Voltage: −24 VDC (nominal)
- Output: −1 VDC to −17 VDC
- Target Material: AISI 4140 steel (or equivalent)
- Mounting Thread: M8 × 1.0
- IP Rating: IP67
- Approvals: CE, FM, CSA (intrinsically safe options available)
- API Standard: API 670 compliant
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 330903-00-22-10-02-05. Always verify electrical and mechanical compatibility before substitution:
- Bently Nevada 330903-00-22-10-02-00 – Same probe body, shorter integral cable; verify driver compatibility
- Bently Nevada 330903-00-22-10-02-CN – China-market variant with identical electrical specs
- Bently Nevada 330905-00-22-10-02-05 – 8 mm tip diameter variant; wider linear range, same 3300 XL driver family
- Epro PR6423/010-040 – Third-party equivalent; 5 mm eddy-current probe, compatible with 3300 XL drivers in many installations
- Metrix ST5484E – Functional equivalent for non-OEM applications; confirm driver pairing before use
Note: Konmask.com supplies genuine Bently Nevada OEM parts. Third-party equivalents listed above are for reference only.
Why Choose the Original Model
- OEM Calibration: Factory-calibrated at 7.87 V/mm — direct drop-in replacement without recalibration of driver or monitor
- System Certification: Maintains FM/CSA intrinsic safety certifications when paired with matched 3300 XL drivers
- Proven Reliability: Validated for continuous 24/7 operation in turbines, compressors, and pumps
- Full Traceability: OEM test certificates, CoC, and warranty coverage available
- API 670 Compliance: Meets API 670 standard for machinery protection systems
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial position measurement
- Pump and motor bearing vibration surveillance
- Gearbox and expander rotor dynamic monitoring
- Critical rotating machinery in oil & gas, power generation, and petrochemical plants
System Compatibility
The 330903-00-22-10-02-05 operates within the Bently Nevada 3300 XL Monitoring System. Verified compatible components:
- Extension Cables: 330130-045-00-00, 330130-080-00-00 (matched to achieve total system cable length)
- Proximitors / Drivers: 3300 XL 5 mm Proximitor (330101-X0-05), 3300 XL 8 mm Proximitor (330180-X1-05)
- Monitors: 3500/40M, 3500/42M, 3500/45, 3500/46M (Bently Nevada 3500 Series)
- DCS Integration: Compatible with 4–20 mA output modules and MODBUS/PROFIBUS gateways via 3500 rack
Selection Guide
Use the parameters below to select the correct 330903 series probe for your application:
- 5 mm tip, 5 m cable → 330903-00-22-10-02-05 ✓ (this model)
- 5 mm tip, 9 m cable → 330903-00-22-10-02-09
- 8 mm tip, 5 m cable → 330905-00-22-10-02-05
- 8 mm tip, 9 m cable → 330905-00-22-10-02-09
- High-temperature (>177°C) → Contact Konmask for 3300 HT Series options
- ATEX Zone 0 requirement → Specify ATEX variant at time of order
Key selection parameters: tip diameter · total system cable length (probe + extension) · target material · operating temperature · required certifications (FM, CSA, ATEX, IECEx).
Quality Assurance & Sourcing
- Source: Genuine Bently Nevada / Baker Hughes OEM parts
- Condition: New, surplus new, or refurbished — clearly stated per listing
- Documentation: Factory test certificates and material traceability available on request
- Inspection: All units inspected prior to shipment; photos provided on request
- Lead Time: In-stock items ship within 1–3 business days; contact us for urgent requirements
How to Order
- Confirm part number: 330903-00-22-10-02-05
- Specify quantity and required condition (new / surplus / refurbished)
- Request a quote via [email protected] or add to cart directly
- Provide shipping destination for accurate freight cost and lead time
- Note any documentation requirements (test cert, CoC) at time of order
Replacement & Compatibility FAQ
Q: Can I use a 330905 (8 mm) probe as a direct replacement for the 330903 (5 mm)?
A: Not directly. The 8 mm probe requires a matched 8 mm Proximitor driver. Swapping tip size requires changing the driver as well.
Q: Is the 330903-00-22-10-02-05 compatible with older 3300 (non-XL) systems?
A: The 3300 XL probe is backward-compatible with most 3300 series drivers, but sensitivity calibration should be verified. Contact our technical team for confirmation.
Q: What is the total system cable length?
A: Total cable length = probe integral cable (5 m) + extension cable. Standard system lengths are 5 m, 9 m, and 15 m. Ensure your Proximitor is matched to the total length.
Q: Do you supply ATEX/IECEx certified versions?
A: Yes. Please specify your certification requirement when requesting a quote.
Q: Can Konmask provide a Certificate of Conformance?
A: Yes, CoC and factory test documentation are available upon request for all OEM units.
