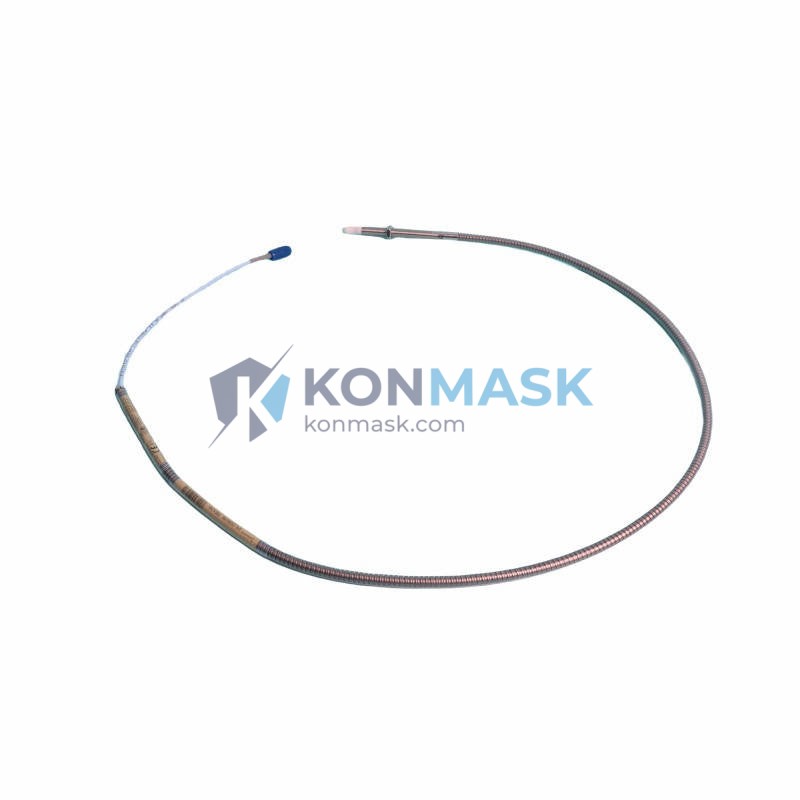

Bently Nevada 330904-00-06-50-02-00 3300 XL NSv Proximity Transducer System | Replacement, Equivalent & Selection Guide
The Bently Nevada 330904-00-06-50-02-00 is a high-precision proximity transducer system from the 3300 XL NSv series, engineered for continuous vibration and position monitoring in rotating machinery. Designed for demanding industrial environments, this system delivers reliable non-contact measurement with exceptional signal stability — a trusted choice for turbines, compressors, pumps, and motors worldwide.
At Konmask.com, we specialize in sourcing genuine and compatible automation components. Whether you need the original part or a verified equivalent, our selection guide below helps you make the right decision.
Technical Specifications
- Part Number: 330904-00-06-50-02-00
- Series: Bently Nevada 3300 XL NSv
- Type: Proximity Transducer System (Eddy-Current)
- Probe Cable Length: 6 inches (integral)
- Extension Cable Length: 5.0 m (standard)
- Sensitivity: 200 mV/mil (7.87 V/mm)
- Linear Range: 80–1000 mil (2.0–25.4 mm)
- Frequency Response: DC to 10,000 Hz
- Operating Temperature: -35°C to +121°C (probe); -35°C to +66°C (driver)
- Output Voltage: -18 VDC nominal
- Power Supply: -24 VDC (±1 VDC)
- Connector: 2-pin MIL-C-5015 (probe end)
- Approvals: CE, ATEX, FM (intrinsically safe options available)
- Weight: ~40 g (probe assembly)
Compatible Replacement & Equivalent Models
The following models are commonly used as replacements or equivalents for the 330904-00-06-50-02-00. Always verify gap voltage, sensitivity, and cable length before substitution.
| Model | Brand | Sensitivity | Cable Length | Compatibility Note |
|---|---|---|---|---|
| 330903-00-06-50-02-00 | Bently Nevada | 200 mV/mil | 5.0 m | Standard probe, same driver — direct swap |
| 330905-00-06-50-02-00 | Bently Nevada | 200 mV/mil | 5.0 m | High-temp variant — verify environment |
| 3300 XL 8mm Probe | Bently Nevada | 200 mV/mil | Configurable | Same series, different probe diameter |
| PR6423/010-030 | Epro (Baker Hughes) | 8 V/mm | 3.0 m | Cross-brand equivalent — driver change required |
| CON021/916-000 | Epro (Baker Hughes) | — | — | Compatible driver for Epro probes |
| TQ402-A05-B00-C00 | Turck | Varies | Configurable | Third-party equivalent — verify system specs |
Note: Cross-brand replacements require full system recalibration. Consult your OEM documentation or contact Konmask for technical support.
Why Choose the Original Model
- OEM-Certified Performance: Factory-calibrated to Bently Nevada’s exact sensitivity and linearity standards.
- System Integrity: Designed to work seamlessly with 3300 XL drivers and Bently Nevada monitoring systems (System 1, 3500 rack).
- Proven Reliability: Widely deployed in power generation, oil & gas, and petrochemical industries for 20+ years.
- Warranty & Traceability: Genuine parts come with full manufacturer traceability and warranty support.
- Reduced Commissioning Risk: No recalibration required when replacing like-for-like.
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial position measurement
- Pump and motor bearing vibration surveillance
- Gearbox and fan shaft displacement monitoring
- Critical machinery protection systems (API 670 compliant installations)
System Compatibility
The 330904-00-06-50-02-00 is designed for use within the Bently Nevada 3300 XL NSv system and is compatible with the following:
- Drivers/Monitors: 3300 XL 11 mm Driver, 3300 XL 8 mm Driver, 3500/42M Proximitor I/O Module
- Monitoring Systems: Bently Nevada 3500 Series Rack, System 1 Software
- Target Materials: AISI 4140 steel (standard); consult factory for non-standard alloys
- Mounting: Standard 3/8-24 UNF thread (probe body)
Selection Guide
Use the following criteria to select the correct proximity transducer system for your application:
- Step 1 — Probe Diameter: 3300 XL NSv uses 8 mm probes. Confirm your existing bracket/bore size.
- Step 2 — Cable Length: The -06 suffix = 6-inch integral cable. Match to your extension cable (5.0 m standard for this model).
- Step 3 — Driver Compatibility: Confirm driver part number. NSv probes require NSv-compatible drivers.
- Step 4 — Target Material: Standard calibration is for AISI 4140. Non-standard alloys require a special calibration factor.
- Step 5 — Environment: Check temperature rating and hazardous area classification (ATEX/FM) for your installation zone.
- Step 6 — Measurement Type: Radial vibration, axial position, or speed? Confirm the correct transducer orientation and mounting.
Not sure which model fits your system? Contact our engineers with your existing part number and system rack details.
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified surplus inventory.
- Inspection: All units undergo visual inspection and functional verification before shipment.
- Packaging: Original or equivalent anti-static protective packaging.
- Documentation: Certificate of conformance available upon request.
- Lead Time: In-stock items ship within 1–3 business days. Contact us for urgent requirements.
How to Order
- Confirm part number: 330904-00-06-50-02-00
- Specify quantity required.
- Add to cart or contact us directly for bulk pricing and availability.
- For custom configurations or cross-reference assistance, email support@konmask.com or call +0086 19859288691.
Replacement & Compatibility FAQ
Q: Can I replace 330904-00-06-50-02-00 with 330903-00-06-50-02-00?
A: Yes, in most cases. Both use the same 200 mV/mil sensitivity and 5.0 m extension cable. Verify the driver part number and gap voltage setting before installation.
Q: Is this probe compatible with the Bently Nevada 3500 rack?
A: Yes, when paired with the correct 3500/42M Proximitor I/O module and NSv-compatible driver.
Q: Can I use an Epro PR6423 as a replacement?
A: Epro probes are cross-brand equivalents but require a different driver and full system recalibration. Not a plug-and-play swap.
Q: What is the target material for standard calibration?
A: AISI 4140 steel. If your shaft is a different alloy, a calibration correction factor must be applied.
Q: Do you provide a certificate of conformance?
A: Yes, available upon request for all orders.
Q: What is the warranty on this product?
A: We offer a 90-day functional warranty on all verified units. OEM warranty terms apply to new, sealed stock.
