Bently Nevada 330904-00-10-05-02-05 Proximity Probe | Replacement, Equivalent & Selection Guide

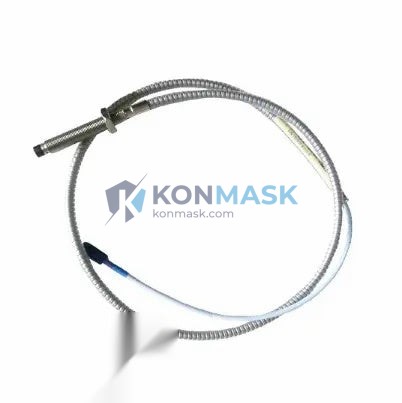

The Bently Nevada 330904-00-10-05-02-05 is a high-precision eddy-current proximity probe from the 3300 NSv Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. This guide covers technical specifications, compatible replacements, system compatibility, and ordering information to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: 330904-00-10-05-02-05
- Series: Bently Nevada 3300 NSv
- Type: Eddy-Current Proximity Probe
- Probe Length: 10 mm (tip-to-connector)
- Cable Length: 5 m (integral)
- Thread Size: M10 x 1.0
- Gap Range: 0.25 – 2.25 mm (10 – 90 mil)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC – 10,000 Hz
- Operating Temperature: -35 C to +177 C
- Target Material: AISI 4140 steel (or equivalent ferromagnetic alloy)
- Connector: Integral coaxial, compatible with 3300 XL extension cables
- Approvals: CE, ATEX (consult datasheet for zone classification)
Compatible Replacement & Equivalent Models
When the OEM part is unavailable or lead times are extended, the following models are functionally equivalent or drop-in replacements:
- 330903-00-10-05-02-05 – Standard 3300 NSv probe, same geometry, slightly different cable routing
- 330905-00-10-05-02-05 – Extended-temperature variant for high-heat environments
- 330780-50-00 – 3300 XL 8 mm probe (requires extension cable adapter)
- Emerson 330104-00-10-05-02-05 – Post-acquisition equivalent under Emerson branding
- Third-party NSv-compatible probes – Must match M10 thread, 200 mV/mil scale factor, and coaxial connector spec; verify with system integrator before installation
Note: Always verify gap range, scale factor, and connector compatibility before substituting. Konmask.com supplies genuine Bently Nevada parts with full traceability.
Why Choose the Original Model
- Factory-calibrated scale factor ensures direct compatibility with 3300 NSv monitors without recalibration
- Integral cable design eliminates connector joints that can introduce signal noise in high-vibration environments
- Proven MTBF exceeding 100,000 hours in continuous industrial service
- OEM traceability – each unit ships with Bently Nevada certificate of conformance
- Regulatory compliance – CE and ATEX markings accepted by most plant safety authorities globally
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position measurement
- Pump and motor bearing proximity sensing
- Gearbox shaft eccentricity detection
- Axial thrust position monitoring on rotating shafts
System Compatibility
The 330904-00-10-05-02-05 is designed to operate within the Bently Nevada 3300 NSv monitoring system and is compatible with:
- 3300/16 and 3300/20 monitor cards
- 3500 Series rack-based monitoring systems (with appropriate I/O module)
- System 1 Condition Monitoring Software (Emerson)
- 3300 XL extension cables (330130 series)
- Proximitor sensors (330180 series)
Selection Guide
Use the table below to identify the correct 330904 variant for your application:
- Probe tip length: 10 mm standard | 25 mm for deep-bore installations
- Cable length: 05 = 5 m | 10 = 10 m | 15 = 15 m (specify at order)
- Thread: 02 = M10 x 1.0 | 03 = 3/8-24 UNF (imperial installations)
- Connector style: 05 = standard coaxial | 06 = armored cable variant
- Temperature rating: Standard (-35 to +177 C) or HT variant for above 177 C
If your application requires a non-standard configuration, contact support@konmask.com with your shaft diameter, gap target, and monitor card model for a tailored recommendation.
Quality Assurance & Sourcing
- Genuine OEM parts sourced directly from authorized Bently Nevada / Emerson distribution channels
- Each unit inspected and tested against factory specification before shipment
- Certificate of Conformance (CoC) and test report available on request
- Secure anti-static packaging with tamper-evident sealing
- Full export documentation (commercial invoice, packing list, country of origin) provided
How to Order
- Confirm part number: 330904-00-10-05-02-05
- Specify quantity and required delivery date
- Submit RFQ via support@konmask.com or add to cart directly
- Receive quotation with lead time and shipping options within 24 hours
- Payment via T/T, PayPal, or credit card; DDP/DAP shipping available worldwide
Replacement & Compatibility FAQ
Q: Can I use a 330903 probe in place of the 330904?
A: In most cases yes – both share the same scale factor and connector. Verify thread size and cable length match your installation before swapping.
Q: Is this probe compatible with the Bently Nevada 3500 system?
A: Yes, with the appropriate 3500 I/O module. Confirm the monitor card accepts 200 mV/mil input.
Q: Do you supply ATEX-certified units?
A: Yes. Specify ATEX requirement at time of order and we will provide the relevant zone-classified variant with documentation.
Q: What is the lead time for genuine stock?
A: In-stock units ship within 3-5 business days. For out-of-stock items, typical lead time is 4-8 weeks from factory.
Q: Can Konmask.com provide a calibration certificate?
A: Yes. Factory calibration certificates are available; third-party NIST-traceable calibration can be arranged on request.
