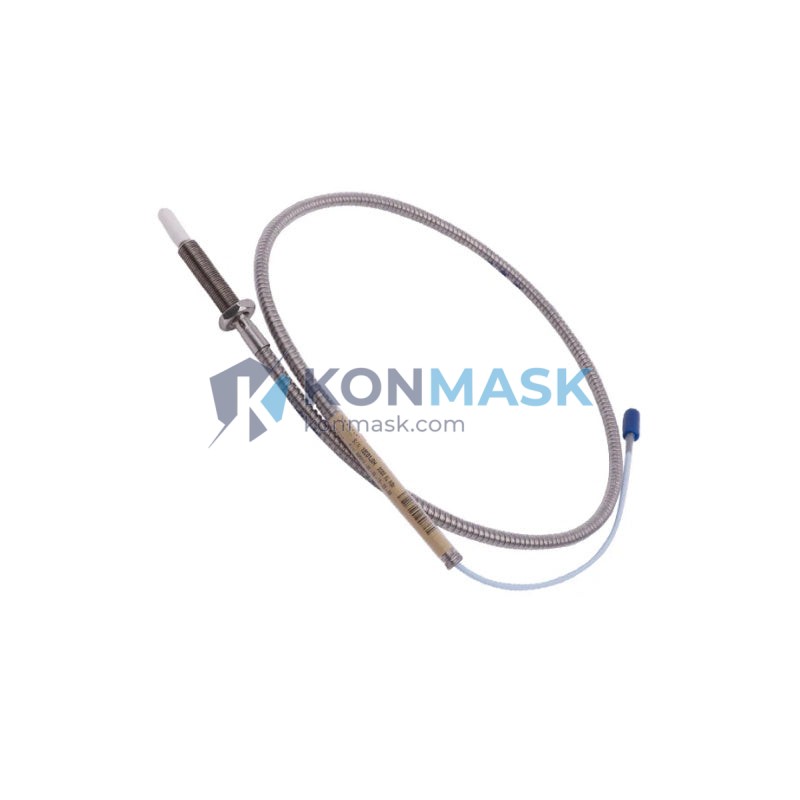

Rotating Machinery Vibration Monitoring Solution – Bently Nevada 330905-08-13-10-12-CN | 3300 NSv Proximity Probe
The Bently Nevada 330905-08-13-10-12-CN is an eddy-current proximity probe from the 3300 NSv series, engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in critical rotating machinery. Deployed across power generation, oil & gas, and petrochemical industries, this probe is a cornerstone of API 670-compliant machinery protection systems.
Where This Product Is Used
- Steam & Gas Turbines – Real-time shaft radial vibration and eccentricity monitoring on HP/IP/LP rotors
- Centrifugal Compressors – Continuous rotor orbit and bearing clearance measurement in pipeline and process compressors
- Pumps & Fans – Shaft displacement monitoring to detect imbalance, misalignment, and bearing wear
- Gearboxes – Gear mesh frequency and shaft position tracking in high-speed drive trains
- Hydro Turbines – Axial thrust and radial vibration surveillance on vertical shaft machines
- Marine Propulsion Systems – Shaft monitoring in ship propulsion and auxiliary machinery
- Reciprocating Compressors – Rider band wear and crosshead displacement measurement
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330905-08-13-10-12-CN |
| Series | Bently Nevada 3300 NSv |
| Sensor Type | Eddy-Current Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Cable Length | 1.0 m (extension cable separate) |
| Armored Cable Length | 1.2 m |
| Measurement Range | 0.25 – 2.25 mm (linear range) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10,000 Hz |
| Operating Temperature | −35 °C to +177 °C |
| Target Material | AISI 4140 steel (standard) |
| Connector | Integral coaxial, CN-standard |
| Approvals | CE, ATEX, IECEx (consult datasheet) |
| Weight | ~1,100 g (probe + cable assembly) |
Why Engineers Specify This Model
- Non-contact measurement – Zero mechanical wear; suitable for continuous 24/7 operation
- High linearity – ±1% linearity over full measurement range ensures accurate alarm setpoints
- Wide temperature range – Rated to 177 °C for hot-section turbine applications
- API 670 compliance – Drop-in compatible with existing 3300 NSv monitoring systems
- Integral armored cable – Protects signal integrity in high-vibration, high-EMI environments
- CN connector variant – Optimized for Chinese domestic installation standards and local wiring practices
Complete System Bill of Materials
A complete 3300 NSv proximity measurement chain requires the following components:
- Proximity Probe – 330905-08-13-10-12-CN (this item)
- Extension Cable – 330930-XXX-XX-CN (matched length, e.g. 330930-060-06-CN for 5 m)
- Proximitor® Sensor / Driver – 3300 XL 8mm Proximitor (e.g. 330180-X1-05)
- Monitor Module – 3500/40M or 3500/42M Proximitor/Seismic Monitor
- Rack & Power Supply – 3500 Monitoring Rack with 3500/15 Power Supply
- Junction Box – Field-mount enclosure for cable termination (IP65 or higher)
Contact support@konmask.com for complete BOM quotations.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation of machines
- IEC 60079 – Equipment for explosive atmospheres (ATEX/IECEx variants)
- CE Marking – EU Machinery Directive compliance
- GB/T Standards – Meets applicable Chinese national standards for industrial instrumentation
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified OEM channels
- Each probe undergoes incoming inspection: dimensional check, sensitivity calibration, and insulation resistance test
- Calibration certificates and traceability documentation available on request
- Shelf-life managed with FIFO inventory rotation
- Packaging: original OEM carton or equivalent ESD-safe packaging
How to Source This Part
- Submit your RFQ via support@konmask.com with quantity and required delivery date
- Receive a formal quotation within 1 business day (HKT)
- Confirm order with PO or proforma invoice
- Shipment from Hong Kong / Mainland China warehouse via DHL, FedEx, or freight forwarder
- Tracking number and commercial invoice provided upon dispatch
Phone / WhatsApp: +0086 19859288691
Application-Specific FAQ
Q: Is the 330905-08-13-10-12-CN compatible with the 3500 monitoring rack?
A: Yes. When paired with the correct 3300 XL Proximitor driver and matched extension cable, this probe integrates directly with the Bently Nevada 3500 series rack.
Q: What is the difference between the CN and standard (non-CN) variants?
A: The CN suffix denotes a connector configuration optimized for Chinese domestic installation standards. Electrically and mechanically, performance specifications are identical to the international variant.
Q: Can this probe measure axial position as well as radial vibration?
A: Yes. With appropriate mounting orientation and a compatible thrust monitor module (e.g. 3500/46M), the same probe type can measure axial shaft position.
Q: What target material is required for accurate readings?
A: AISI 4140 steel is the standard reference target. Other ferromagnetic materials require a target material correction factor — consult the Bently Nevada calibration guide.
Q: Do you provide calibration certificates?
A: Yes. Calibration documentation is available upon request for all units shipped from Konmask.com.
Q: What is the lead time for this part?
A: Typical lead time is 3–7 business days for in-stock units. Contact us for current availability.
