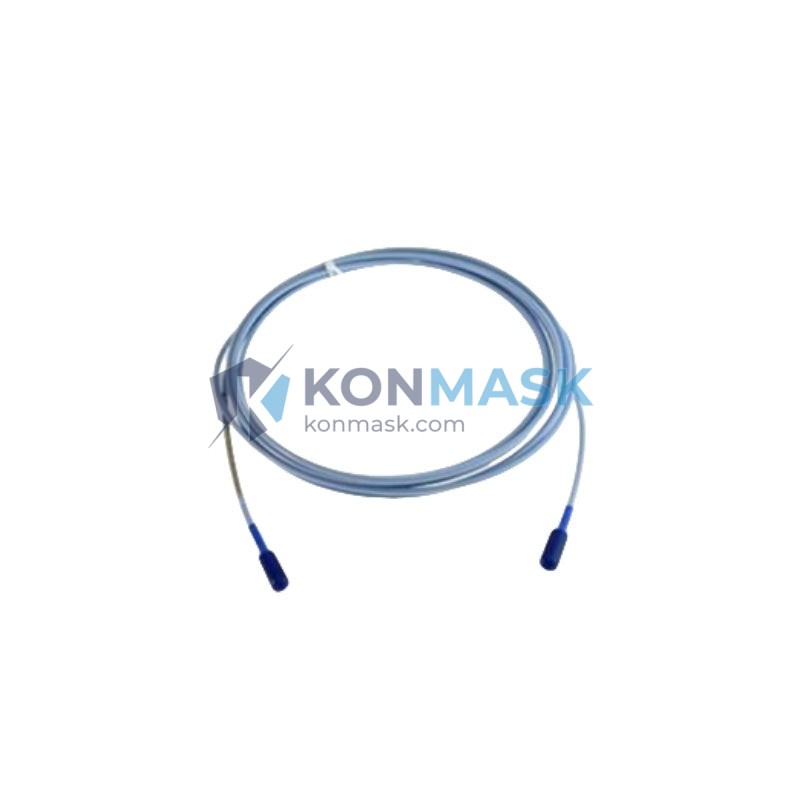

Bently Nevada 330901-00-15-05-02-05 – Eddy-Current Proximity Probe | 3300 NSv System Platform
Engineering Background
The Bently Nevada 3300 NSv (Non-contact Shaft Vibration) series is the industry benchmark for continuous, real-time shaft vibration and position measurement in rotating machinery. Developed by Baker Hughes (Bently Nevada), the 3300 NSv platform is deployed globally in gas turbines, steam turbines, compressors, pumps, and generators where unplanned downtime carries catastrophic operational and financial risk.
Product Positioning
The 330901-00-15-05-02-05 is a factory-configured proximity probe within the 3300 NSv series. It operates on the eddy-current principle, providing non-contact, wear-free measurement of shaft radial vibration, axial position, and differential expansion. This specific part number encodes a defined cable length, tip diameter, and connector configuration — making exact part-number matching critical for system compatibility and API 670 compliance.
Complete Technical Specifications
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number / SKU | 330901-00-15-05-02-05 |
| Series / Platform | 3300 NSv Proximity Probe System |
| Measurement Principle | Eddy-current (non-contact) |
| Probe Tip Diameter | 8 mm (standard) |
| Cable Length | 1.5 m (integral cable, per part number) |
| Extension Cable | Compatible with 3300 NSv extension cable series |
| Driver / Proximitor | 3300 NSv Proximitor (sold separately) |
| Linear Range | 0.25 mm – 2.25 mm (nominal) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | –35 °C to +177 °C (probe body) |
| Target Material | AISI 4140 steel or equivalent ferromagnetic alloy |
| Connector Type | Per part-number suffix (02-05 configuration) |
| Agency Approvals | CE, ATEX, IECEx (verify current certificate) |
| Compliance Standard | API 670 (5th Edition) |
| Approximate Weight | 220 g (probe + integral cable) |
Proven Application Environments
- Gas Turbines – Radial shaft vibration and thrust position monitoring on GE, Siemens, Solar, and MHI frames
- Steam Turbines – HP/LP rotor differential expansion and eccentricity measurement
- Centrifugal Compressors – API 670-compliant radial vibration on process-critical trains
- Pumps & Motors – Bearing journal orbit analysis and rotor dynamic studies
- Gearboxes – Gear mesh frequency and shaft position trending
- Hydro Turbines – Slow-speed shaft runout and guide-bearing clearance monitoring
Engineering Advantages
- Non-Contact Measurement – Zero mechanical wear; suitable for continuous 24/7 operation over multi-year intervals
- High Frequency Response – Captures sub-synchronous, synchronous, and super-synchronous vibration components up to the system bandwidth limit
- API 670 Native Compliance – Eliminates costly re-certification when replacing like-for-like in existing machinery protection systems
- Integral Cable Design – Eliminates field-assembled connections; reduces installation error and EMI ingress
- Wide Temperature Range – Suitable for hot-section installations near bearing housings and exhaust casings
- Plug-and-Play with 3300 NSv Proximitor – Matched scale factor ensures no recalibration of the monitoring rack
System Architecture & Signal Flow
The 3300 NSv system operates as a three-component signal chain:
- Proximity Probe (330901-00-15-05-02-05) – Generates a high-frequency electromagnetic field at the probe tip. Eddy currents induced in the rotating shaft modulate the field impedance proportional to gap distance.
- Extension Cable (3300 NSv series) – Transmits the modulated signal from the probe to the Proximitor with controlled impedance. Total probe + extension cable length must match the Proximitor calibration curve.
- Proximitor / Driver Module – Demodulates the signal and outputs a DC voltage proportional to gap (–24 VDC bias supply required). Output feeds directly to Bently Nevada 3500 or 3300 rack monitors, DCS, or SCADA systems.
Note: Probe, extension cable, and Proximitor must be ordered as a matched set for a given total cable length. Mixing unmatched lengths degrades scale factor accuracy.
Sourcing & Quality Verification
Konmask.com sources Bently Nevada components through established industrial distribution channels. Every unit offered undergoes our internal verification protocol before listing:
- Part Number Validation – Physical label cross-checked against Bently Nevada part number decoder and OEM documentation.
- Packaging Integrity Check – Original OEM packaging, anti-static protection, and factory seals inspected for tampering.
- Visual & Dimensional Inspection – Probe tip, cable jacket, and connector examined against OEM reference specifications.
- Documentation Review – Certificate of conformance, country of origin, and traceability records verified where available.
We do not list units that fail any step of this protocol. Counterfeit or non-OEM components are rejected at intake.
Procurement Process
- Confirm Part Number – Verify 330901-00-15-05-02-05 matches your existing probe, extension cable, and Proximitor configuration. Check total cable length requirement.
- Request a Quote – Contact us via the form below or email support@konmask.com with your required quantity, delivery timeline, and destination country.
- Order Confirmation – We confirm stock availability, lead time, and shipping options (DHL Express, FedEx International Priority, or sea freight for bulk orders).
- Export Documentation – We prepare commercial invoice, packing list, and certificate of origin. ECCN classification and export license assessment provided on request.
- Delivery & Acceptance – Units shipped with full traceability documentation. Incoming inspection checklist available on request.
Technical FAQ
Q: Can I use this probe with a 3500 series monitor rack?
A: Yes. The 3300 NSv probe is compatible with Bently Nevada 3500 rack monitors when paired with the correct 3300 NSv Proximitor. The Proximitor output (–24 VDC, 200 mV/mil) is the standard interface accepted by 3500 series I/O modules.
Q: What is the significance of the part number suffix -02-05?
A: The suffix encodes the connector type and armor/jacket configuration. -02 typically denotes the standard armored cable option; -05 denotes the connector termination style. Always match the full part number to your existing system to ensure mechanical and electrical compatibility.
Q: Do you supply the matching extension cable and Proximitor?
A: Yes. We stock a range of 3300 NSv extension cables and Proximitor modules. Contact us with your total cable length requirement and we will configure a matched set.
Q: Is this part RoHS compliant?
A: Bently Nevada industrial instrumentation is generally exempt from RoHS under the industrial equipment exemption. Please request the OEM compliance declaration for your specific regulatory jurisdiction.
Q: What is your lead time for this part number?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical lead time is 2–6 weeks depending on OEM availability. Contact us for a real-time stock check.
