Bently Nevada 330904-00-13-05-02-00 3300 NSv Proximity Probe | Replacement, Equivalent & Selection Guide

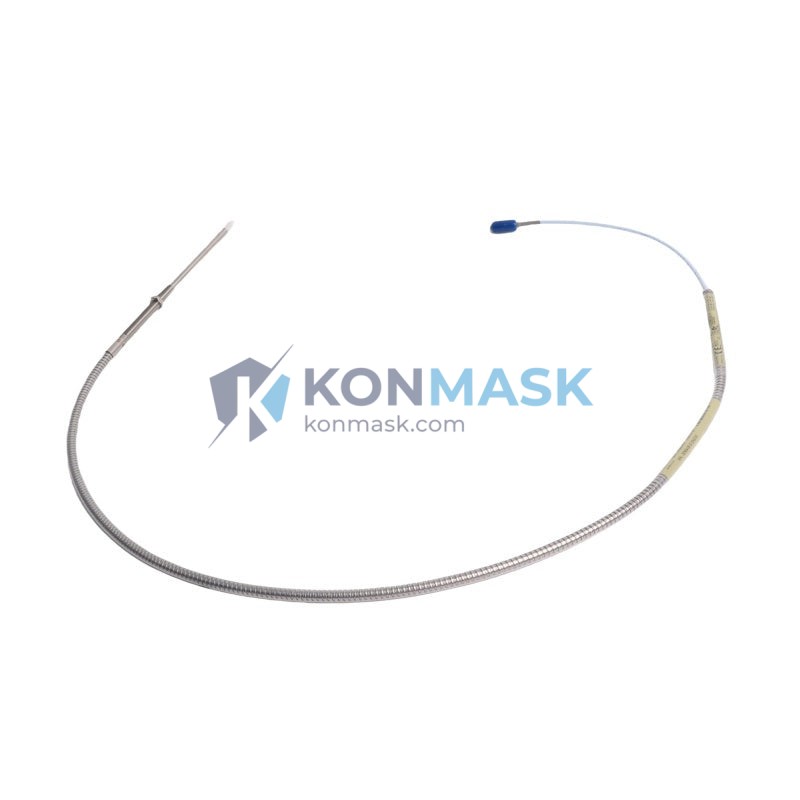

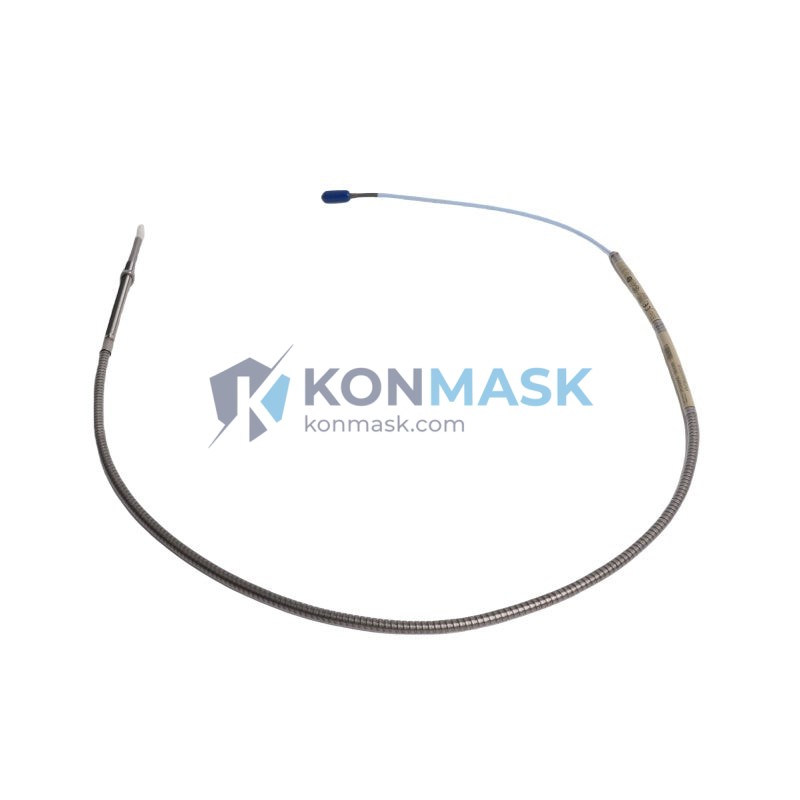

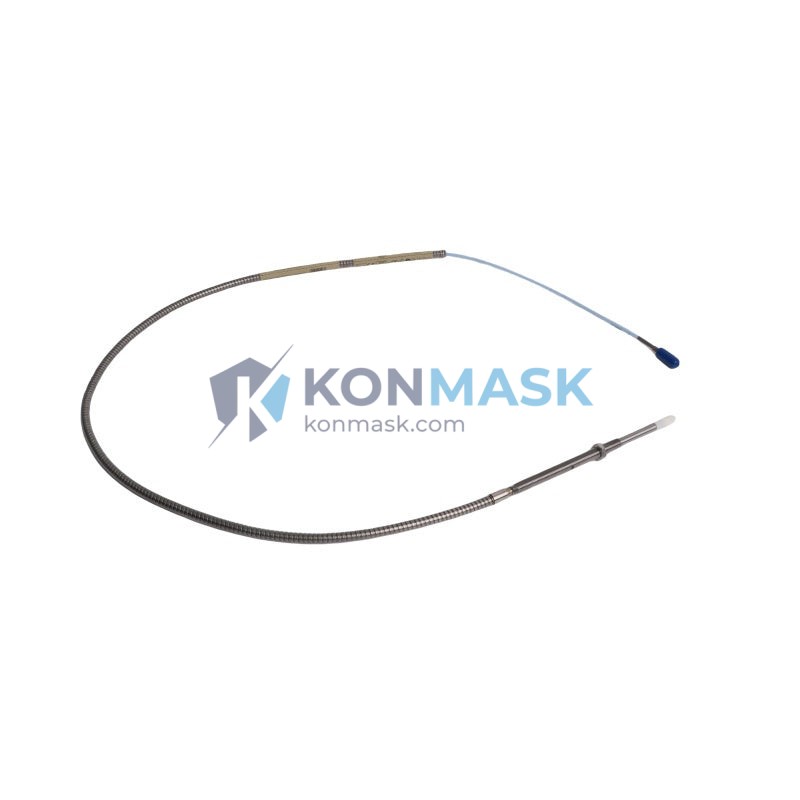

The Bently Nevada 330904-00-13-05-02-00 is a high-precision eddy-current proximity probe from the 3300 NSv Series, engineered for continuous non-contact vibration and position measurement on rotating machinery. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Part Number / SKU: 330904-00-13-05-02-00
- Series: 3300 NSv (Non-Standard voltage)
- Type: Eddy-Current Proximity Probe
- Cable Length: 5 m (standard)
- Probe Length: 13 mm tip-to-connector
- Thread Size: 5 mm
- Connector Type: 02 (standard coaxial)
- Target Material: Steel / Inconel (per calibration)
- Operating Temperature: -35 °C to +177 °C
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 mm – 2.54 mm (10–100 mil)
- Supply Voltage: -24 VDC (nominal)
- Output: Voltage proportional to gap distance
- Ingress Protection: IP67
- Weight: ~100 g
- Compliance: API 670, CE
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in replacements for the 330904-00-13-05-02-00. Always verify cable length, thread size, and system driver compatibility before substitution.
- Bently Nevada 330900-00-13-05-02-00 – Standard NSv probe, same geometry, different series prefix
- Bently Nevada 330905-00-13-05-02-00 – Extended temperature variant
- Bently Nevada 330780-90-00 – 3300 XL 8mm probe (requires driver check)
- Epro PR6423/010-030 – Third-party equivalent, 8 mm eddy-current, compatible with 3300 drivers
- Epro PR6424/010-030 – 11 mm equivalent for high-gap applications
- Metrix ST5484E – Alternative eddy-current probe, verify sensitivity curve
Note: Cross-brand replacements require recalibration of the driver/monitor system. Contact our team for compatibility verification.
Why Choose the Original Model
- Factory-calibrated sensitivity matched to Bently Nevada 3300 series drivers and monitors
- API 670 compliant — meets the industry standard for machinery protection systems
- Proven reliability in turbines, compressors, pumps, and gearboxes worldwide
- Seamless integration with existing 3300 XL, 3500, and System 1 platforms
- Traceability — each unit ships with calibration documentation
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial position measurement
- Pump and motor bearing vibration surveillance
- Gearbox and expander rotor dynamics analysis
- OEM machinery protection system integration
System Compatibility
- Bently Nevada 3300 NSv Driver: 330180-X1-CN (primary match)
- Bently Nevada 3300 XL Driver: 330130-040-01-CN (verify gap range)
- Bently Nevada 3500/42M: Compatible with correct driver module
- Bently Nevada System 1: Full integration via 3500 rack
- Third-party monitors: Emerson, Metrix, Commtest — verify sensitivity and bias voltage
Selection Guide
Use the part number structure to select the correct probe for your application:
- 330904 — Base model: 3300 NSv proximity probe
- 00 — Standard configuration
- 13 — Probe tip length: 13 mm
- 05 — Cable length: 5 m
- 02 — Connector type: standard coaxial
- 00 — No special options
If your application requires a different cable length, thread size, or high-temperature rating, contact us with your system drawing and we will identify the correct variant.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each probe inspected and tested prior to shipment
- Calibration certificate and original packaging included where available
- Traceability documentation available on request
- Minimum 90-day warranty on all stocked units
How to Order
- Confirm part number: 330904-00-13-05-02-00
- Specify quantity and required delivery timeline
- Contact us via email or phone for lead time and pricing confirmation
- Submit PO — we accept T/T, PayPal, and major credit cards
- Receive tracking and shipping documentation within 24 hours of payment
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use an Epro probe as a direct replacement?
A: Epro PR6423 series probes are electrically compatible with most 3300 drivers, but sensitivity curves differ. Recalibration of the driver gap voltage is required.
Q: What is the difference between 330904 and 330900?
A: The 330904 is the NSv (Non-Standard voltage) variant optimized for -24 VDC systems. The 330900 is the standard voltage version. Confirm your driver supply voltage before substituting.
Q: Is this probe compatible with the Bently Nevada 3500 system?
A: Yes, when paired with the appropriate 3300 NSv driver module installed in the 3500 rack.
Q: Do you offer expedited shipping?
A: Yes. DHL Express and FedEx International Priority are available. Contact us for a quote.
Q: Can you supply calibration documentation?
A: Yes, calibration certificates are included with new units and available on request for surplus stock.
