Bently Nevada 330904-00-16-05-01-00 3300 XL NSv Proximity Transducer System | Replacement, Equivalent & Selection Guide

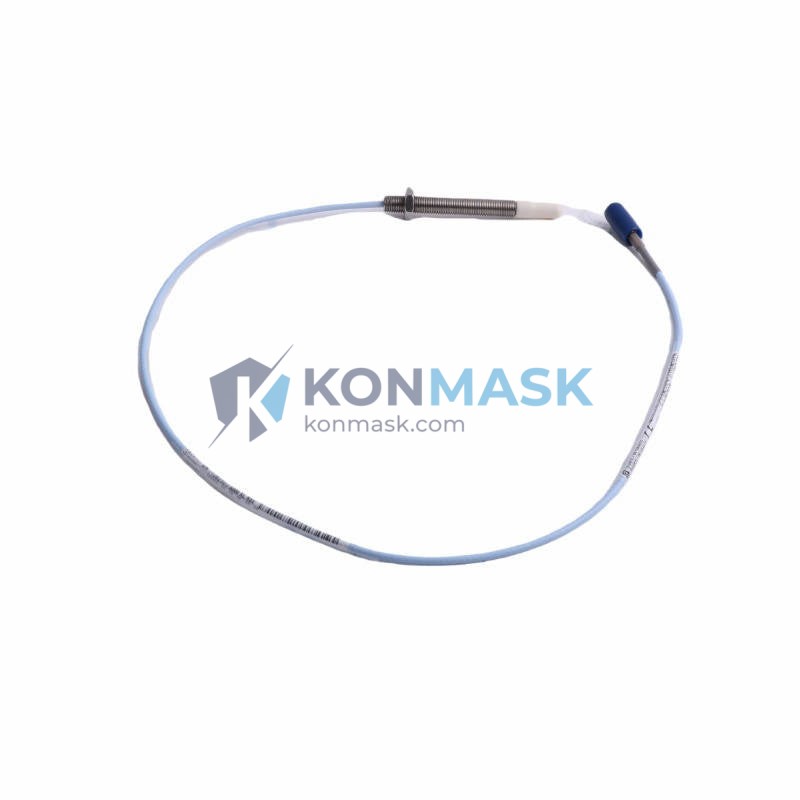

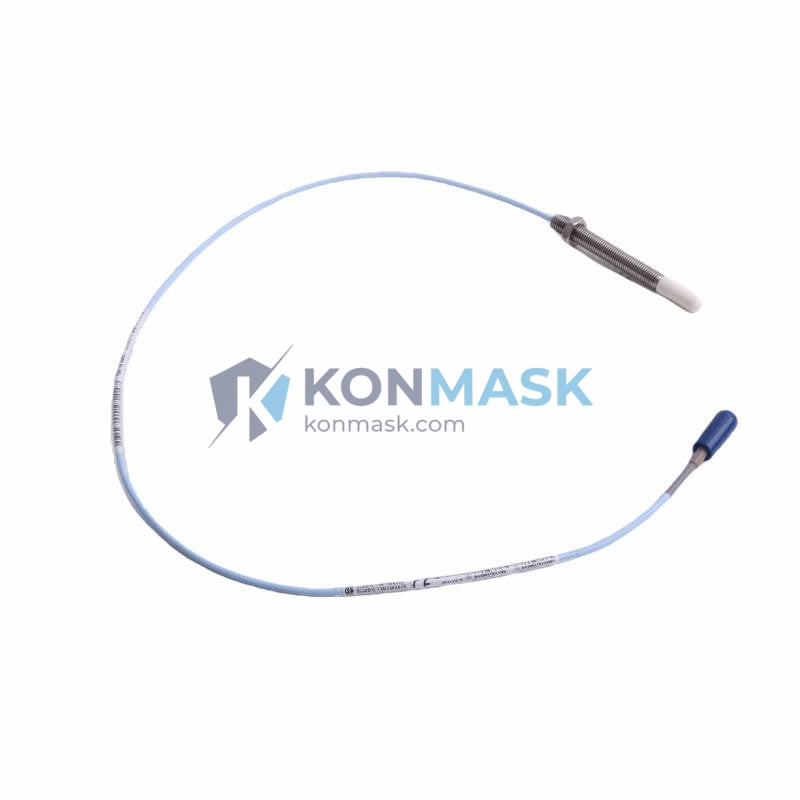

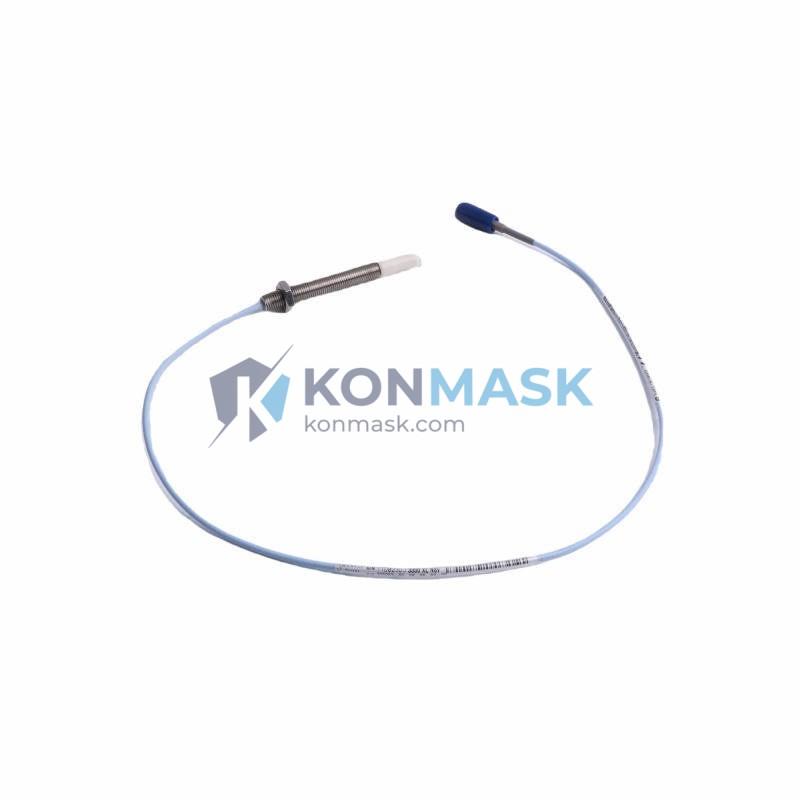

The Bently Nevada 330904-00-16-05-01-00 is a high-precision eddy-current proximity transducer from the 3300 XL NSv Series, engineered for continuous shaft vibration, position, and eccentricity monitoring in critical rotating machinery. At Konmask.com, we supply genuine units and verified equivalents to keep your plant running without unplanned downtime.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330904-00-16-05-01-00 |
| Series | Bently Nevada 3300 XL NSv |
| Sensor Type | Eddy-Current Proximity Transducer |
| Cable Length | 5 m (16 ft) integral cable |
| Probe Tip Diameter | 8 mm |
| Measurement Range | 0.25 – 2.25 mm (10 – 90 mil) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Supply Voltage | −24 VDC (nominal) |
| Operating Temperature | −35 °C to +121 °C |
| Target Material | AISI 4140 steel (standard) |
| Connector | Integral coaxial cable with BNC/TNC |
| Approvals | CE, ATEX, IECEx (intrinsically safe options) |
| Weight | ~140 g |
Compatible Replacement & Equivalent Models
The table below lists verified drop-in and functional equivalents for the 330904-00-16-05-01-00. Always confirm cable length, tip diameter, and driver compatibility before substitution.
| Part Number | Brand | Type | Compatibility Notes |
|---|---|---|---|
| 330903-00-16-05-01-00 | Bently Nevada | 3300 XL (standard) | Same geometry; verify driver pairing |
| 330905-00-16-05-01-00 | Bently Nevada | 3300 XL (extended range) | Wider gap range; same connector |
| 3300-16-05-01-00 | Bently Nevada | 3300 (legacy) | Functional equivalent; older driver required |
| PR6423/010-100 | Epro / Baker Hughes | 8 mm eddy-current | Cross-brand equivalent; confirm driver |
| CWY-DO-810-05-00 | CWYZ / Metrix | 8 mm proximity | Cost-effective alternative; verify sensitivity |
Contact support@konmask.com for a free compatibility assessment before ordering a replacement.
Why Choose the Original Model
- Factory-calibrated sensitivity at 7.87 V/mm ensures measurement accuracy without field recalibration.
- NSv (Non-Standard Voltage) design provides enhanced noise immunity in electrically harsh environments.
- Seamless integration with Bently Nevada 3300 series monitors, System 1 software, and TDXnet modules.
- Long-term OEM support with traceable documentation for ISO/API compliance audits.
- Proven reliability in turbines, compressors, pumps, and gearboxes across oil & gas, power generation, and petrochemical industries.
Typical Applications
- Radial shaft vibration monitoring on steam and gas turbines
- Axial position measurement on centrifugal compressors
- Eccentricity monitoring during slow-roll and startup
- Differential expansion measurement on large rotating equipment
- Keyphasor® reference signal acquisition
System Compatibility
The 330904-00-16-05-01-00 is designed to operate within the complete Bently Nevada 3300 XL NSv system, which includes:
- Driver / Proximitor: 330180-X1-05 / 330130-040-01-00 (NSv driver)
- Extension Cable: 330130-080-00-00 (up to 9 m total)
- Monitor: 3300/16 Dual Voting, 3300/20 Radial Vibration, 3500/42 Proximitor
- Software: Bently Nevada System 1 (v5.x and above)
- Rack: 3300 Rack, 3500 Rack (with appropriate I/O module)
Selection Guide
Use the following parameters to confirm the correct part number for your application:
| Selection Parameter | 330904-00-16-05-01-00 Value | Alternative Options |
|---|---|---|
| Probe Tip Diameter | 8 mm | 5 mm (330900 series), 11 mm (330980 series) |
| Integral Cable Length | 5 m (16 ft) | 1 m, 3 m, 9 m options available |
| Driver Type | NSv (Non-Standard Voltage) | Standard voltage (330903 series) |
| Temperature Rating | −35 °C to +121 °C | High-temp versions to +177 °C |
| Target Material | AISI 4140 steel | Stainless steel, Inconel (consult factory) |
| Hazardous Area | ATEX / IECEx rated | Non-Ex version available |
Not sure which model fits your system? Send your existing part number or monitor model to support@konmask.com and our engineers will confirm compatibility within 24 hours.
Quality Assurance & Sourcing
- Genuine OEM units sourced from authorized Bently Nevada / Baker Hughes distribution channels.
- Each unit ships with original packaging, datasheet, and calibration certificate where applicable.
- All stock undergoes incoming inspection including visual check, connector integrity, and cable continuity test.
- Traceability documentation available for ISO 9001 and API 670 compliance requirements.
- Refurbished / tested units clearly labeled and priced separately — never mixed with new stock.
How to Order
- Confirm part number: 330904-00-16-05-01-00
- Specify quantity and required delivery timeline.
- Submit your inquiry via support@konmask.com or call +0086 19859288691.
- Receive quotation within 1 business day with lead time and shipping options (DHL / FedEx / sea freight).
- Payment via T/T, PayPal, or trade assurance — order confirmation issued upon payment.
Replacement & Compatibility FAQ
Q: Can I use a 330903 series probe with my NSv driver?
A: No. The NSv driver (330180 series) requires an NSv-rated probe (330904 series). Mixing standard and NSv components will cause measurement errors and may damage the driver.
Q: What is the maximum total cable length for this system?
A: The combined probe cable + extension cable must not exceed 9 m (30 ft) for the 3300 XL NSv system to maintain calibrated sensitivity.
Q: Is the 330904-00-16-05-01-00 compatible with the 3500 rack?
A: Yes, when paired with the 3500/42 Proximitor monitor and the correct NSv driver. Confirm I/O module configuration with your system integrator.
Q: Do you supply ATEX-certified units?
A: Yes. Please specify your hazardous area classification (Zone 1/2, Group IIC, etc.) when ordering so we can confirm the correct certification variant.
Q: How long does shipping take to my region?
A: Express delivery (DHL/FedEx) typically 3–7 business days worldwide. Sea freight available for bulk orders. Contact us for a precise estimate.
