Vibration Monitoring Solution – Bently Nevada 330904-00-18-10-01-05 | 3300 Series Extension Cable

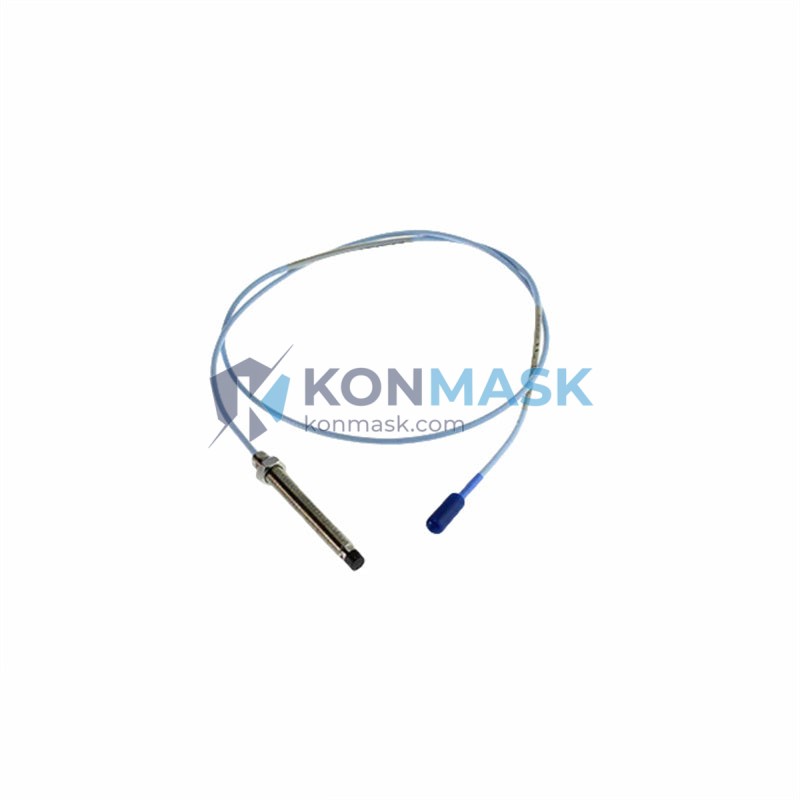

The Bently Nevada 330904-00-18-10-01-05 is an 18-inch (457 mm) extension cable engineered for use within the 3300 Series Proximity Transducer System. It serves as the critical signal-path link between the proximity probe and the proximitor/driver, enabling accurate, low-noise vibration and position measurement in rotating machinery applications.
At Konmask.com, we supply this cable as part of our verified industrial automation inventory — sourced through established channels and inspected before dispatch.
Where This Product Is Used
The 330904-00-18-10-01-05 extension cable is specified by rotating machinery engineers and reliability teams across heavy industry wherever Bently Nevada 3300 Series proximity systems are deployed:
- Steam & Gas Turbines — Shaft radial vibration and axial position monitoring on power generation turbines (GE, Siemens, Mitsubishi, Alstom frames)
- Centrifugal Compressors — Continuous shaft orbit and vibration trending in gas processing, LNG, and petrochemical plants
- Pumps & Blowers — Bearing housing vibration surveillance in water treatment, HVAC, and process industries
- Gearboxes & Expanders — High-speed shaft monitoring in refineries and chemical plants
- Marine Propulsion Systems — Shaft monitoring on vessel main engines and auxiliary machinery
- Nuclear & Thermal Power Plants — Safety-critical vibration loops requiring certified, traceable components
- Pulp & Paper Mills — Roll and dryer section shaft monitoring
- Offshore Platforms — Compressor and turbine trains in harsh, salt-spray environments
Wherever a Bently Nevada 3300 Series proximity probe is installed and the cable run exceeds the probe integral cable length, this extension cable is the OEM-specified solution.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330904-00-18-10-01-05 |
| Series | Bently Nevada 3300 Series |
| Cable Length | 18 inches (457 mm) |
| Cable Type | Coaxial extension cable |
| Connector Type | BNC / proprietary Bently Nevada coaxial |
| Impedance | 50 Ohm nominal |
| Temperature Range | -40 C to +85 C (operating) |
| Jacket Material | Fluoropolymer (PTFE-compatible) |
| Shielding | Double-shielded coaxial for EMI rejection |
| Compatible Probes | 3300 XL 8mm, 11mm, 14mm proximity probes |
| Compatible Drivers | 3300 Series proximitors / drivers |
| Weight | ~230 g (packaged) |
| Country of Origin | USA (OEM) |
Why Engineers Specify This Model
- Exact impedance match — 50 Ohm coaxial construction preserves the calibrated sensitivity of the probe-cable-driver system
- EMI/RFI immunity — Double-shielded construction rejects interference from VFDs, switchgear, and high-current bus bars
- Temperature stability — Fluoropolymer jacket maintains dielectric properties across the full -40 C to +85 C range
- Plug-and-play replacement — Identical connector geometry to OEM cable; no re-calibration required
- Traceable part number — Full Bently Nevada part number ensures correct BOM entry for CMMS, SAP PM, and Maximo work orders
- Minimal signal attenuation — Short 18-inch run minimizes insertion loss, preserving system sensitivity
Complete System Bill of Materials
The 330904-00-18-10-01-05 extension cable is one element of a complete 3300 Series proximity transducer loop. A typical BOM includes:
| Component | Typical Part Number | Function |
|---|---|---|
| Proximity Probe (8 mm) | 330101-XX-XX-XX-XX-XX | Eddy-current sensing element |
| Extension Cable (this item) | 330904-00-18-10-01-05 | Signal path extension, 18 in |
| Proximitor / Driver | 3300 XL 8mm Proximitor | Signal conditioning and power |
| I/O Module / Monitor | 3500/40M, 3500/42M | Vibration monitoring rack card |
| Rack / Chassis | 3500 Series Rack | Power distribution and comms |
| Mounting Hardware | 330130-080-XX-00 | Probe bracket / armature |
Contact support@konmask.com to source any or all components as a complete system package.
Compliance and Industry Standards
- API 670 — Machinery Protection Systems (5th Edition): the 3300 Series system is designed to meet API 670 requirements
- IEC 61511 — Functional Safety (SIL-rated loops): compatible with safety instrumented system architectures
- ATEX / IECEx — Consult Bently Nevada documentation for zone-specific approvals
- CE Marking — EMC Directive compliance for European installations
- RoHS — Materials comply with EU RoHS 2 (2011/65/EU)
Quality Assurance and Sourcing
Konmask.com operates a structured procurement and inspection process for all Bently Nevada components:
- Verified Supply Chain — Sourced from authorized distributors, OEM surplus channels, and certified industrial resellers.
- Visual and Dimensional Inspection — Each cable is inspected for connector integrity, jacket condition, and correct part number labeling.
- Continuity and Impedance Check — Electrical continuity and shield integrity verified on incoming stock.
- Secure Packaging — Shipped in anti-static, moisture-resistant packaging with part number clearly labeled.
Certificate of conformance (CoC) available upon request for critical installations.
How to Source This Part
- Add to Cart — Click the purchase button above to place an order directly.
- Request a Quote — For bulk orders (5+ units) email support@konmask.com with your quantity and delivery timeline.
- Provide Your BOM — Share your full 3300 Series BOM and we will cross-reference availability and pricing for all line items.
- Confirm Lead Time — In-stock items ship within 1-3 business days. Sourced items: 5-15 business days.
- Global Shipping — We ship to 50+ countries via DHL Express, FedEx International, and UPS Worldwide. HS code 8544.42 provided.
Application-Specific FAQ
Q: Can I use the 330904-00-18-10-01-05 with a 3300 XL 11 mm or 14 mm probe?
A: The extension cable is electrically compatible with all 3300 XL probe sizes (8 mm, 11 mm, 14 mm) provided the connector type matches.
Q: What happens if I use a non-OEM extension cable?
A: Non-OEM cables with incorrect impedance will shift the probe system sensitivity, causing calibration errors in the monitor — a critical safety risk on turbomachinery.
Q: Is 18 inches the only length available?
A: No. Bently Nevada offers extension cables in multiple lengths. The -18- in the part number denotes 18 inches. Contact us if you need a different length.
Q: Do you supply cables for ATEX Zone 1 / Zone 2 installations?
A: Yes. For hazardous area installations, additional Zener barriers or galvanic isolators are required. Contact us with your zone classification.
Q: Can you provide a Certificate of Conformance?
A: Yes. CoC documentation is available upon request for all stocked items.
Q: What is the lead time for urgent orders?
A: In-stock items ship within 1-3 business days. For urgent requirements, contact support@konmask.com directly.
