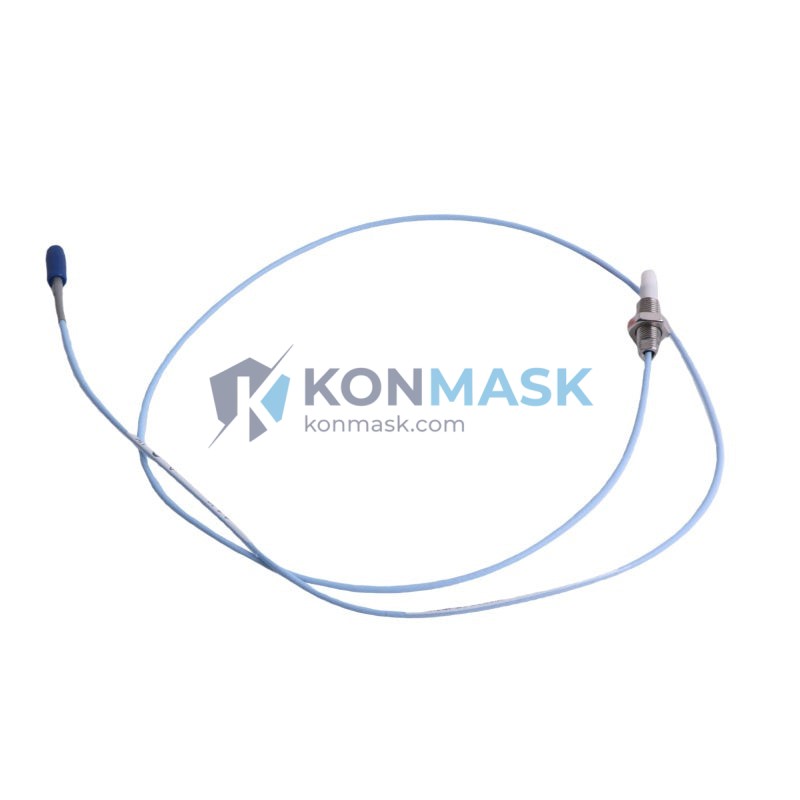

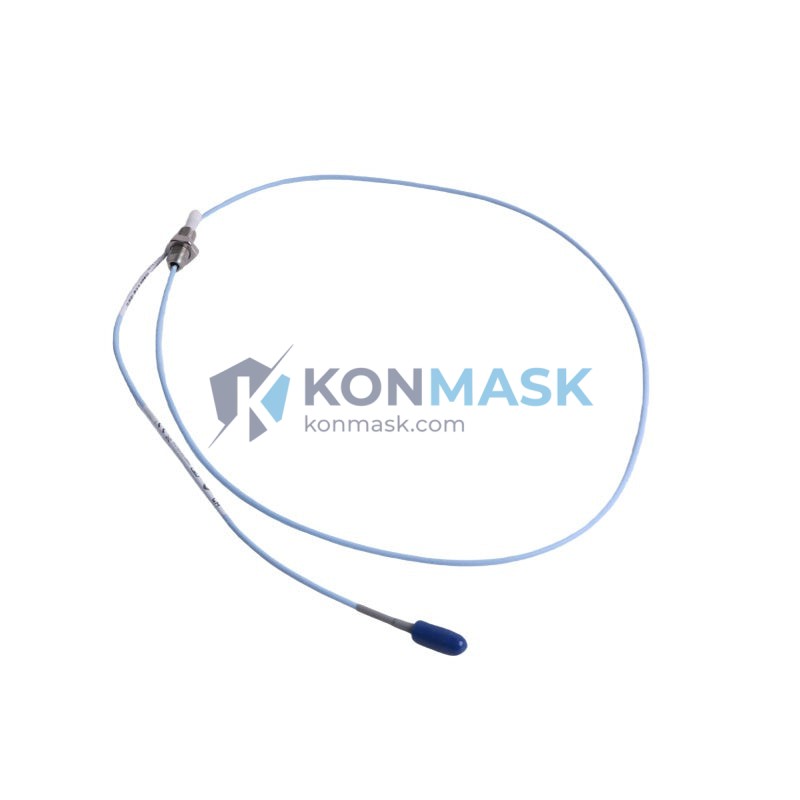

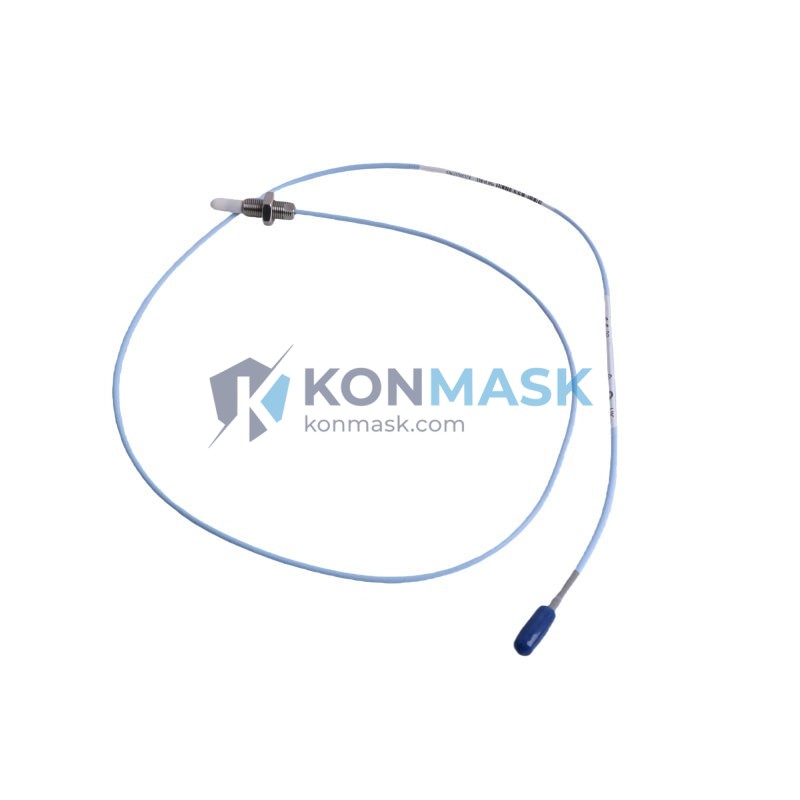

Bently Nevada 330905-00-02-10-02-05/CN Proximity Probe – 3300 NSv Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, unplanned shutdowns, and millions in lost production. In high-stakes environments — gas turbines, steam turbines, centrifugal compressors, and large pumps — the proximity probe is not optional equipment. It is the first line of defense between normal operation and mechanical disaster. The Bently Nevada 330905-00-02-10-02-05/CN is the precision eddy-current sensor that keeps that defense intact.
Within the renowned Bently Nevada 3300 NSv (Non-contacting Vibration) Series, the 330905-00-02-10-02-05/CN occupies a well-defined technical position: a standard-range, 5-meter extension cable configuration designed for installations where the driver and monitor are separated by moderate distances. The 3300 NSv platform is one of the most widely deployed proximity probe systems in global industrial automation, trusted by OEMs and end-users across petrochemical, power generation, and heavy manufacturing sectors. Its eddy-current operating principle delivers non-contact, wear-free measurement of radial shaft vibration, axial position, and differential expansion — parameters that are mandatory inputs for API 670-compliant machinery protection systems.
Technical Specifications
- Part Number: 330905-00-02-10-02-05/CN
- Series: Bently Nevada 3300 NSv (Non-contacting Vibration)
- Sensor Type: Eddy-Current Proximity Probe
- Measurement Principle: Non-contacting eddy-current
- Extension Cable Length: 5 meters (05 suffix)
- Probe Tip Diameter: 8 mm (standard)
- Thread Size: M10 x 1 (standard mounting)
- Target Material Compatibility: Steel, stainless steel, and other ferromagnetic/non-ferromagnetic metals (per calibration)
- Operating Temperature: Probe: -35°C to +177°C; Extension Cable: -35°C to +150°C
- Connector: Standard Bently Nevada coaxial connector
- Compliance: Designed for use in API 670 machinery protection systems
- Weight: Approx. 40 g (probe assembly)
Note: All specifications are based on published Bently Nevada 3300 NSv Series documentation. Konmask.com does not modify or re-engineer OEM components.
Key Features & Benefits
- Non-Contact Measurement: Zero mechanical wear on the probe tip — service life measured in decades, not months.
- High Sensitivity & Linearity: Delivers precise gap voltage output across the full measurement range, enabling accurate vibration amplitude and phase readings.
- 5-Meter Extension Cable: The /05 cable length provides installation flexibility for control cabinets located away from the machine bearing housing.
- API 670 Ready: Fully compatible with Bently Nevada 3300 Series monitors for machinery protection per API 670 standard.
- Robust Construction: Stainless steel probe body and armored extension cable withstand harsh industrial environments including oil mist, high humidity, and vibration.
- Drop-in Replacement: Direct OEM-equivalent replacement for existing 3300 NSv installations — no recalibration of the monitor required when replacing like-for-like.
- /CN Variant: Configured for specific connector and cable termination requirements; verify compatibility with your existing Proximitor/Seismoprobe driver before ordering.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, pipeline pumps, LNG trains
- Power Generation: Steam turbines, gas turbines, hydro generators, boiler feed pumps
- Petrochemical & Refining: Reactor charge pumps, cracked gas compressors, expander-compressors
- Pulp & Paper: Large induced draft fans, stock pumps
- Marine & Offshore: Propulsion turbines, offshore platform compressors
- General Heavy Industry: Any rotating machinery requiring API 670-compliant vibration monitoring
System Integration & Compatible Parts
The 330905-00-02-10-02-05/CN proximity probe is designed to operate as part of a complete Bently Nevada 3300 NSv measurement chain. Typical compatible components include:
- Proximitor Drivers: Bently Nevada 3300 XL 8mm Proximitor (e.g., 330180 series)
- Monitors: Bently Nevada 3500 Series Machinery Protection System (3500/40M, 3500/42M, 3500/45, 3500/46M)
- Junction Boxes: Bently Nevada field junction boxes for multi-probe installations
- Mounting Hardware: M10 probe holders, lock nuts, and bracket assemblies
Always verify the complete measurement chain (probe + extension cable + Proximitor driver) is matched to the same series and calibration standard before installation.
Our Quality Assurance Process
- Source Verification: All Bently Nevada parts sourced through authorized distribution channels or verified surplus with full traceability documentation.
- Visual & Physical Inspection: Each unit inspected for connector integrity, cable jacket condition, probe tip condition, and thread quality prior to dispatch.
- Authenticity Check: Part number, date code, and labeling verified against OEM specifications.
- Secure Packaging: Anti-static and shock-resistant packaging to protect the probe tip and coaxial connector during international shipping.
- Documentation: Certificate of conformance and packing list provided with every shipment.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Our team will respond within 24 business hours with availability, lead time, and a formal quotation.
- Upon order confirmation, we arrange secure export packaging and international logistics.
- Tracking information and shipping documents (commercial invoice, packing list, COC) provided upon dispatch.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and machinery protection components — not a generalist marketplace.
- Global Export Experience: Serving buyers in Southeast Asia, the Middle East, Europe, and the Americas with compliant cross-border documentation.
- Technical Pre-Sales Support: Our engineers can assist with compatibility verification, measurement chain configuration, and installation guidance.
- Competitive Lead Times: Extensive supplier network enables faster sourcing than traditional OEM channels for MRO and emergency replacement needs.
- Transparent Communication: No hidden fees. Clear quotations, honest lead times, and responsive after-sales support.
Frequently Asked Questions
Q: What does the “/CN” suffix mean on 330905-00-02-10-02-05/CN?
A: The “/CN” designation indicates a specific connector or cable termination variant within the 3300 NSv probe family. It is important to match this suffix to your existing Proximitor driver and installation to ensure correct signal output and mechanical fit.
Q: Is this probe compatible with the Bently Nevada 3500 Series monitors?
A: Yes, when used with the appropriate 3300 NSv Proximitor driver (e.g., 330180 series), the output signal is fully compatible with Bently Nevada 3500 Series monitors. The complete measurement chain must be matched.
Q: Can I use this probe on non-steel shafts?
A: The 3300 NSv probes are calibrated for specific target materials. Using the probe on a different target material (e.g., titanium or aluminum) will require recalibration of the Proximitor driver. Contact us for calibration guidance.
Q: What is the minimum order quantity?
A: We supply single units for emergency replacements as well as bulk quantities for MRO stocking programs. Please submit your RFQ with your required quantity.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoice, packing list, certificate of conformance, and can assist with any additional documentation required for customs clearance in your country.
Q: How long does shipping take?
A: Shipping timelines depend on destination and logistics mode. Express air freight to most destinations takes 3–7 business days. We will confirm lead time and shipping options in your quotation.
