Bently Nevada 330905-00-05-05-05-02-05 | 3300 NSv Proximity Probe 5mm – Replacement, Equivalent & Selection Guide

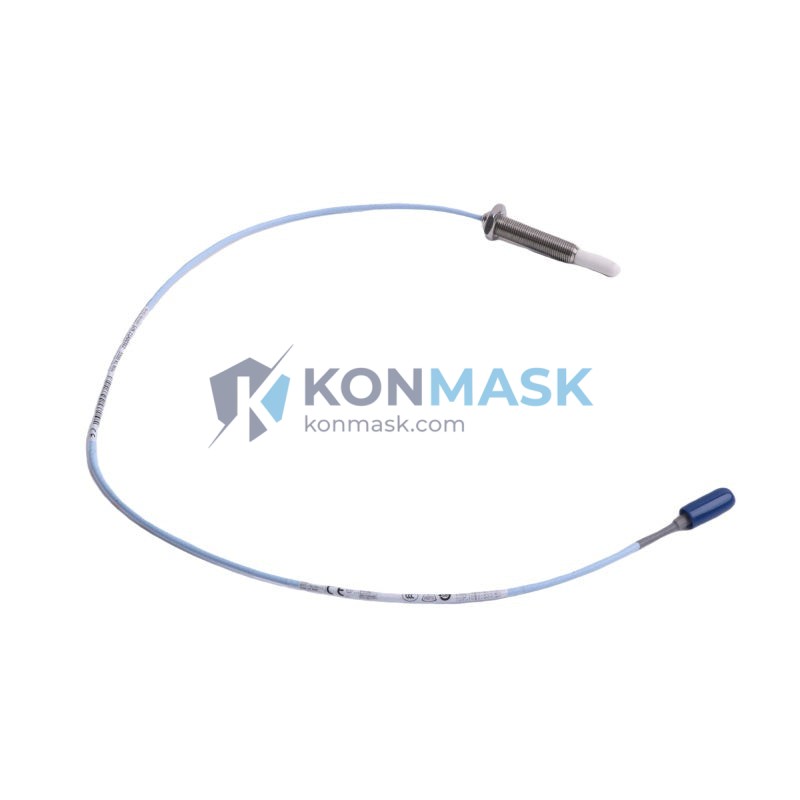

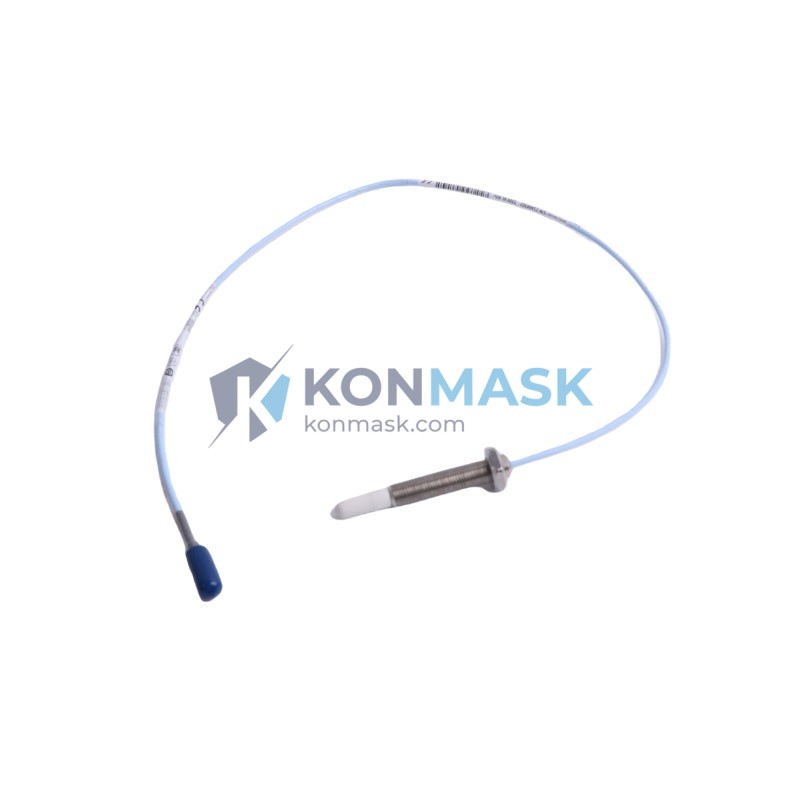

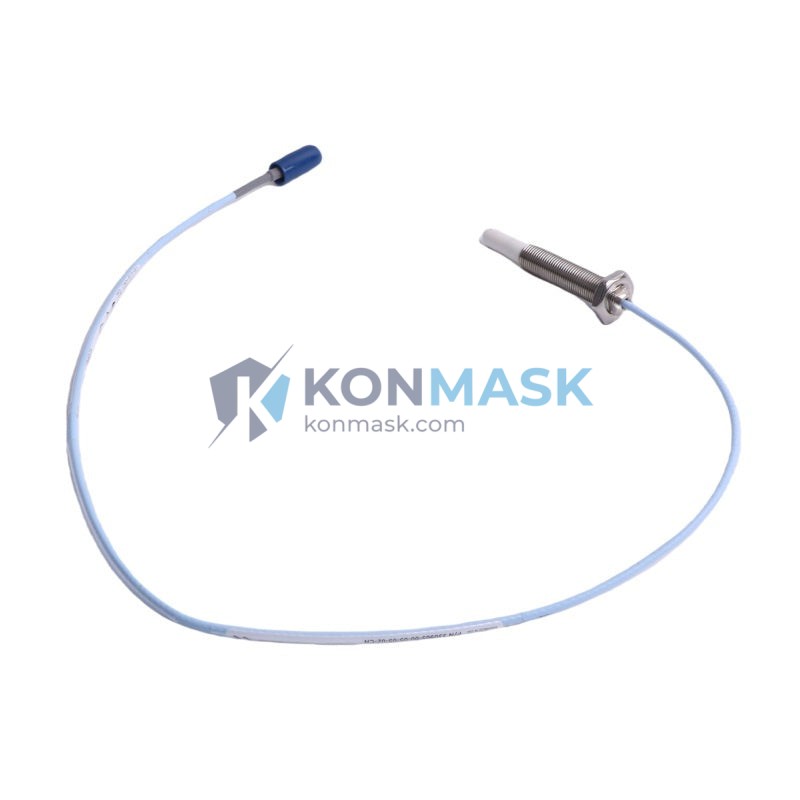

The Bently Nevada 330905-00-05-05-05-02-05 is a 5 mm eddy-current proximity probe from the 3300 NSv Series, engineered for continuous, non-contact vibration and position measurement on rotating machinery. Designed for use with Bently Nevada 3300 XL / NSv monitor systems, it delivers high-resolution shaft displacement data critical to predictive maintenance programs in power generation, oil & gas, and heavy industry.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330905-00-05-05-05-02-05 |
| Series | Bently Nevada 3300 NSv |
| Probe Type | Eddy-Current Proximity Probe |
| Probe Tip Diameter | 5 mm |
| Cable Length | 5 m (standard) |
| Thread Size | M8 × 1.0 |
| Linear Range | 0.25 – 2.25 mm (10 – 90 mil) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | −35 °C to +177 °C |
| Target Material | AISI 4140 Steel (standard) |
| Output Signal | DC voltage (negative) |
| Compatible Driver/Monitor | 3300 XL / NSv Series |
| Connector | Integral coaxial, 2-pin |
| Weight | Approx. 40 g |
| Certifications | CE, ATEX (consult datasheet) |
Compatible Replacement & Equivalent Models
The table below lists functionally equivalent or drop-in replacement options for the 330905-00-05-05-05-02-05. Always verify electrical and mechanical compatibility before substitution.
| Brand | Model / Part No. | Tip Dia. | Cable | Compatibility Note |
|---|---|---|---|---|
| Bently Nevada | 330905-00-05-05-05-02-00 | 5 mm | 5 m | Same series, different connector end |
| Bently Nevada | 330905-00-05-05-05-00-05 | 5 mm | 5 m | Alternate cable jacket variant |
| Bently Nevada | 330900-00-05-05-05-02-05 | 5 mm | 5 m | 3300 XL predecessor, same pinout |
| Epro | PR6423/010-030 | 8 mm | 5 m | Functional equivalent; verify gap range |
| Metrix | ST5484E-111-000-00 | 5 mm | 5 m | Cross-compatible with 3300 drivers |
| Emerson | 330905 Series (OEM) | 5 mm | Various | OEM-branded equivalent |
⚠ Note: Third-party replacements must be validated against your monitor system’s driver specifications. Contact Konmask for pre-sale compatibility verification.
Why Choose the Original Model
- Factory-calibrated sensitivity — 7.87 V/mm guaranteed, no field adjustment required.
- Seamless system integration — plug-and-play with all 3300 XL / NSv monitors and proximitors.
- Extended temperature range — rated to +177 °C for hot bearing housings and turbine pedestals.
- API 670 compliance — meets machinery protection standard for critical rotating equipment.
- Long-term availability — Konmask maintains stock of current and legacy Bently Nevada part numbers.
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position measurement
- Pump and motor bearing displacement sensing
- Gearbox and expander shaft orbit analysis
- OEM machinery protection system retrofits
System Compatibility
The 330905-00-05-05-05-02-05 probe is designed to operate with the following Bently Nevada systems:
- 3300 NSv Proximitor® / Seismic Monitor
- 3300 XL 8mm Proximitor® Sensor
- System 1® Condition Monitoring Software (data acquisition)
- 3500 Series Machinery Protection System (with appropriate proximitor)
- ADRE® 408 DSPi Data Acquisition System
For non-Bently Nevada monitor systems, consult the driver input impedance and bias voltage specifications before installation.
Selection Guide
Use the following criteria to confirm the 330905-00-05-05-05-02-05 is the correct probe for your application, or to identify the best alternative:
- Tip diameter: 5 mm — suitable for shaft diameters ≥ 25 mm; use 8 mm probes for larger shafts.
- Cable length: 5 m standard — extension cables available for longer runs (max 9 m total system cable).
- Target material: Optimized for AISI 4140 / 4340 steel; stainless or non-ferrous targets require recalibration.
- Temperature: Up to +177 °C probe body; select high-temp cable jacket for ambient > 120 °C.
- Driver pairing: Must use with 3300 NSv or XL Proximitor®; incompatible with 7200 or 3000 series drivers.
- Mounting thread: M8 × 1.0 — verify bracket thread before ordering.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels.
- Each probe undergoes incoming inspection: visual check, connector integrity, and dimensional verification.
- Traceability documentation (CoC / test reports) available upon request.
- Konmask specializes in current-production and legacy Bently Nevada inventory for MRO and capital projects.
How to Order
- Confirm part number: 330905-00-05-05-05-02-05
- Specify quantity and required delivery date.
- Contact us via email or phone for lead time and pricing confirmation.
- Submit PO — we accept T/T, PayPal, and major credit cards.
- Shipping: DHL / FedEx / UPS express worldwide; sea freight available for bulk orders.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use a 330905-00-05-05-05-02-05 with a 3500 Series monitor?
A: Not directly. The 3500 system requires its own proximitor. However, the probe can be used with a 3300 NSv Proximitor® feeding a 3500 monitor input.
Q: What is the difference between 330905 and 330900 series probes?
A: The 330905 (NSv) features improved EMI shielding and a revised connector design vs. the legacy 330900 (XL). Both share the same sensitivity and gap range.
Q: Is an Epro PR6423 a direct drop-in replacement?
A: Functionally similar, but the PR6423 uses an 8 mm tip and different driver electronics. It is not a direct drop-in — driver and bracket changes are required.
Q: Do you supply calibration certificates?
A: Yes. Factory calibration data and CoC are available for new units. Contact us before ordering if documentation is required.
Q: Can I order a custom cable length?
A: Standard lengths are 1 m, 3 m, 5 m, and 9 m. Custom lengths are available via special order — lead time applies.
