Vibration Monitoring Solution – Bently Nevada 330905-00-24-10-02-00 | 3300 NSv Series
Where This Product Is Used

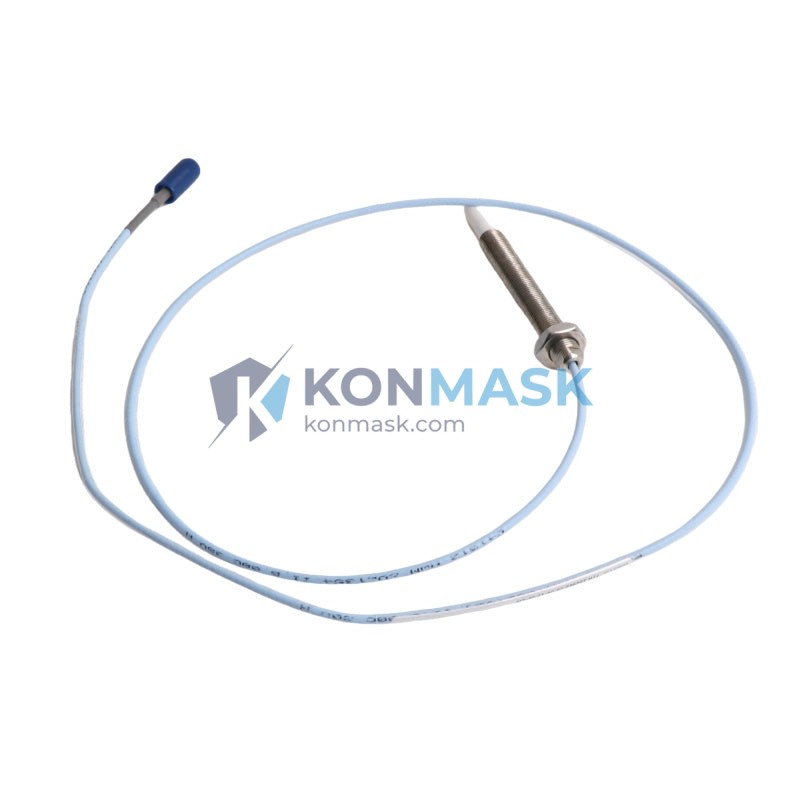

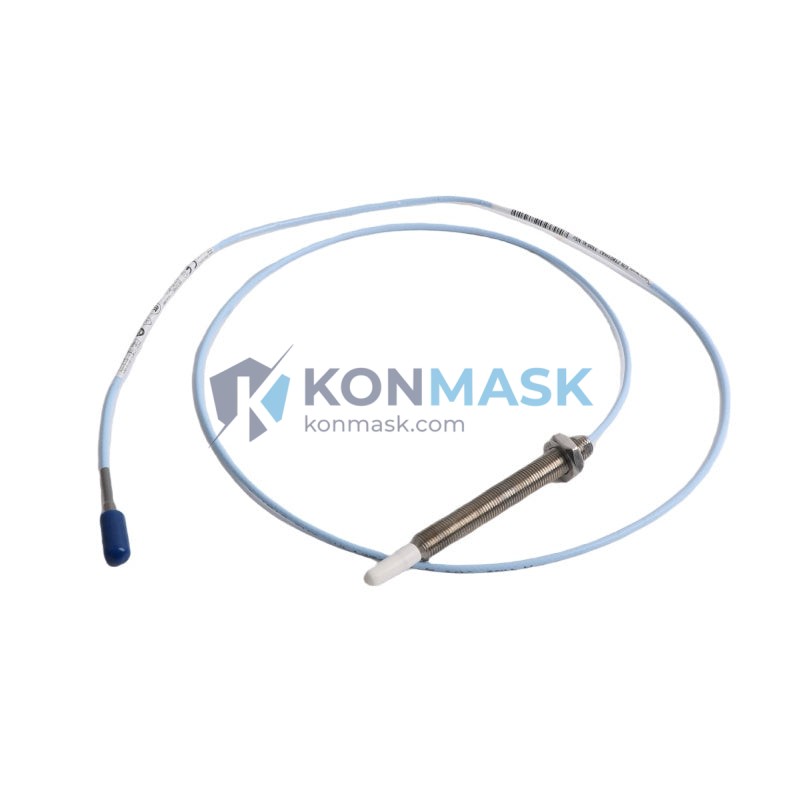

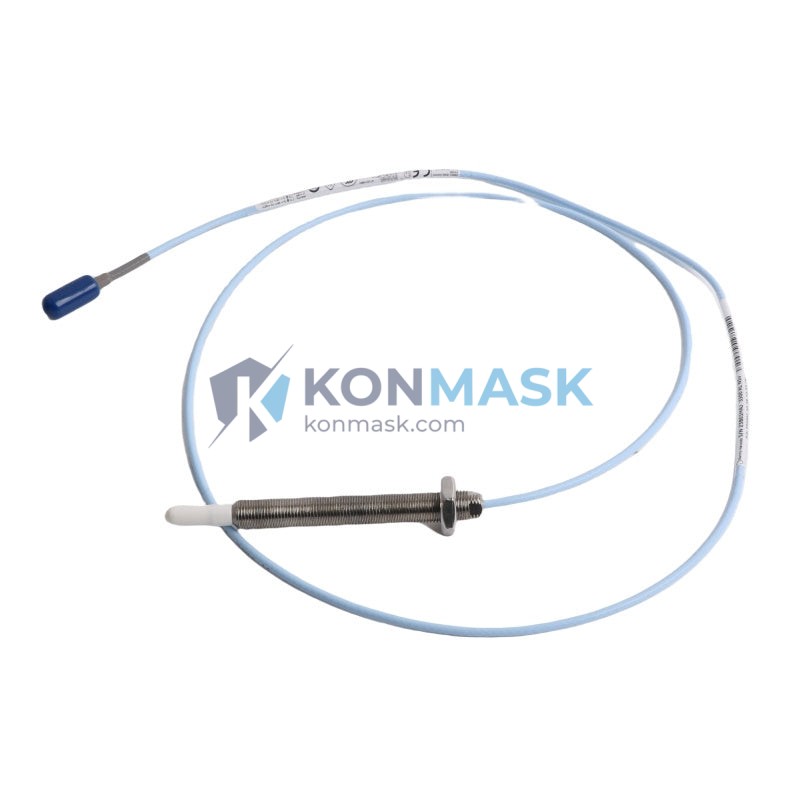

The Bently Nevada 330905-00-24-10-02-00 proximity probe is a core sensing element in continuous machinery protection systems across heavy industry. Engineers specify this model in the following environments:
- Steam & Gas Turbines – Radial shaft vibration and axial position monitoring on high-speed rotating shafts in power generation plants.
- Centrifugal Compressors – Real-time rotor orbit tracking in petrochemical and LNG compression trains to detect instability before failure.
- Pumps & Blowers – Continuous displacement measurement on critical process pumps in refineries and water treatment facilities.
- Gearboxes – Gear mesh frequency analysis and shaft eccentricity detection in paper mills and steel rolling lines.
- Marine Propulsion Systems – Shaft monitoring on vessel main engines and auxiliary turbines requiring compact, corrosion-resistant sensors.
- Nuclear & Thermal Power Plants – Safety-critical vibration loops where API 670 compliance is mandatory.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330905-00-24-10-02-00 |
| Series | 3300 NSv (Non-Standard Voltage) |
| Sensing Technology | Eddy-Current (Non-Contact) |
| Extension Cable Length | 24 inches (610 mm) |
| Probe Tip Diameter | 8 mm |
| Linear Range | Approx. 0.25 – 2.25 mm (gap dependent) |
| Scale Factor | 200 mV/mil (7.87 V/mm) nominal |
| Supply Voltage | –24 VDC (via Proximitor® driver) |
| Operating Temperature | –35°C to +177°C (probe tip) |
| Target Material | AISI 4140 / 4340 steel (standard) |
| Connector Type | Integral coaxial, armored cable |
| Weight | Approx. 60 g |
| Compatible Driver | Bently Nevada 3300 XL / NSv Proximitor® |
Why Engineers Specify This Model
- 24-Inch Extension Cable – Ideal for installations where the Proximitor® driver must be mounted away from the bearing housing, reducing thermal exposure to electronics.
- NSv (Non-Standard Voltage) Design – Optimized scale factor for use with the 3300 NSv Proximitor®, ensuring accurate gap-to-voltage conversion without field recalibration.
- Armored Cable Construction – Stainless steel armor protects signal integrity in high-vibration, high-temperature environments.
- Drop-in Replacement – Fully interchangeable with existing 3300 series installations; no driver reconfiguration required.
- API 670 Ready – Meets the measurement chain requirements for machinery protection systems per API Standard 670 (5th Edition).
- Proven Field Reliability – Bently Nevada proximity systems are the de facto standard in turbomachinery protection globally, with decades of installed base.
Complete System Bill of Materials
A complete 3300 NSv proximity measurement chain requires the following components:
- Probe: 330905-00-24-10-02-00 (this item)
- Extension Cable: Included integral (24 in) — verify total system cable length against Proximitor® spec
- Proximitor® Driver: Bently Nevada 3300 NSv (e.g., 330180-91-00)
- Mounting Hardware: Probe holder / bracket per OEM drawing (customer-supplied)
- Signal Conditioning: 3500 Series rack or equivalent Bently Nevada monitor
- Barrier (if required): Zener barrier for ATEX/IECEx Zone 1 installations
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- API 670 Annex D – Proximity Probe Measurement Chain Verification
- IEC 60079 – Explosive Atmospheres (with appropriate barrier)
- ATEX / IECEx – Zone 1 & Zone 2 rated configurations available
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation reference
- CE Marking – Applicable for EU market installations
Quality Assurance & Sourcing
Konmask.com sources the 330905-00-24-10-02-00 through verified industrial supply channels. Every unit undergoes the following before dispatch:
- Visual and dimensional inspection against OEM datasheet
- Connector continuity and insulation resistance check
- Packaging integrity verification (original or equivalent protective packaging)
- Traceability documentation available upon request (batch records, test reports)
We supply to MRO teams, OEM integrators, EPC contractors, and plant maintenance departments worldwide.
How to Source This Part
- In-Stock Orders: Add to cart and complete checkout — ships within 1–3 business days from our warehouse.
- Bulk / Project Quantities: Contact us for volume pricing and lead-time commitment on large BOM orders.
- Urgent Shutdown Requirements: Email support@konmask.com with your plant name and required delivery date for expedited handling.
- Cross-Reference / Substitution Queries: Our technical team can confirm compatibility with your existing Proximitor® driver and monitor rack.
Application-Specific FAQ
Q: Can this probe be used with a 3300 XL Proximitor® instead of the NSv version?
A: No. The NSv probe is calibrated for the NSv Proximitor® scale factor. Using it with a standard 3300 XL driver will result in measurement error. Always match probe and driver series.
Q: What is the maximum shaft speed this probe can monitor?
A: Eddy-current probes have no mechanical speed limit. The upper frequency limit is determined by the Proximitor® driver bandwidth, typically flat to 10 kHz for the 3300 series — suitable for shafts up to 600,000 RPM in principle.
Q: Is the 24-inch extension cable length the total system cable, or just the extension?
A: The 24-inch (610 mm) figure refers to the integral extension cable on this probe assembly. Total system cable length must fall within the Proximitor® driver’s specified range — consult the 3300 NSv Proximitor® datasheet for exact limits.
Q: Can this probe be installed in a hazardous area (ATEX Zone 1)?
A: Yes, with an appropriate certified Zener barrier or galvanic isolator in the signal loop. The probe itself is passive; the system certification depends on the complete measurement chain configuration.
Q: Do you provide calibration certificates?
A: Calibration certificates and OEM test documentation can be requested at the time of order. Contact us before purchase if this is a project requirement.
