Genuine Bently Nevada 330905-00-16-10-02-00 Proximity Probe | 3300 NSv Series – Verified Source

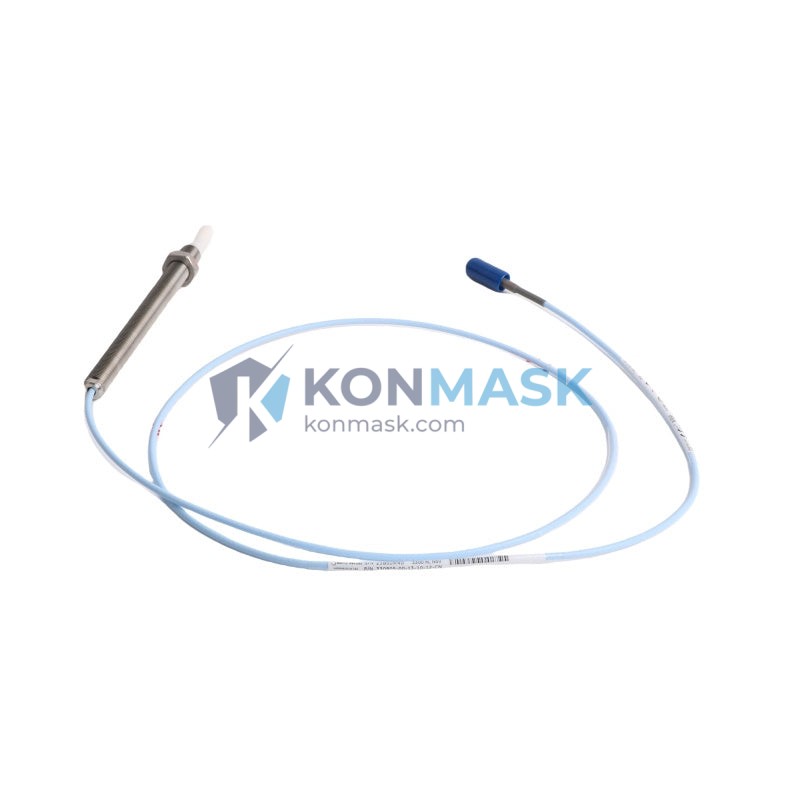

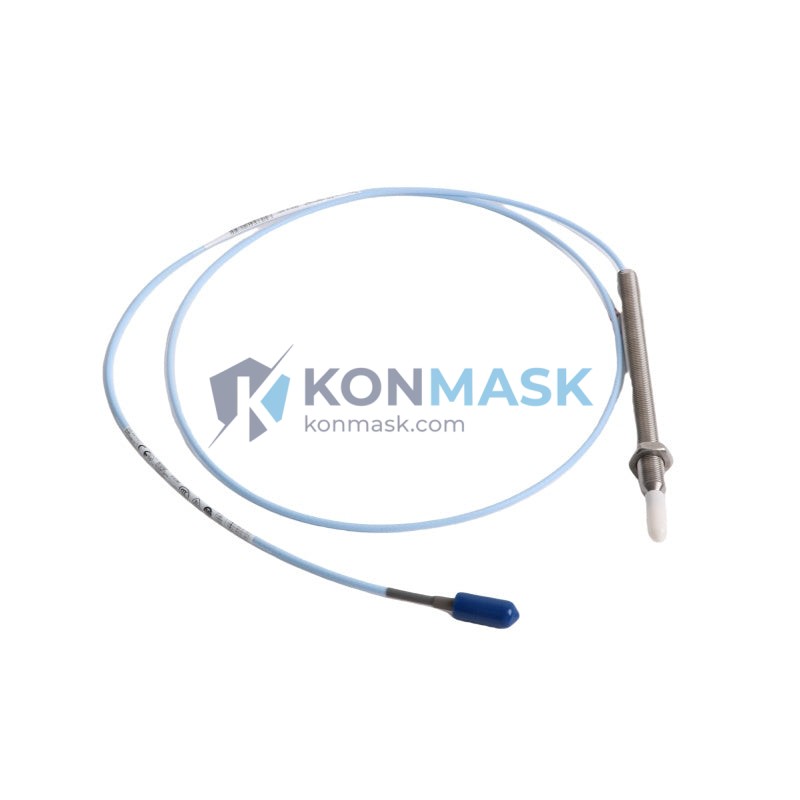

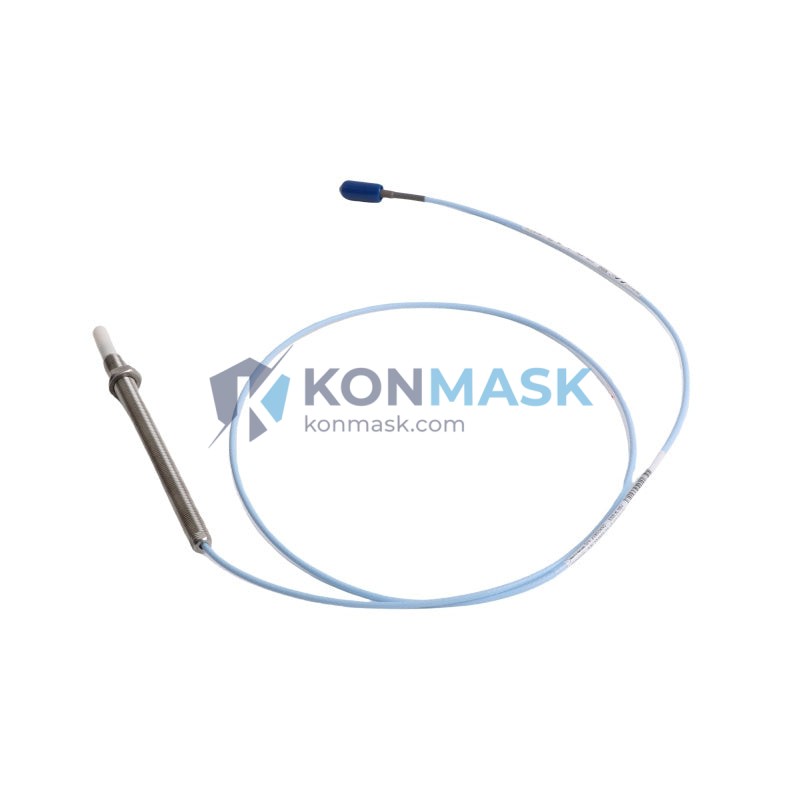

The Bently Nevada 330905-00-16-10-02-00 is a precision eddy-current proximity probe from the industry-standard 3300 NSv series, engineered for continuous shaft vibration, position, and eccentricity measurement on rotating machinery. Konmask.com supplies this probe as a genuine, factory-traceable unit — the same part specified by OEM machinery builders and reliability engineers worldwide.
Whether you are replacing a failed probe in a critical turbine protection loop or expanding a new machinery monitoring system, the 330905-00-16-10-02-00 integrates directly with Bently Nevada 3300 XL drivers and monitors without recalibration or firmware changes.
Technical Specifications
- Part Number: 330905-00-16-10-02-00
- Brand / Manufacturer: Bently Nevada (Baker Hughes)
- Series / Platform: 3300 NSv Proximity Transducer System
- Sensor Type: Eddy-current (non-contact) proximity probe
- Probe Length: 16 in (406 mm) — encoded in part number position 3
- Cable Jacket: Armored, oil-resistant
- Tip Diameter: 8 mm (standard NSv tip)
- Measurement Range: 0 – 2.0 mm (0 – 80 mil) linear gap
- Sensitivity: 7.87 V/mm (200 mV/mil) nominal
- Operating Temperature: −35 °C to +177 °C (probe body)
- Supply Voltage: −24 VDC (via driver/oscillator)
- Output: DC voltage proportional to gap distance
- Connector: 3-pin MIL-spec, mates with 3300 XL driver
- Ingress Protection: IP67 (probe tip and body)
- Weight: approx. 60 g
- Standards: API 670, CE, ATEX (zone classification per system config)
- Compatible Drivers: 3300 XL 8mm Proximity Transducer Driver
- Compatible Monitors: 3500/40M, 3500/42M, 3500/45, 3500/46M
Our 4-Step Quality Verification Process
- Source Authentication — Every unit is procured directly from authorised Bently Nevada / Baker Hughes distribution channels or verified OEM surplus with full chain-of-custody documentation.
- Physical Inspection — Probe tip, cable jacket, connector pins, and factory label (including date code and serial range) are inspected against Bently Nevada reference standards before acceptance into stock.
- Functional Bench Test — Gap-vs-voltage linearity is verified using a calibrated target disc and reference oscillator. Output sensitivity is confirmed within ±1% of the 7.87 V/mm nominal.
- Packaging & Documentation Check — Original Bently Nevada packaging, holographic seal, and factory test certificate (where available) are confirmed present before shipment.
Key Features & Benefits
- Non-contact measurement — zero mechanical wear; suitable for continuous 24/7 operation in critical machinery protection loops
- API 670 compliant — meets the machinery protection standard mandated by most petrochemical and power generation operators
- Direct system compatibility — plug-and-play replacement for existing 3300 NSv installations; no recalibration of the monitor required
- Armored cable construction — resists oil, coolant, and mechanical abrasion in turbine bearing pedestals and compressor casings
- Wide temperature tolerance — probe body rated to +177 °C, suitable for hot-section bearing proximity measurement
- Traceable calibration — factory sensitivity certificate supports ISO 55001 asset management and regulatory audit requirements
Typical Applications
- Steam & Gas Turbines: Shaft radial vibration (X/Y), thrust position, and differential expansion measurement in API 670 protection systems
- Centrifugal Compressors: Rotor dynamic monitoring, surge detection support, and bearing clearance trending
- Pumps & Fans: Shaft orbit analysis and imbalance detection in critical process pumps
- Gearboxes: Gear mesh frequency monitoring and eccentricity measurement
- Hydro Turbines: Runner shaft position and guide-vane gap monitoring
- Marine Propulsion: Shaft alignment verification and vibration trending on main propulsion shafting
Compatible System Components
- Driver / Oscillator: Bently Nevada 3300 XL 8mm Proximity Transducer Driver (330180-91-00 or equivalent)
- Extension Cable: 3300 NSv armored extension cable (specify length: 5 m / 9 m / 15 m)
- Monitors: 3500/40M Proximitor, 3500/42M Proximitor/Seismic, 3500/45 Position, 3500/46M Hydro
- Junction Box: Bently Nevada field junction box for multi-probe installations
- Calibration Target: AISI 4140 steel target disc (per API 670 Annex D)
Global Sourcing & Shipping Capabilities
- Stock held in Xiamen, China — ready for same-day dispatch on confirmed orders received before 14:00 CST
- Express courier: DHL Express, FedEx International Priority, UPS Worldwide — typical transit 2–5 business days to most destinations
- Freight terms: EXW Xiamen, FOB Xiamen, CIF destination — specify your preferred Incoterm at order
- Export documentation: commercial invoice, packing list, certificate of origin (CO), and MSDS available for all shipments
- Dangerous goods: this product is non-hazardous; no special transport restrictions apply
- Minimum order: 1 unit; volume pricing available for quantities ≥ 5 units
Certifications & Compliance Statement
- API 670 — Machinery Protection Systems (5th Edition) compliant transducer system
- CE Marking — EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- ATEX — Zone classification determined by complete transducer system configuration; consult Bently Nevada system documentation
- RoHS — Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
- ISO 10816 / ISO 20816 — Measurement chain suitable for vibration severity assessment per these standards
Konmask.com does not modify, relabel, or remanufacture any Bently Nevada product. All units are supplied as manufactured by Bently Nevada (Baker Hughes) and carry the original manufacturer warranty terms.
How to Order
- Confirm part number — verify 330905-00-16-10-02-00 against your system drawing or existing probe label
- Check driver compatibility — confirm your driver part number is a 3300 XL 8mm series unit
- Request a quote — email [email protected] with quantity, required delivery date, and preferred Incoterm
- Order confirmation — stock availability and lead time confirmed within 1 business day
- Shipment & tracking — AWB / tracking number provided on same day of dispatch
- After-sales support — 12-month warranty; technical integration assistance included at no charge
Authenticity & Trust FAQ
Q: How do I verify the probe is genuine Bently Nevada?
A: Each unit ships with the original Bently Nevada factory label showing part number, serial number, and date code. We provide the factory test certificate on request. You can cross-reference the serial number with Baker Hughes customer support.
Q: Is this a new or refurbished unit?
A: All units listed as “new” are factory-new, unused, and in original packaging. Refurbished or tested-used units are explicitly labelled as such with a separate listing. If in doubt, ask before ordering.
Q: Can you supply the matching driver and extension cable?
A: Yes. Contact us with your required cable length and driver part number. We can supply the complete 3300 NSv transducer system as a kit.
Q: What if the probe does not perform to specification on arrival?
A: We offer a 12-month warranty covering manufacturing defects. If a unit fails incoming inspection at your facility, contact us within 7 days of receipt for a replacement or full refund — no questions asked.
Q: Do you provide ATEX documentation?
A: ATEX certification applies to the complete transducer system, not the probe alone. We can provide the Bently Nevada system ATEX certificate. Consult your safety engineer for zone classification requirements.
