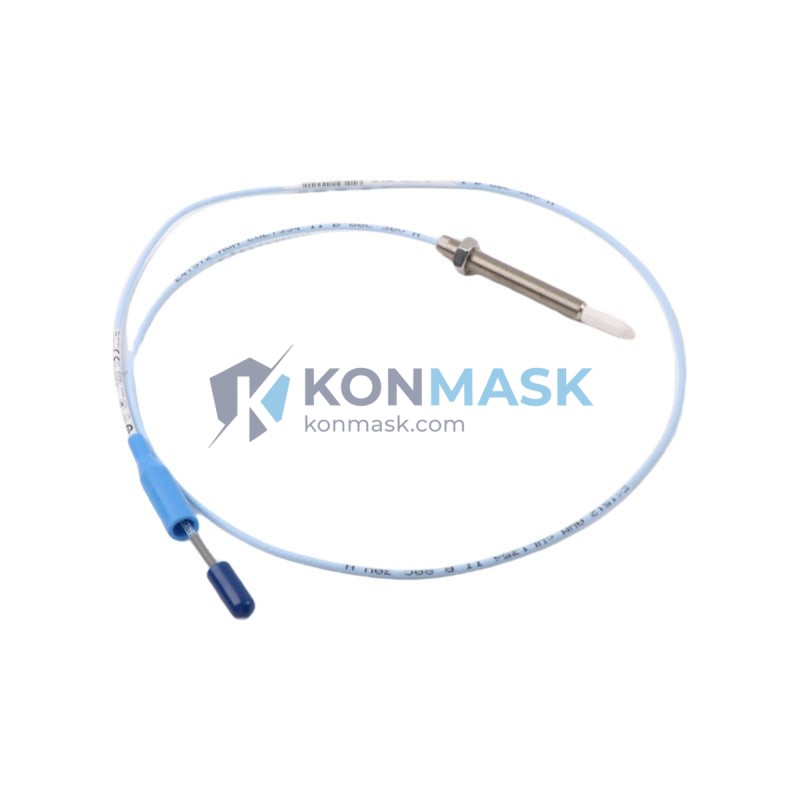

Bently Nevada 330908-10-55-05-02-00 Proximity Transducer | Replacement, Equivalent & Selection Guide
The Bently Nevada 330908-10-55-05-02-00 is a high-performance 8mm eddy current proximity transducer from the 3300 XL Series, engineered for continuous, non-contact measurement of shaft vibration, position, and differential expansion in rotating machinery. Konmask.com supplies genuine and compatible units with full traceability for critical industrial applications.
Technical Specifications
- Part Number: 330908-10-55-05-02-00
- Series: Bently Nevada 3300 XL 8mm
- Sensor Type: Eddy Current Proximity Transducer
- Probe Tip Diameter: 8 mm
- Cable Length: 1.0 m (extension cable sold separately)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 – 2.25 mm (10 – 90 mil)
- Frequency Response: DC – 10,000 Hz
- Supply Voltage: –24 VDC (nominal)
- Operating Temperature: –35°C to +121°C (–31°F to +250°F)
- Target Material: AISI 4140 steel (standard)
- Connector: 5-pin MIL-C-5015 style
- Approvals: CE, ATEX, FM (intrinsically safe options available)
- Weight: ~60 g
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or direct replacements for the 330908-10-55-05-02-00. Always verify cable length, connector type, and driver compatibility before substitution:
- 330908-00-55-05-02-00 – Same probe, 0 m integral cable (requires extension)
- 330908-10-55-05-02-CN – China-market variant, identical electrical specs
- 330905-10-55-05-02-00 – 3300 NSv 8mm series, compatible driver required
- 330780-90-00 – 3300 XL 11mm probe (different tip size; verify clearance)
- Emerson 330908-10-55-05-02-00 – OEM-equivalent post-Baker Hughes acquisition
- Metrix ST5484E – Third-party equivalent, 8mm eddy current, 200 mV/mil
- Wilcoxon R30D – Alternative for non-API applications
Contact Konmask.com for cross-reference verification before ordering a replacement.
Why Choose the Original Model
- API 670 Compliance: Fully meets API 670 5th Edition requirements for machinery protection systems.
- System-Matched Performance: Calibrated as a system with 3300 XL drivers and extension cables for guaranteed accuracy.
- Long-Term Availability: Bently Nevada maintains backward compatibility across 3300 XL system generations.
- Proven Reliability: Widely deployed in turbines, compressors, pumps, and generators worldwide.
- OEM Warranty Support: Original units eligible for Baker Hughes / Bently Nevada service contracts.
Typical Applications
- Shaft radial vibration monitoring (X-Y probe pairs)
- Axial position / thrust position measurement
- Differential expansion monitoring on steam turbines
- Speed and phase reference (Keyphasor® applications)
- Rotor eccentricity measurement during startup/shutdown
- Gas turbines, centrifugal compressors, boiler feed pumps
System Compatibility
The 330908-10-55-05-02-00 is designed to operate as part of a complete Bently Nevada 3300 XL measurement system:
- Driver / Proximitor: 3300 XL 8mm Proximitor® (e.g., 330180-X1-05)
- Extension Cable: 3300 XL 8mm Extension Cable (e.g., 330130-045-00-00)
- Monitoring System: System 1 / 3500 Series Rack (3500/40M, 3500/42M, 3500/45, 3500/46M)
- DCS Integration: Compatible with 4–20 mA output modules and MODBUS/OPC-UA gateways
Note: Mixing probe series (e.g., 3300 NSv with 3300 XL driver) will result in measurement errors. Always match the complete system.
Selection Guide
Use the table below to decode the 330908 part number structure and select the correct variant:
- 330908 – Base model: 3300 XL 8mm Proximity Transducer
- -10- – Integral cable length: 1.0 m
- -55- – Armored cable jacket (stainless braid)
- -05- – 5-pin MIL connector
- -02- – Metric thread (M10 × 1)
- -00 – Standard (no special options)
Need a different cable length, connector, or thread? Contact Konmask.com — we stock multiple 330908 variants and can advise on the correct configuration for your application.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus with full documentation.
- Each unit inspected and tested prior to shipment.
- Certificates of conformance (CoC) and material test reports (MTR) available on request.
- Traceability to original manufacturer lot numbers maintained.
- Secure anti-static packaging; export-compliant labeling.
How to Order
- Online: Add to cart directly from this page.
- Email: support@konmask.com — include your PO number and required delivery date.
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders quoted within 24 hours.
- MOQ: 1 piece. Volume pricing available for 5+ units.
Replacement & Compatibility FAQ
Q: Can I use the 330908-10-55-05-02-00 with a 3300 NSv Proximitor?
A: No. The 3300 XL probe is calibrated for the 3300 XL Proximitor. Using a mismatched driver will produce incorrect output voltages and may trigger false alarms.
Q: What is the difference between 330908 and 330905?
A: The 330905 is the 3300 NSv 8mm series with a different sensitivity curve. They are not interchangeable without recalibrating the driver.
Q: Is the 330908-10-55-05-02-00 ATEX certified?
A: Yes, ATEX and FM intrinsically safe certifications are available on specific variants. Confirm the suffix code or contact us for the certified datasheet.
Q: Can Konmask.com supply the complete 3300 XL system (probe + extension + Proximitor)?
A: Yes. We can quote the full measurement chain. Contact us with your system 1 rack slot and cable run distance.
Q: Do you accept returns or offer warranty?
A: We offer a 90-day warranty on all units. Defective items are replaced or refunded. See our Returns Policy for details.
