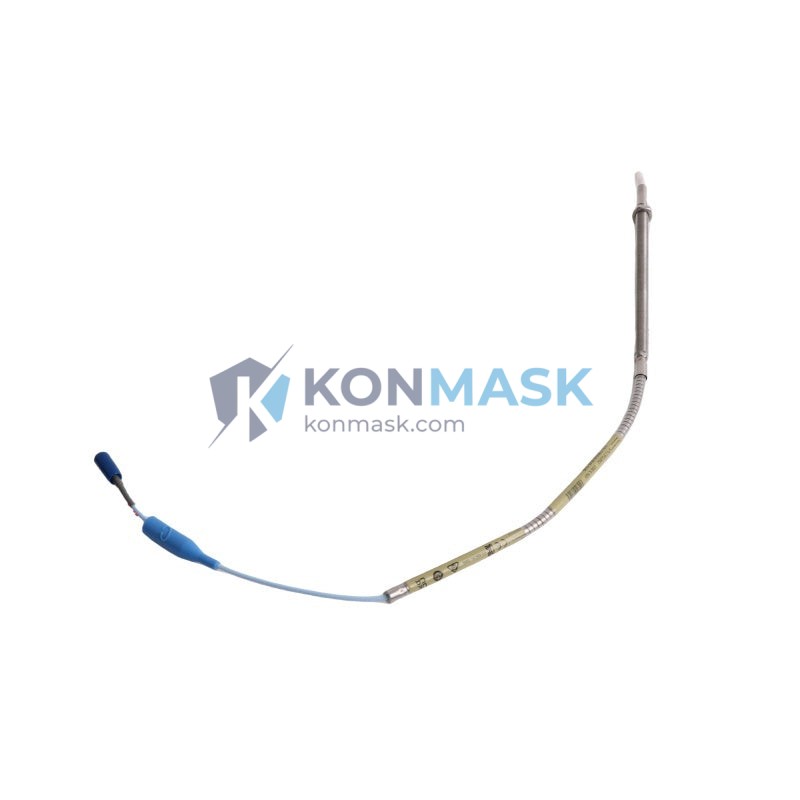

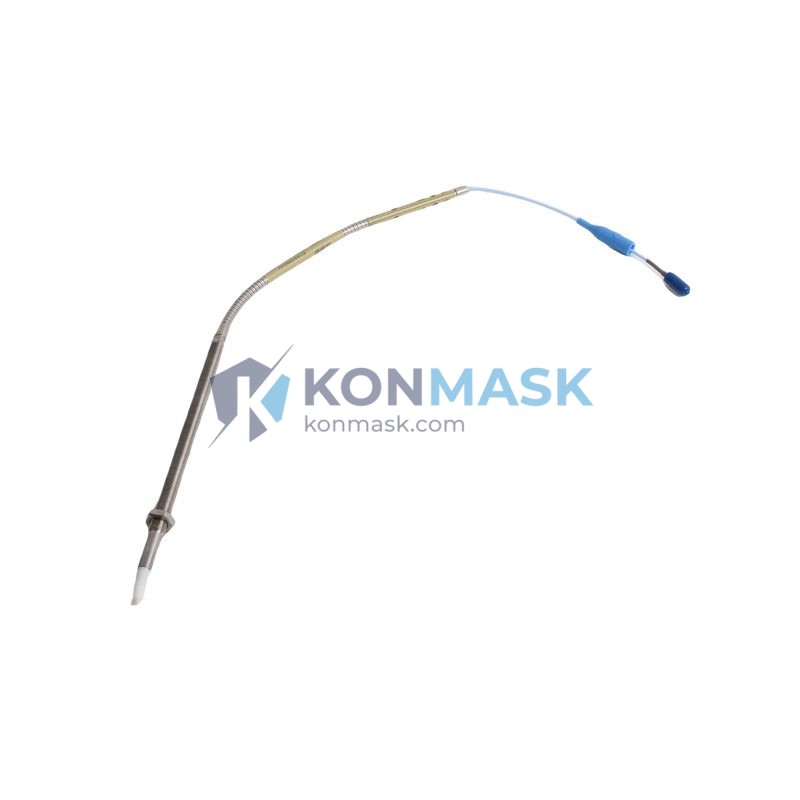

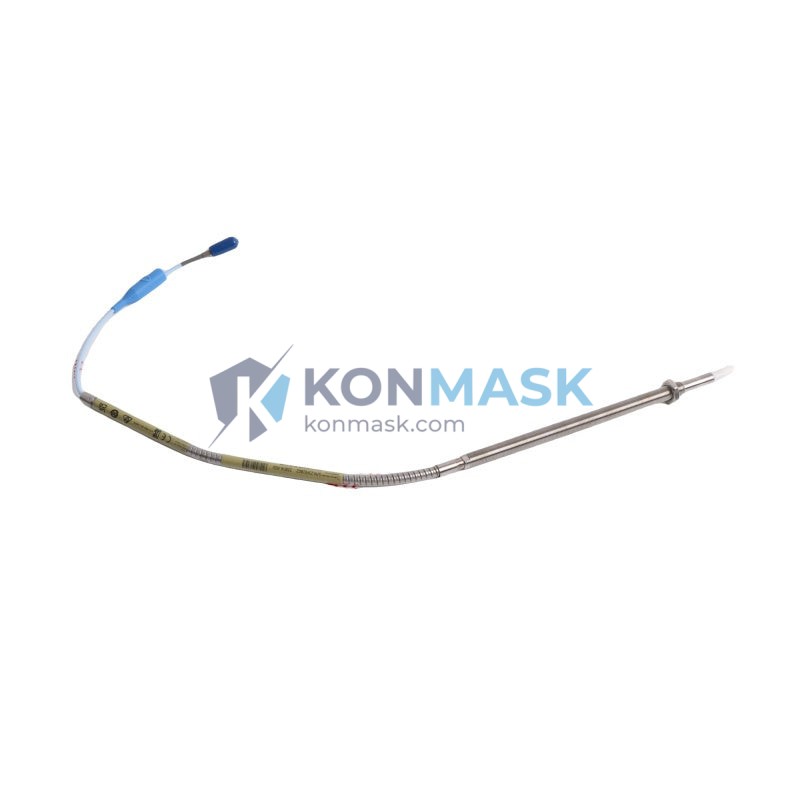

Bently Nevada 330910-00-04-05-01-CN 3300 NSv Proximity Probe | Replacement, Equivalent & Selection Guide
The Bently Nevada 330910-00-04-05-01-CN is a high-performance eddy-current proximity probe from the 3300 NSv Series, engineered for continuous shaft vibration, position, and speed monitoring in critical rotating machinery. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Part Number | 330910-00-04-05-01-CN |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 NSv Proximity Probe System |
| Sensing Technology | Eddy-Current (Non-contact) |
| Probe Length | 4 in (101.6 mm) |
| Cable Length | 5 m (standard) |
| Tip Diameter | 8 mm |
| Linear Range | 0.25 – 2.25 mm (10 – 90 mil) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -35°C to +177°C |
| Target Material | AISI 4140 Steel (standard) |
| Connector | Integral coaxial, armored cable |
| Approvals | CE, ATEX, IECEx (CN variant) |
| Weight | ~140 g |
| Country of Origin | USA / CN |
Compatible Replacement & Equivalent Models
The following models are functionally compatible or direct replacements for the 330910-00-04-05-01-CN. Always verify electrical and mechanical specifications before substitution.
| Model | Brand | Compatibility | Notes |
|---|---|---|---|
| 330910-00-04-05-02-CN | Bently Nevada | Direct variant | Different connector termination |
| 330910-00-04-10-01-CN | Bently Nevada | Direct variant | 10 m cable version |
| 3300 XL 8mm Probe | Bently Nevada | Upgraded series | Extended temperature range |
| PR6423/010-100 | Epro (GE) | Cross-brand equivalent | 8 mm eddy-current, same sensitivity |
| CON021/916-000 | Epro (GE) | Compatible driver | Pair with PR6423 probe |
| CS-1 / CS-3 | Metrix | Functional equivalent | Verify gap voltage calibration |
⚠ Disclaimer: Cross-brand equivalents require independent verification of gap voltage, sensitivity, and system compatibility. Konmask.com recommends consulting OEM documentation before substitution in safety-critical applications.
Why Choose the Original Model
- Factory-calibrated to Bently Nevada 3300 system specifications — no field recalibration required.
- Proven reliability in API 670-compliant machinery protection systems.
- Full traceability: each probe ships with OEM documentation and certificate of conformance.
- Seamless integration with 3300 XL drivers, 3500 rack monitors, and System 1 software.
- Long service life in high-temperature, high-vibration environments (turbines, compressors, pumps).
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position measurement
- Pump and motor bearing proximity sensing
- Gearbox speed and phase reference detection
- API 670 machinery protection systems
- Petrochemical, power generation, and LNG plant installations
System Compatibility
The 330910-00-04-05-01-CN is designed to operate within the Bently Nevada 3300 NSv Proximity Probe System and is compatible with the following components:
- Drivers/Oscillators: 330180 Series, 330130 Series (3300 NSv)
- Monitor Racks: 3500/40M, 3500/42M, 3500/45, 3500/50M
- Extension Cables: 330130-045-00-CN, 330130-080-00-CN
- Software: System 1 Evolution, Orbit 60 Series
Selection Guide
Use the table below to select the correct 330910 variant for your application:
| Parameter | Options | Code Position |
|---|---|---|
| Probe Body Length | 04 = 4 in | 08 = 8 in | 3rd segment |
| Cable Length | 05 = 5 m | 10 = 10 m | 4th segment |
| Connector Type | 01 = Standard | 02 = Alternate | 5th segment |
| Approval / Region | CN = China ATEX/IECEx | 6th segment |
If your application requires a different probe length, cable length, or regional approval, contact support@konmask.com with your system drawing and we will identify the correct part number.
Quality Assurance & Sourcing
- ✅ Genuine OEM parts sourced from authorized distribution channels
- ✅ Inspection & testing performed prior to shipment
- ✅ Certificate of Conformance available upon request
- ✅ Secure packaging with ESD protection and moisture barrier
- ✅ Traceability documentation maintained for all inventory batches
How to Order
- Confirm part number: 330910-00-04-05-01-CN
- Verify quantity and lead time requirements
- Submit inquiry via support@konmask.com or add to cart directly
- Receive proforma invoice with shipping options (DHL / FedEx / sea freight)
- Payment: T/T, PayPal, or trade terms for qualified accounts
📞 Phone/WhatsApp: +0086 19859288691
📧 Email: support@konmask.com
🌐 Website: https://konmask.com
Replacement & Compatibility FAQ
Q: Can I use a 3300 XL probe as a direct replacement for the 330910-00-04-05-01-CN?
A: The 3300 XL 8mm probe is the upgraded successor and is backward-compatible with most 3300 NSv drivers. Verify driver firmware version before substitution.
Q: Is the -CN suffix required for installations in China?
A: Yes. The CN suffix denotes compliance with Chinese ATEX/IECEx certification requirements. Non-CN variants may not meet local regulatory standards.
Q: What is the gap voltage for this probe?
A: Standard gap voltage is -10.0 VDC at the midpoint of the linear range (approximately 1.25 mm gap) when used with the 330180 driver.
Q: Can Epro PR6423 replace this probe?
A: The PR6423/010-100 is a functional equivalent in terms of sensitivity and tip diameter, but requires an Epro-compatible driver (CON021 series). It cannot be used directly with Bently Nevada 3300 drivers without signal conditioning.
Q: Do you offer calibration services?
A: We supply factory-calibrated OEM units. Third-party calibration services can be arranged upon request for in-service probes.
