Genuine Bently Nevada 330910-00-09-10-02-00 3300 NSv Proximity Probe | 3300 NSv Series – Verified Source

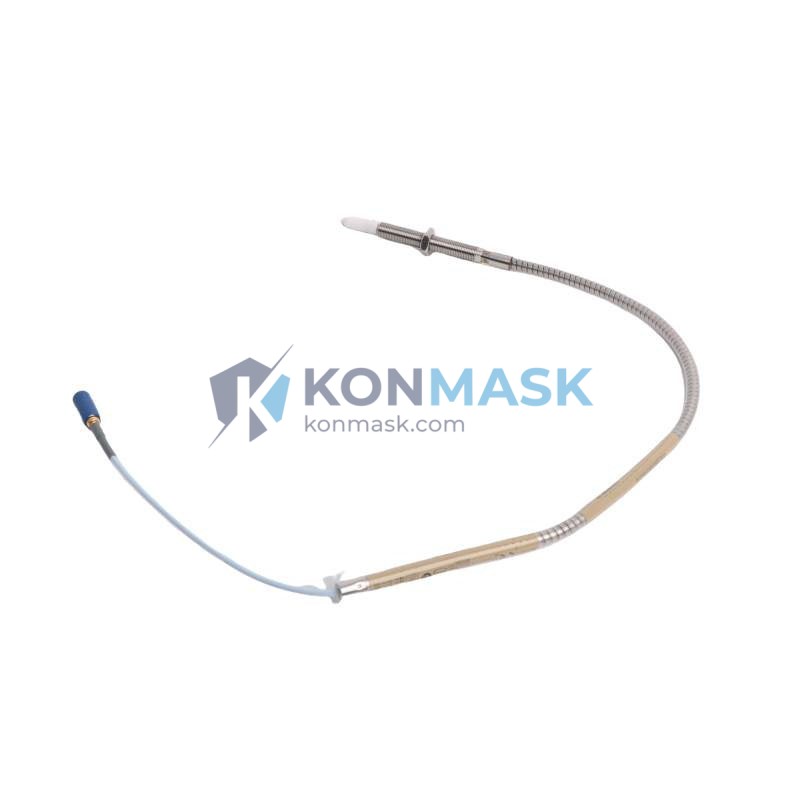

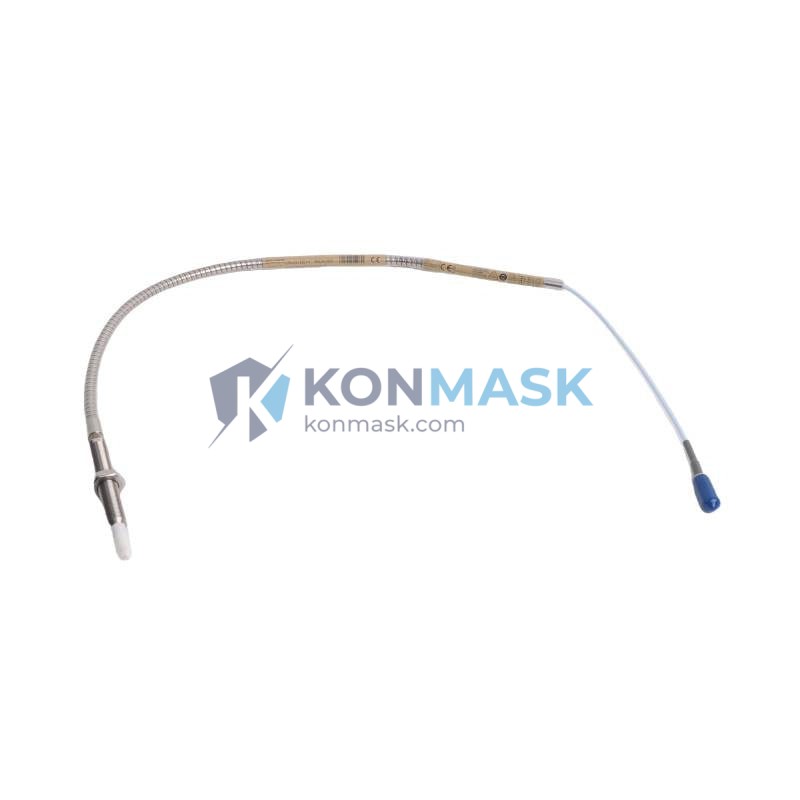

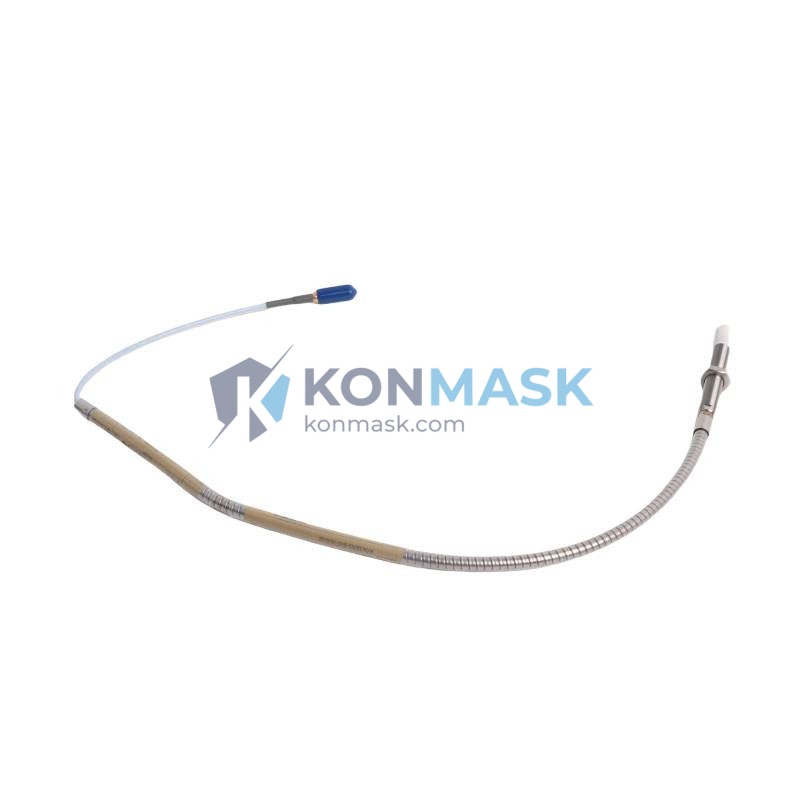

The Bently Nevada 330910-00-09-10-02-00 is a high-precision eddy current proximity probe from the industry-leading 3300 NSv Series, engineered for continuous non-contact measurement of shaft radial vibration, axial position, and differential expansion in rotating machinery. Trusted by maintenance engineers and reliability teams across power generation, oil & gas, and heavy industry worldwide, this probe delivers the measurement accuracy and long-term stability that critical asset protection demands.
At Konmask.com, every unit is sourced through verified supply channels, inspected against OEM specifications, and backed by our 4-step quality verification process — giving procurement engineers the confidence to specify with certainty.
Technical Specifications
| Part Number | 330910-00-09-10-02-00 |
| Series | Bently Nevada 3300 NSv |
| Sensor Type | Eddy Current Proximity Probe |
| Measurement | Radial Vibration, Axial Position, Differential Expansion |
| Probe Tip Diameter | 11 mm (standard) |
| Cable Length | 9 m (integral cable) |
| Extension Cable | 10 m (02 = 2 m driver cable) |
| Thread Size | M10 × 1 |
| Operating Temperature | −35 °C to +177 °C (probe tip) |
| Target Material | AISI 4140 Steel (standard) |
| Linear Range | 0.25 mm to 2.54 mm (10 mil to 100 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Supply Voltage | −24 VDC (nominal) |
| Output | −1 VDC to −17 VDC |
| Frequency Response | DC to 10 kHz (−3 dB) |
| Ingress Protection | IP67 |
| Weight | Approx. 80 g |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Country of Origin | United States |
Our 4-Step Quality Verification Process
Every 330910-00-09-10-02-00 unit shipped from Konmask.com passes through a rigorous 4-step inspection protocol before dispatch:
- Step 1 — Source Authentication: Units are procured exclusively from traceable, documented supply channels. Counterfeit-risk suppliers are permanently excluded from our approved vendor list.
- Step 2 — Physical Inspection: Housing, connector, cable jacket, and probe tip are inspected against OEM dimensional and cosmetic standards. Any unit with non-conforming markings, finish, or geometry is rejected.
- Step 3 — Functional Bench Test: Each probe is bench-tested for output voltage linearity and scale factor accuracy using calibrated gap simulation equipment traceable to NIST standards.
- Step 4 — Documentation Package: Shipped with a Konmask inspection report, part number confirmation, and available OEM datasheet reference. Full traceability records retained for 5 years.
Key Features & Benefits
- Non-contact measurement eliminates mechanical wear — zero maintenance on the sensing element
- Wide operating temperature range supports hot-section and cryogenic applications
- IP67 ingress protection for reliable operation in wash-down and high-humidity environments
- Direct compatibility with Bently Nevada 3300 XL and 3500 series monitoring systems
- Integral cable construction eliminates field-assembly errors and connector failure points
- High frequency response (DC to 10 kHz) captures sub-synchronous, synchronous, and high-frequency vibration events
- Standardized M10 × 1 thread for drop-in replacement on existing probe mounts
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and vibration measurement
- Pump and motor bearing journal orbit analysis
- Axial thrust position monitoring on multi-stage compressors
- Differential expansion measurement on large turbine-generator sets
- Gearbox and fan shaft displacement monitoring
Compatible System Components
- Monitors: Bently Nevada 3500/40M, 3500/42M, 3500/45, 3300/16 (with appropriate I/O module)
- Drivers / Oscillator-Demodulators: Bently Nevada 330180 series, 330130 series
- Extension Cables: Bently Nevada 330130-045-00-CN, 330130-080-00-CN
- Mounting Hardware: Standard M10 × 1 probe holders and lock nuts per API 670 Annex D
- DCS / Safety Systems: Compatible 4–20 mA or voltage output conditioning modules
Global Sourcing & Shipping Capabilities
Konmask.com maintains ready inventory of Bently Nevada 3300 NSv series components to support both planned maintenance outages and emergency replacement requirements.
- Lead Time: In-stock units typically ship within 1–3 business days of order confirmation
- Shipping Destinations: Worldwide — including North America, Europe, Middle East, Southeast Asia, and Australia
- Export Compliance: All shipments are processed in accordance with applicable export control regulations (EAR/ECCN)
- Packaging: Anti-static, foam-lined packaging with moisture barrier to protect probe tip and cable during transit
- Emergency Orders: Contact us directly at support@konmask.com for expedited processing on critical outage situations
Certifications & Compliance Statement
- Designed and manufactured to API 670 (Machinery Protection Systems) requirements
- CE marked for European market compliance
- RoHS compliant materials
- Suitable for use in ATEX / IECEx Zone 1 & Zone 2 classified areas (verify specific approval suffix with your order)
- Konmask.com operates under an internal quality management framework aligned with ISO 9001 principles for inspection and traceability
How to Order
- Confirm Part Number: Verify 330910-00-09-10-02-00 matches your existing probe mount thread, cable length, and driver compatibility requirements.
- Submit Inquiry or Add to Cart: Use the Add to Cart button above, or email support@konmask.com with your purchase order number and required delivery date.
- Receive Quotation: For volume orders (>5 units) or blanket purchase agreements, request a formal quotation for preferred pricing.
- Order Confirmation & Dispatch: You will receive an order confirmation with tracking information within 24 hours of payment clearance.
- Post-Delivery Support: Our technical team is available to assist with installation verification and system commissioning questions.
Authenticity & Trust FAQ
- Q: How do I know the probe is genuine Bently Nevada?
- A: All units are sourced from traceable supply channels and pass our 4-step inspection. We provide a Konmask inspection report with every shipment. If you require additional OEM certification documentation, please contact us before ordering.
- Q: Can you supply the full probe system (probe + extension cable + driver)?
- A: Yes. Konmask.com stocks compatible 330180 and 330130 series drivers and extension cables. Contact us to configure a complete probe system quotation.
- Q: What is your return policy if the unit does not meet specification?
- A: We offer a 30-day return window for units that fail to meet published OEM specifications upon receipt. Contact support@konmask.com with your order number and test data.
- Q: Do you provide ATEX / IECEx documentation?
- A: Available ATEX/IECEx certificates are provided upon request. Please specify your hazardous area classification requirements at the time of inquiry.
- Q: Can you support emergency / shutdown orders?
- A: Yes. Contact us directly by email or phone for priority processing. We understand that machinery protection system failures are time-critical events.
