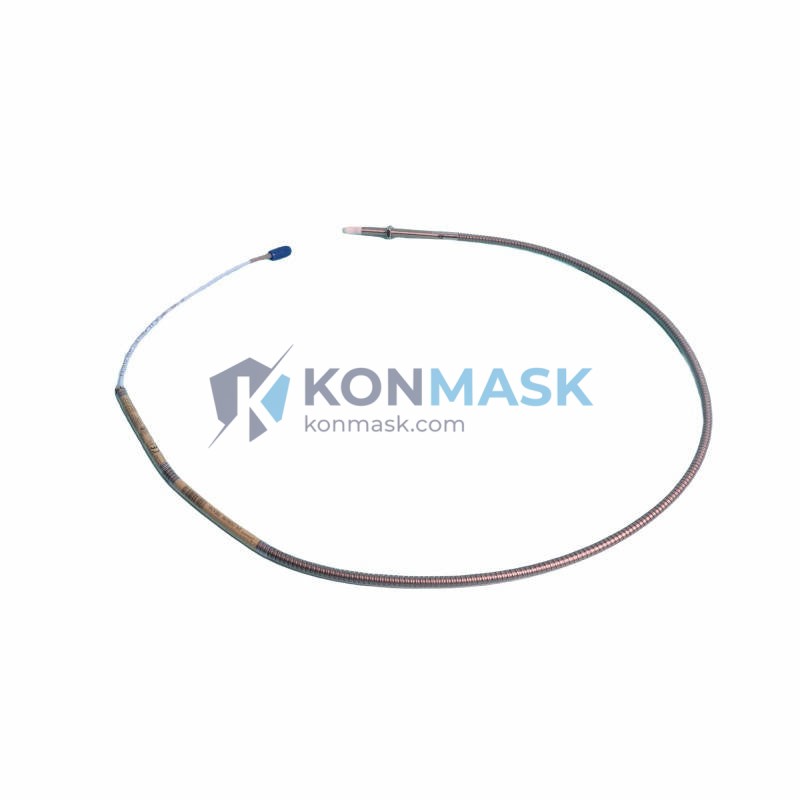

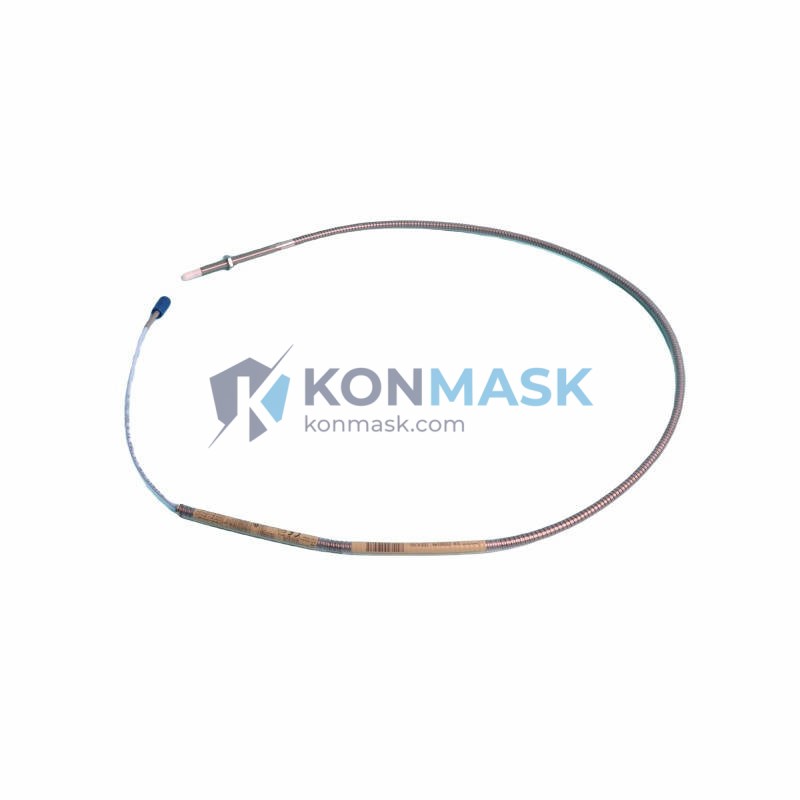

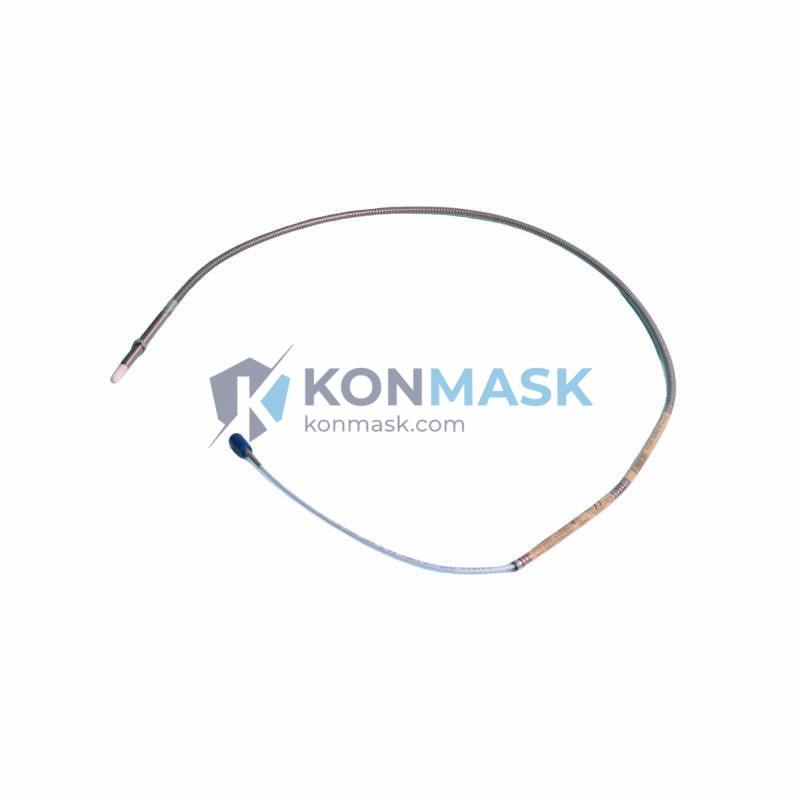

Bently Nevada 330910-00-16-50-02-00 Eddy Current Proximity Transducer System – 3300 XL Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, and unplanned downtime that can cost industrial facilities tens of thousands of dollars per hour. The Bently Nevada 330910-00-16-50-02-00 Proximity Transducer System is the precision instrument that stands between normal operation and mechanical disaster — providing continuous, real-time shaft position and vibration data that plant engineers and condition monitoring systems depend on.
Within the renowned Bently Nevada 3300 XL Series, the 330910-00-16-50-02-00 occupies a critical technical position as a complete eddy current proximity transducer system. This model integrates a 16mm diameter probe, 5.0-meter extension cable, and a dedicated proximitor/driver module into a calibrated, matched system. The 3300 XL Series is the global industry benchmark for non-contact vibration and position measurement, deployed across power generation, oil & gas, petrochemical, and heavy manufacturing facilities on every continent. Its compatibility with Bently Nevada System 1 and 3500 Series monitoring platforms makes it the preferred choice for OEM machine builders and end-user maintenance teams alike.
Technical Specifications
- Part Number: 330910-00-16-50-02-00
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL Proximity Transducer System
- Probe Diameter: 16 mm
- Extension Cable Length: 5.0 m (50 cm driver + 5 m extension)
- Driver/Proximitor: Included (matched system)
- Measurement Type: Non-contact eddy current, shaft vibration & position
- Output Signal: -24 VDC nominal (standard Bently Nevada output)
- Frequency Range: DC to 10,000 Hz
- Temperature Range: -35°C to +177°C (probe tip)
- Target Material: AISI 4140 steel or equivalent
- Approvals: CE, ATEX, FM (refer to OEM documentation)
- Weight: Approx. 300 g
Key Features & Benefits
- Matched & Calibrated System: Probe, cable, and driver are factory-matched for guaranteed linearity and accuracy — no field calibration required.
- Non-Contact Measurement: Zero mechanical wear on the sensor; ideal for continuous 24/7 monitoring of high-speed rotating shafts.
- High Sensitivity: Detects sub-micron shaft displacement changes, enabling early fault detection before catastrophic failure.
- Wide Temperature Tolerance: Operates reliably in extreme industrial environments including steam turbine pedestals and compressor trains.
- Direct Drop-In Replacement: Fully compatible with existing 3300 XL installations — minimizes downtime during maintenance replacement.
- Long Cable Configuration: 5-meter extension cable provides installation flexibility in large machinery housings and remote mounting scenarios.
- Robust Construction: Stainless steel probe body with armored cable jacket withstands oil, vibration, and chemical exposure.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — shaft radial vibration and axial position monitoring.
- Oil & Gas: Centrifugal compressors, pipeline pumps, LNG expanders — API 670 compliant machinery protection.
- Petrochemical & Refining: Reactor feed pumps, cracked gas compressors, critical rotating equipment.
- Pulp & Paper: High-speed rolls, refiners, and dryer section drives.
- Marine & Offshore: Propulsion turbines and auxiliary machinery on offshore platforms.
- General Heavy Industry: Any rotating machine requiring API 670 or ISO 13373 compliant vibration monitoring.
System Integration & Compatible Parts
The 330910-00-16-50-02-00 is designed for seamless integration with the Bently Nevada ecosystem:
- Monitoring Racks: Bently Nevada 3500 Series Machinery Protection System, 3300 Series monitors
- Software Platform: Bently Nevada System 1 Condition Monitoring Software
- Related Probes: 330905 (8mm), 330930 (25mm) series for different shaft diameter applications
- Extension Cables: 330130 Series extension cables for custom length configurations
- Proximitor Drivers: 3300 XL 8mm/16mm/25mm proximitor modules
- Junction Boxes: Bently Nevada field junction boxes for multi-channel installations
Our Quality Assurance Process
At Konmask.com, every Bently Nevada 330910-00-16-50-02-00 unit undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: Units sourced exclusively from authorized distributors, OEM surplus, or certified refurbishers with full traceability documentation.
- Visual & Physical Inspection: Probe tip, cable jacket, connector pins, and driver housing inspected for damage, corrosion, or counterfeit indicators.
- Label & Serial Number Authentication: Part number, date code, and serial number cross-referenced against Bently Nevada manufacturer records.
- Functional Testing: Where applicable, electrical continuity and output signal verification performed prior to packaging.
- Secure Packaging: Anti-static, shock-protected packaging with desiccant to prevent transit damage and moisture ingress.
How to Order
- Submit an Inquiry: Use the contact form or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our technical sales team will respond within 24 hours with pricing, availability, and lead time.
- Confirm & Pay: We accept T/T bank transfer, PayPal, and other B2B payment methods. Pro-forma invoice provided upon order confirmation.
- Shipment & Tracking: Orders dispatched via DHL, FedEx, or UPS Express with full tracking. Export documentation (commercial invoice, packing list, COO) included.
- After-Sales Support: Our engineering team is available post-delivery for installation guidance and technical questions.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists: Focused exclusively on PLC, DCS, and condition monitoring components — not a general electronics reseller.
- ✅ Global B2B Export Experience: Serving buyers in Europe, Southeast Asia, Middle East, and Americas with compliant export documentation.
- ✅ Technical Pre-Sales Support: Our engineers can verify compatibility with your existing 3300/3500 system configuration before you order.
- ✅ Fast Sourcing: Access to extensive supplier networks for hard-to-find and obsolete Bently Nevada parts.
- ✅ Transparent Communication: Honest lead times, clear quality grading (new/surplus/refurbished), and no hidden fees.
Frequently Asked Questions
Q: Is the 330910-00-16-50-02-00 a complete system or just the probe?
A: It is a complete matched system including the 16mm probe, 5-meter extension cable, and the proximitor/driver module — all factory-calibrated as a set.
Q: Can this replace my existing 330910 series probe without recalibration?
A: Yes, provided the replacement is a matched system with the same cable length and driver. The 3300 XL system is designed for direct replacement within the same configuration. Always verify the full part number suffix matches your installation.
Q: What is the difference between 330910-00-16-50-02-00 and other 330910 variants?
A: The suffix encodes probe diameter (16mm), cable length (5.0m), connector type, and driver configuration. Different suffixes indicate different physical configurations — they are not interchangeable without engineering review.
Q: Do you provide a warranty or quality guarantee?
A: Yes. All units are inspected before shipment. We provide a 90-day quality guarantee covering manufacturing defects and authenticity. Detailed terms are provided with each order.
Q: Can you provide export documentation for customs clearance?
A: Yes. We provide commercial invoice, packing list, and certificate of origin. HS code classification guidance is available upon request based on your destination country requirements.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. For sourced items, lead time is typically 2–4 weeks. We confirm availability and lead time in every quotation.
