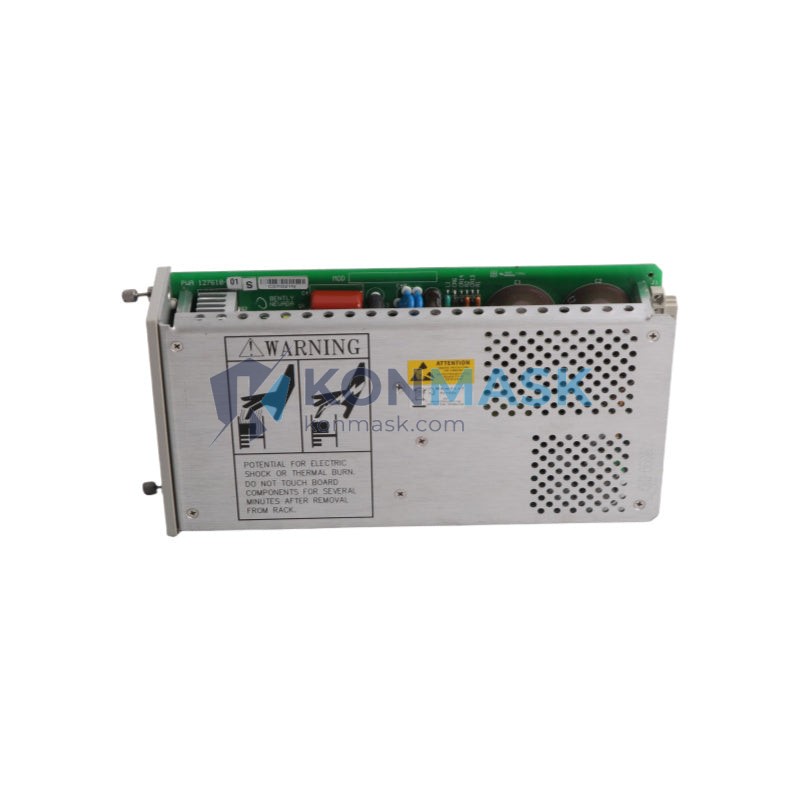

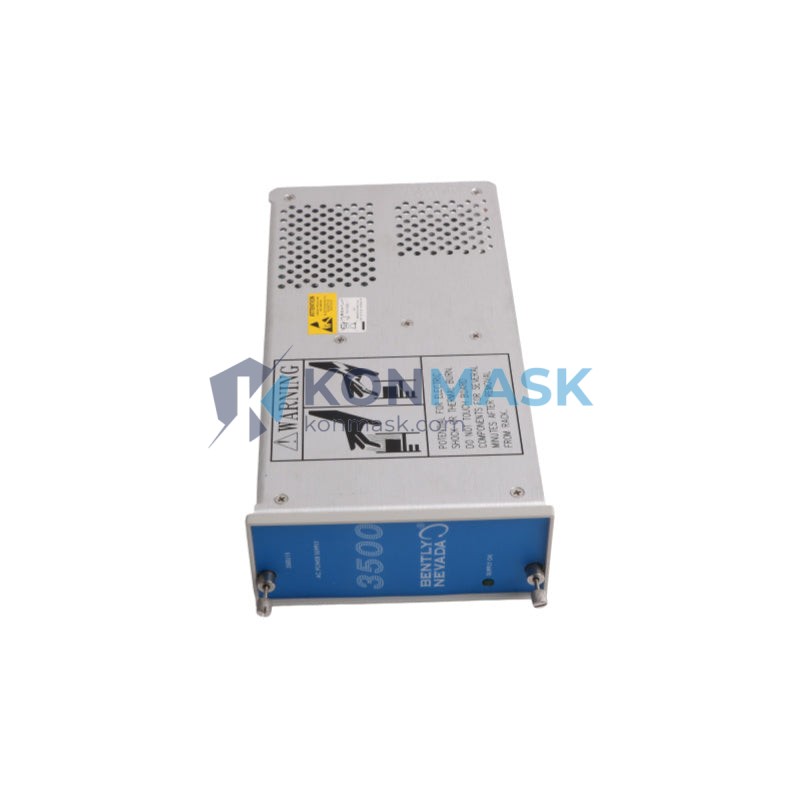

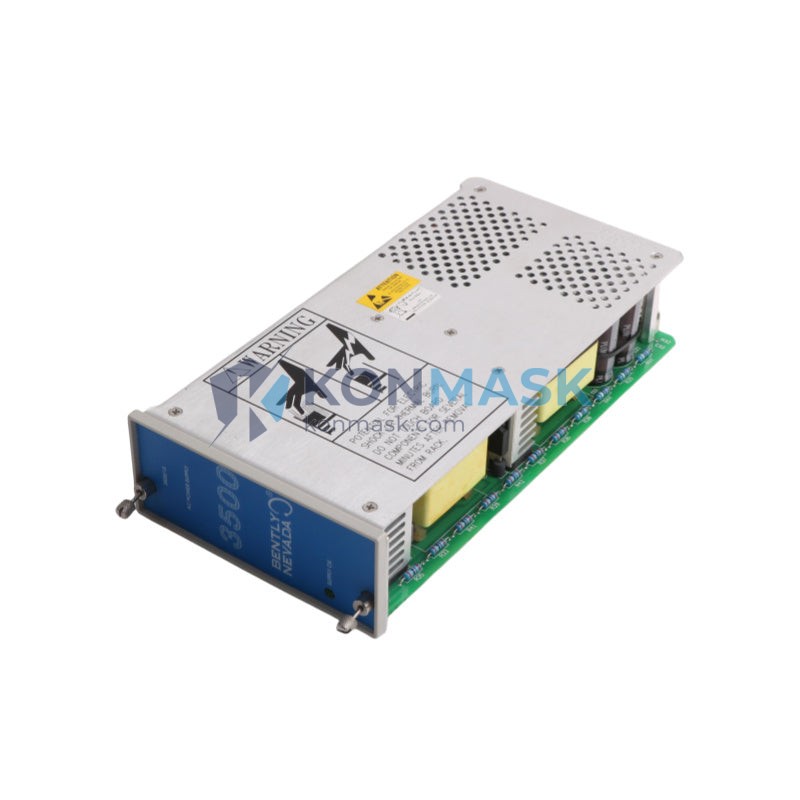

Machinery Protection Power Solution – Bently Nevada 3500/15 127610-01 | 3500 Series
Where This Product Is Used
The Bently Nevada 3500/15 127610-01 Power Supply Module is purpose-built for continuous machinery protection environments where uninterrupted, conditioned DC power is non-negotiable. Engineers specify this module across the following critical applications:
- Gas & Steam Turbine Protection Systems – Provides stable 24 VDC rail power to the 3500 rack monitoring turbine shaft vibration, axial position, and speed.
- Centrifugal & Reciprocating Compressor Monitoring – Sustains power to proximity probes and velocity transducers in upstream oil & gas compression trains.
- Refinery & Petrochemical Rotating Equipment – Feeds power to 3500 Series monitors protecting pumps, fans, and gearboxes in hazardous-area installations.
- Power Generation & Utilities – Deployed in combined-cycle plants where rack availability directly impacts grid reliability.
- LNG & Offshore Platforms – Rated for demanding environments; supports redundant power configurations for SIL-rated protection loops.
- Pulp, Paper & Heavy Industry – Keeps 3500 racks energized in high-vibration, high-humidity plant floors.
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number | 127610-01 |
| Model | 3500/15 |
| Series | Bently Nevada 3500 |
| Module Type | Power Supply Module |
| Output Voltage | 24 VDC (nominal) |
| Rack Compatibility | Bently Nevada 3500 Series Rack |
| Redundancy Support | Yes – supports dual power supply configuration |
| Input Voltage Range | 85–264 VAC / 90–300 VDC (wide-range) |
| Operating Temperature | 0 °C to +60 °C |
| Weight | 1,160 g |
| Form Factor | Single-slot 3500 rack module |
| Manufacturer | Bently Nevada (Baker Hughes) |
Why Engineers Specify This Model
- Proven Platform Reliability – The 3500 Series has accumulated decades of field hours in API 670-compliant installations worldwide; the 3500/15 is the backbone that keeps every monitor card online.
- Redundant Power Architecture – Two 3500/15 modules can be installed in a single rack for N+1 redundancy, eliminating single-point-of-failure risk on critical machinery trains.
- Wide-Range AC/DC Input – Accepts both AC and DC plant power, simplifying integration into existing substation and UPS infrastructure without additional converters.
- Hot-Swap Capable – Modules can be replaced under power in a live rack, supporting zero-downtime maintenance strategies.
- Compact Single-Slot Footprint – Maximizes rack real estate for monitor and I/O modules in space-constrained control rooms.
Complete System Bill of Materials
The 3500/15 127610-01 is typically ordered alongside the following components to build a complete machinery protection rack:
- 3500/05 – Rack Interface Module (RIM)
- 3500/20 – Rack Interface I/O Module
- 3500/22M – Transient Data Interface (TDI)
- 3500/25 – Enhanced Keyphasor Module
- 3500/40M – Proximitor / Seismic Monitor
- 3500/42M – Proximitor / Seismic Monitor (4-channel)
- 3500/45 – Position Monitor
- 3500/50M – Tachometer Module
- 3500/92 – TMR Voting Module
- 3500/15 (second unit) – Redundant Power Supply
Contact support@konmask.com for complete rack configuration assistance and BOM pricing.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition) compliant rack platform
- IEC 61511 – Functional Safety for SIS applications (when used in certified configurations)
- CE Marking – European conformity for EMC and Low Voltage Directive
- UL / cUL Listed – North American safety certification
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
Every Bently Nevada 3500/15 127610-01 unit offered through Konmask.com undergoes a structured verification process before dispatch:
- Visual inspection for physical damage, corrosion, and connector integrity
- Functional power-on test confirming output voltage within specification
- Firmware / revision label verification against OEM documentation
- Anti-static packaging with humidity indicator card
- Traceable sourcing documentation available on request
We source from decommissioned plant inventories, authorized distributors, and certified repair facilities. Counterfeit-free guarantee backed by our sourcing policy.
How to Source This Part
- Add to Cart – Click the purchase button above to place an order directly.
- Request a Quote – Email support@konmask.com with your required quantity and delivery timeline for volume pricing.
- Urgent Requirement – Call or WhatsApp +0086 19859288691 for same-day availability confirmation and expedited shipping options.
- System Configuration Help – Our engineers can review your existing 3500 rack layout and recommend compatible modules, cables, and accessories.
Application-Specific FAQ
Q: Can the 3500/15 127610-01 be used with both 3500 and 3300 Series racks?
A: No. The 3500/15 is designed exclusively for the Bently Nevada 3500 Series rack form factor. It is not compatible with 3300 Series or 1900 Series racks.
Q: How many power supply modules can be installed per rack?
A: Up to two 3500/15 modules can be installed in a single 3500 rack to achieve redundant (N+1) power supply operation.
Q: Is this module hot-swappable in a live rack?
A: Yes. The 3500/15 supports hot-swap replacement. The redundant supply maintains rack power while the failed unit is replaced, enabling zero-downtime maintenance.
Q: What input power does the 3500/15 accept?
A: The module accepts a wide-range input of 85–264 VAC (47–63 Hz) or 90–300 VDC, making it compatible with most plant UPS and substation power sources.
Q: Do you provide a warranty or return policy?
A: Yes. Please contact support@konmask.com for warranty terms applicable to your order.
Q: Can you supply the full 3500 rack system, not just the power supply?
A: Yes. Konmask.com stocks a broad range of 3500 Series modules. Contact us with your complete BOM for a consolidated quote.
