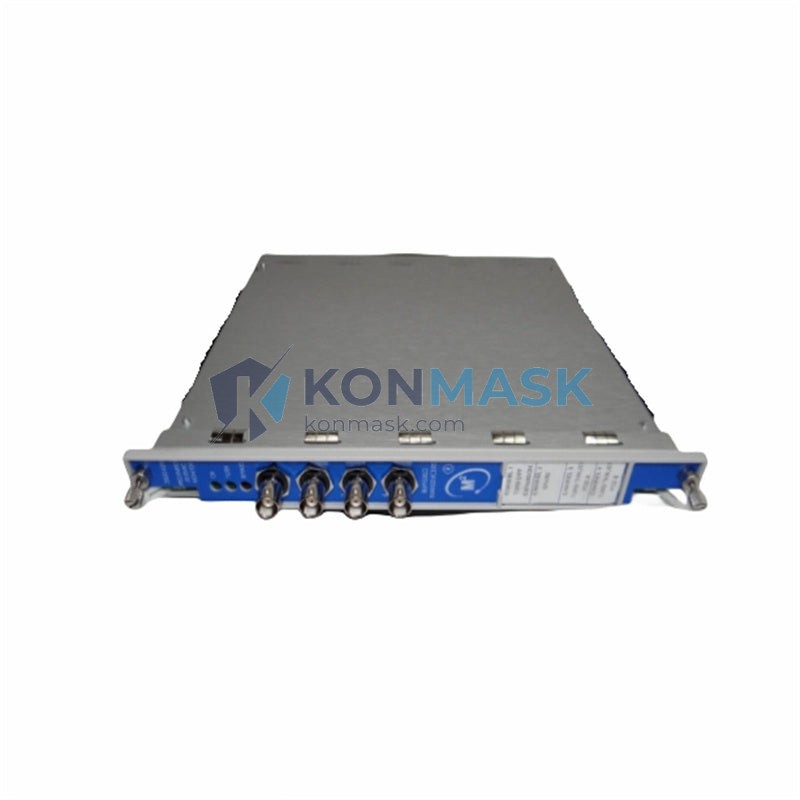

Bently Nevada 3500/42M 176449-02 – Dual-Channel Proximitor Monitor | 3500 Series Machinery Protection System
Engineering Background
The Bently Nevada 3500 Series is the industry benchmark for continuous online machinery protection, trusted in critical rotating equipment applications worldwide. Designed to API 670 standards, the platform provides real-time vibration, position, and dynamic measurement for turbines, compressors, pumps, and motors where unplanned downtime is unacceptable.
Product Positioning
The 3500/42M (P/N 176449-02) is a dual-channel Proximitor Monitor module within the 3500 rack-based system. It conditions signals from Bently Nevada proximity transducer systems (7200, 3300, and 3500 XL series probes) to deliver calibrated vibration and position measurements for shaft radial vibration, thrust position, differential expansion, and eccentricity monitoring. This module is the preferred choice for engineers specifying API 670-compliant protection on high-value rotating assets.
Complete Technical Specifications
| Part Number | 176449-02 |
| Model | 3500/42M |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Module Type | Dual-Channel Proximitor Monitor |
| Input Channels | 2 (independent, configurable) |
| Transducer Compatibility | Bently Nevada 7200, 3300, 3500 XL proximity transducer systems |
| Measurement Types | Radial Vibration, Thrust Position, Differential Expansion, Eccentricity, Valve Position |
| Input Voltage Range | –24 VDC (nominal transducer bias) |
| Output Signal | 4–20 mA (isolated), buffered transducer output |
| Alert / Danger Setpoints | Independently configurable per channel via System 1 / Rack Configuration Software |
| Relay Outputs | Via 3500/32 or 3500/33 Relay Module (rack-level) |
| Communication | Rack backplane (Modbus, Ethernet via gateway modules) |
| Compliance Standard | API 670 (4th & 5th Edition) |
| Operating Temperature | –30 °C to +65 °C |
| Humidity | 5–95% RH, non-condensing |
| Power Consumption | ≤ 4 W (typical) |
| Module Form Factor | 3500 Series standard single-slot card |
| Weight | ~2 kg (module + I/O terminal block) |
| Certifications | CE, FM, CSA (hazardous area variants) |
Proven Application Environments
- Gas Turbines & Steam Turbines – shaft radial vibration and thrust position protection
- Centrifugal & Axial Compressors – API 670 continuous monitoring for critical train protection
- Large Pumps & Fans – eccentricity and position monitoring during startup/shutdown
- Gearboxes – differential expansion measurement across operating temperature ranges
- Hydro Turbines – slow-roll and eccentricity monitoring
- Petrochemical & LNG Plants – SIL-rated protection loops integrated with DCS/SIS
- Power Generation – combined cycle plant machinery protection racks
Engineering Advantages
- API 670 Compliance – meets the most stringent international standard for machinery protection systems, simplifying project documentation and third-party audits
- Dual-Channel Architecture – two fully independent measurement channels in a single slot, reducing rack space and wiring complexity
- Universal Transducer Compatibility – supports the full Bently Nevada proximity probe ecosystem without additional signal conditioning hardware
- Isolated 4–20 mA Output – galvanically isolated analog output eliminates ground loops in complex DCS/SIS integration architectures
- Software-Configurable Setpoints – alert and danger thresholds set via Rack Configuration Software, enabling rapid commissioning and setpoint management without hardware changes
- Hot-Swap Capable – module can be replaced under power in a properly configured 3500 rack, minimizing maintenance downtime
- Buffered Transducer Output – allows simultaneous connection of portable analyzers for condition monitoring without disturbing the protection loop
System Architecture & Signal Flow
The 3500/42M installs into any slot of a 3500 Series rack alongside the 3500/20 Power Supply, 3500/22 Transient Data Interface, and relay/communication modules. Signal flow is as follows:
- Proximity Probe → Extension Cable → Proximitor Sensor – the eddy-current transducer system generates a DC-biased AC signal proportional to gap distance.
- Proximitor Output → 3500/42M Input Terminal Block – the module conditions the raw transducer signal, applies gap, direct, and 1×/2× filtering as configured.
- 3500/42M → Rack Backplane – processed measurement data is broadcast to the rack for relay logic, Modbus/Ethernet gateway, and System 1 historian.
- 4–20 mA Output → DCS/SIS Analog Input Card – isolated analog output feeds the plant control system for trend display and interlock logic.
- Buffered Output → Portable Analyzer – raw transducer signal available for offline spectrum analysis without loop interruption.
Sourcing & Quality Verification
- Authentic Hardware – all units sourced from authorized distributors or verified OEM surplus channels; counterfeit screening performed on every batch
- Functional Test – each module bench-tested for power-up, channel response, and communication integrity prior to shipment
- Traceability – serial number and firmware revision documented; original Bently Nevada calibration certificates provided where available
- Packaging – ESD-safe anti-static bags, foam-lined cartons; humidity indicator cards included for long-haul freight
- Warranty – 12-month replacement warranty against manufacturing defects; DOA replacement within 7 business days
Procurement Process
- Inquiry – submit your part number, required quantity, and delivery timeline via the contact form or email support@konmask.com
- Quotation – receive a formal quotation with unit price, lead time, and shipping options within 24 business hours
- Order Confirmation – purchase order accepted; proforma invoice issued for payment processing
- Quality Inspection – pre-shipment inspection report and photos provided upon request
- Shipment – DHL / FedEx / sea freight with full tracking; export documentation (commercial invoice, packing list, CO) included
- After-Sales Support – technical support available via email and phone for installation, configuration, and commissioning queries
Technical FAQ
Q: Is the 3500/42M compatible with non-Bently Nevada proximity probes?
A: The module is optimized for Bently Nevada 7200, 3300, and 3500 XL transducer systems. Third-party probes may be used if their output characteristics (gap voltage, scale factor) match the configured parameters, but this requires engineering validation and is not factory-supported.
Q: Can the 176449-02 revision be used as a direct replacement for earlier 3500/42M revisions?
A: In most cases yes, provided the rack firmware and Rack Configuration Software version are compatible. Always verify the revision compatibility matrix in the 3500/42M Installation and Operation Manual (Bently Nevada P/N 141536-01) before substitution.
Q: What software is required to configure this module?
A: Bently Nevada Rack Configuration Software (RCS) is required for setpoint configuration. System 1 software is used for data historian and trend analysis. Both are Bently Nevada proprietary tools available through Baker Hughes.
Q: Does Konmask provide configuration and commissioning support?
A: Yes. Our technical team can assist with rack configuration file review, setpoint recommendations, and remote commissioning support. Contact support@konmask.com for details.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. For units requiring sourcing, lead time is typically 2–4 weeks depending on availability. Expedited options available upon request.
