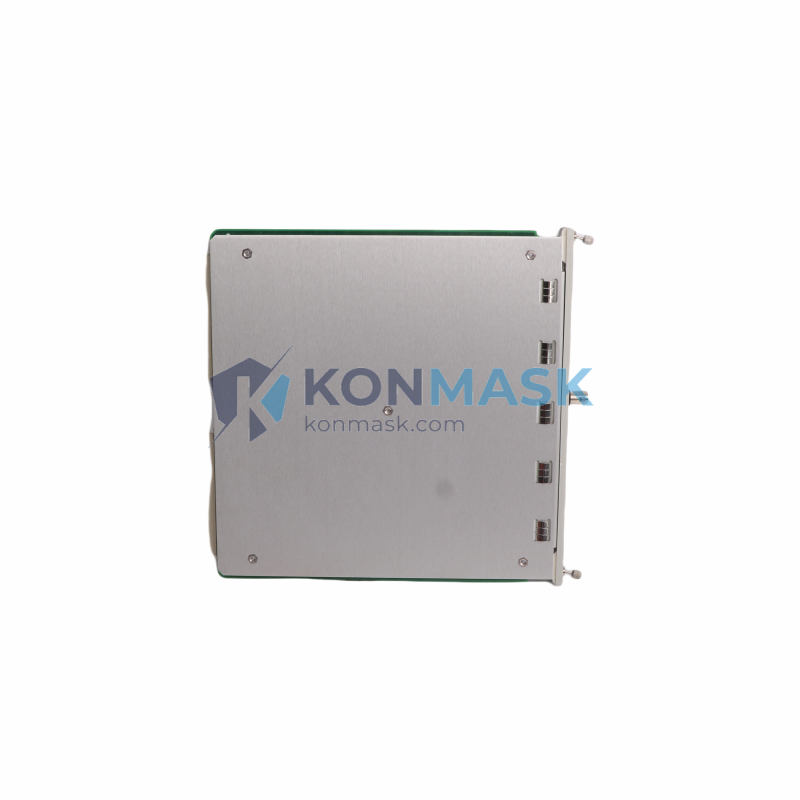

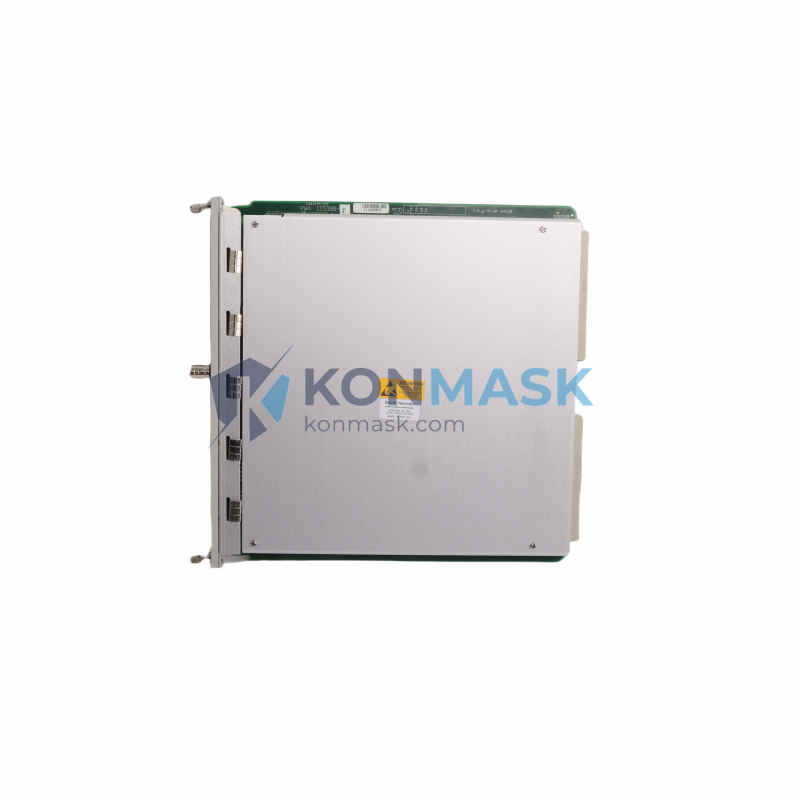

Bently Nevada 3500/53 133388-01 Overspeed Detection Module | Replacement, Equivalent & Selection Guide
The Bently Nevada 3500/53 (Part No. 133388-01) is a dedicated Overspeed Detection Module within the industry-standard Bently Nevada 3500 Series machinery protection system. Designed for continuous, real-time overspeed monitoring of rotating machinery, it provides critical trip protection for turbines, compressors, pumps, and other high-speed rotating equipment. Konmask.com supplies both original OEM units and verified compatible replacements to support your maintenance and upgrade requirements.
Technical Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Model / SKU: 3500/53
- Part Number: 133388-01
- Series: Bently Nevada 3500 Machinery Protection System
- Module Type: Overspeed Detection Module
- Channels: Triple redundant speed inputs (3-channel voting logic)
- Speed Input: Compatible with passive magnetic pickups and active proximity probes
- Trip Logic: 2-out-of-3 (2oo3) voting for high-integrity overspeed trip
- Communication: Rack-based backplane communication within 3500 chassis
- Power Supply: Supplied via 3500 rack backplane
- Operating Temperature: 0°C to 65°C (32°F to 149°F)
- Certifications: SIL 2 capable, CE, CSA
- Weight: Approx. 840 g
- Form Factor: Single-slot 3500 rack module
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the Bently Nevada 3500/53 133388-01. Always verify electrical and functional compatibility before substitution:
- Bently Nevada 3500/53 133388-02 — Alternate firmware revision; functionally equivalent in most applications
- Bently Nevada 3500/53 133388-03 — Enhanced version with extended diagnostic features
- Bently Nevada 3500/53M — Modular variant with additional configuration options
- Bently Nevada 3500/50 (133388-01) — Tachometer/Overspeed module; partial functional overlap, verify trip logic compatibility
- Emerson Overspeed Detection Modules — Post-acquisition Emerson-branded equivalents; confirm part cross-reference with Emerson/Baker Hughes
Note: Konmask.com recommends consulting the 3500/53 product manual and your system integrator before substituting any module in a safety-critical application.
Why Choose the Original Model
- Proven SIL 2 Safety Integrity: Factory-validated 2oo3 voting logic ensures reliable overspeed trip without nuisance trips
- Seamless 3500 Rack Integration: Plug-and-play compatibility with all standard Bently Nevada 3500 chassis and backplanes
- Long Field Track Record: Deployed globally in power generation, oil & gas, and petrochemical industries for decades
- OEM Firmware & Calibration: Factory-calibrated with certified firmware; no field re-engineering required
- Full Bently Nevada Ecosystem Support: Compatible with System 1 software, Rack Configuration Software (RCS), and Bently Nevada service network
Typical Applications
- Steam turbine and gas turbine overspeed protection
- Centrifugal compressor speed monitoring and trip
- Pump and motor overspeed detection in critical process loops
- Power generation units requiring SIL-rated protection
- Offshore and onshore oil & gas rotating equipment protection
- Petrochemical plant machinery protection systems
System Compatibility
- Rack: Bently Nevada 3500 Rack (all standard chassis configurations)
- Power Module: 3500/15 Power Supply Module
- Communication Gateway: 3500/92 Communication Gateway Module (Modbus, Ethernet)
- Software: Bently Nevada Rack Configuration Software (RCS), System 1 Condition Monitoring Software
- Probes: Compatible with 3300 XL, 3300 NSv, and standard passive magnetic pickup sensors
Selection Guide
Use the following criteria to confirm the 3500/53 133388-01 is the correct module for your application:
- Step 1 — Verify Part Number: Confirm the exact part number (133388-01) on the existing module label or engineering BOM
- Step 2 — Check Rack Slot: Confirm available single-slot position in your 3500 chassis
- Step 3 — Speed Input Type: Verify sensor type (passive magnetic pickup vs. active proximity probe) matches module input specification
- Step 4 — Trip Logic Requirement: Confirm 2oo3 voting logic meets your SIL and process safety requirements
- Step 5 — Firmware Revision: If replacing an existing module, match firmware revision or confirm backward compatibility with your RCS configuration
- Step 6 — Contact Konmask: Share your rack configuration and application details — our engineers will confirm the correct part and revision
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment functional inspection and visual QC on every unit
- Original OEM packaging preserved where available
- Traceability documentation provided upon request
- Warranty: 12 months from date of shipment (defective unit replacement)
- Export compliance: ECCN classification and export documentation available for international orders
How to Order
- Online: Add to cart directly on this page at Konmask.com
- Email RFQ: [email protected] — include part number, quantity, and required delivery date
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days
- Payment: T/T (Wire Transfer), PayPal, and major credit cards accepted
- Shipping: DHL, FedEx, UPS express worldwide; sea freight available for bulk orders
Replacement & Compatibility FAQ
Q: Can I replace 133388-01 with 133388-02 without reconfiguring the rack?
A: In most cases yes, but you should re-upload your RCS configuration file after swapping to ensure all parameters are correctly applied. Consult the Bently Nevada 3500/53 manual for revision-specific differences.
Q: Is the 3500/53 compatible with third-party speed sensors?
A: The module supports standard passive magnetic pickups and active proximity probes meeting Bently Nevada input specifications. Third-party sensors must be verified against the module’s input impedance and signal level requirements.
Q: Does Konmask.com supply refurbished units?
A: We supply both new OEM units and professionally tested surplus units. All surplus units undergo functional testing and are clearly labeled. Contact us to specify your preference.
Q: Can this module be used as a standalone overspeed trip device?
A: No. The 3500/53 is designed to operate within the Bently Nevada 3500 rack system and relies on the rack backplane for power and communication. It is not a standalone device.
Q: What is the typical lead time for a replacement unit?
A: In-stock units ship within 1–3 business days. For sourced or refurbished units, lead time is typically 5–15 business days. Contact us for real-time stock status.
